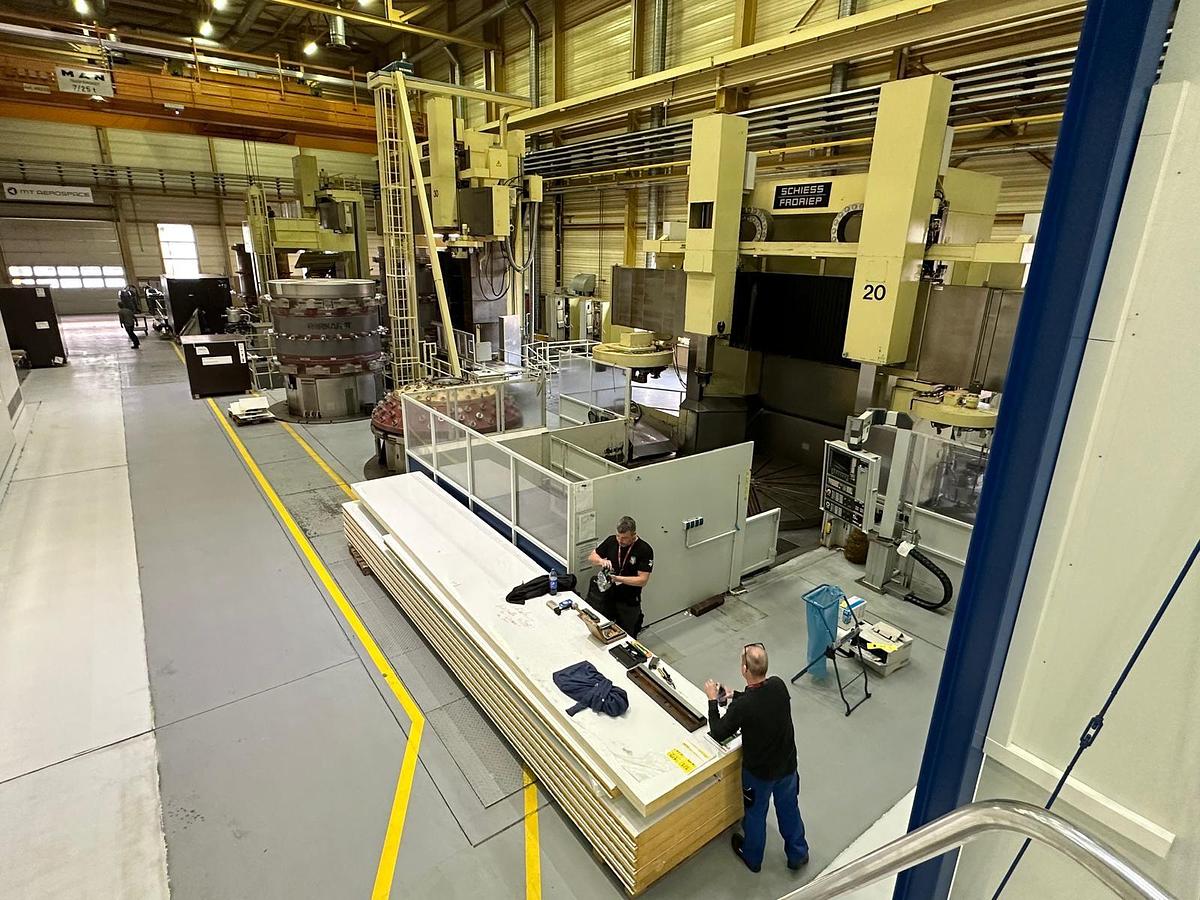

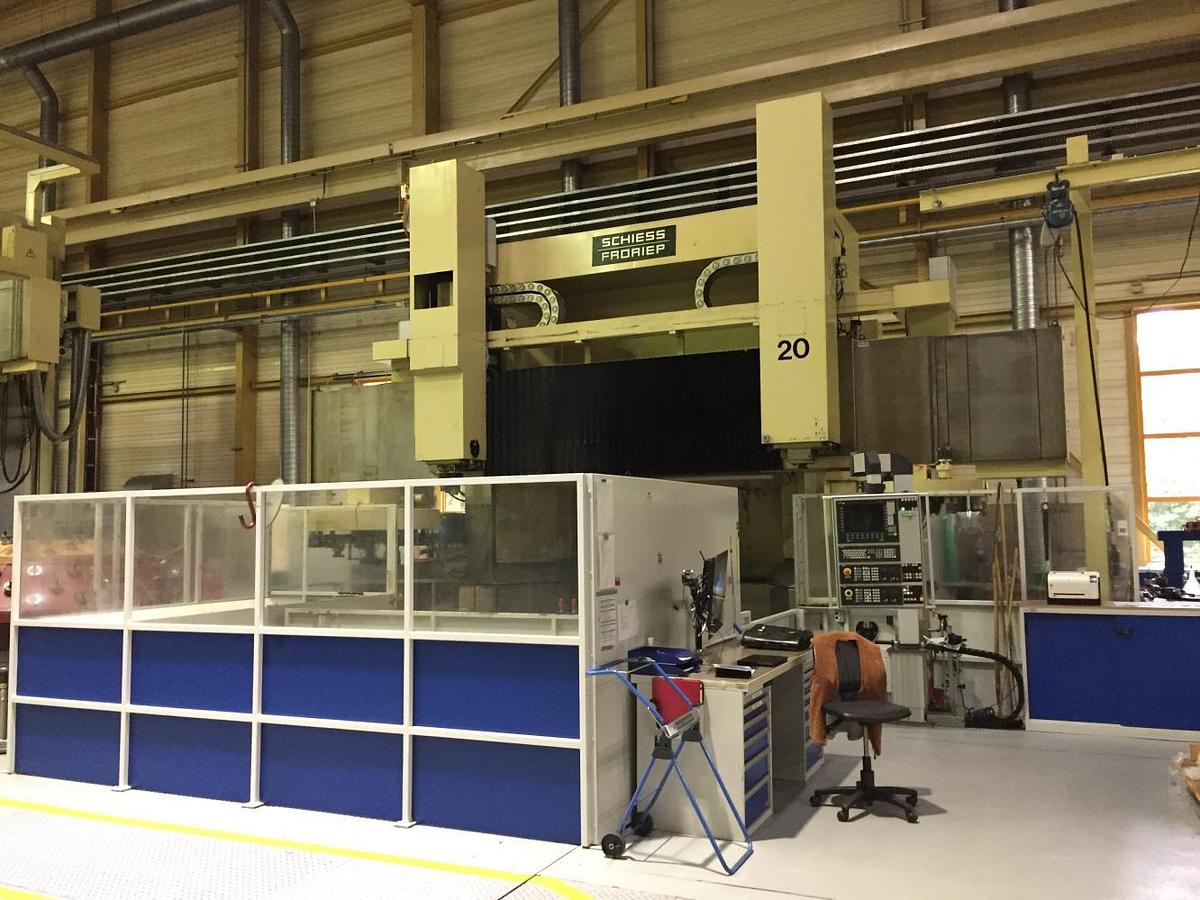

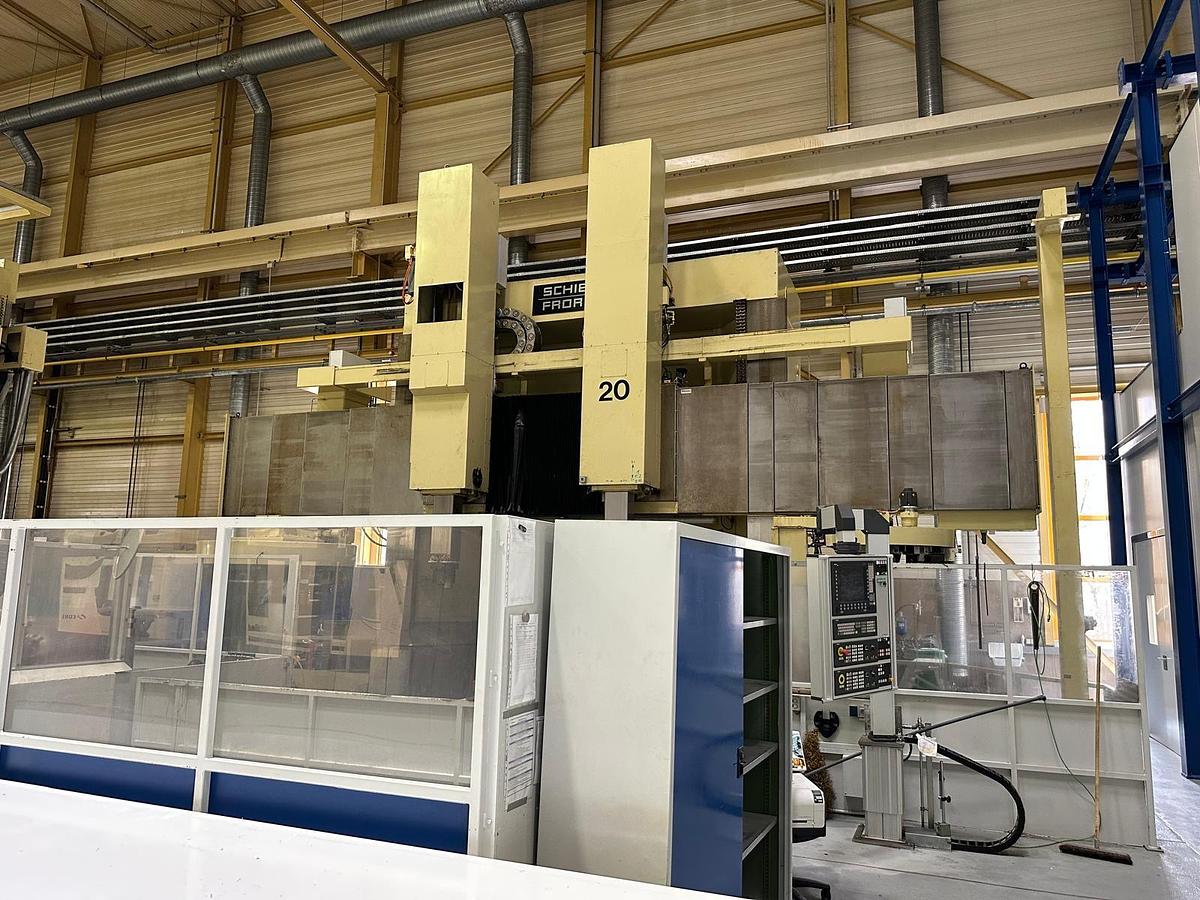

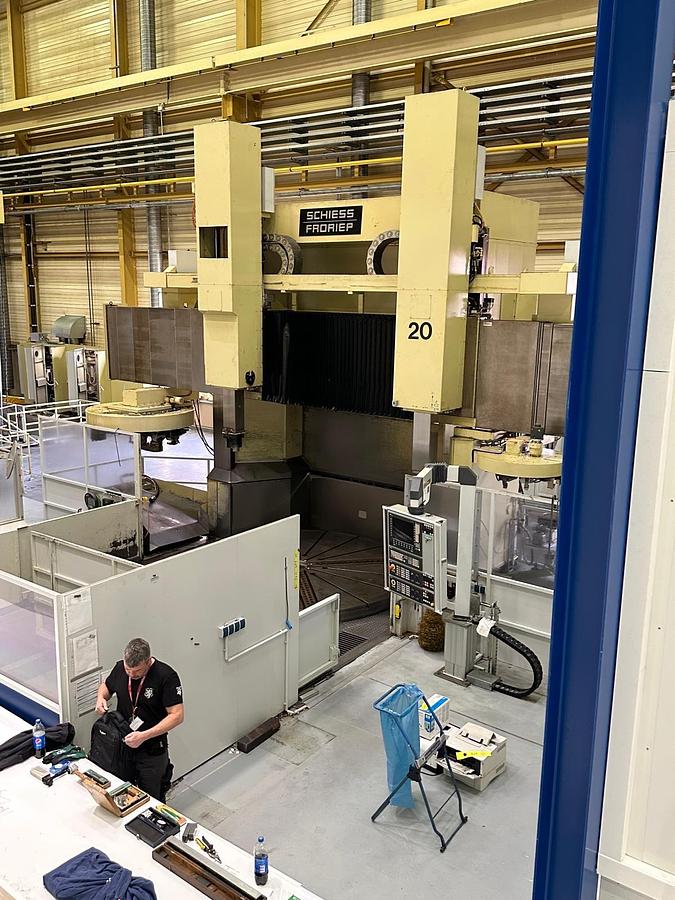

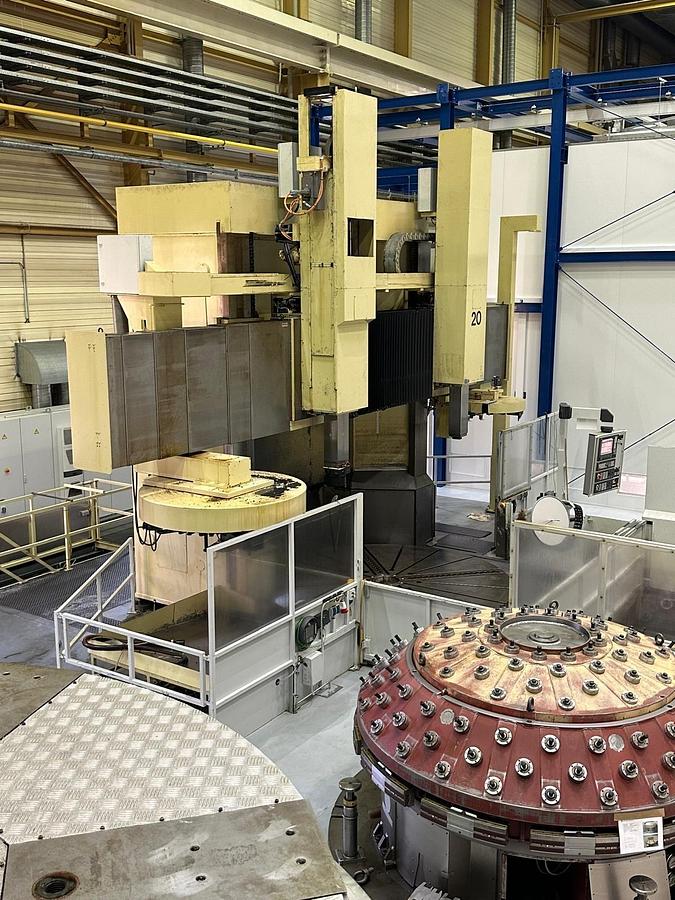

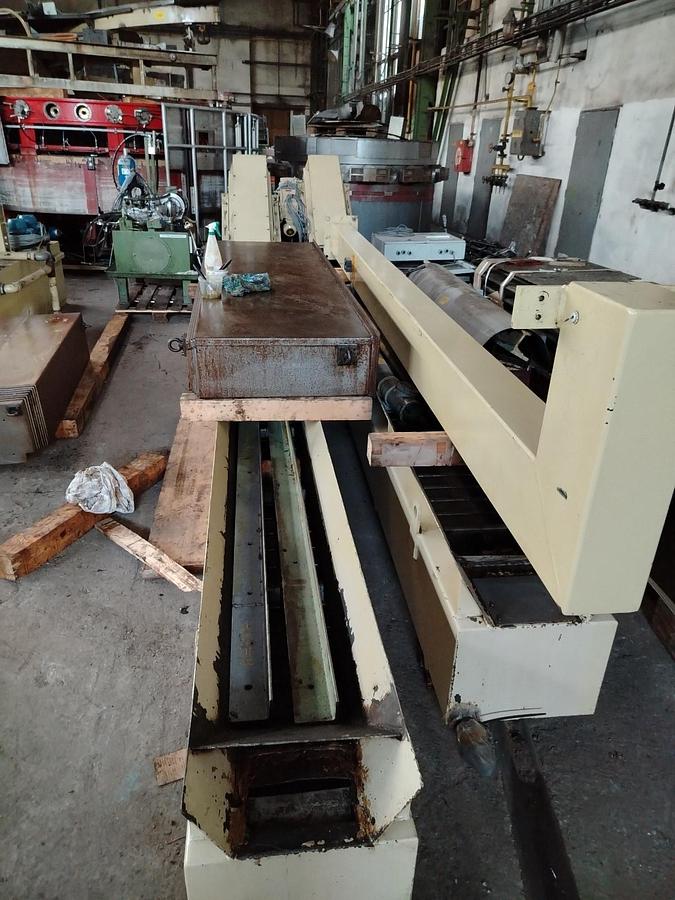

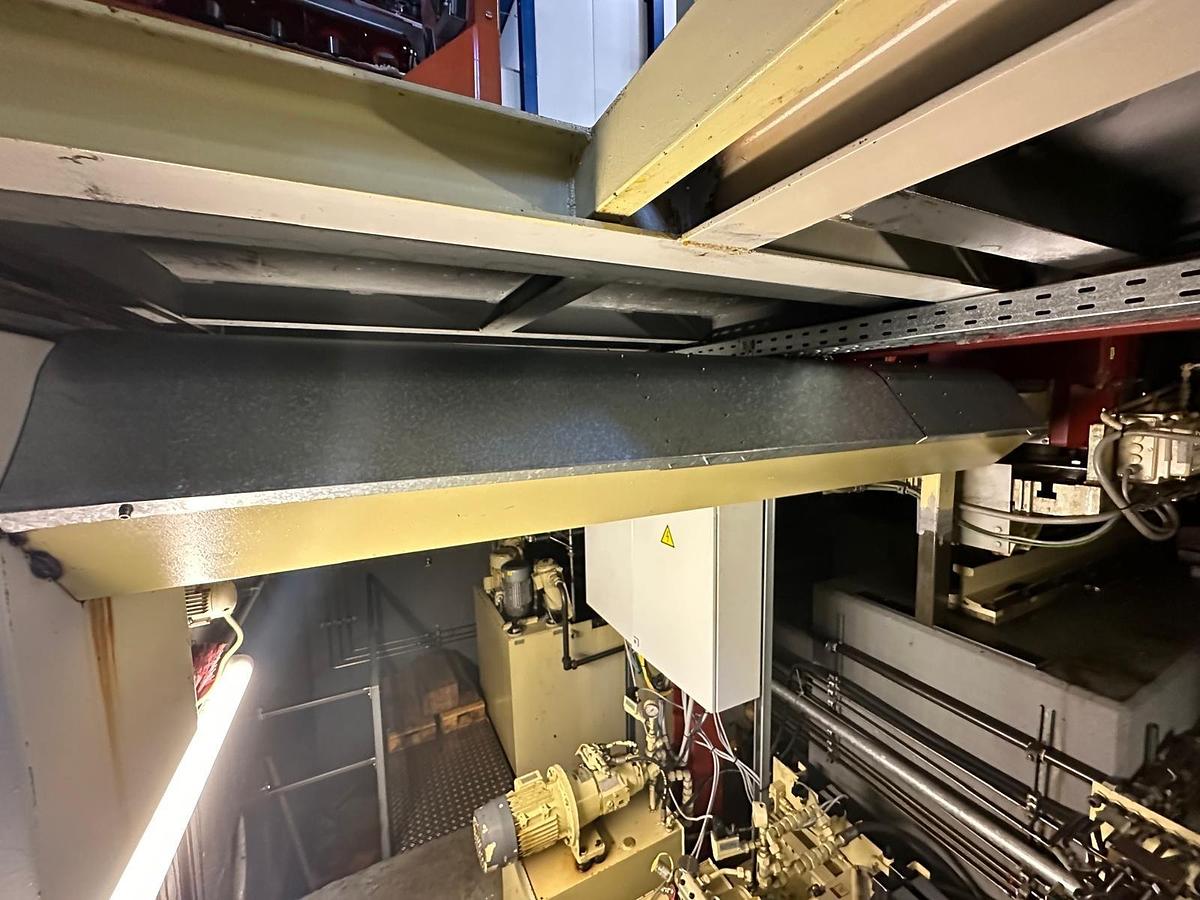

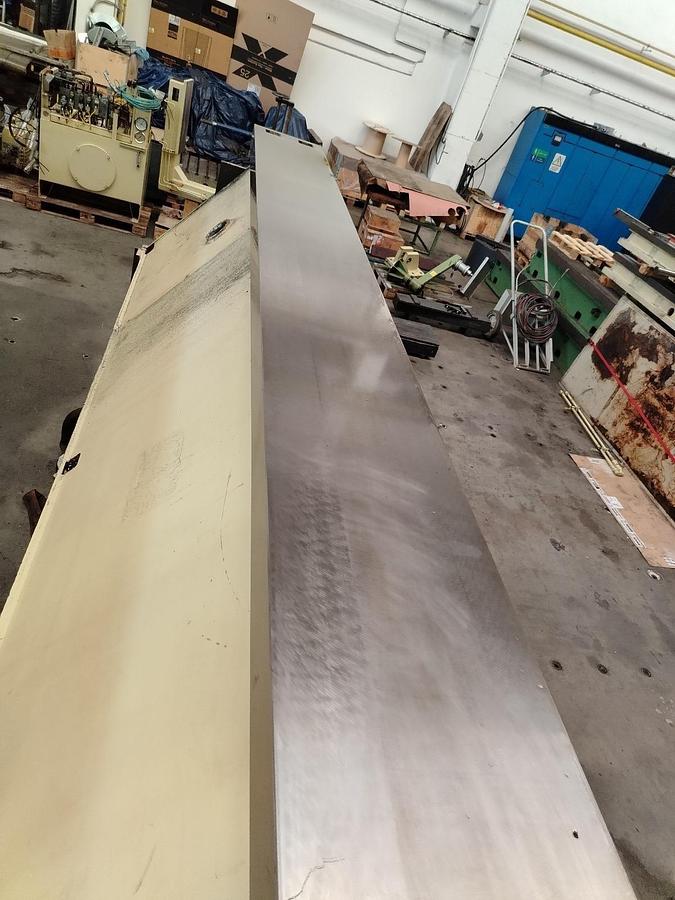

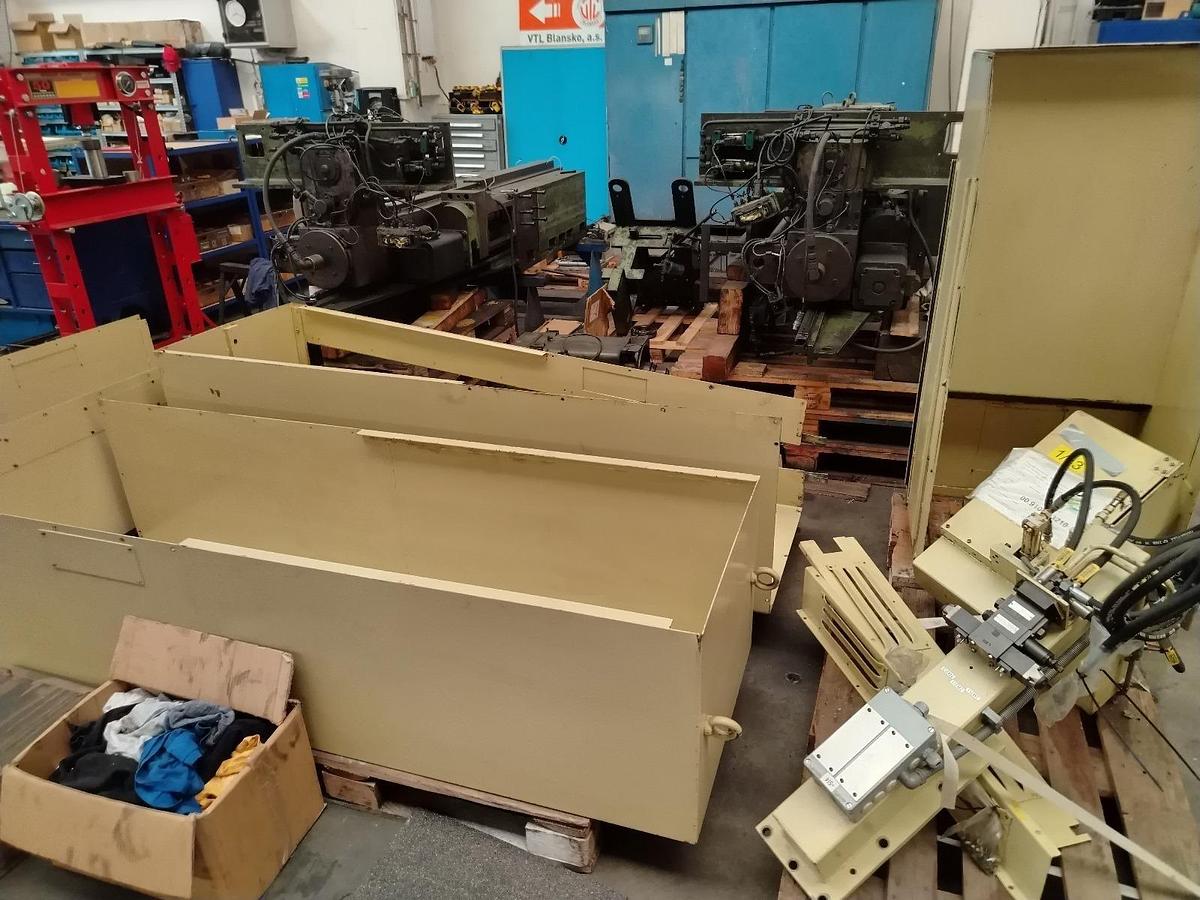

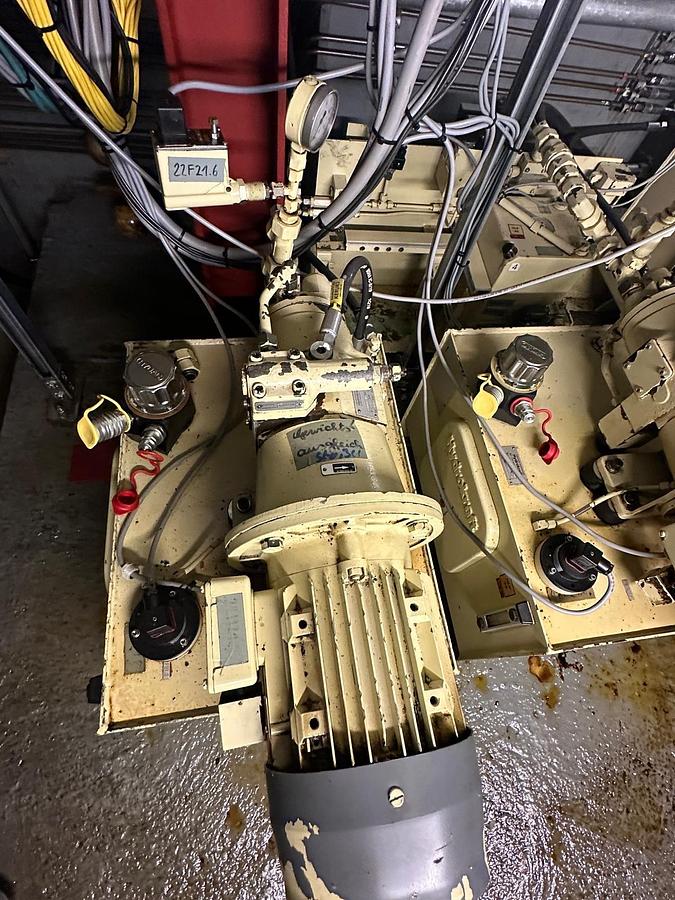

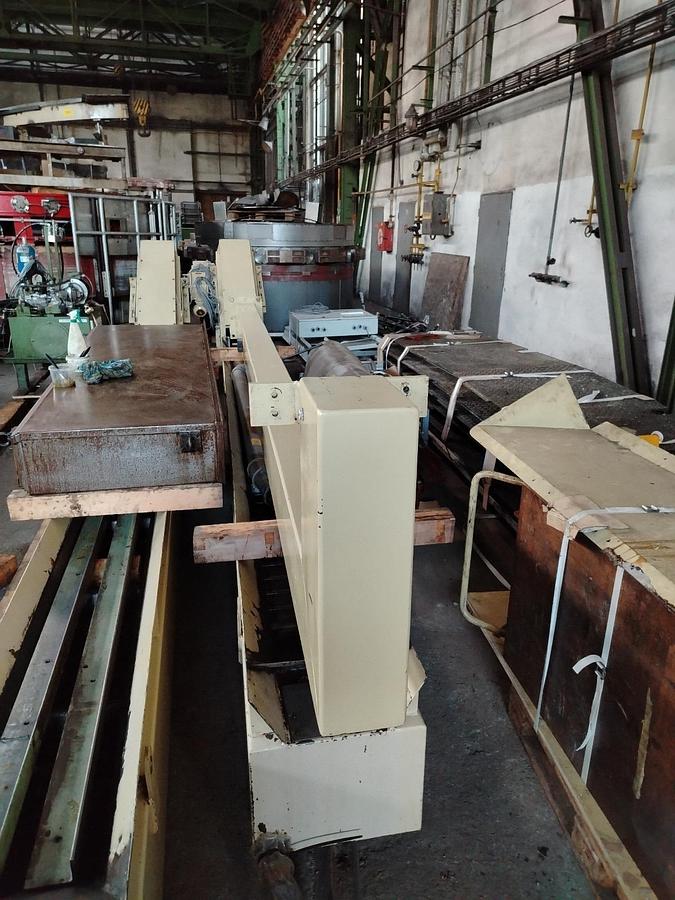

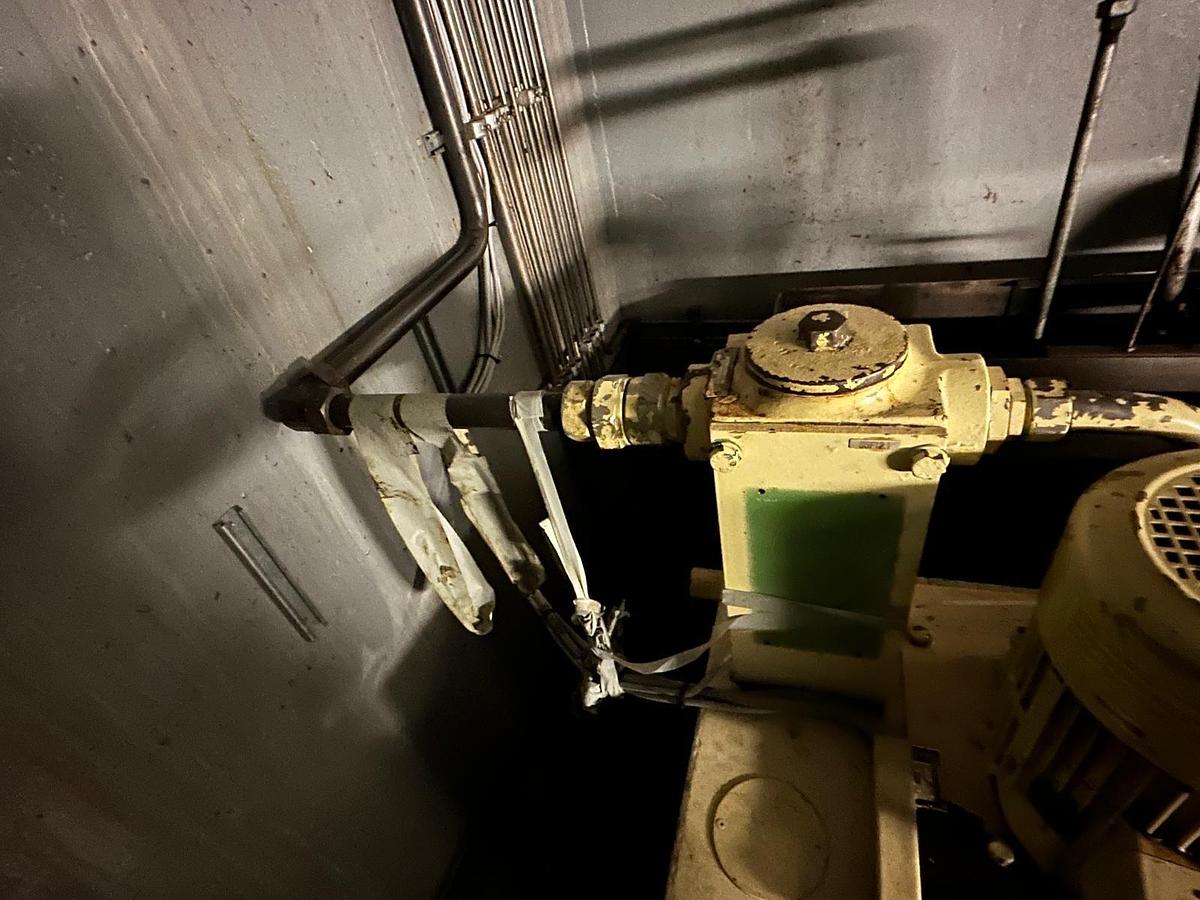

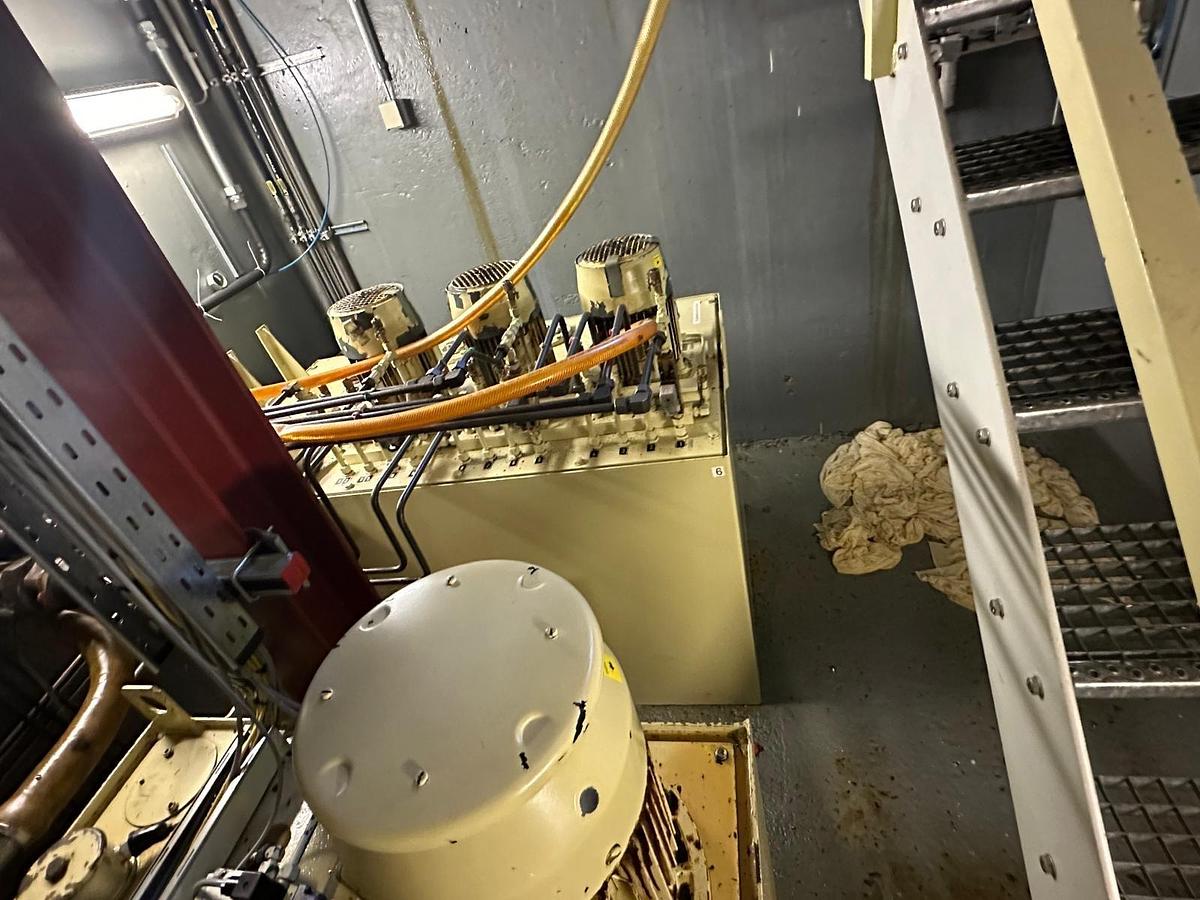

Schiess 40 DZ CNC Double Ram Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
Schiess 40 DZ CNC Double Ram Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description
Rebuilt & Retrofitted in 2015

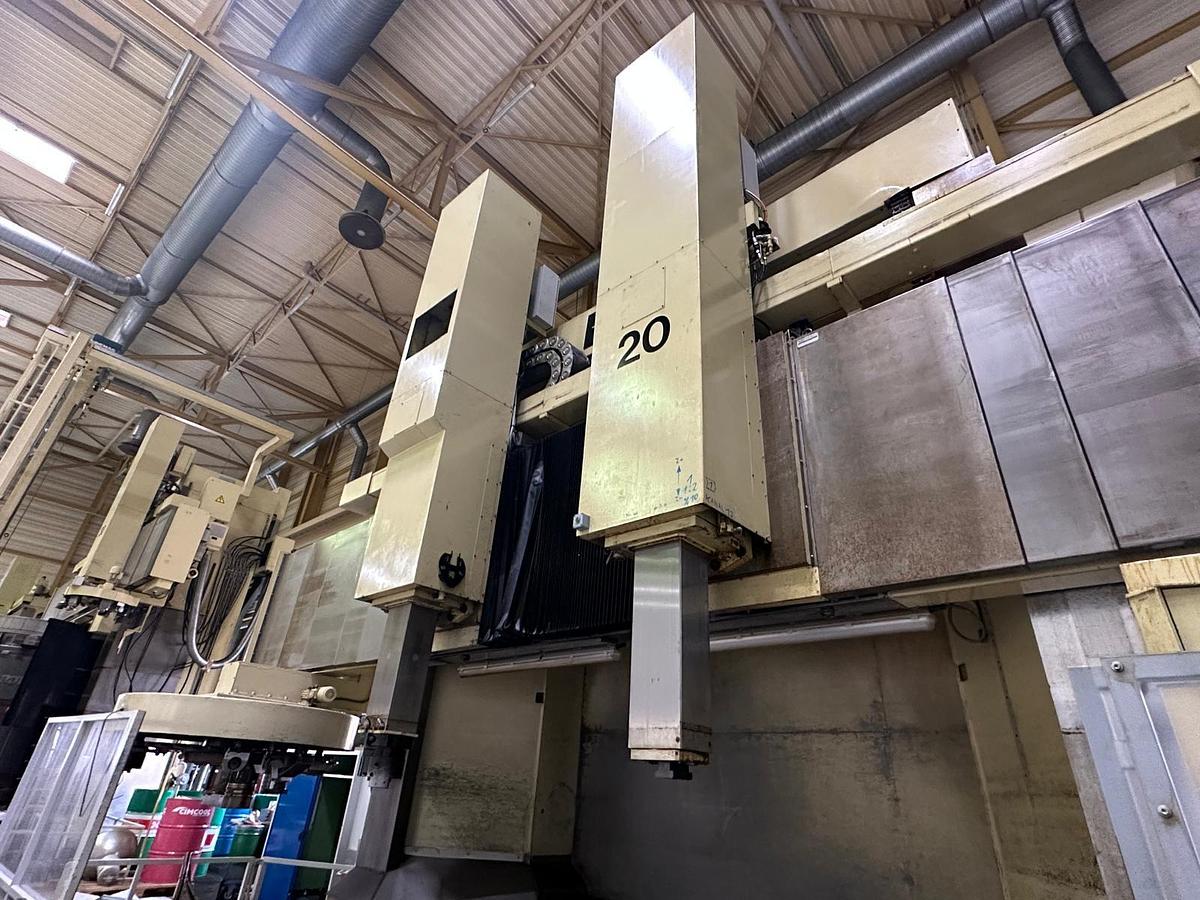

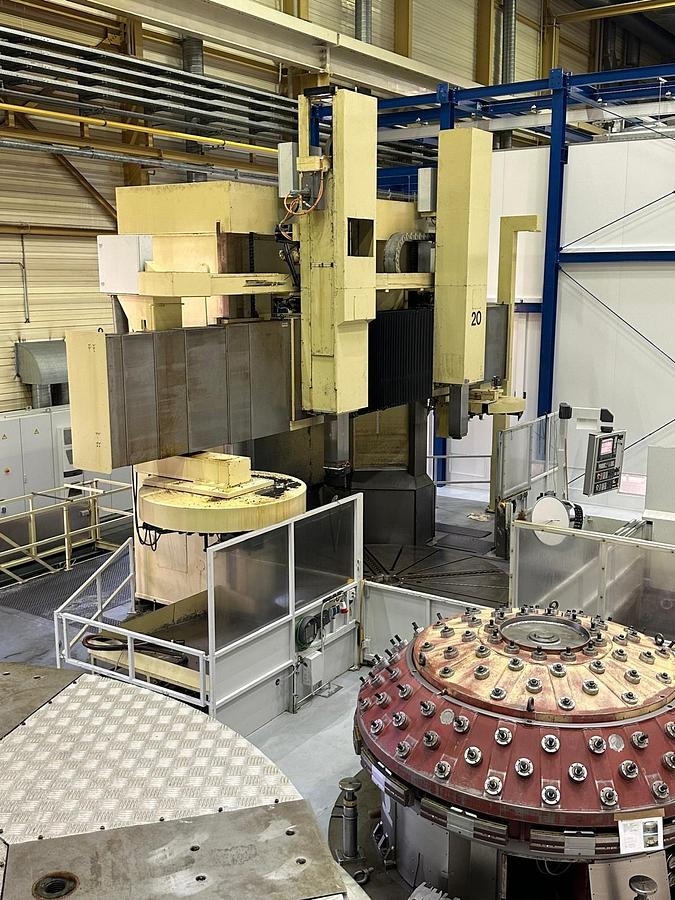

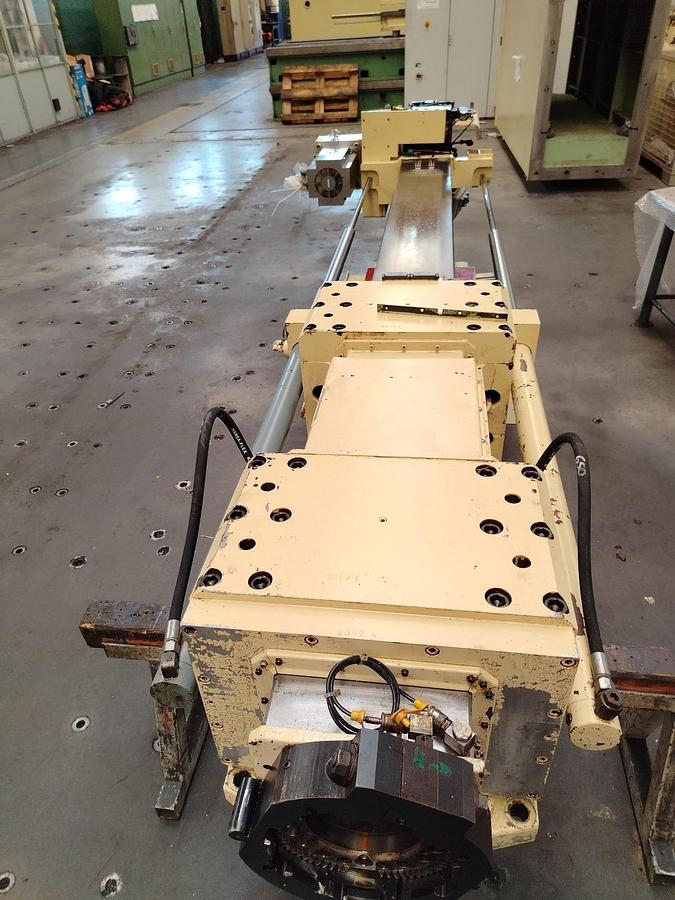

Double Ram Machine
1 x Ram for Turning
1 x Ram for Live Spindle
Machine Complete With:

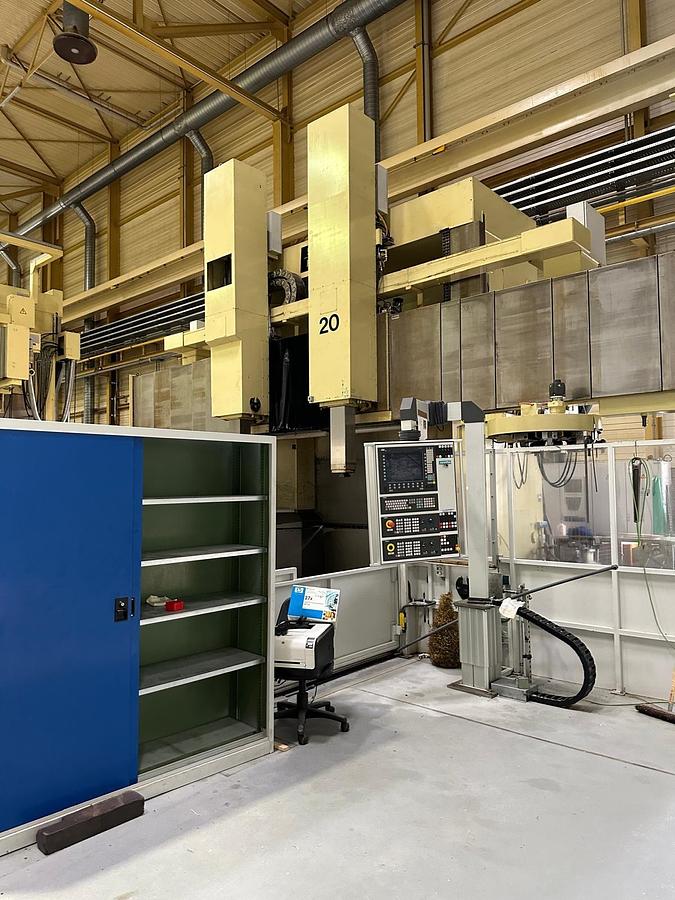

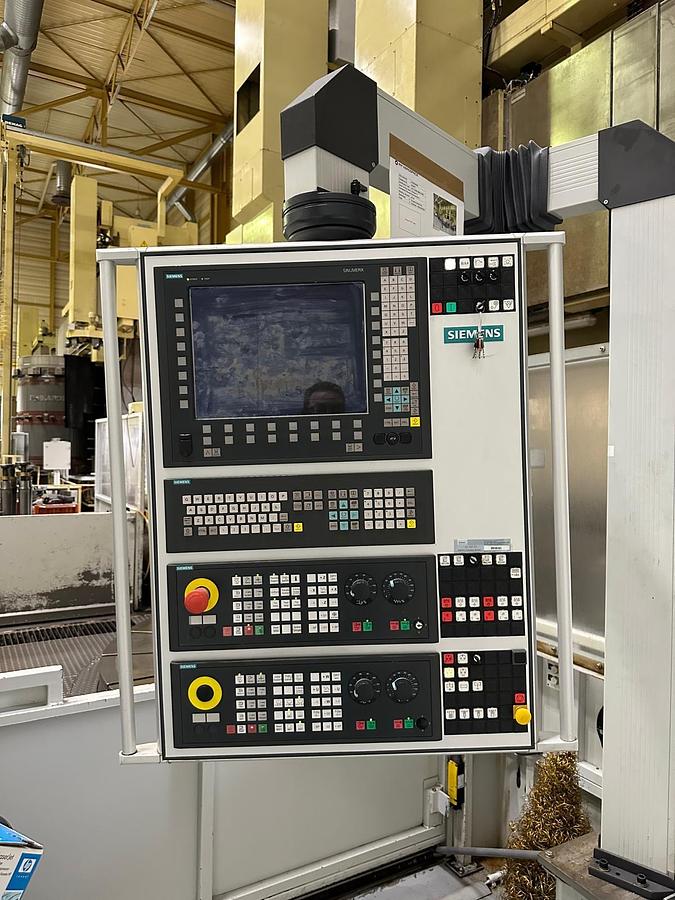

Siemens 840DSL CNC Control

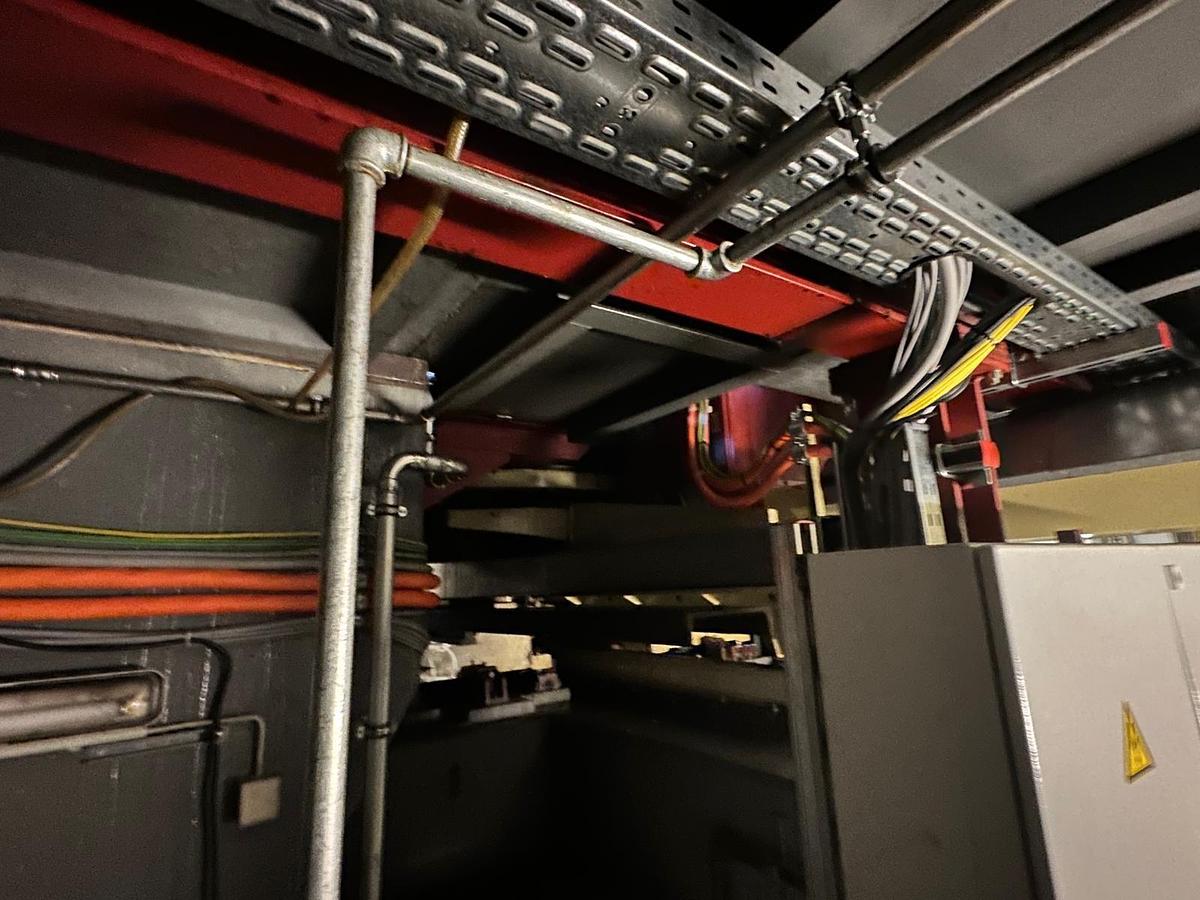

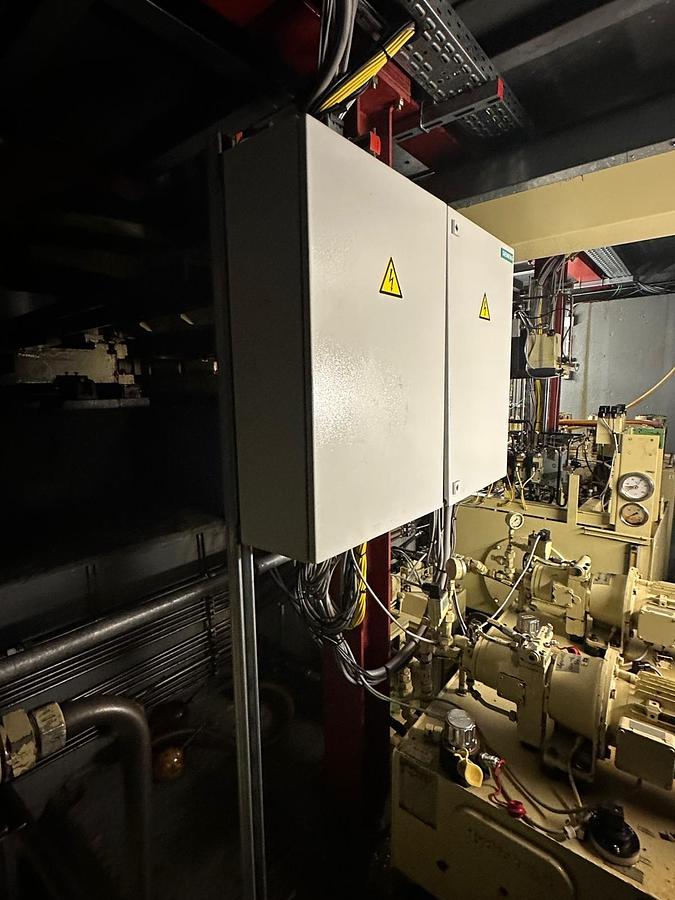

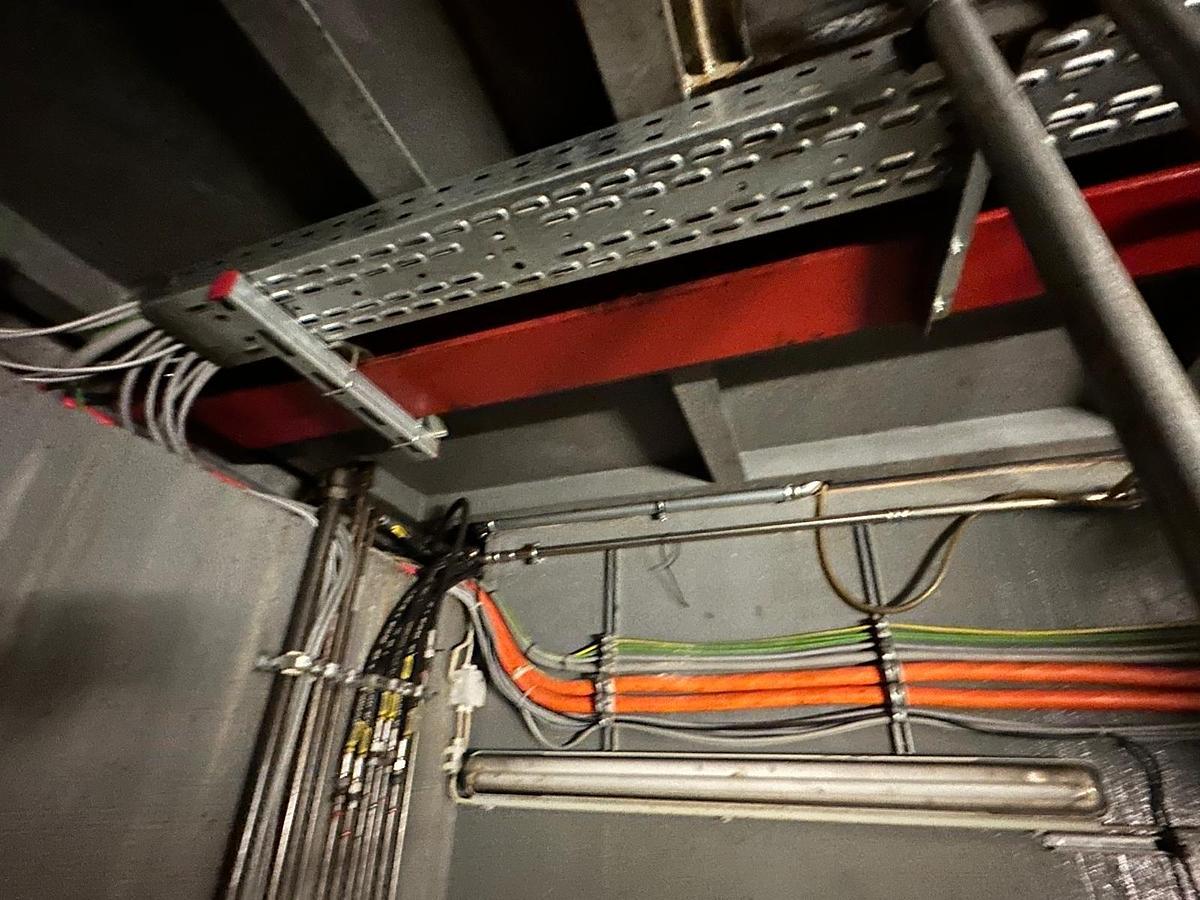

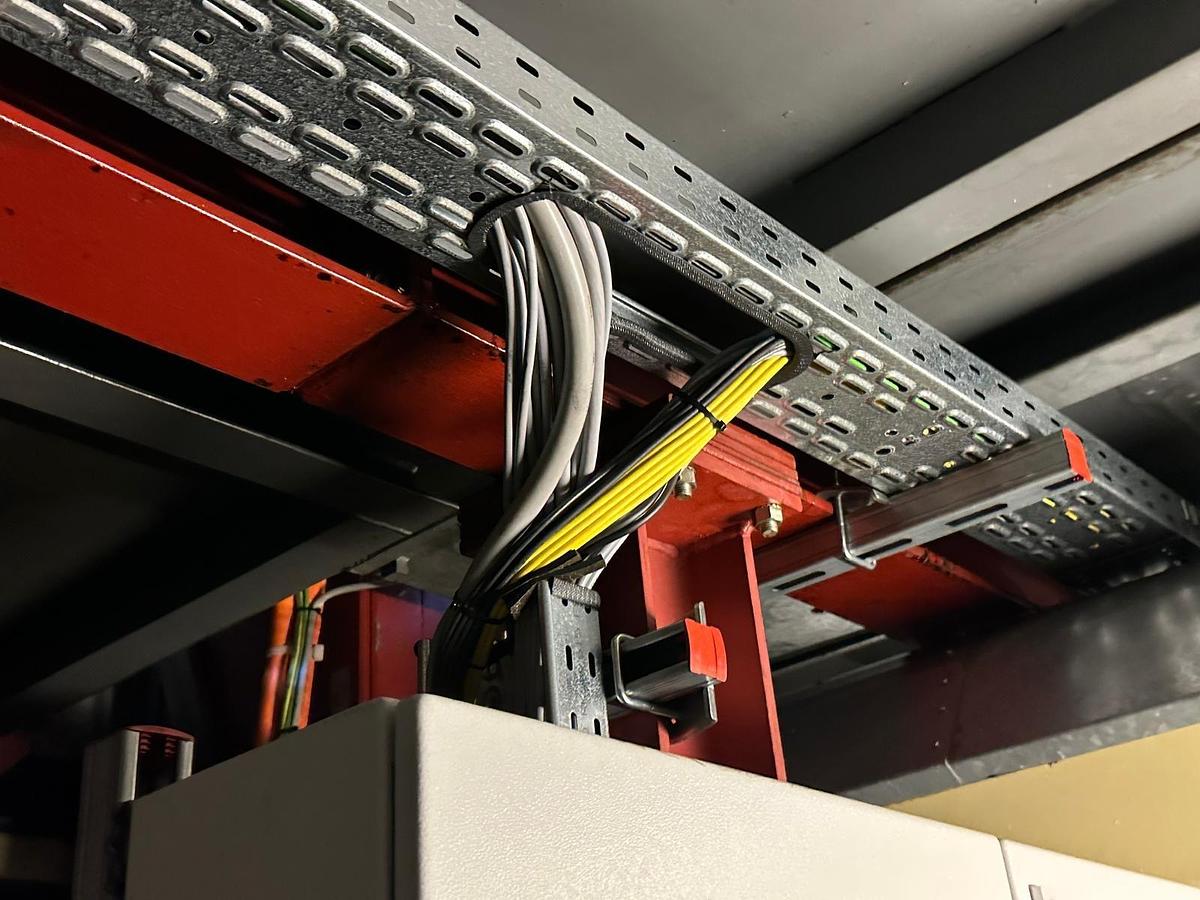

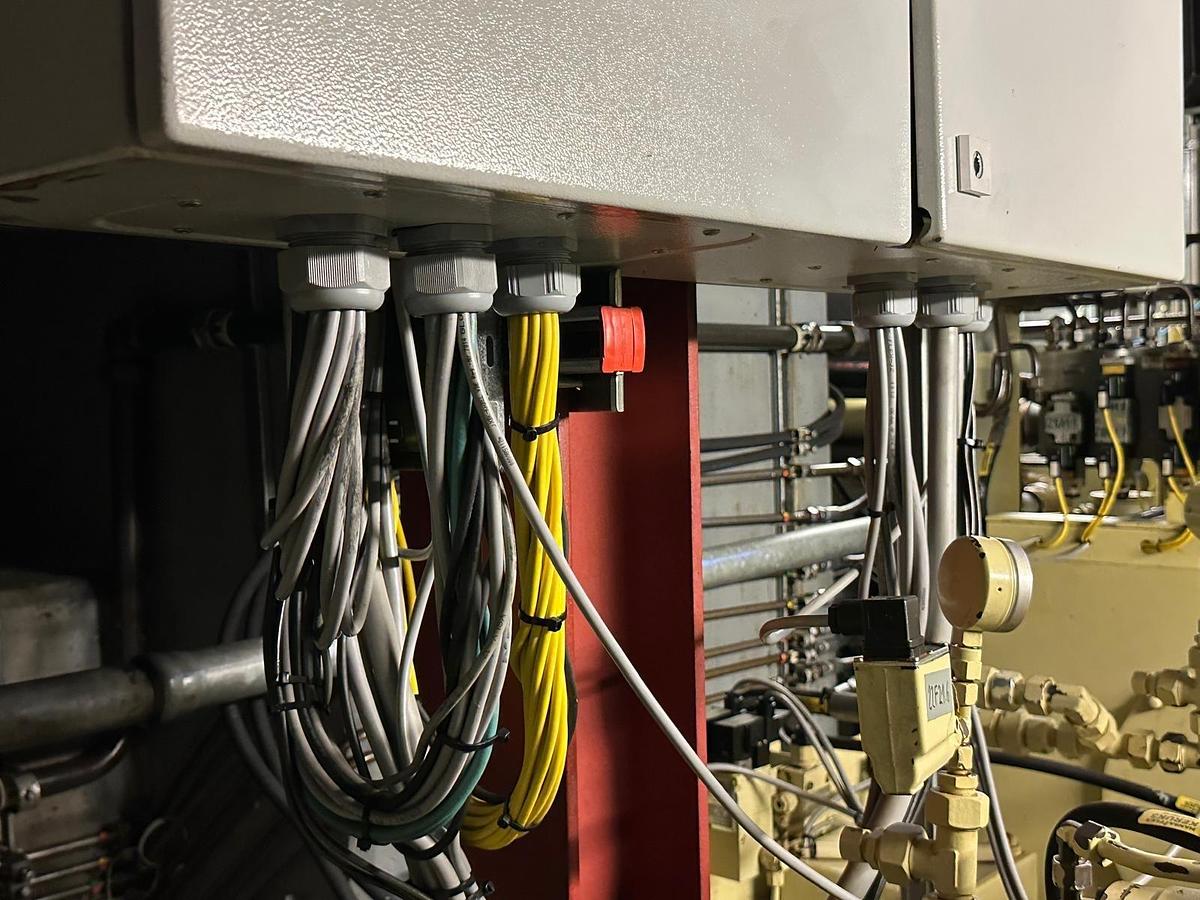

New electric (Switch cupboard, cables, sensors, etc.)

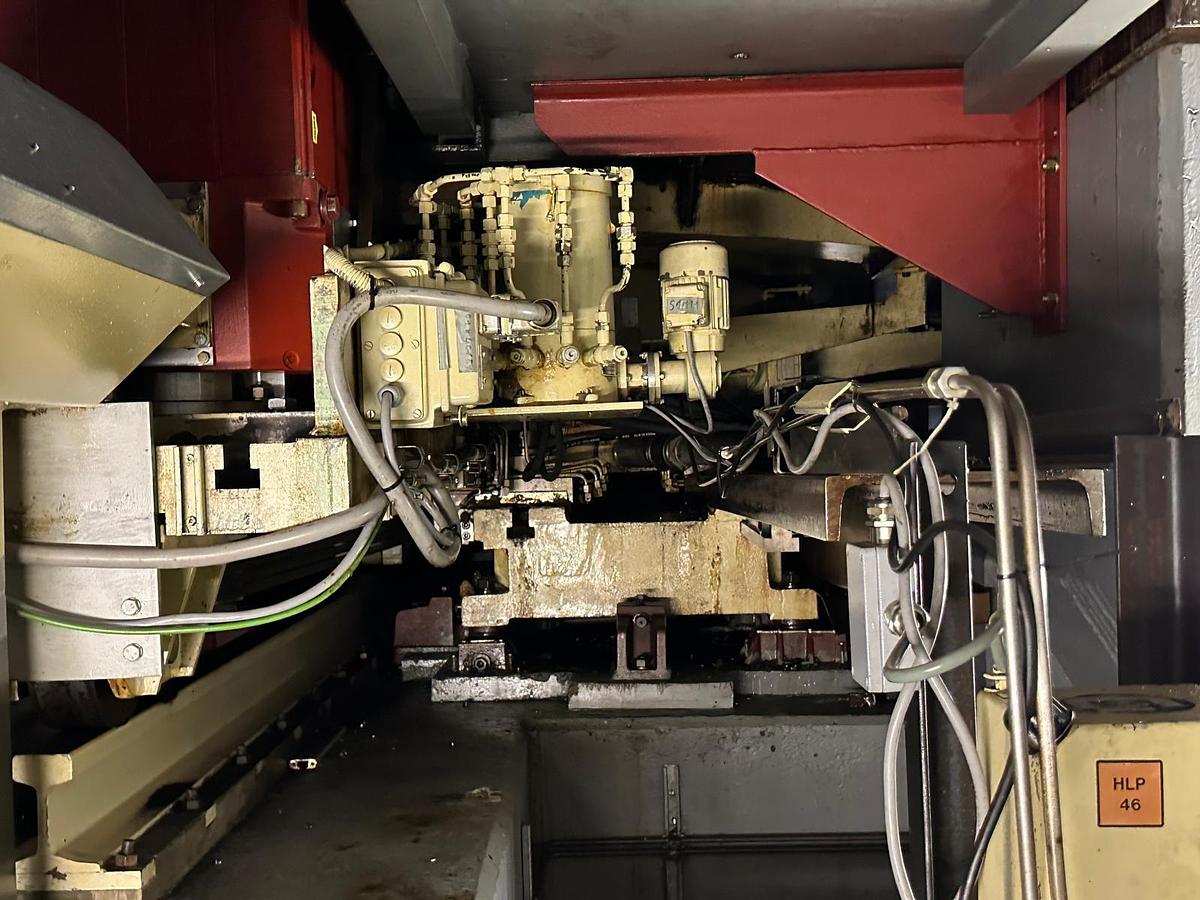

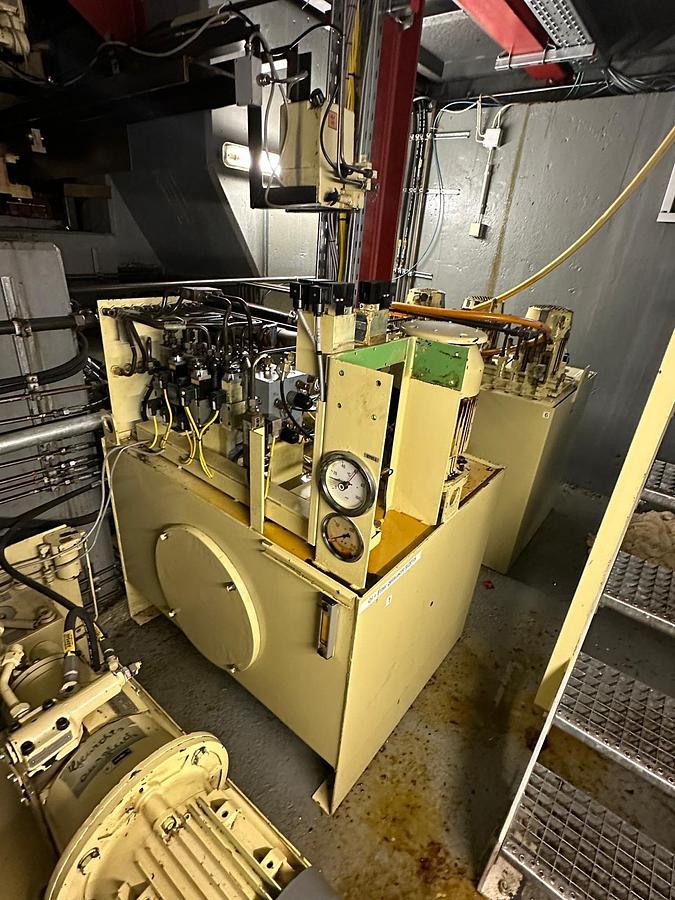

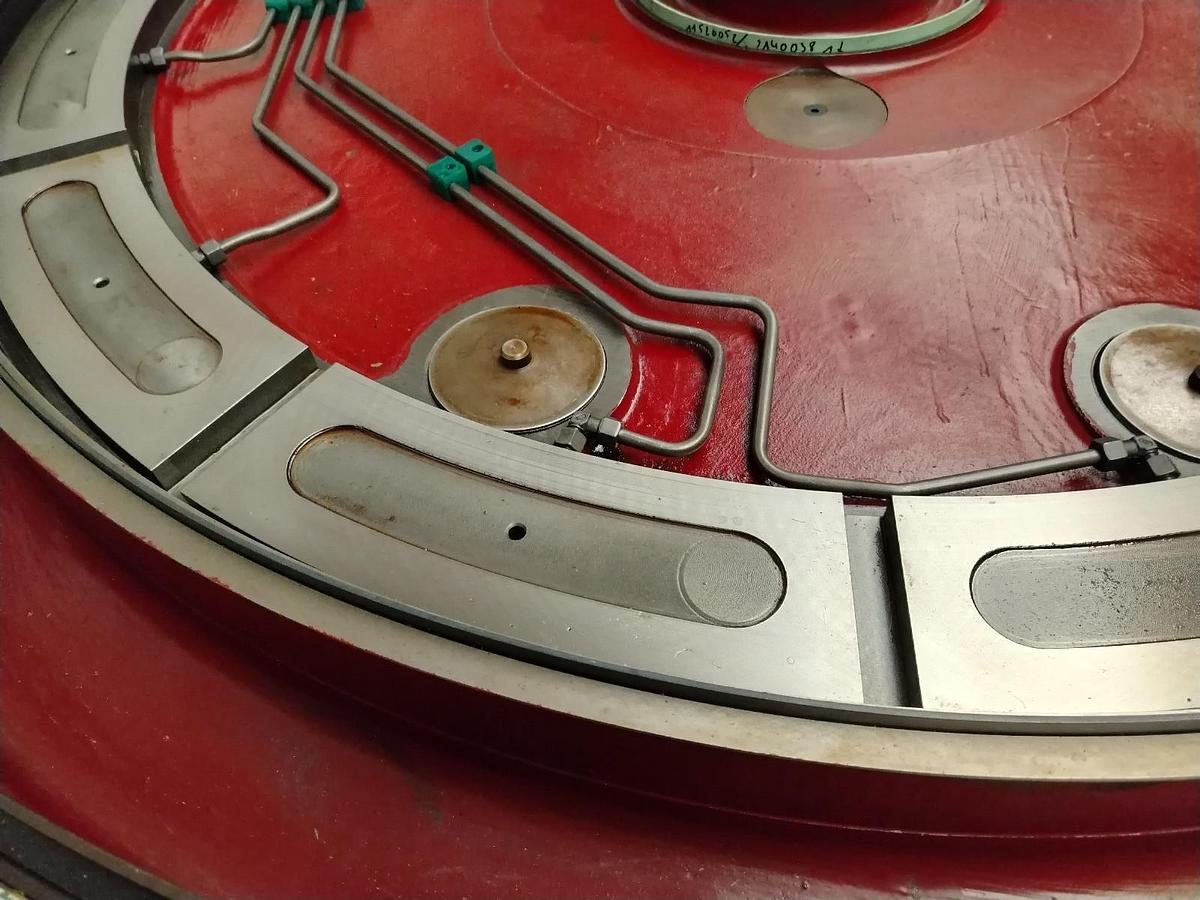

All Axes and incl. Table are hydrostatic guided
Operator Lifting Platform

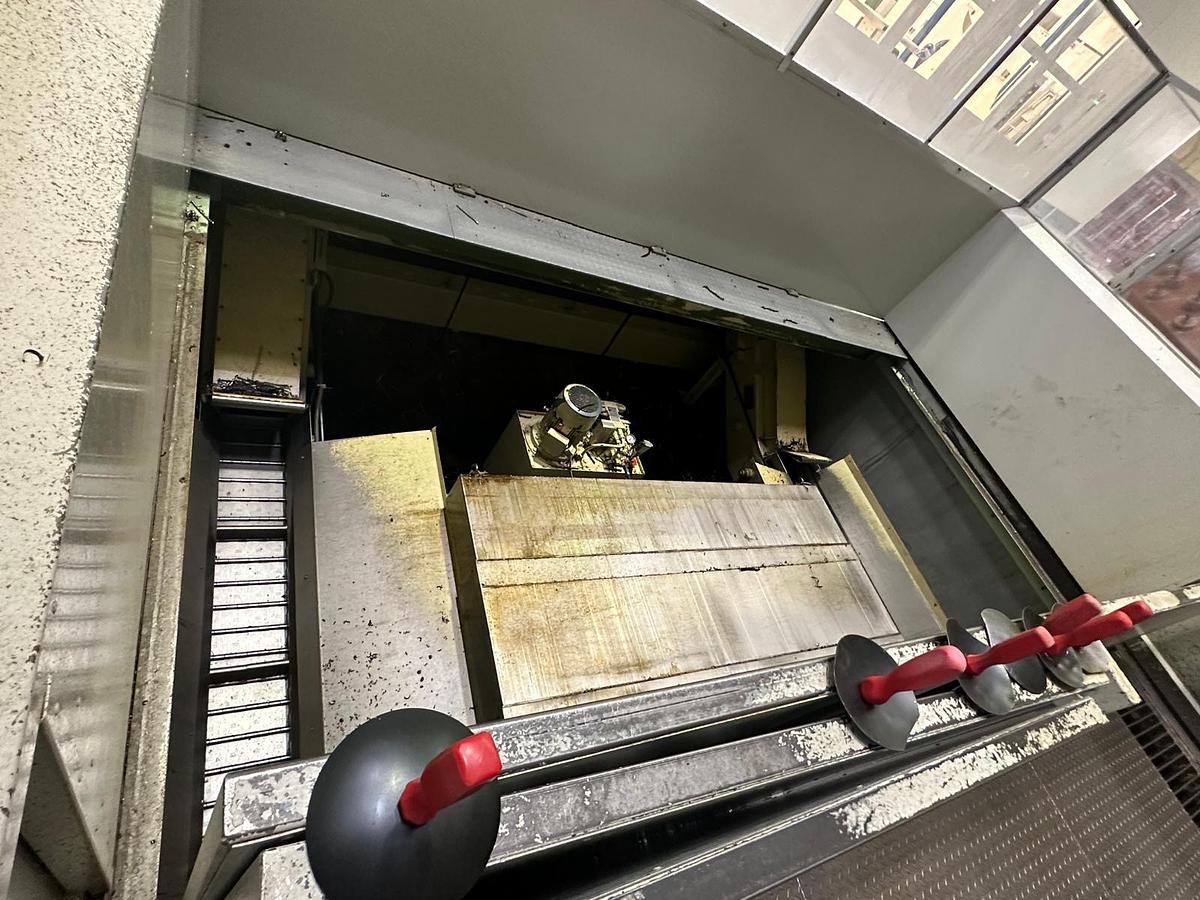

Chip conveyor

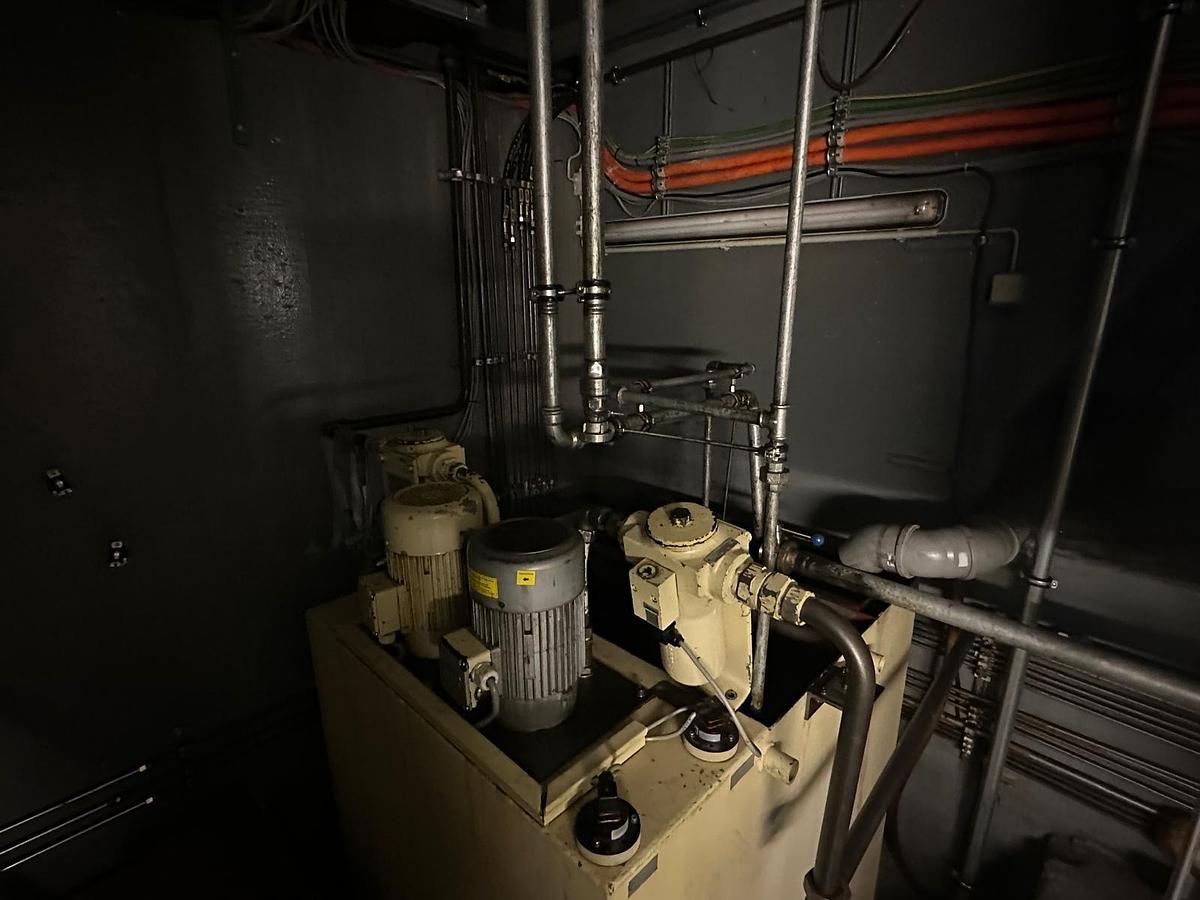

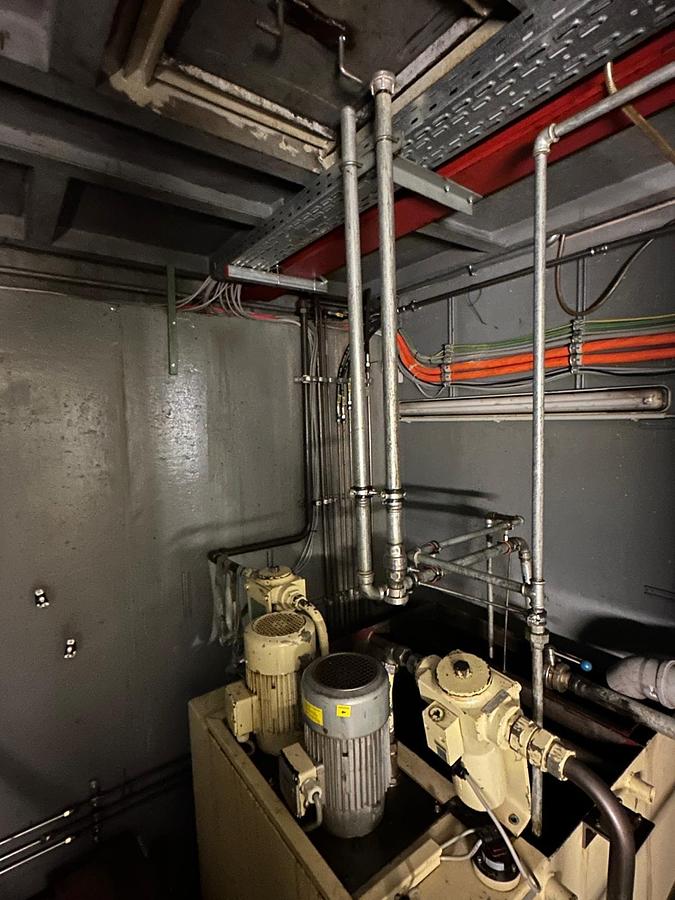

Coolant Unit

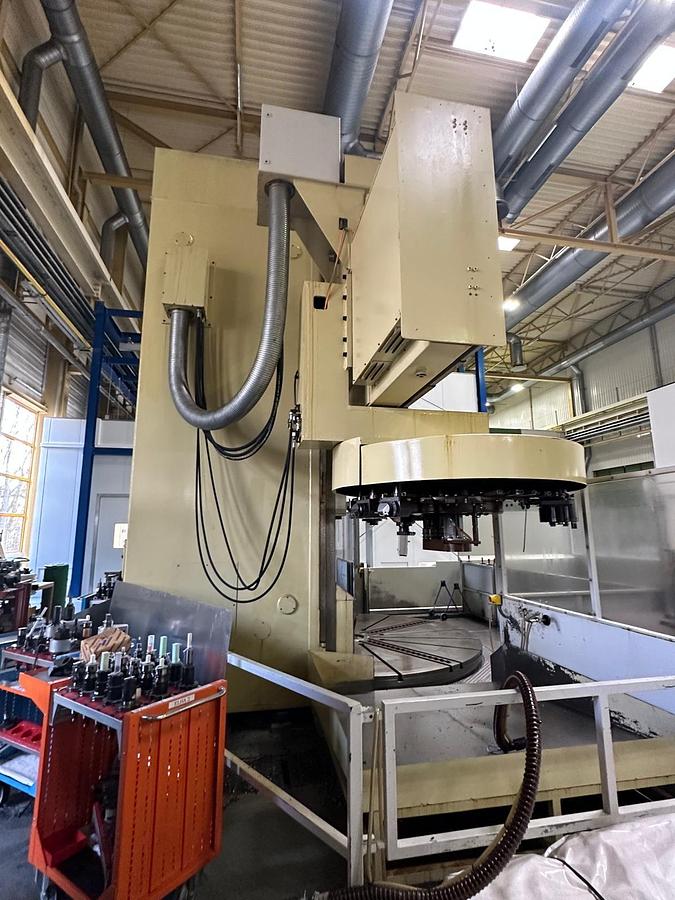

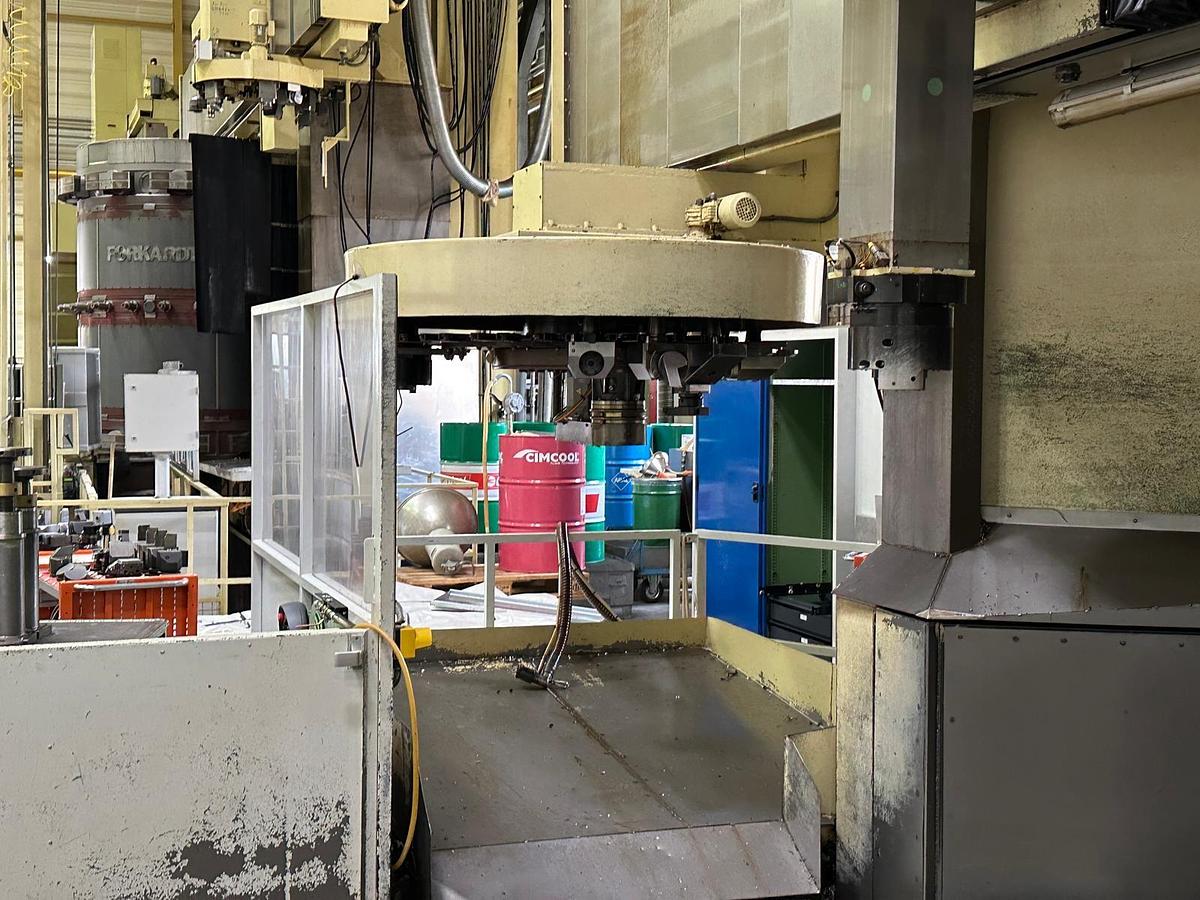

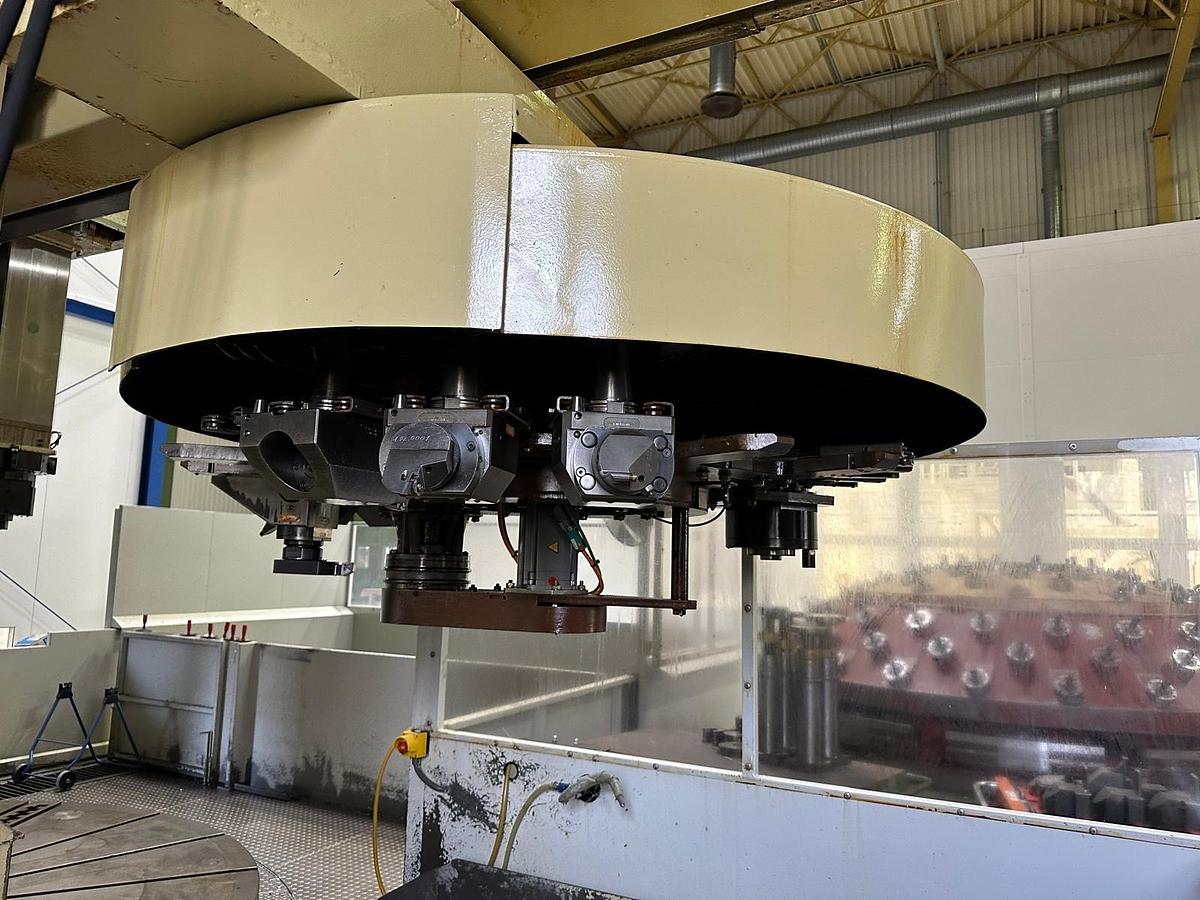

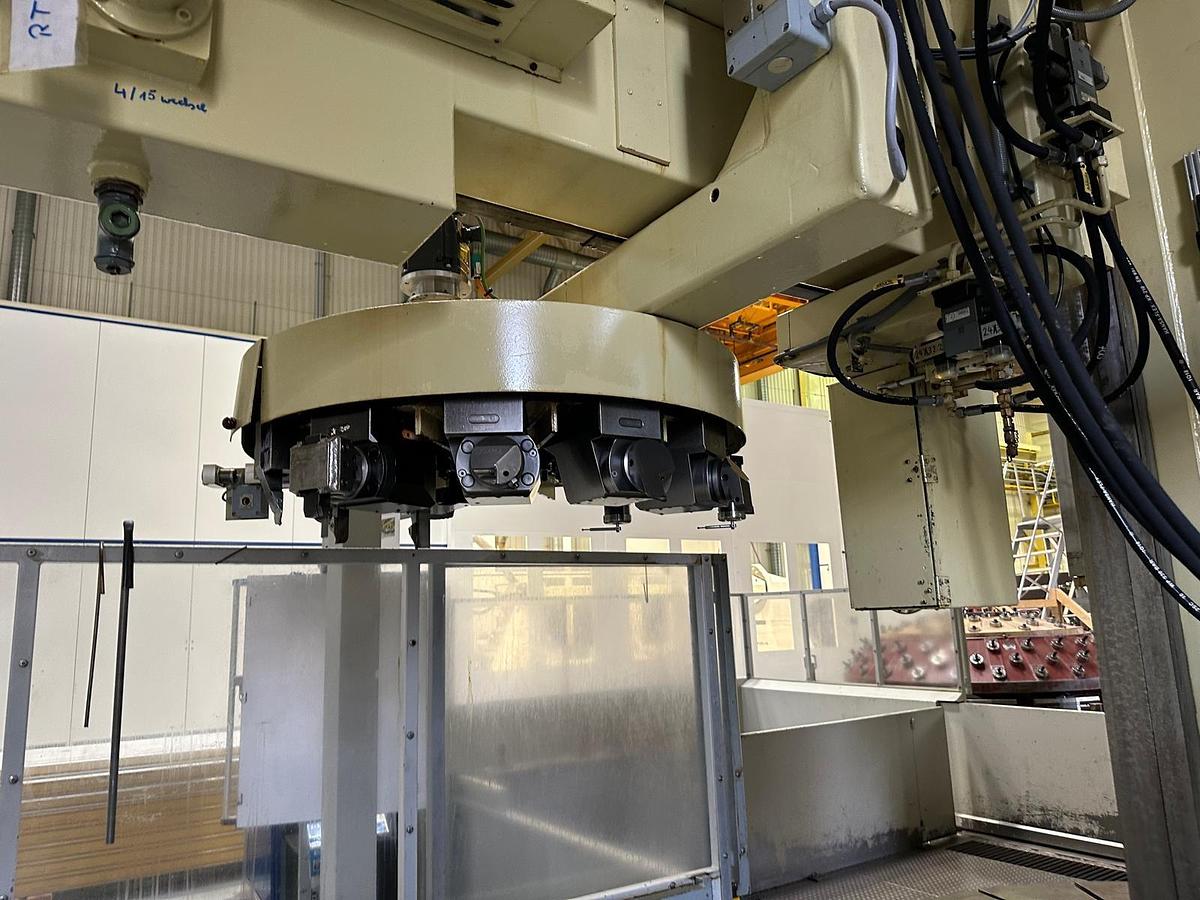

Tool Changer
Vertical Support (right)
Horizontal travel Support -25 + 2170 mm
Vertical travel of the RAM 1.800 mm
Cross-section of the RAM 250x210 mm
Tool changer places
Vertical Support (left)
Horizontal travel Support -25 + 2170 mm
Vertical travel of the RAM 1.800 mm
Cross-section of the RAM 250x210 mm
Tool changer places
Specifications
| Manufacturer | Schiess |
| Model | 40 DZ 12-350/400-300/180 |
| Condition | Refurbished |
| Stock Number | 5654227 |

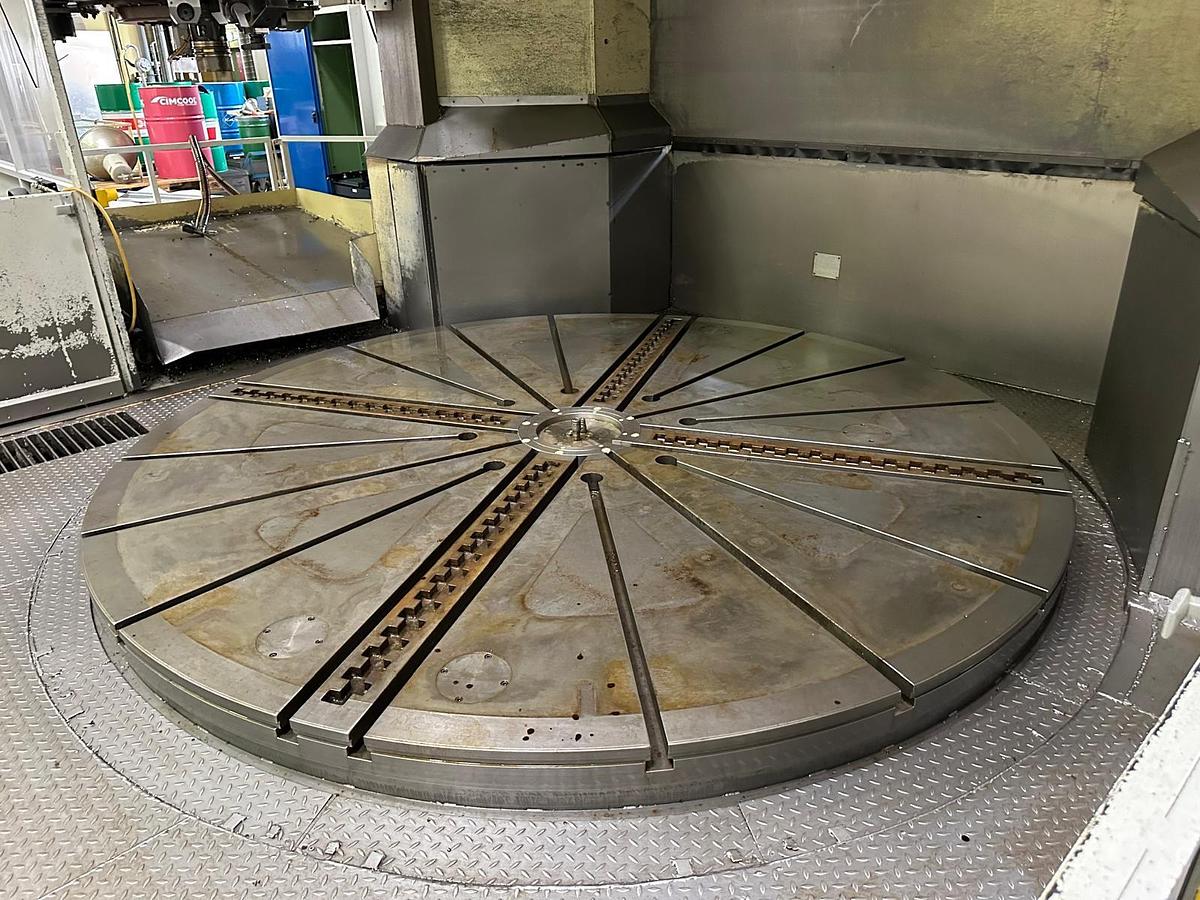

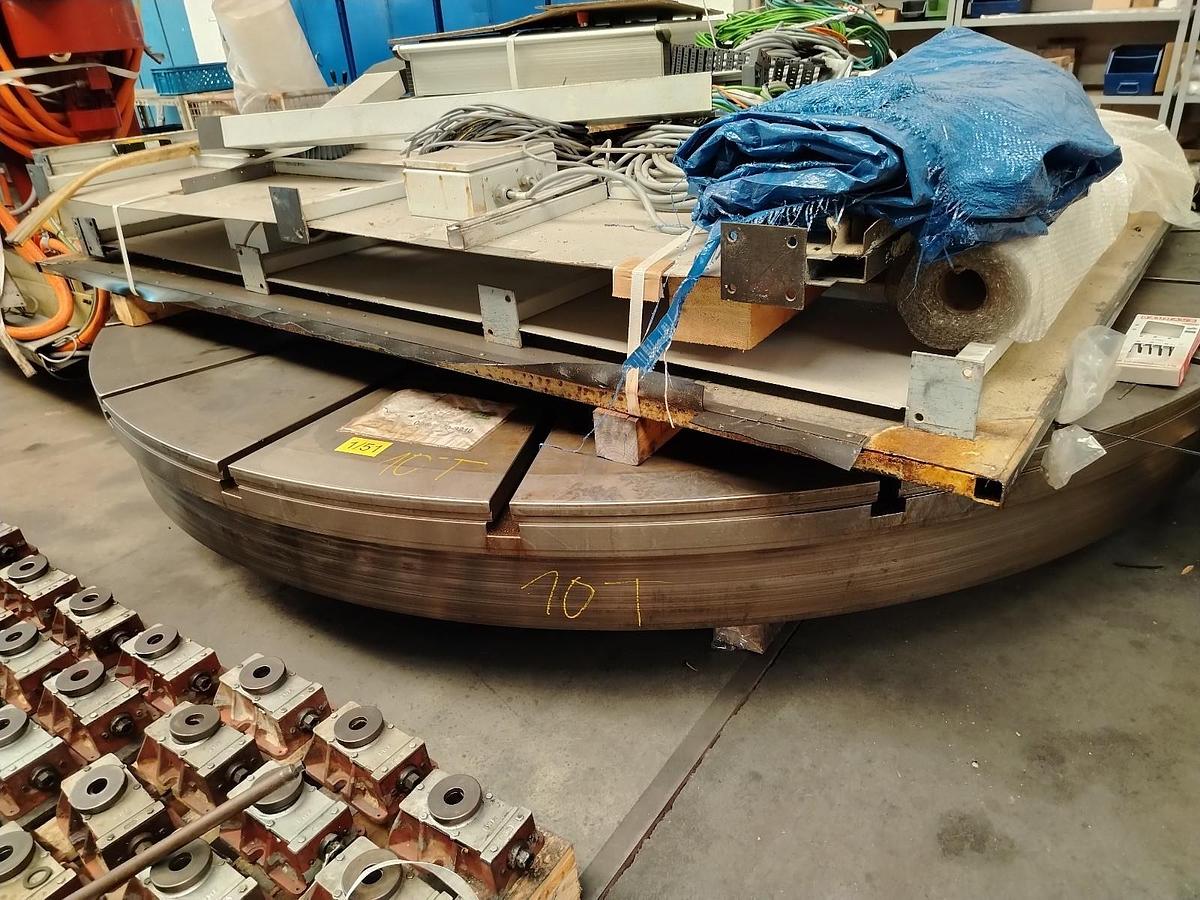

| Table diameter | 3,500 mm |
| Swing | 4,000 mm |
| Turning height | 3,000 mm |
| Table capacity | 50 Ton |
| Table turn speed | 100 rpm |
| Live spindle motor power | 22.5 kW |
| Y axis table travel | 2,000 mm |
| Crossrail travel | 1,500 mm (in 50 mm steps) |
| Live spindle motor | 22.5 kW |
| Live spindle torque | 900 Nm |
| Machine height above floor | 7,250 mm |
| Main drive | 100 kW |
| Main drive torque | 100 kNm |
| Connection to power | 380 V / 50Hz - 220V AC/24 DC - 150 kVA 400A |
