Rafamet CNC Vertical Boring & Turning Machine
Rafamet CNC Vertical Boring & Turning Machine
or
Call 770-509-0744
Description
Fanuc Model 0i Mate TD CNC System Installed in late 2024
4 off jaw boxes
1 off turning tool holder
Max. height under ram (without tool) (Standard/Extended Column)
- 1900 mm / 2400 mm
Maximum component height under bridge (Standard/Extended Column)
- 1800 mm / 2300 mm
Max. height under tool holder (for facing) (Standard/Extended Column)
- 1750 mm / 2250 mm
Rebuilt & Retrofitted:

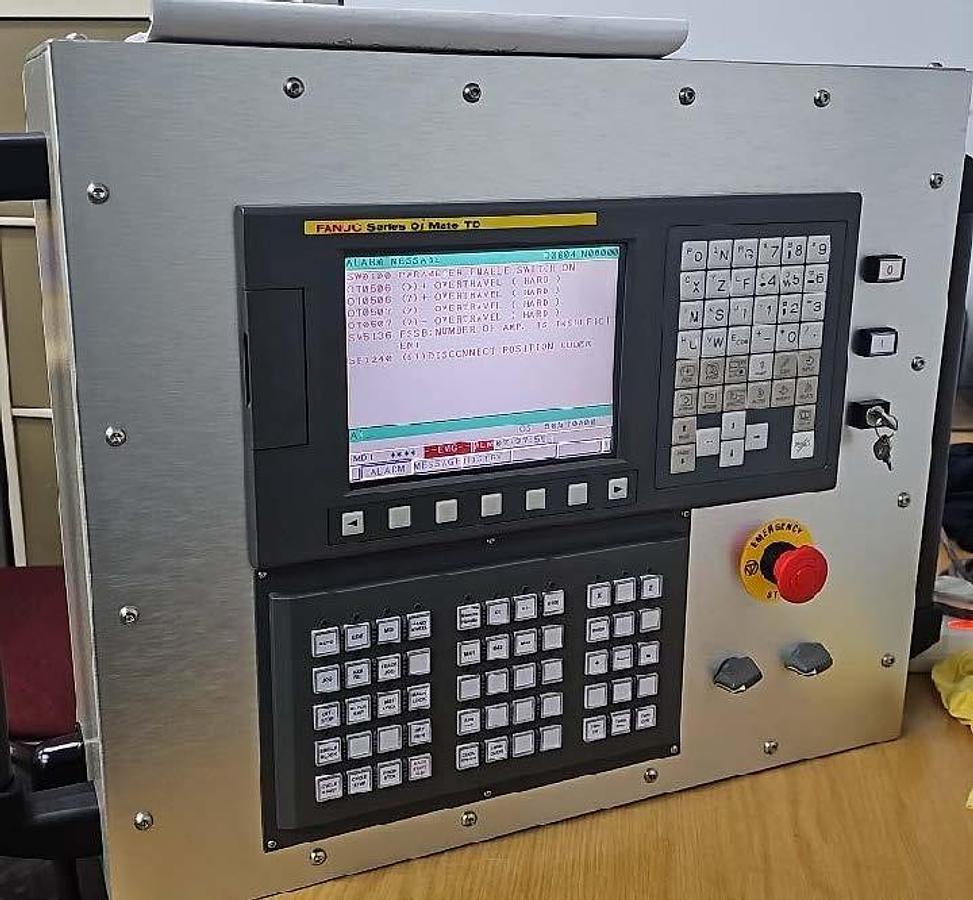

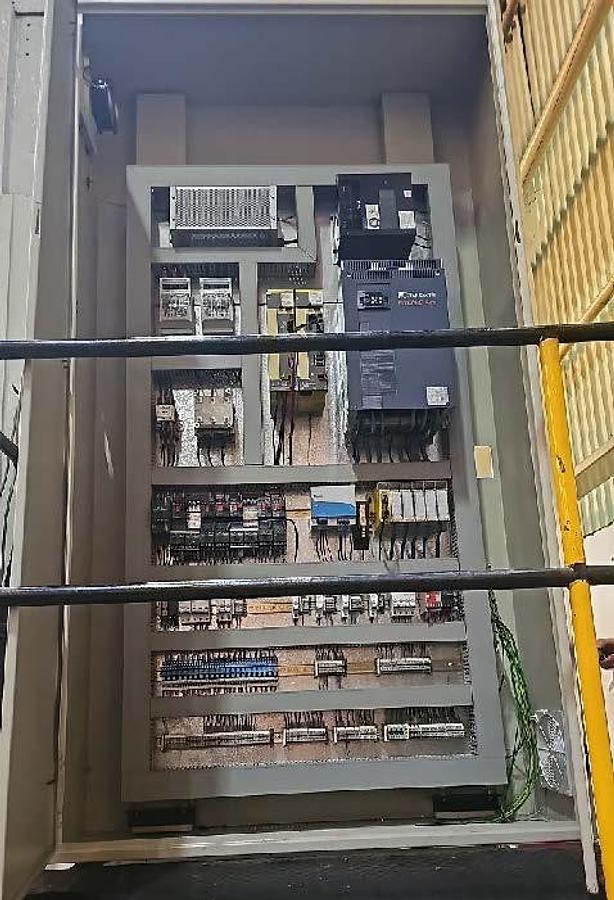

- New CNC pendant with Fanuc 0i Mate TD system and new switchgear and cabling throughout the machine

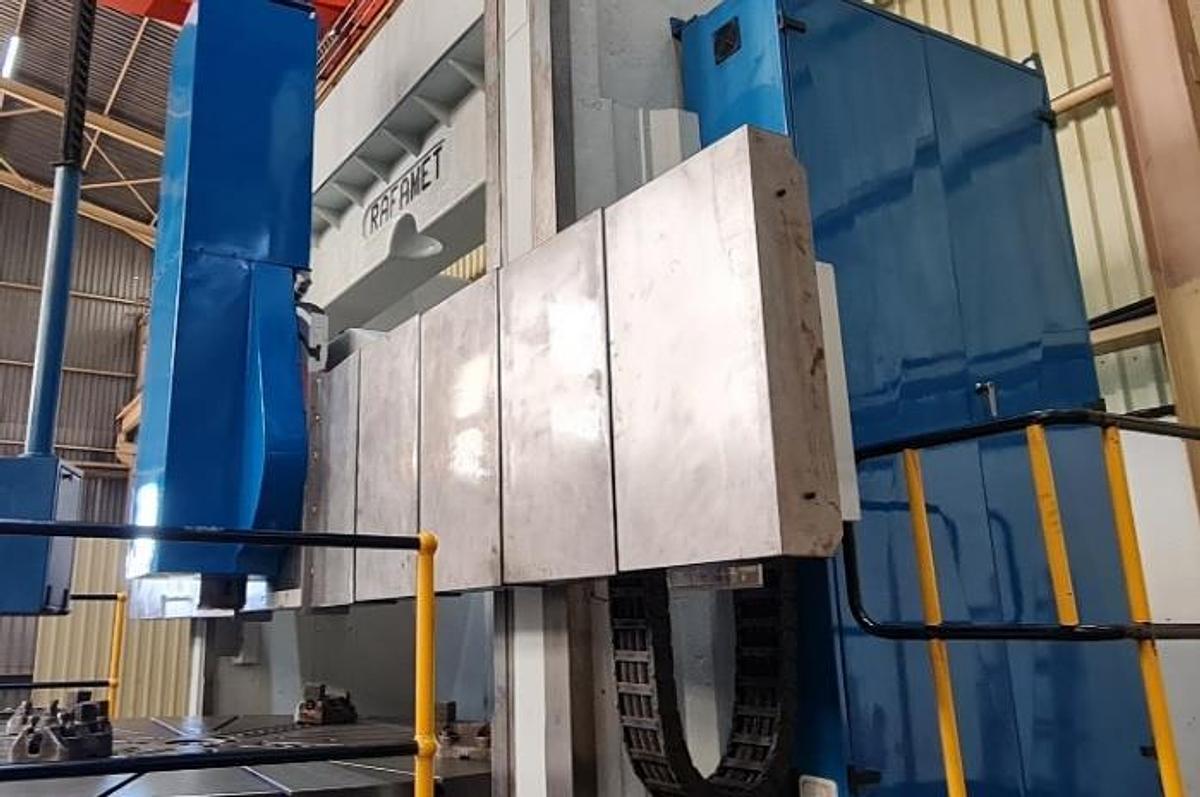

- New ballscrews and gearboxes have been fitted on the X- and Z-axes, as well as new telescopic covers on the bridge, on both sides of the ram saddle. All slides have been reground and all counter-surfaces hand scraped to align geometry.

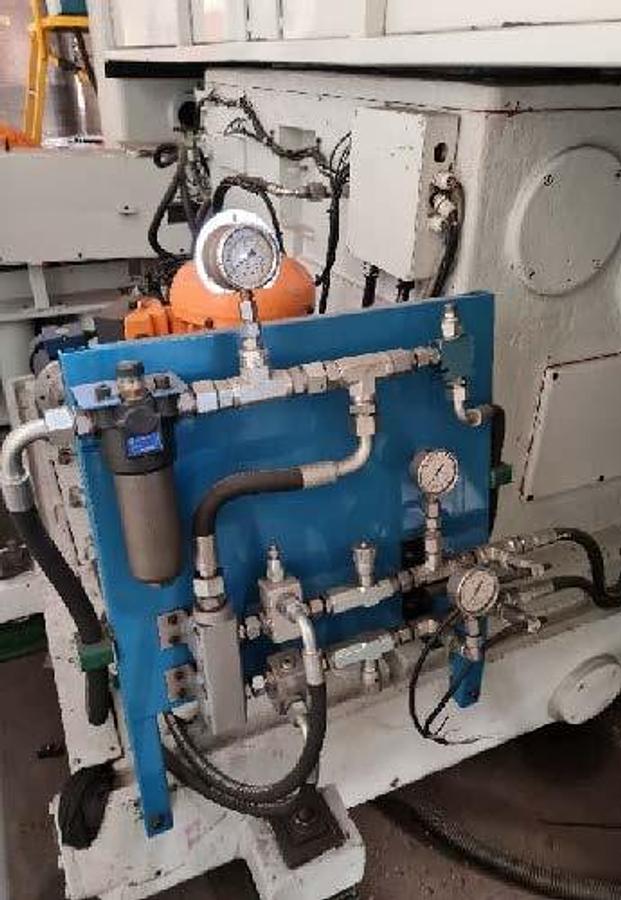

- New lubrication system with interlocked flow switches to the re-machined and hand scraped main table bearing and rotating bearings in the lower section of the table base.
Specifications
| Manufacturer | Rafamet |
| Year | 2024 |
| Condition | Refurbished |
| Stock Number | 5654224 |

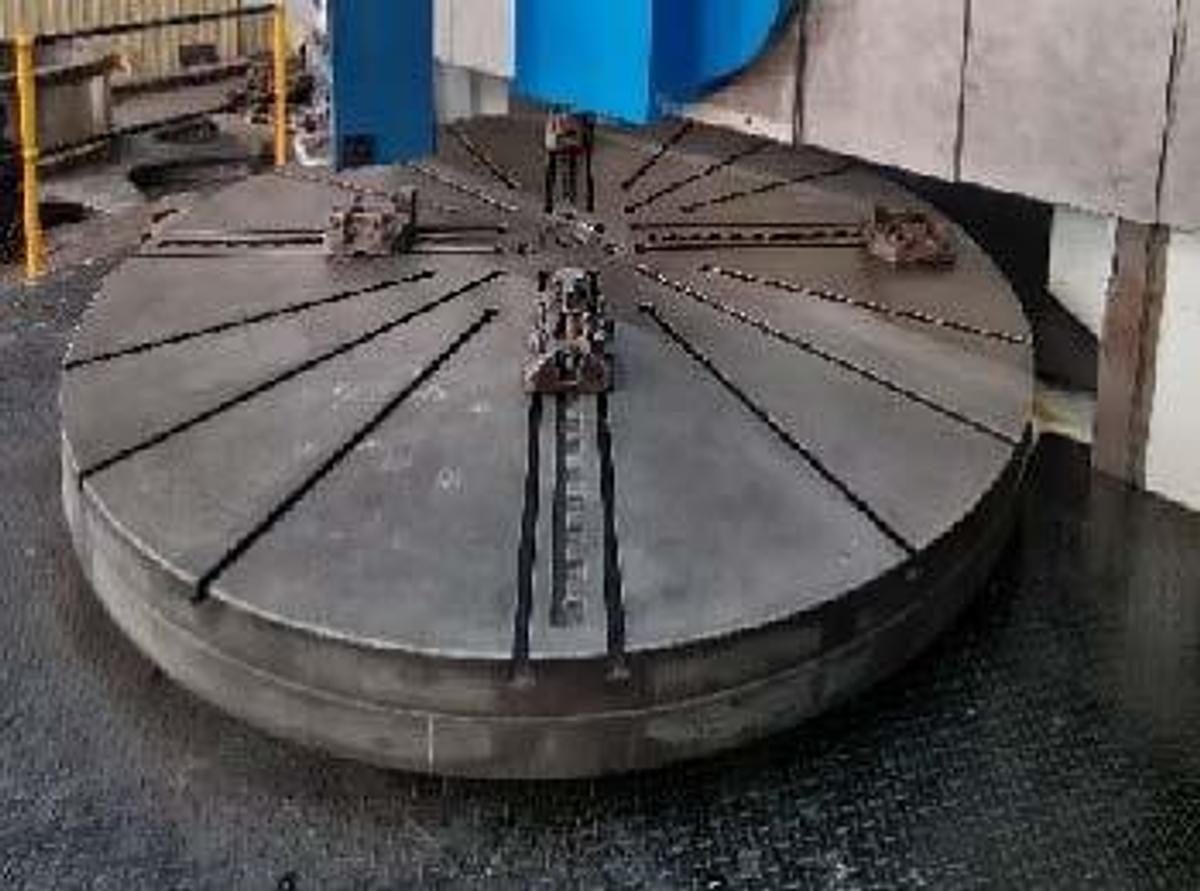

| Table diameter | 3,200 mm |
| Swing | 3,600 mm |
| Height under ram (no tool) | 1,900 / 2,400 mm |
| Component height under bridge | 1,800 / 2,300 mm |
| Height under tool holder (facing) | 1,750 / 2,250 mm |
| Table capacity | 30 Ton |
| Max table speed | 40 rpm |
| Vertical stroke turning ram | 850 mm |
| W axis travel | 1,400 mm |
| Table motor power | 37 kW |
