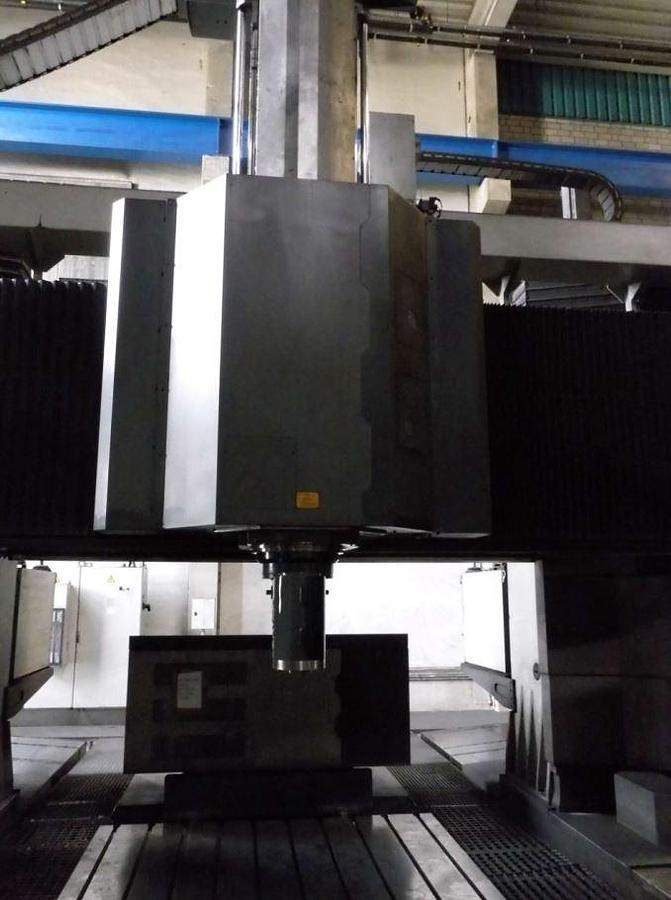

Zayer GMCU 6000-AR CNC 5-Axis Gantry Type Double Column Milling Machine
Zayer GMCU 6000-AR CNC 5-Axis Gantry Type Double Column Milling Machine
or
Call 770-509-0744
Description
- HEIDENHAIN iTNC 530 CNC Control
- 60 Position Automatic Tool Changer

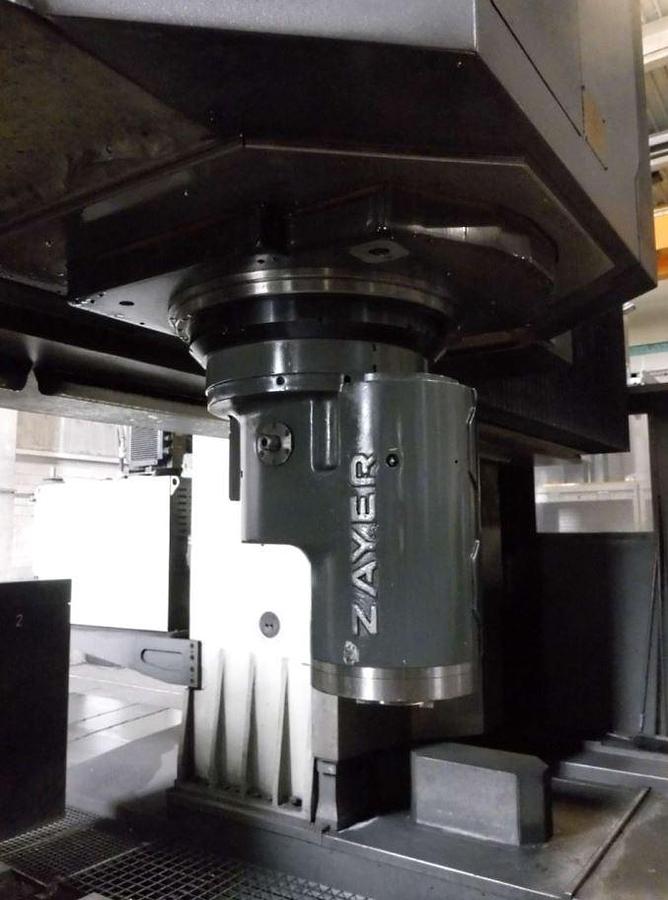

- Fork Head Style Spindle - Automatic - 360° Tilting Range
- Chip Conveyor TECNIMETAL
- Coolant system
- Operator Control Cabin
- Safety Fence Barrier with photo electric barriers Lenze
- Number of Controlled Axes - 5
Specifications
| Manufacturer | Zayer |
| Model | GMCU 6000-AR |
| Year | 2014 |
| Condition | Used |
| Stock Number | 5654215 |
| Between columns | 3,800 mm |
| Spindle speeds | 4,500 rpm |
| Distance spindle to table | 2,015 mm |
| X axis travel | 6,000 mm |
| Y axis travel | 4,676 mm |
| Z axis travel | 1,250 mm |
| W axis travel | 1,200 mm |
| Floor plate surface | 7,000 x 2,500 x 300 mm |
| Table capacity | 15,000 kg/m² |
| Spindle power | 60 kW |
| Spindle taper | SK 50 |
| Feeds | 6 - 10,000 mm/min |
| Rapid feeds X | 20,000 mm/min |
| Rapid feed Y/Z | 25,000 mm/min |
