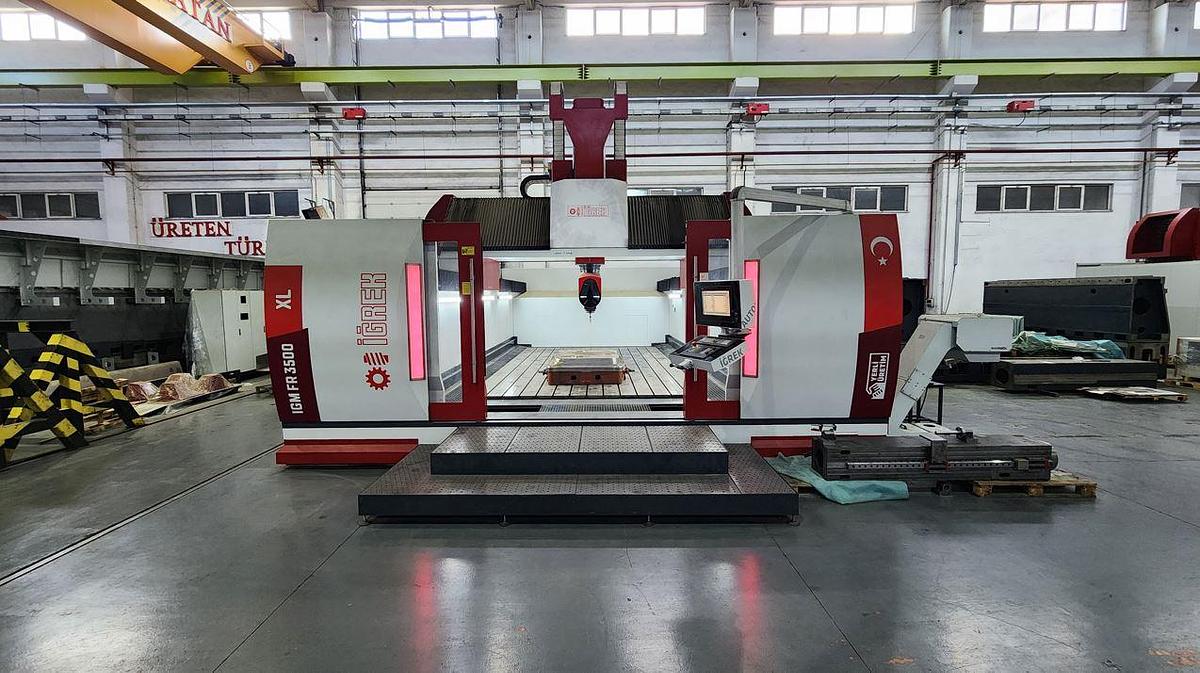

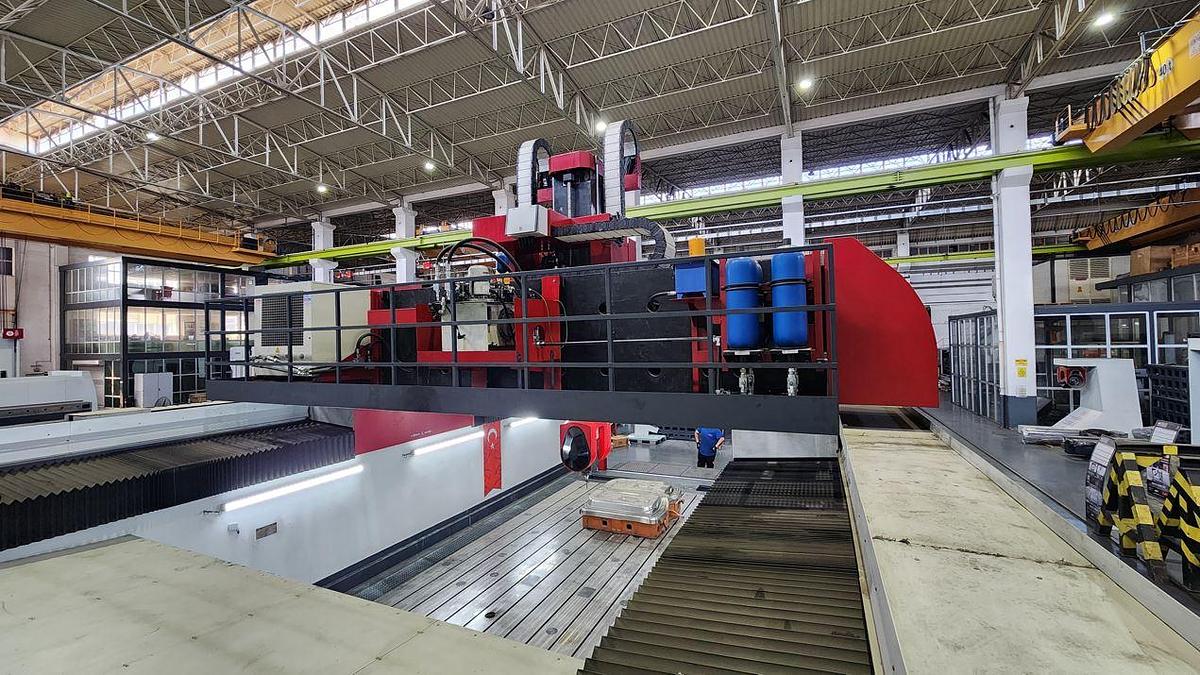

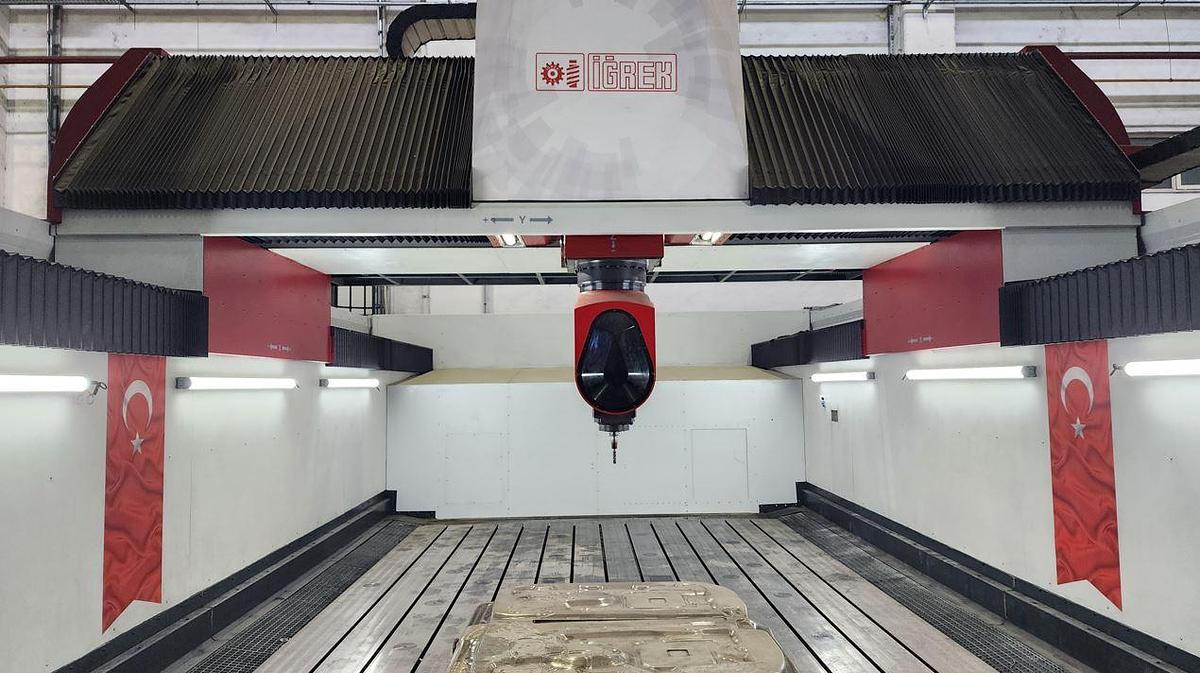

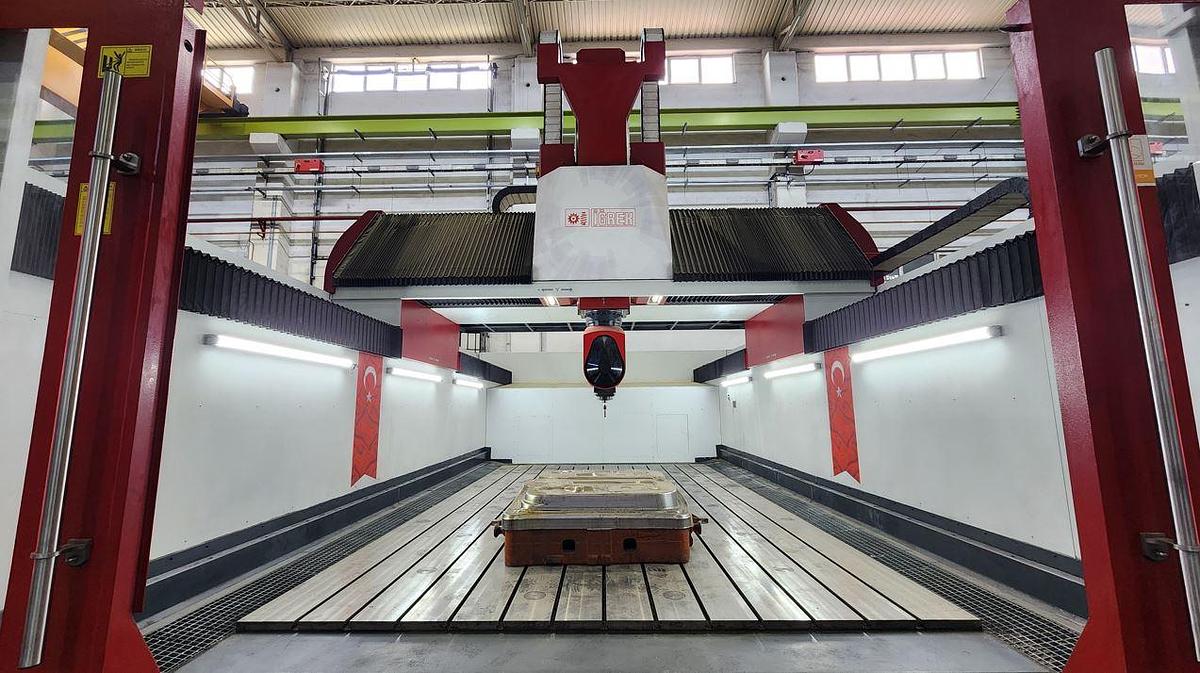

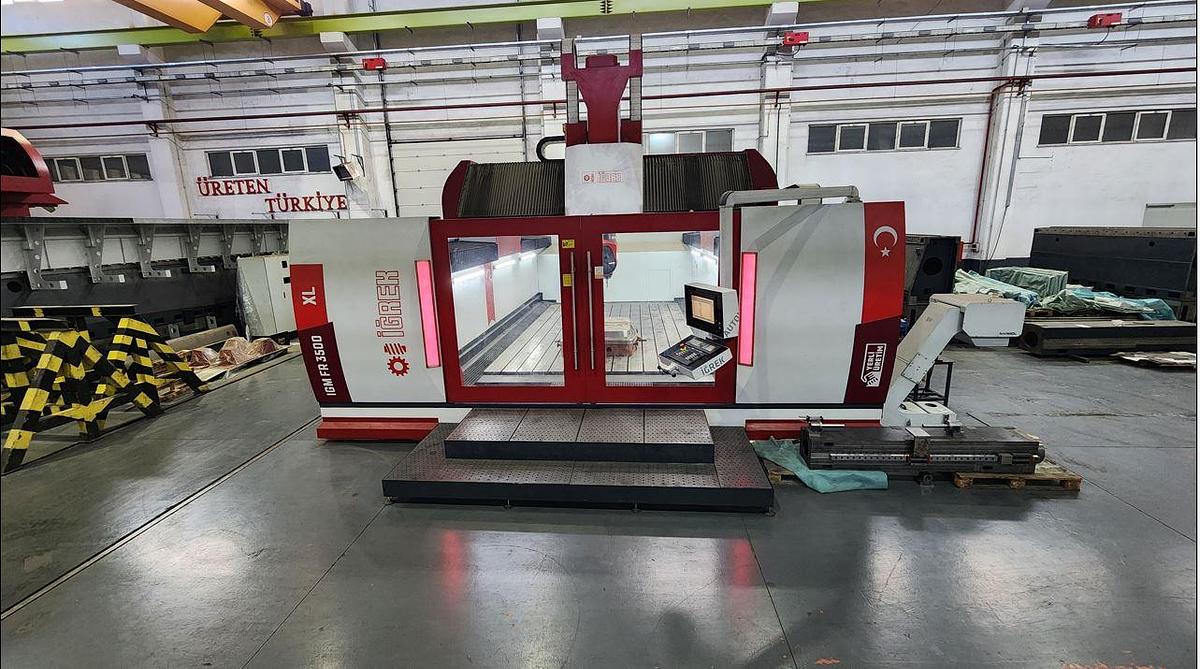

IGREK 3500 XL CNC 5-Axis Simultaneous Portal Gantry Type Milling Machine

NEW MACHINE

The IGREK 3500 XL is a CNC 5-axis portal milling machine of the latest generation, developed for the high-precision machining of large components. Built in 2025, it is ready for immediate use and equipped with the latest technology to meet the most demanding requirements in heavy industry and mechanical engineering.

Main Features:

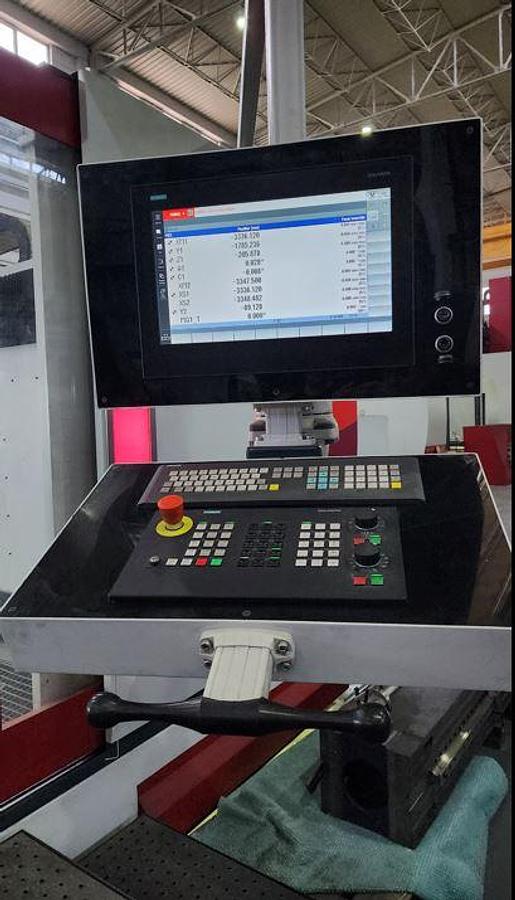

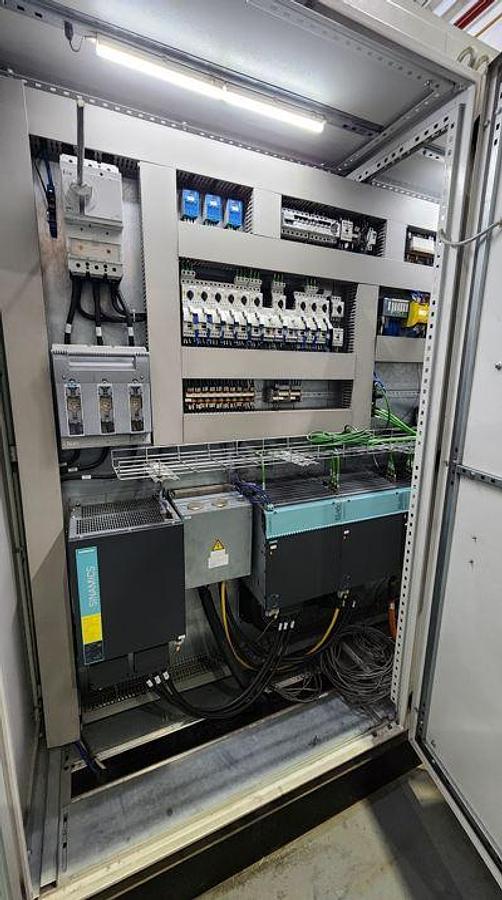

• Siemens SINUMERIK 840D CNC Control
• Large machining areas: With travel distances of 6,500 mm (X), 3,500 mm (Y), and 1,400 mm (Z), the machine offers exceptional flexibility for machining large parts.
• 5-axis Simultaneous machining: The A-axis with +/- 115° and the C-axis with 360° guarantee maximum precision and versatility when machining complex workpieces.
• Powerful spindle: Equipped with a speed of up to 12,500 rpm, a maximum torque of 235 Nm and a drive power of 54 kW – ideal for high-performance machining.
• Robust and durable: With a weight of 195 tons and a table load capacity of up to 4,000 kg, the machine is designed for heavy-duty machining.
• Innovative tool holder: The HSK-A100 tool holder enables quick tool changes and increases efficiency.
• Speed and efficiency: Rapid traverse speeds of 30 m/min in all axes ensure maximum productivity.
• IGEK machine tool boasts high stability, rigidity, and precision thanks to its monoBLOCK design. Our design utilizes the finite element method for dynamic, static, stress, vibration, and fatigue analyses, and production is planned accordingly.
• Made entirely of GG30 cast material
• Stable structure with Monoblock Cast Body that eliminates the need for a large foundation

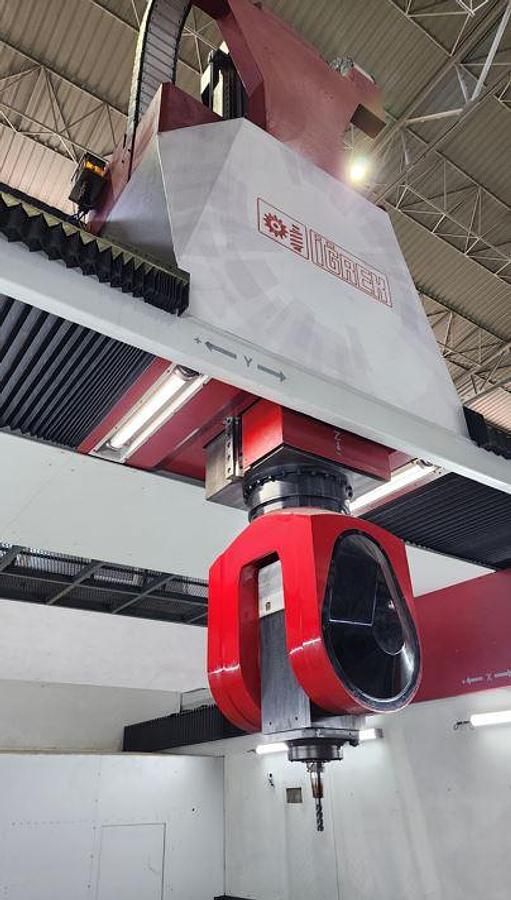

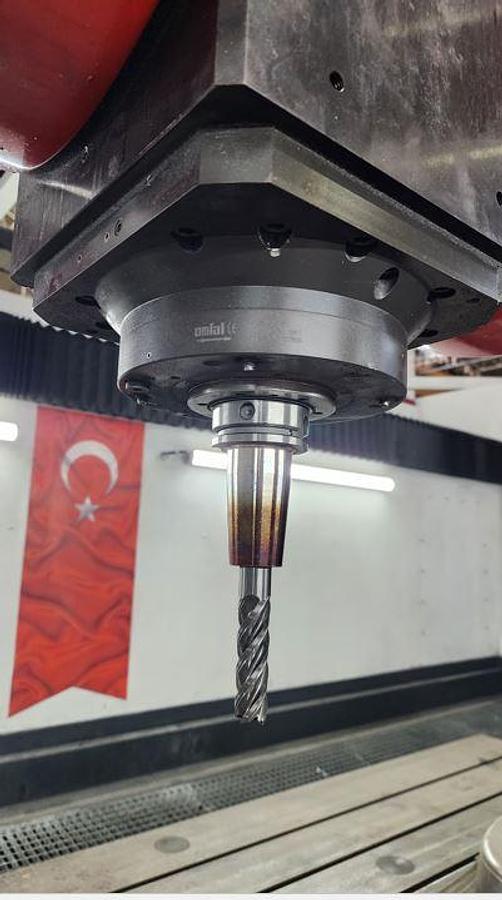

• 5 Axis Machining Head, 12,500 RPM, 235 Nm torque
• Precision and usage norms comply with CE, VDI-DGQ 3441 and ISO standards

Technical data at a glance:

• Travel distances: X 6,500 mm / Y 3,500 mm / Z 1,400 mm
• Spindle power: 54 kW
• Spindle speed: 12,500 rpm
• Machine dimensions (L x W x H): 11,500 x 7,400 x 6,600 mm
• Weight: 120 tons
