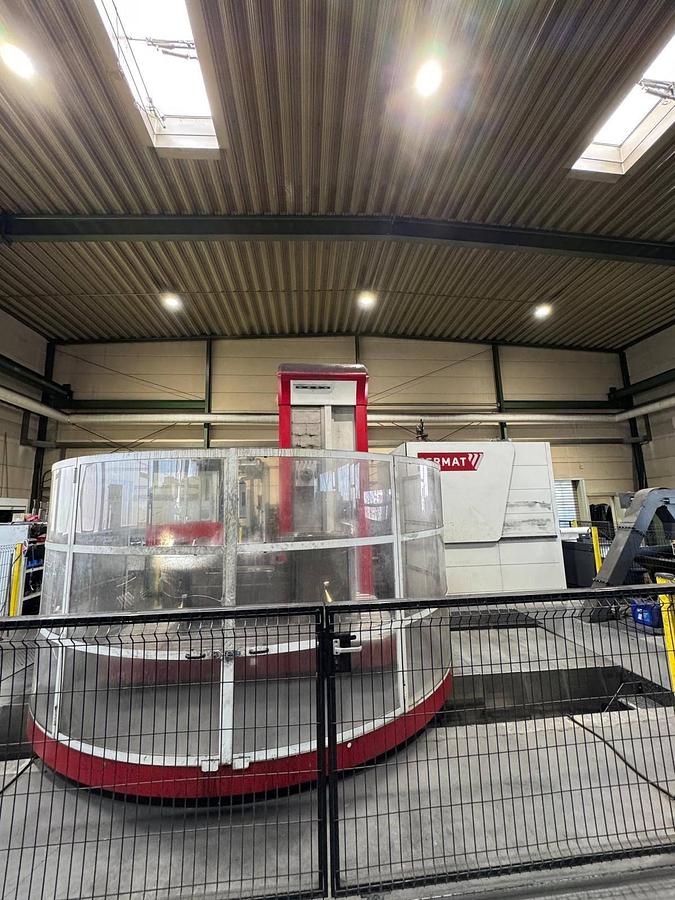

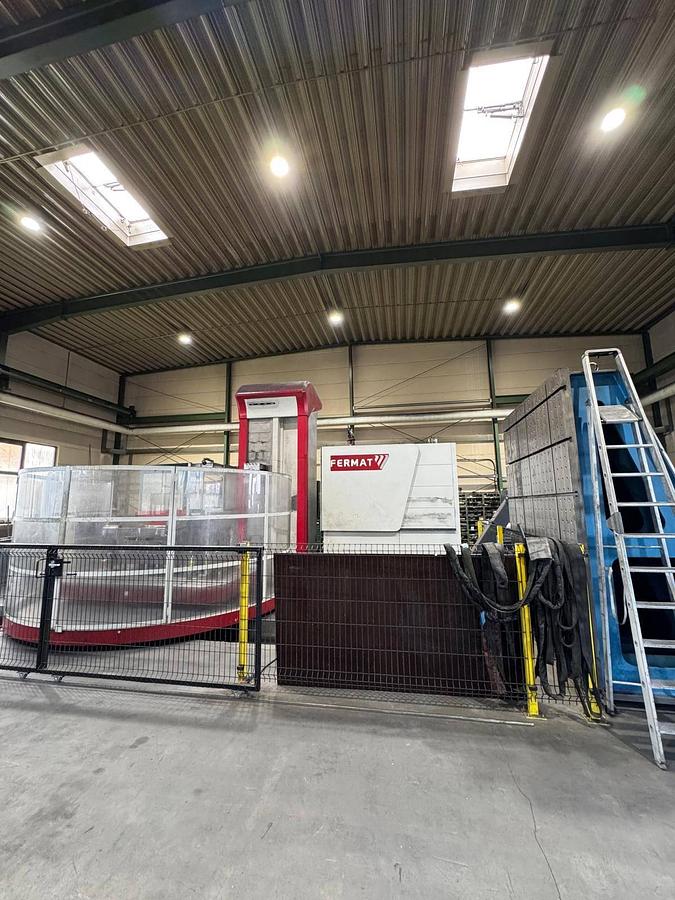

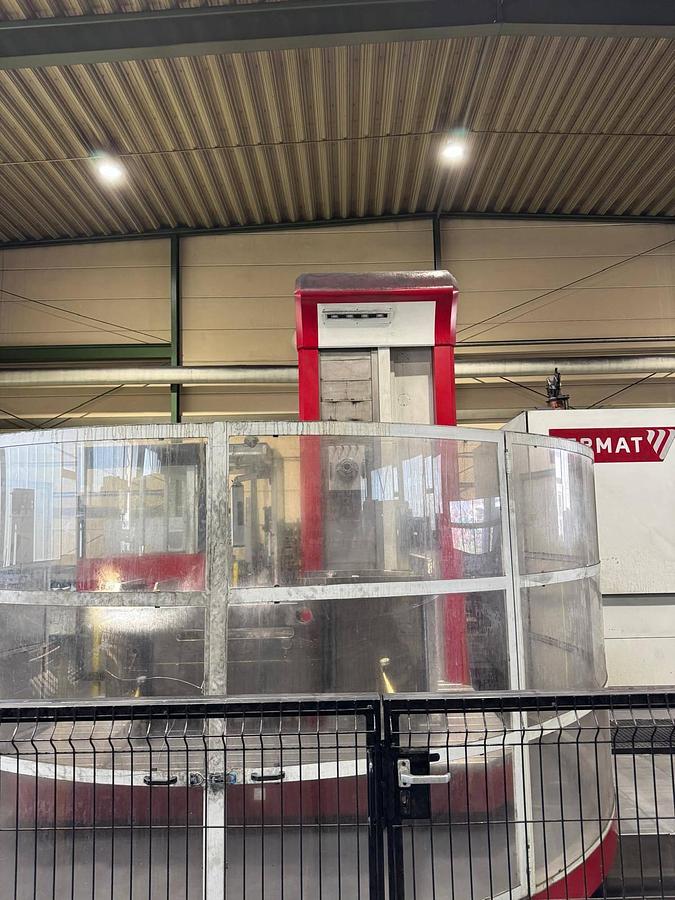

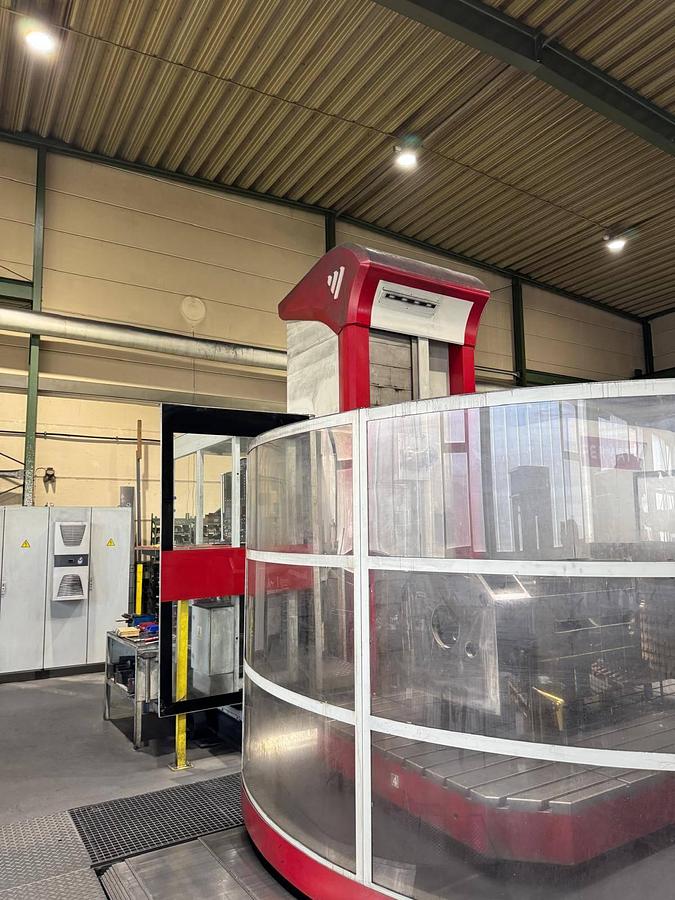

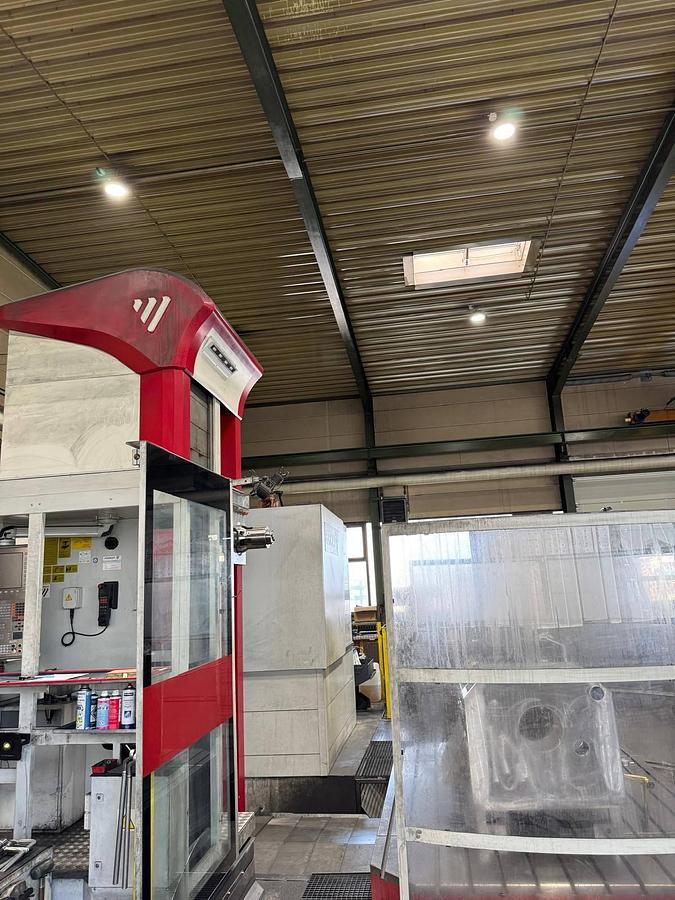

Fermat WFT 13 R CNC Table Type Horizontal Boring Machine

Fermat WFT 13 R CNC Table Type Horizontal Boring Machine

or
Call 770-509-0744

Description

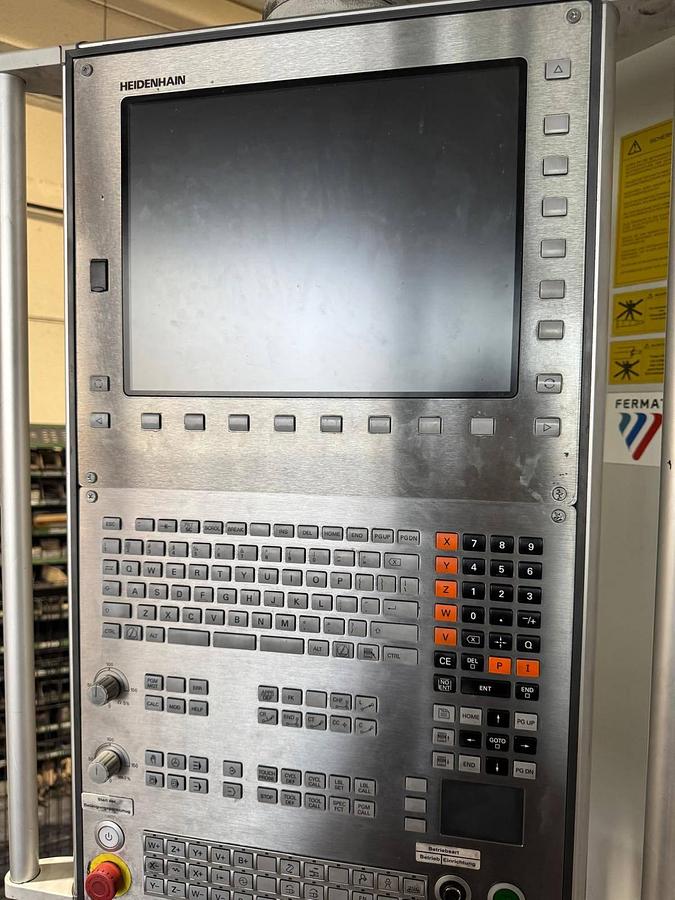

Heidenhain HR 550 CNC Control

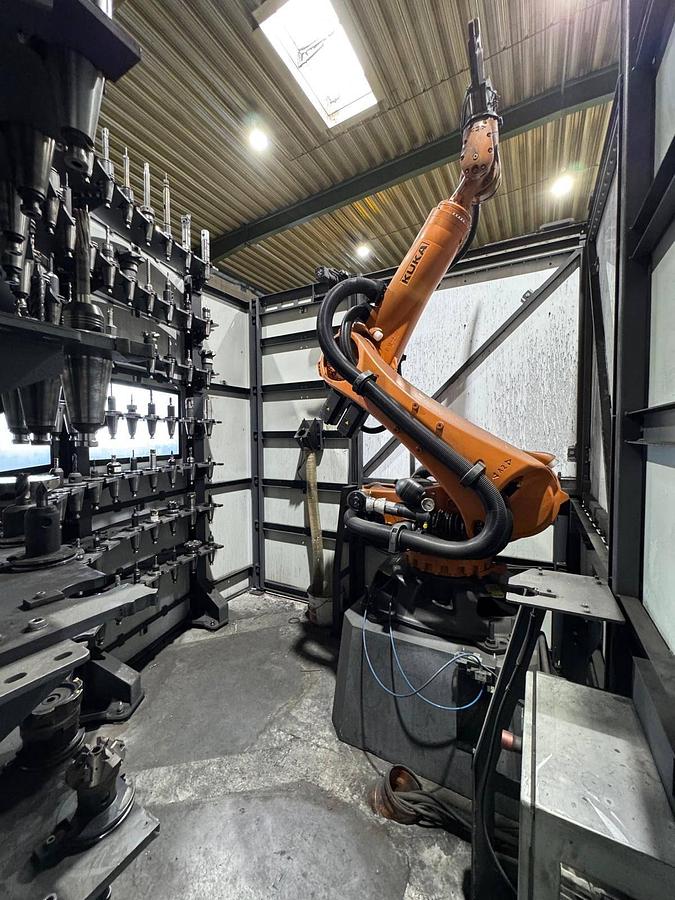

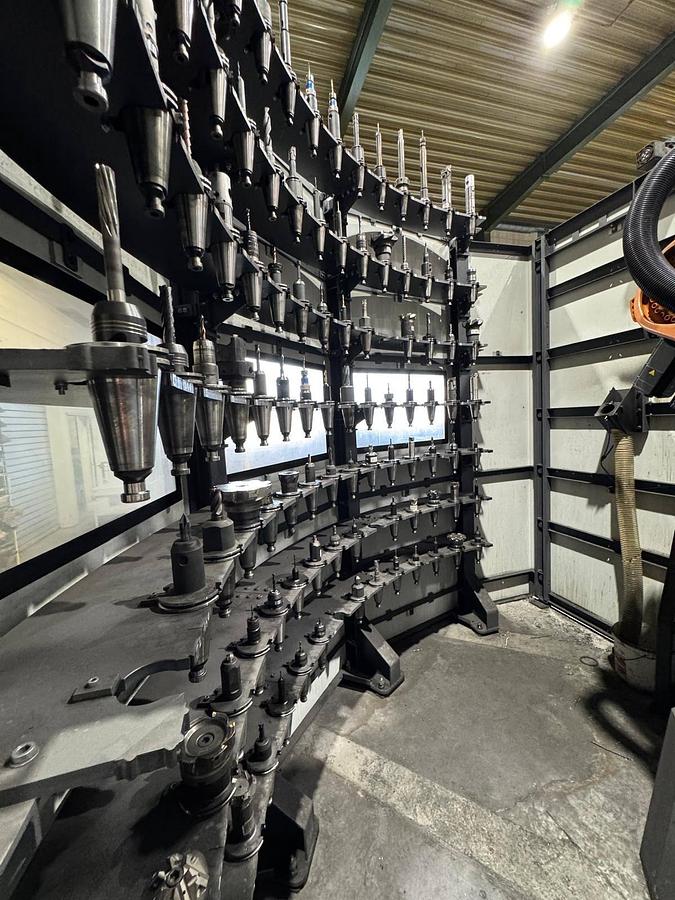

Robi 105 Automatic Tool Changer

Renishaw RMP 60 Handwheel

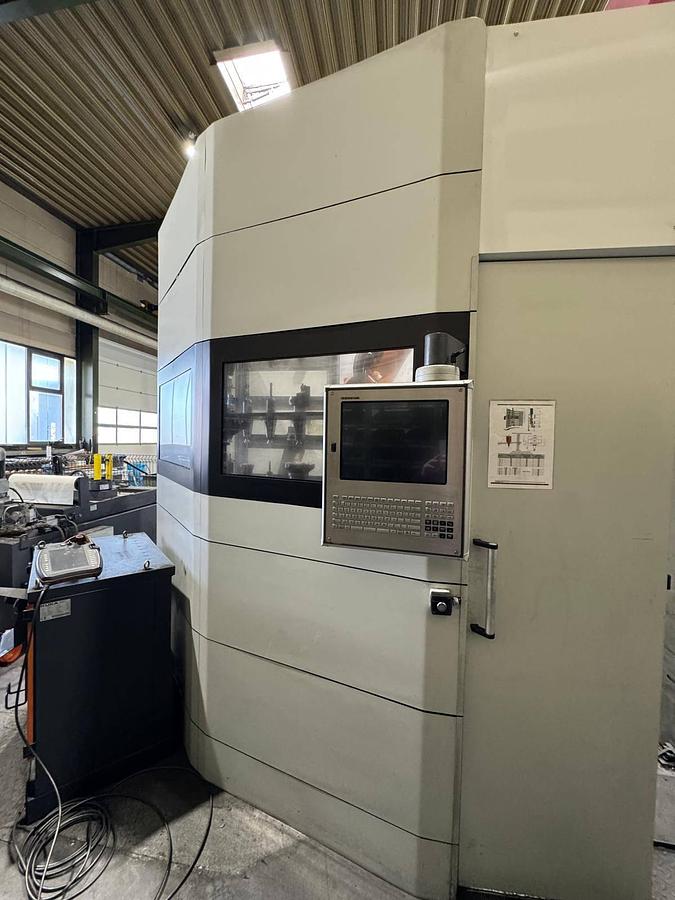

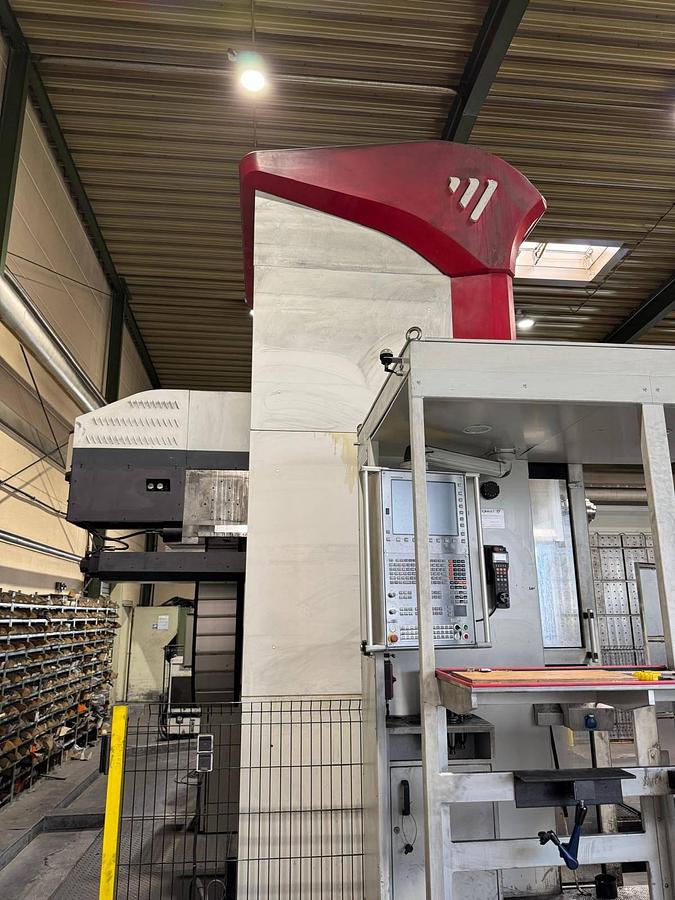

Control panel Vertical console with integrated keyboard and 15-inch LCD screen

Master-slave system, max. load 20 t, ROD encoder on the B-axis

Heidenhain optical linear system, absolute for the V, W, X, Y, and Z axes

Machine with increased accuracy

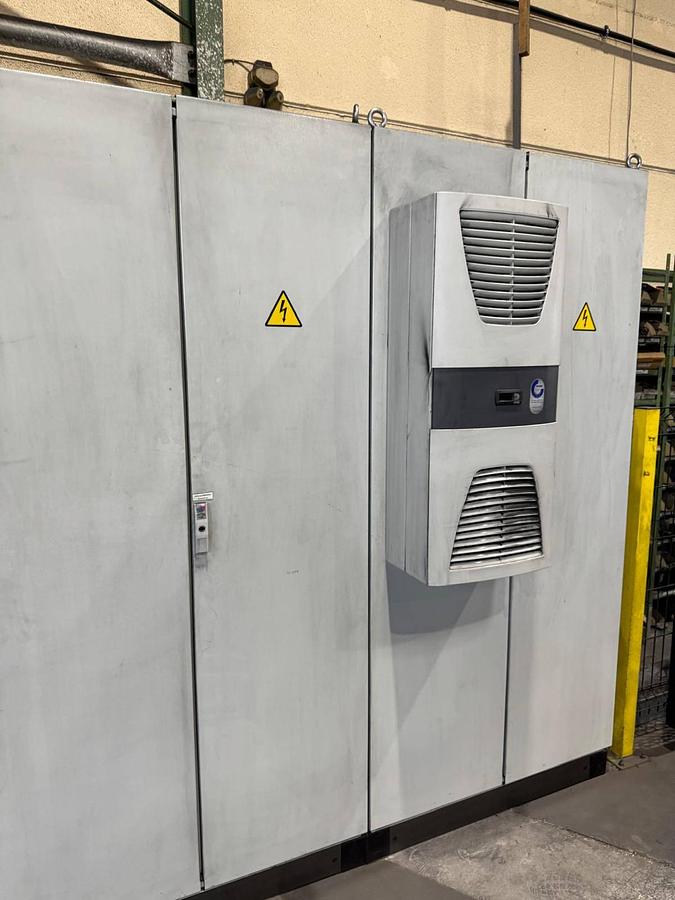

Control cabinet with air conditioning

Automatic lubrication system

Automatic clamping of accessory heads

Hydraulic equipment

Cooling unit for spindle bearings for temperature stabilization

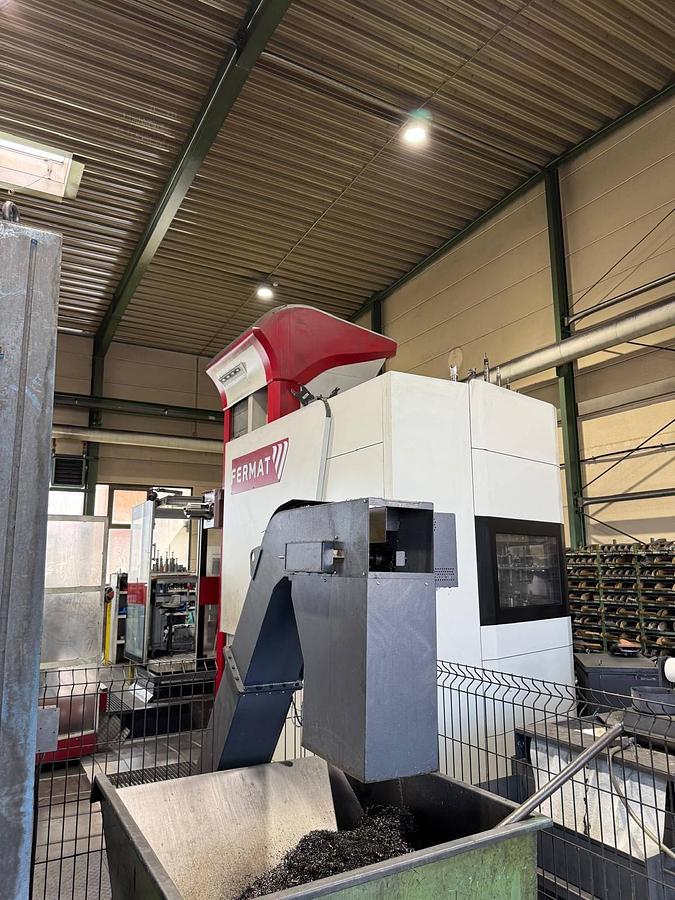

Chip conveyor as segment conveyor with integrated pump for coolant circulation (including level gauge and filtration)

CNC adjustable with paper belt filter

Sump pump with level gauge

Manual milling head UHM 30 with automatic clamping

Specifications

ManufacturerFermat
ModelWFT 13 R
Year2017
ConditionUsed
Stock Number552374
Spindle diameter130 mm
Spindle speeds4,000 rpm
X axis travel4,000 mm
Y axis travel3,000 mm
Z axis travel1,500 mm
W axis travel730 mm
V axis travel700 mm

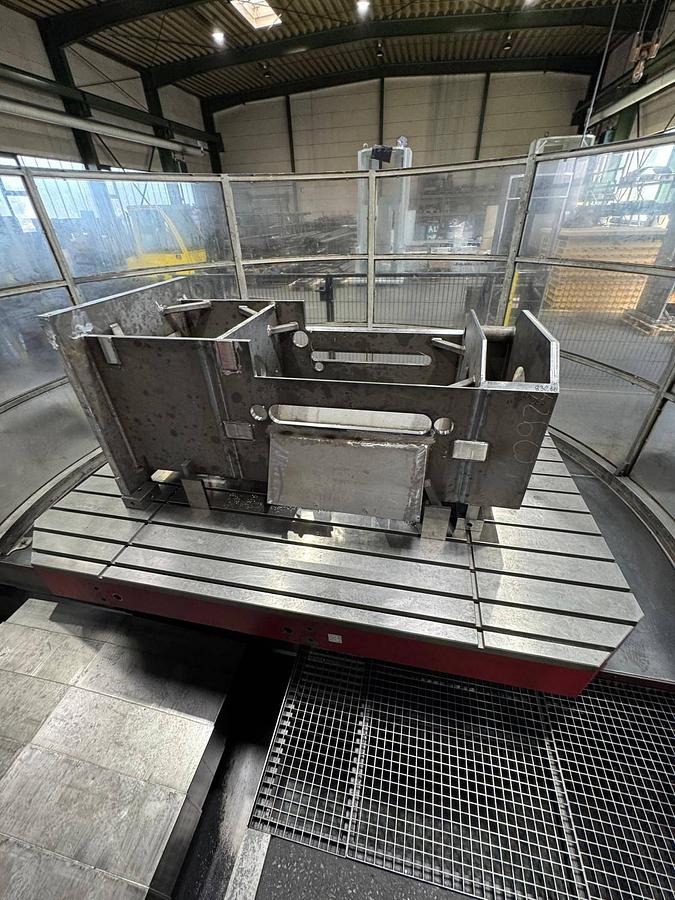

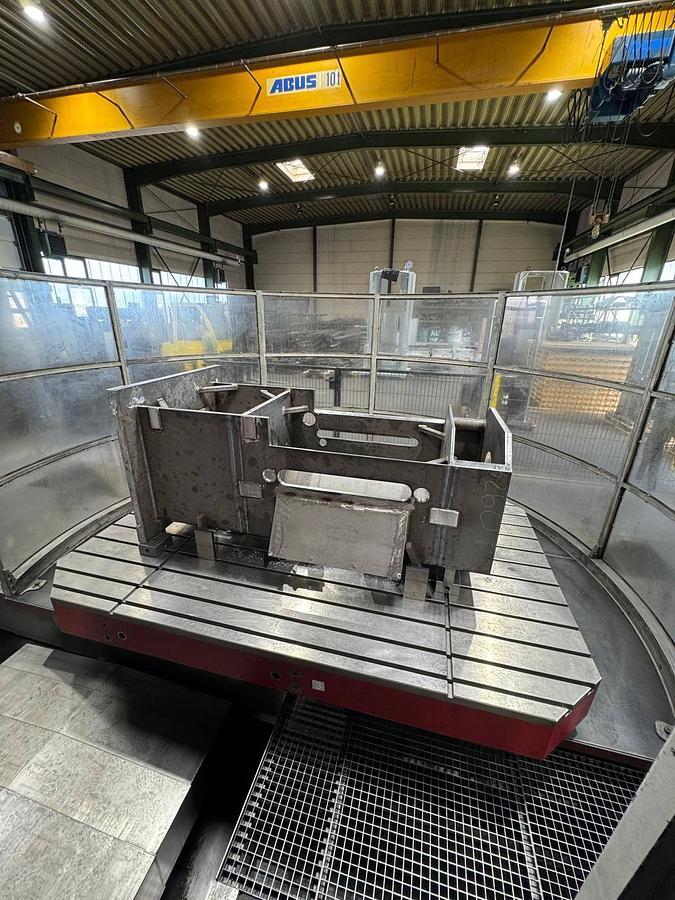

Table dimensions2,000 x 3,000 mm
Table capacity25,000 kg
Spindle taperSK 50/ISO 50 DIN 69871 Form AD
Rapid traverse20,000 mm/min
Main driveSiemens 41 kW S1 kW
Rapid traverse V axis10,000 m/min
Spindle support250 mm
Ejection height900 mm
