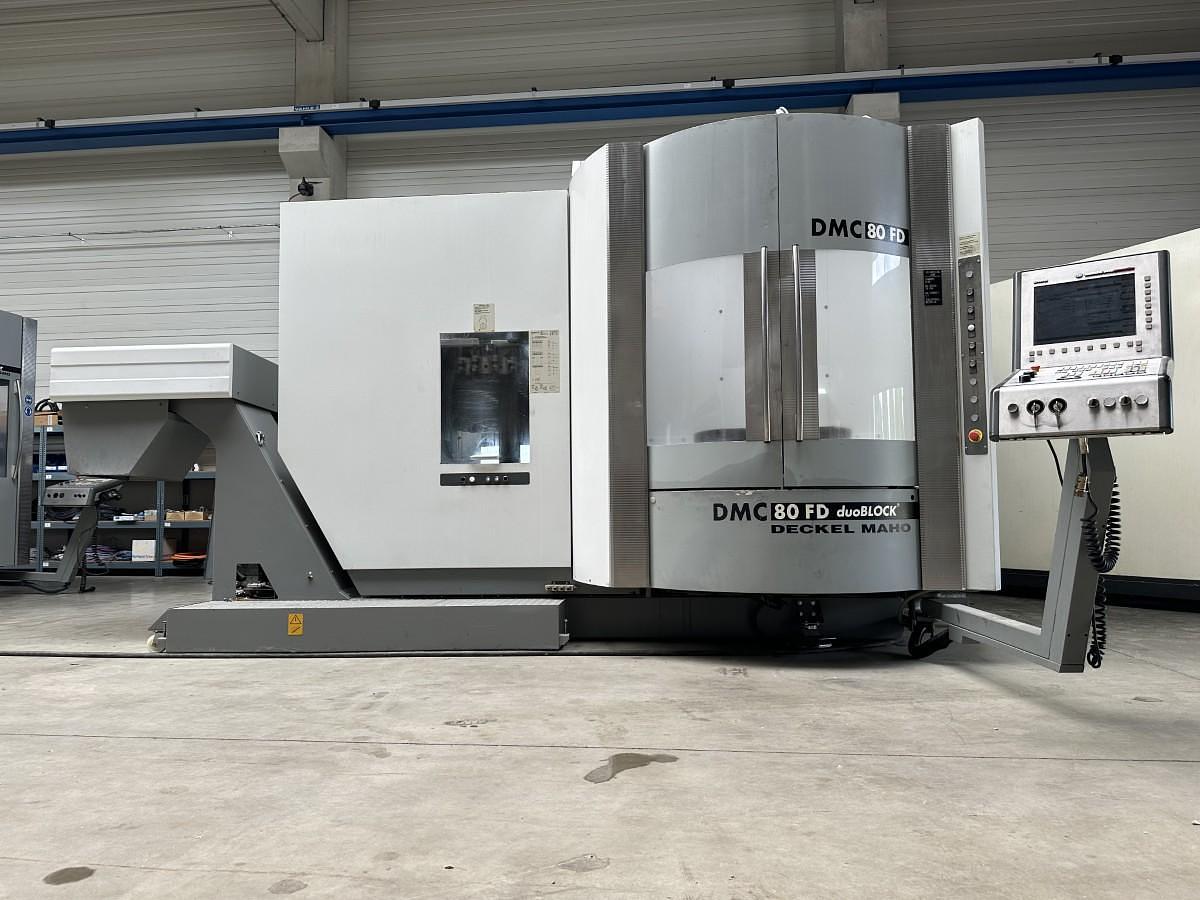

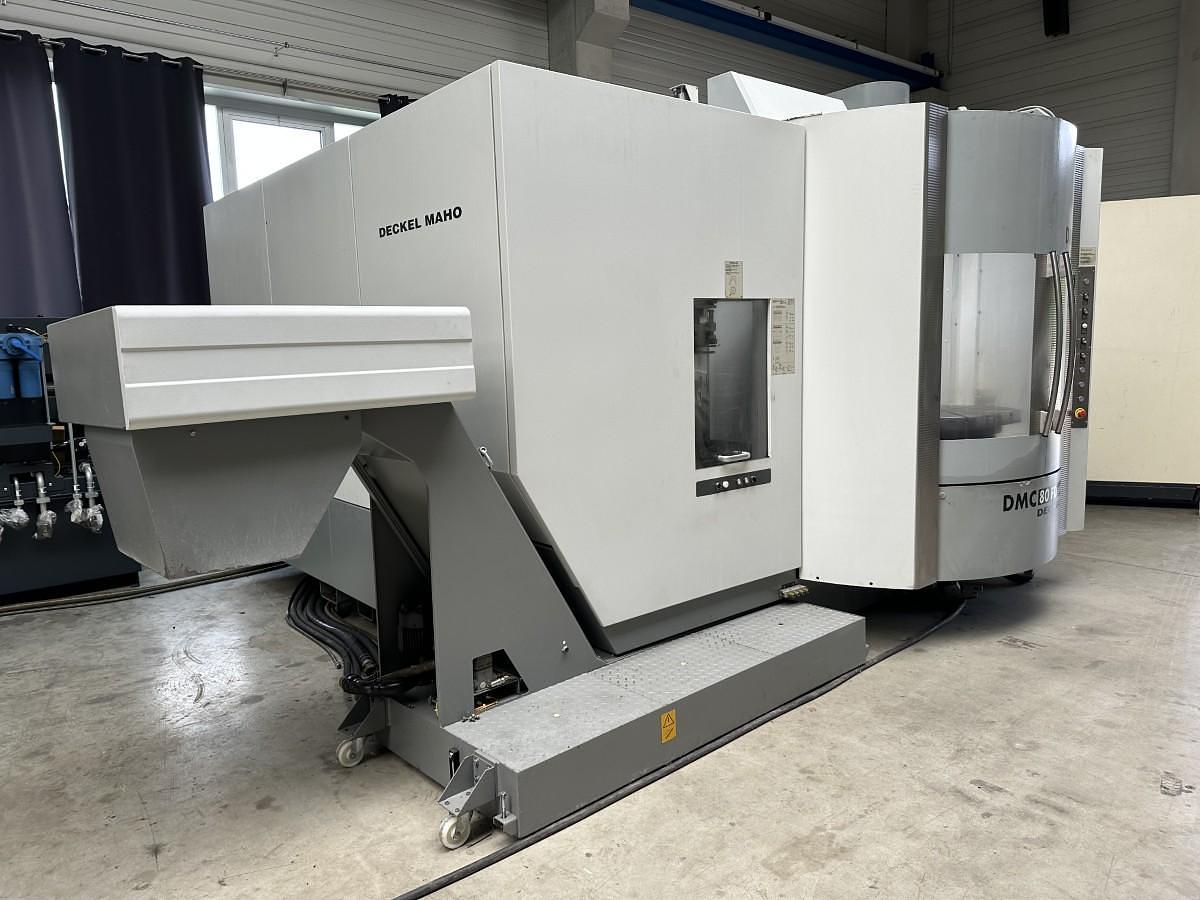

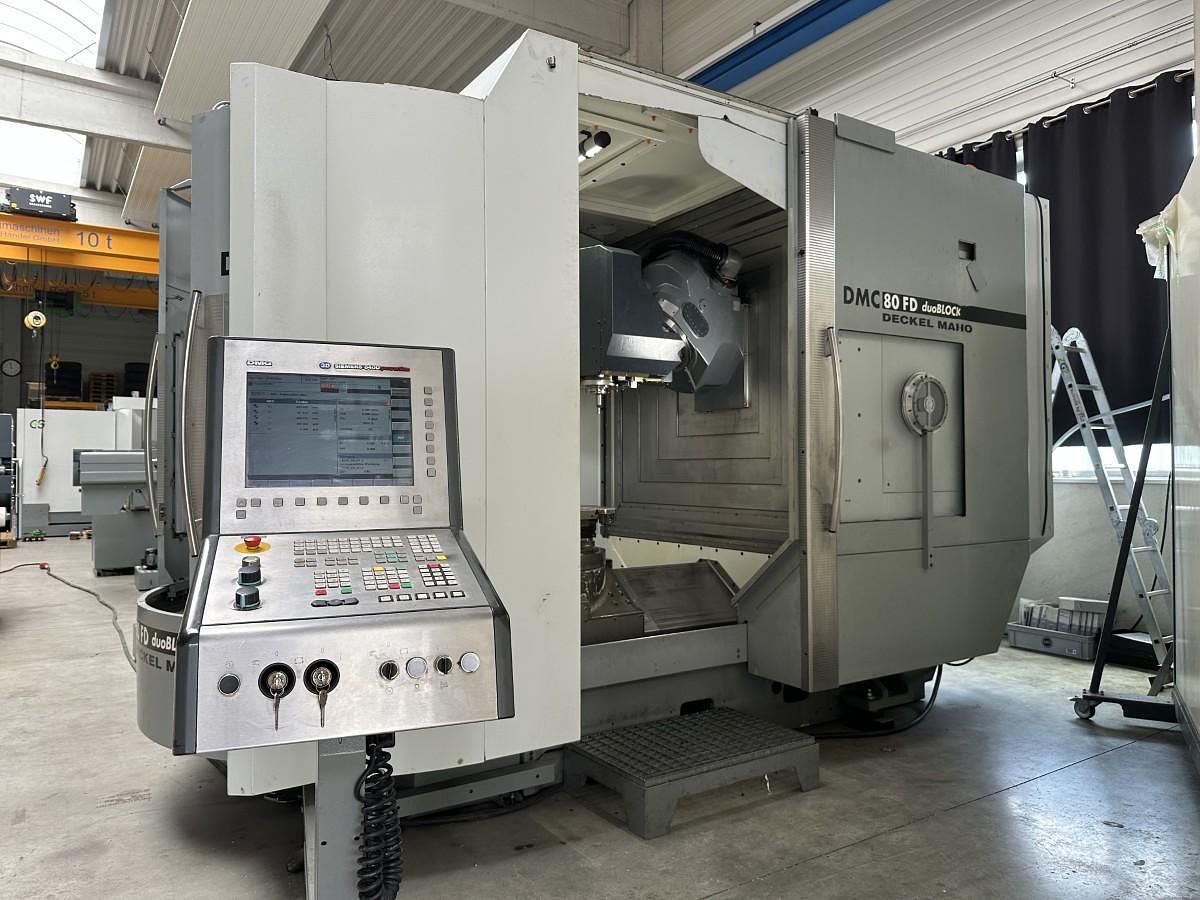

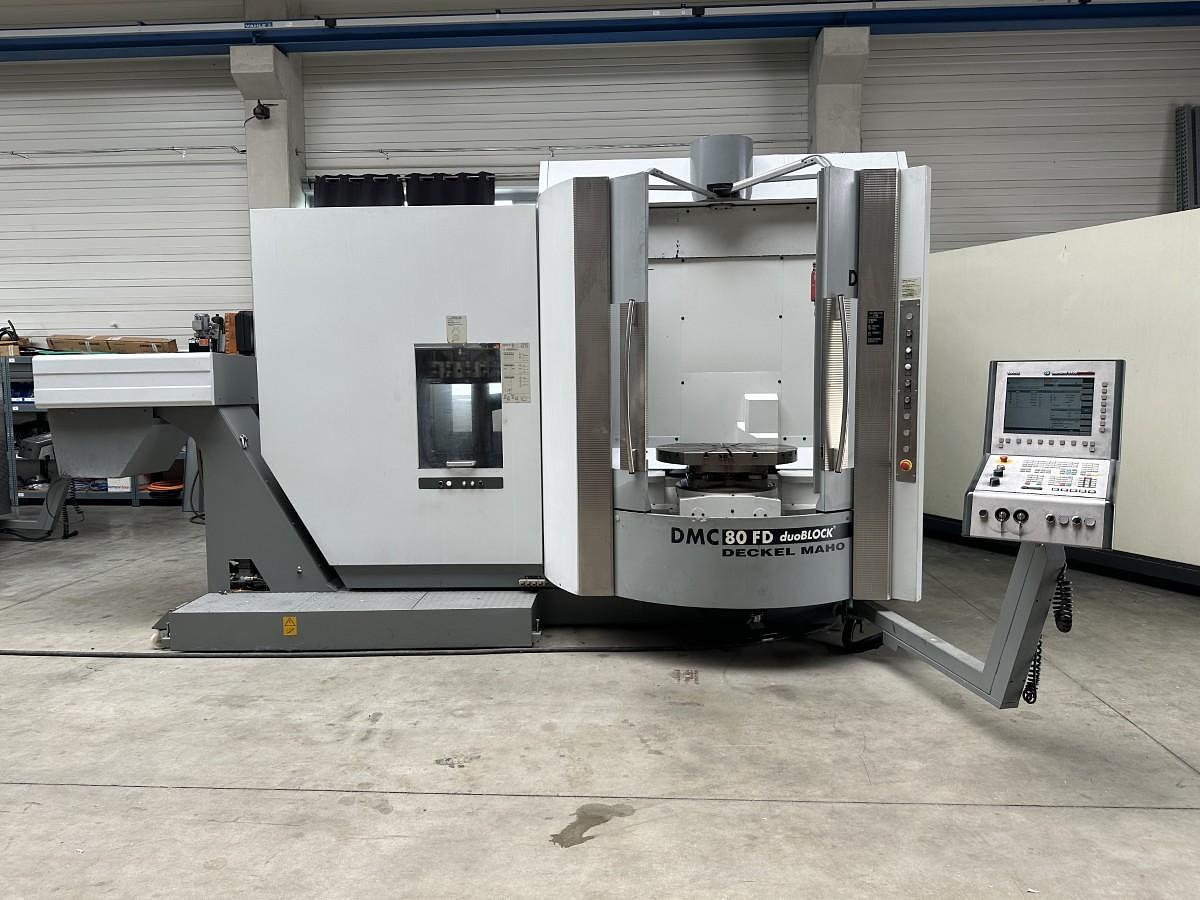

DMG DMC 80 FD duoBLOCK 5-AXIS MACHINING CENTER - MILLING & TURNING
DMG DMC 80 FD duoBLOCK 5-AXIS MACHINING CENTER - MILLING & TURNING
Available quantity:1
or
Call 770-509-0744
Description

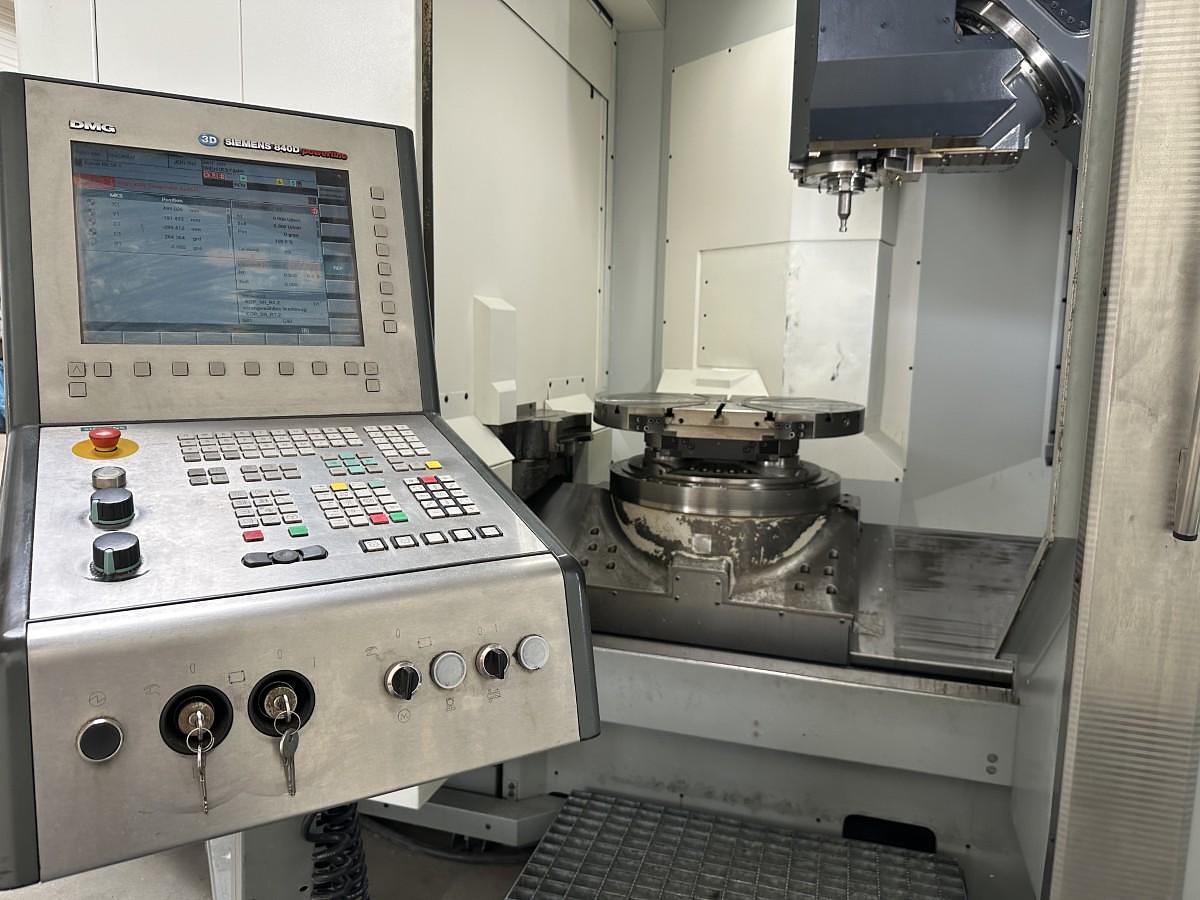

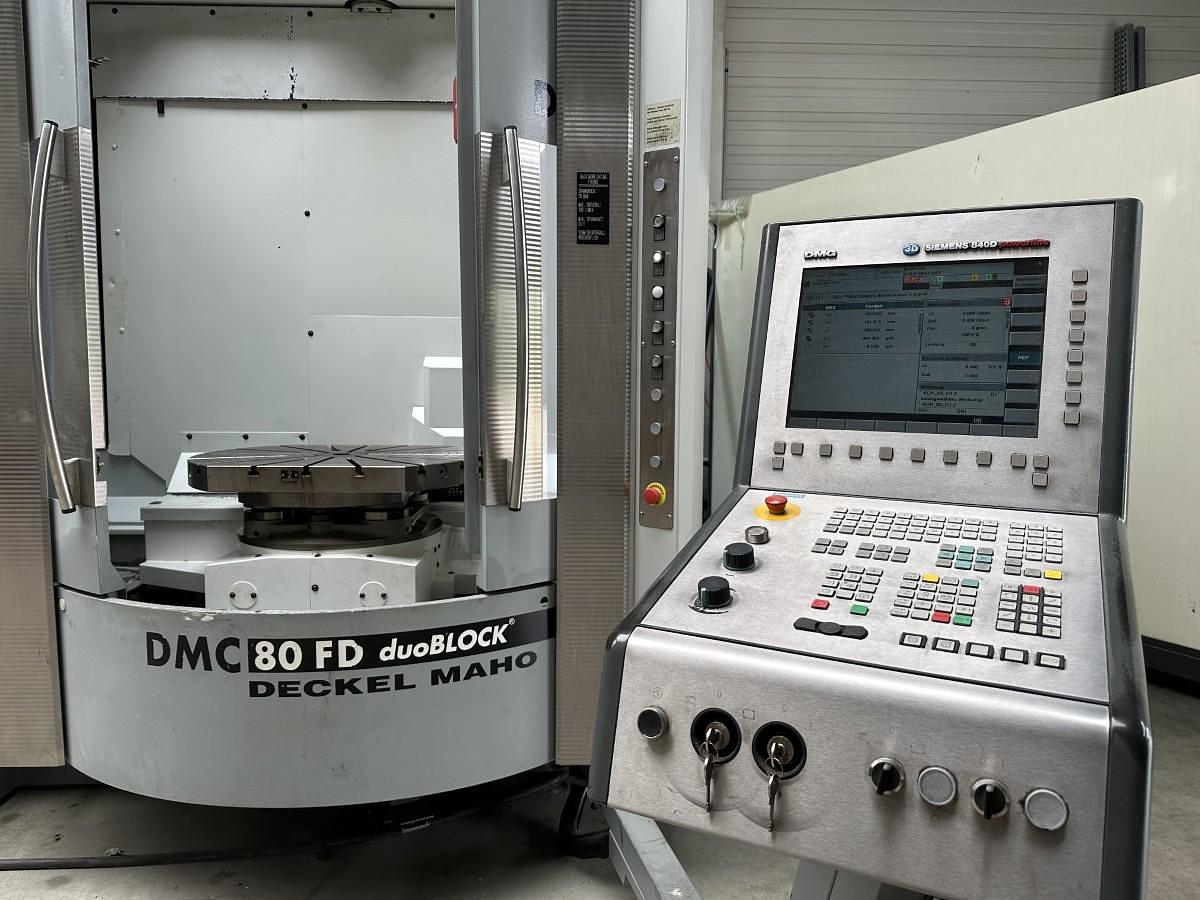

SIEMENS 840D CNC Control
Chip disposal
Chip conveyor

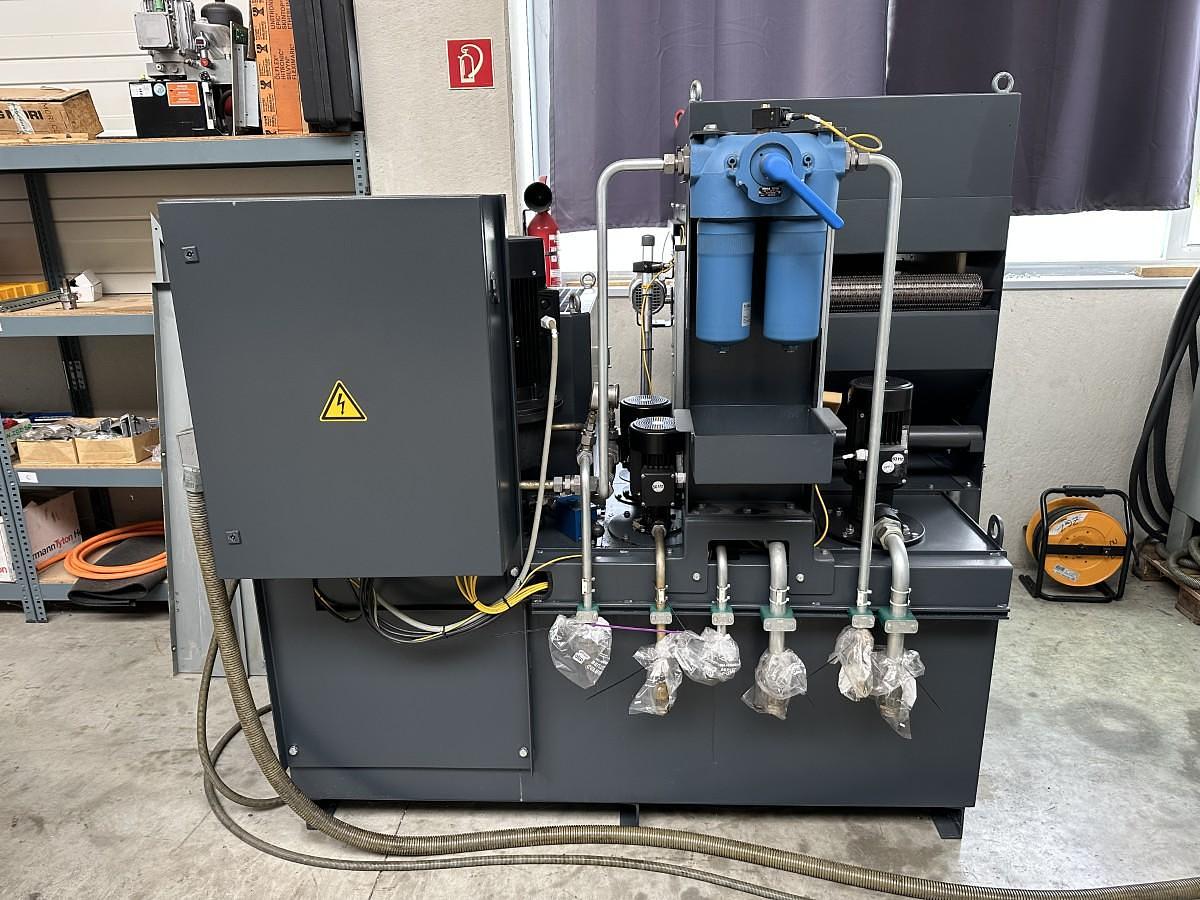

Coolant supply
IKZ system, 80 bar

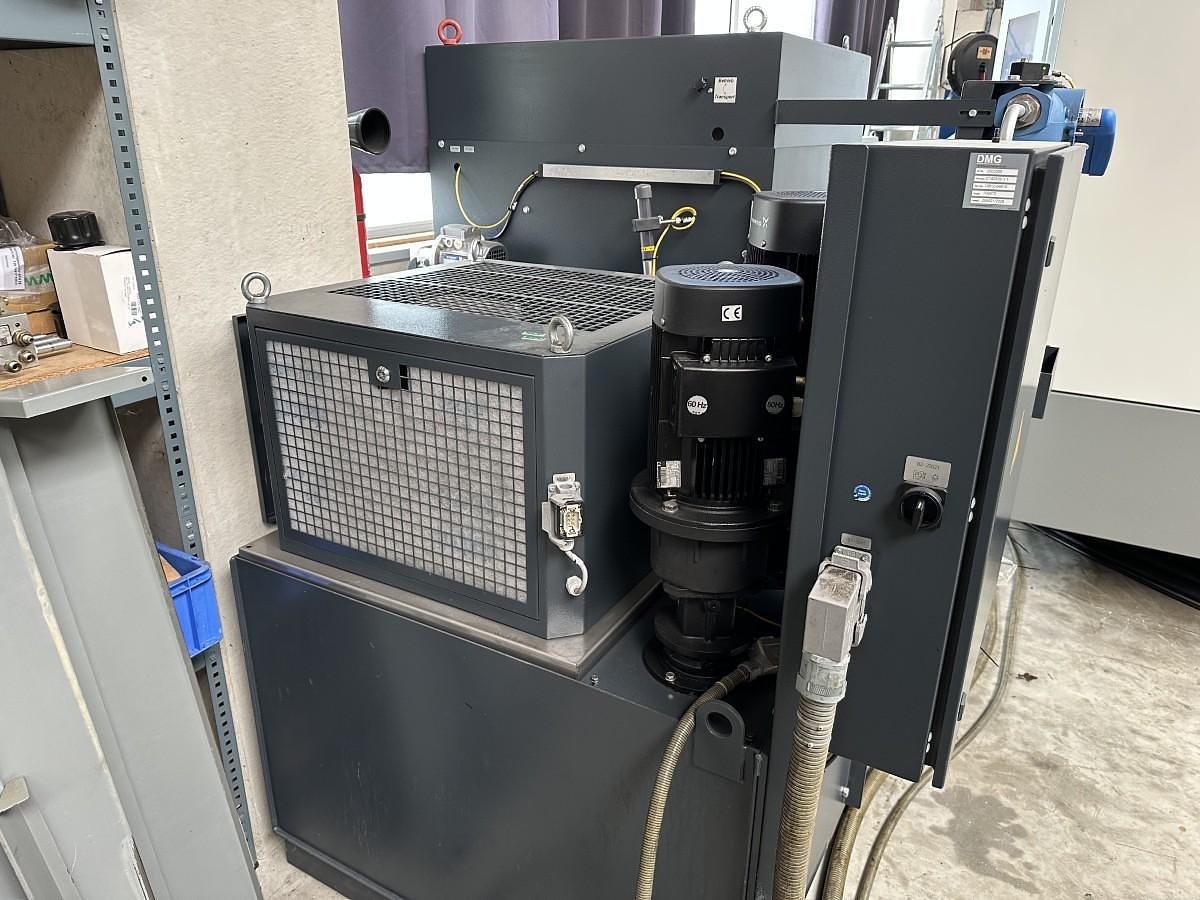

Coolant temperature control
Immersion cooler
Position measuring systems
Direct in all axes
Automation
2-fold pallet changer
Turning function
Spindle clamping + rotary table
Workpiece measurement
Preparation for measuring probe
Process monitoring
Operating mode 4
Set-up mode

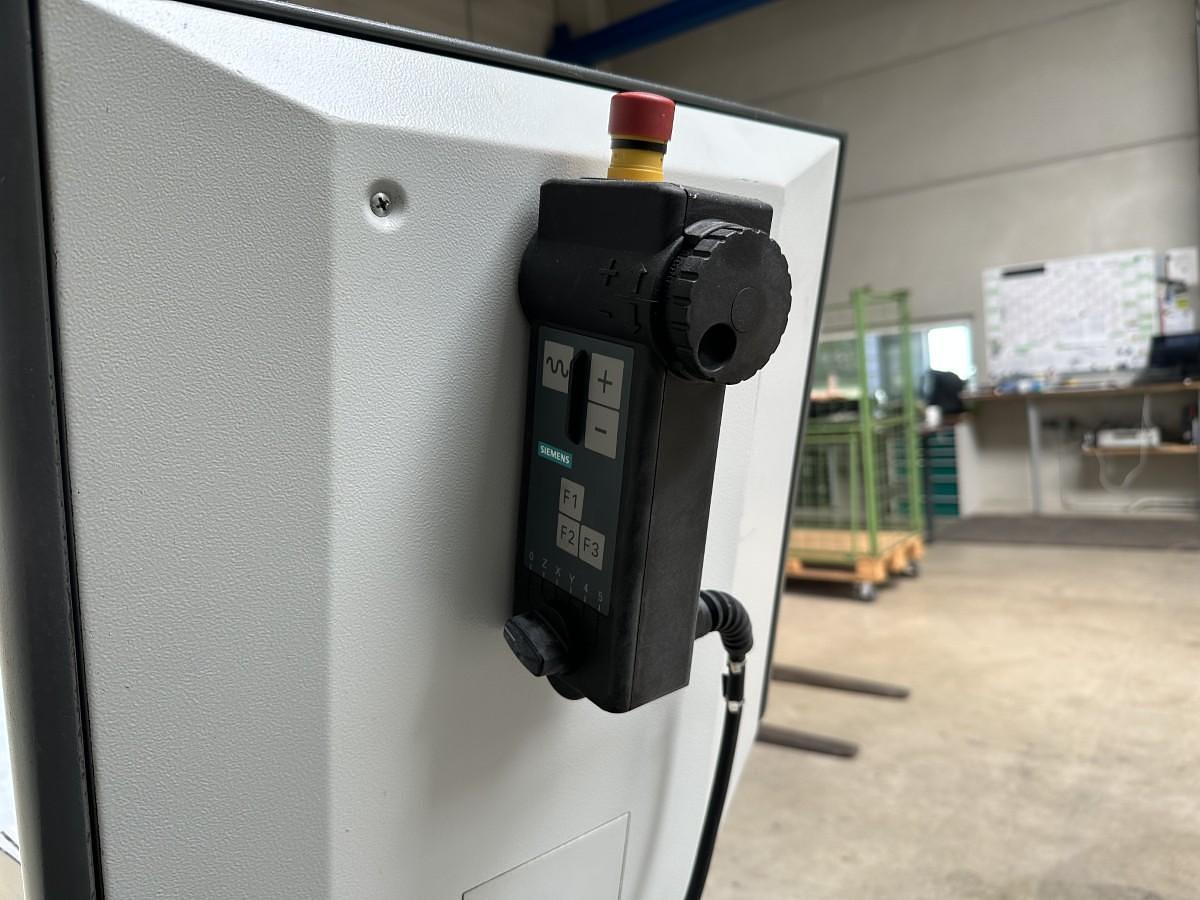

Electronic handwheel
Emulsion mist separator
Mechanical separator
Specifications
| Manufacturer | DMG DMC 80 FD duoBLOCK |
| Model | DMG DMC 80 FD duoBLOCK 5-AXIS MACHINING CENTER - MILLING & TURNING |
| Year | 2008 |
| Condition | Used |
| Stock Number | 446733 |
| X-Axis | 800 mm |
| Y-Axis | 800 mm |
| Z-Axis | 800 mm |
| Spindle speed | 8000 rpm |
| Table speed | 700 rpm |
| Spindle | Geared spindle |
| Spindle speed | 8000 rpm |
| Spindle power | 28 kW |
| Max. spindle torque | 727 Nm |
| Tool Holder | HSK 100 |
| Spindle turning function | Spindle clamping |

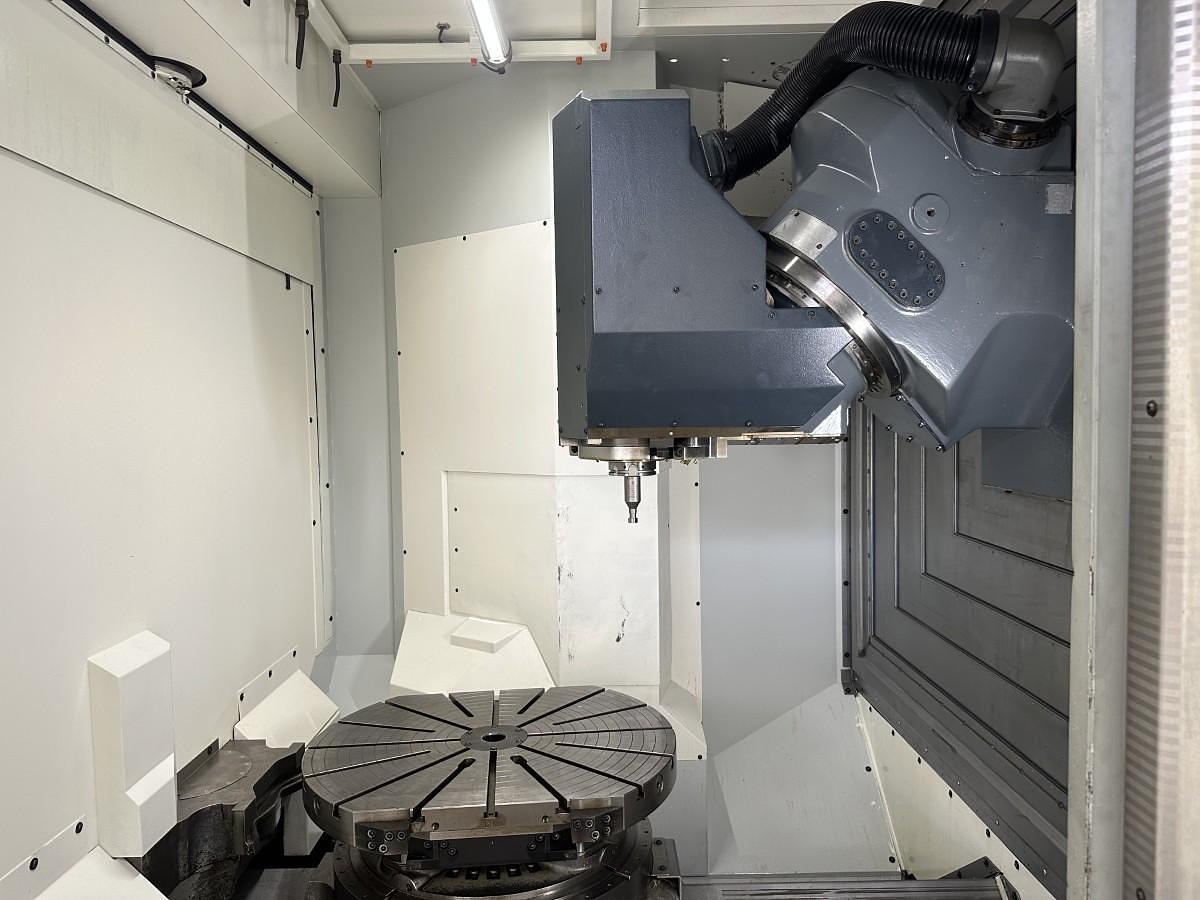

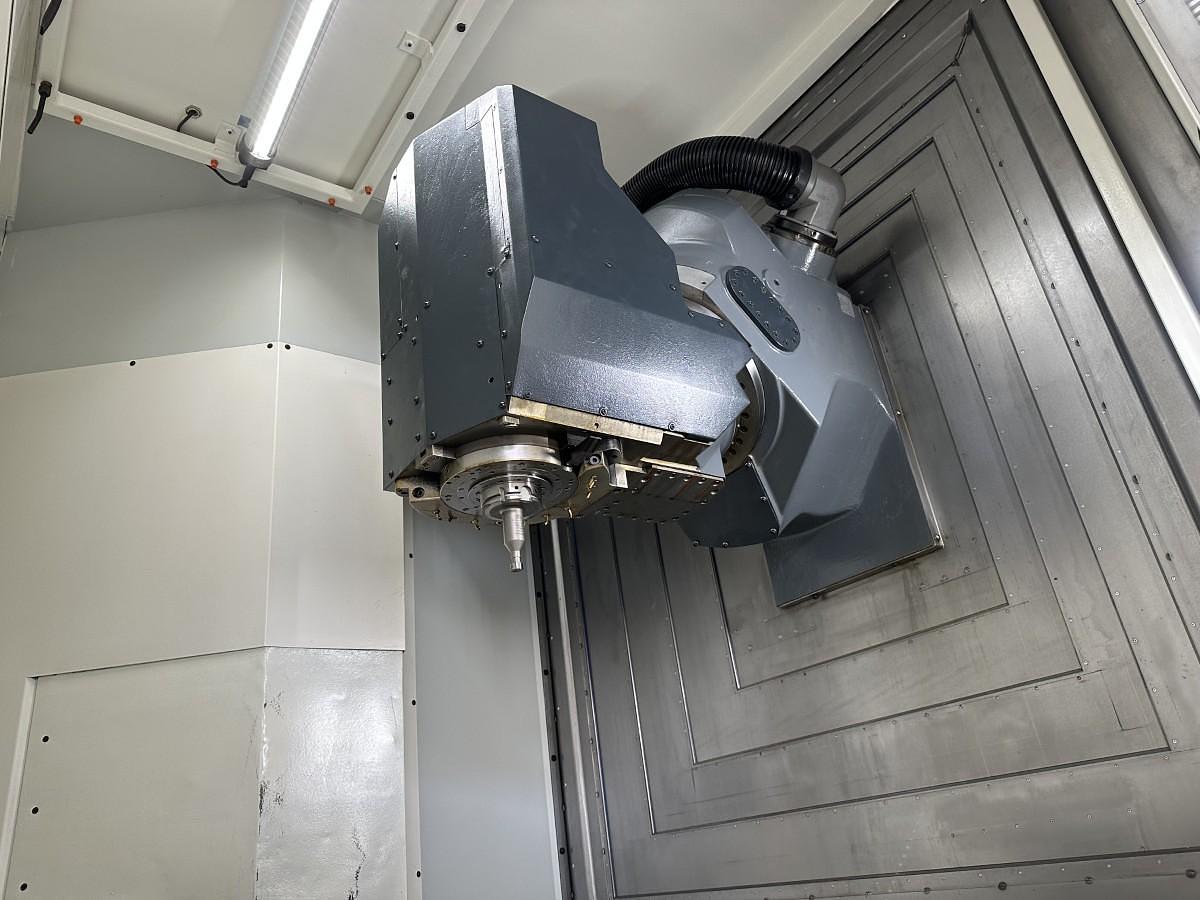

| NC Swivel Head | Universal Milling Head |

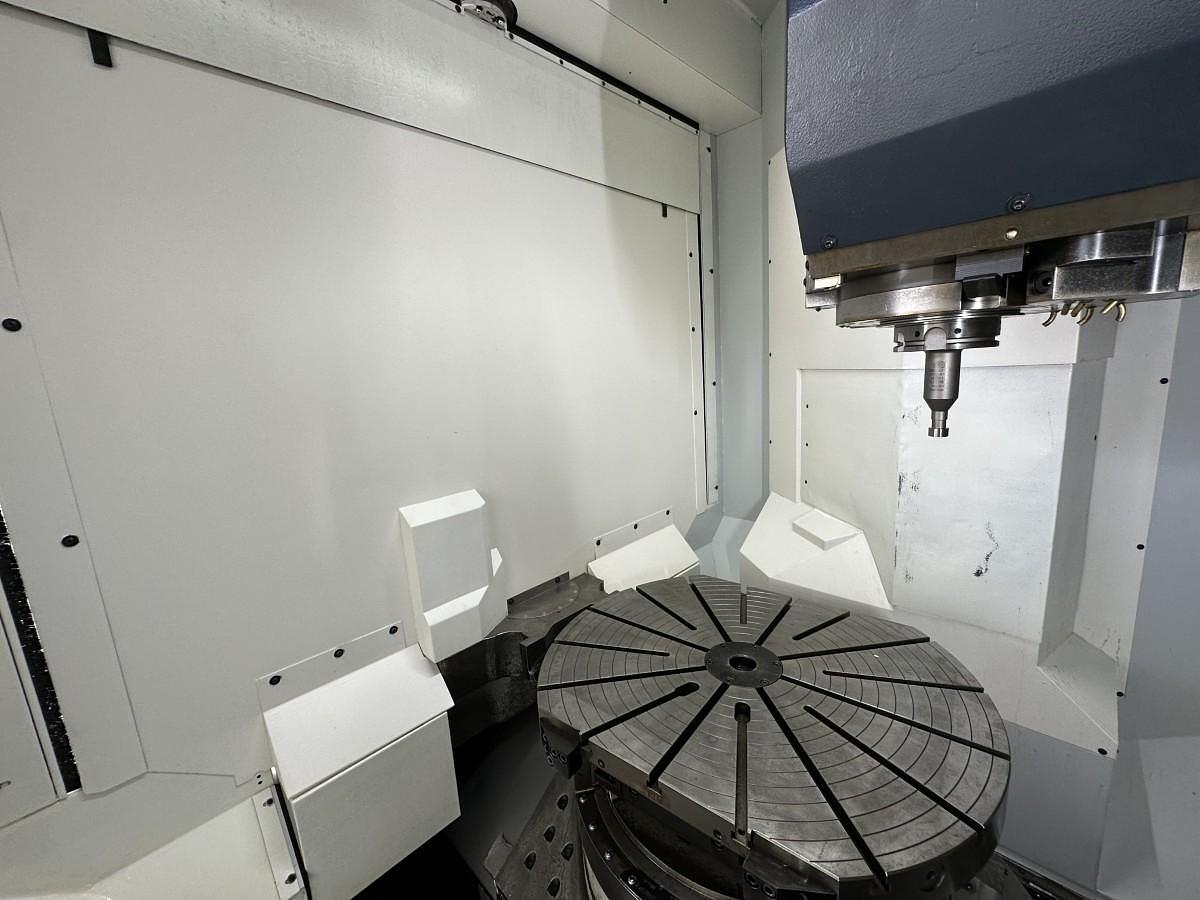

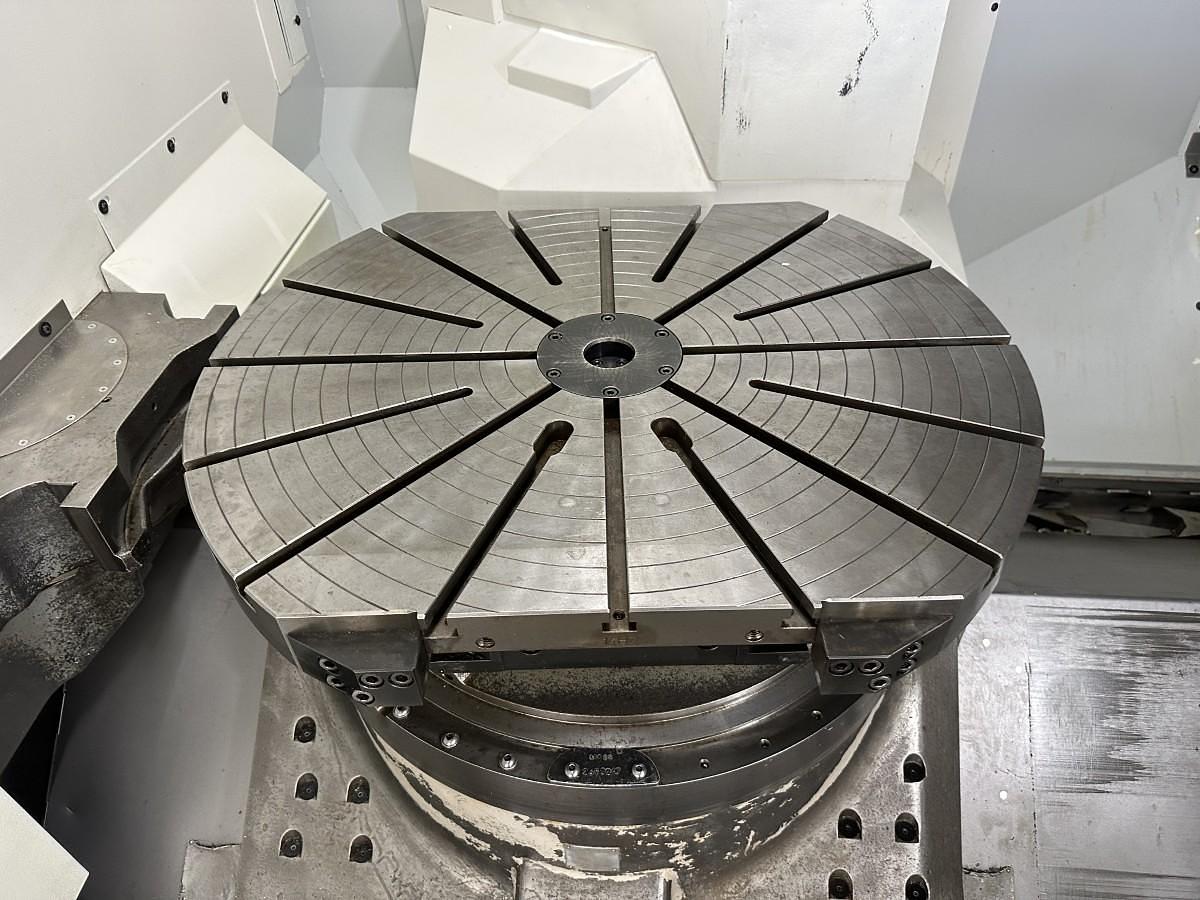

| NC Millturn Table | Max. Speed 700 rpm |
| NC Millturn Table | Clamping surface 800 x 630 mm |
| NC-Millturn Table | Max. Table Load 800 KG |

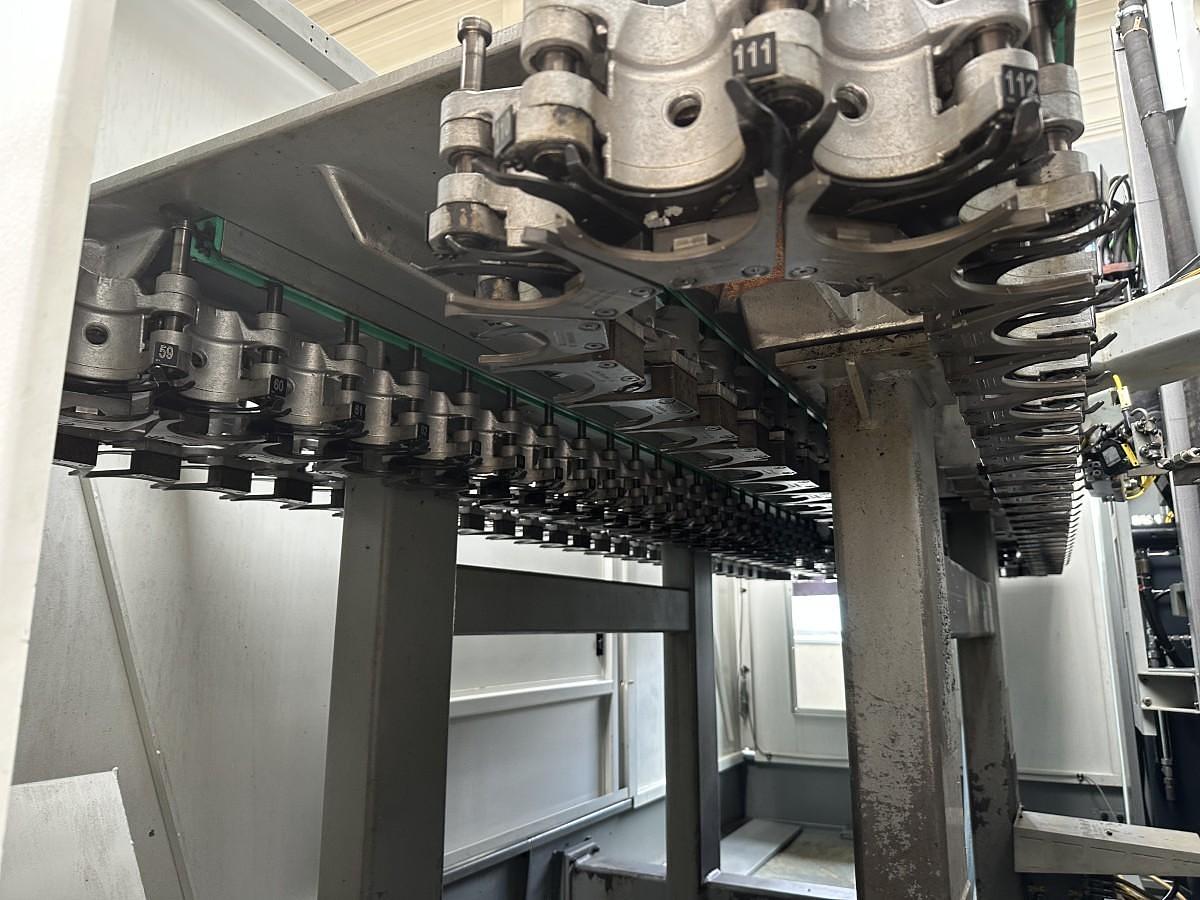

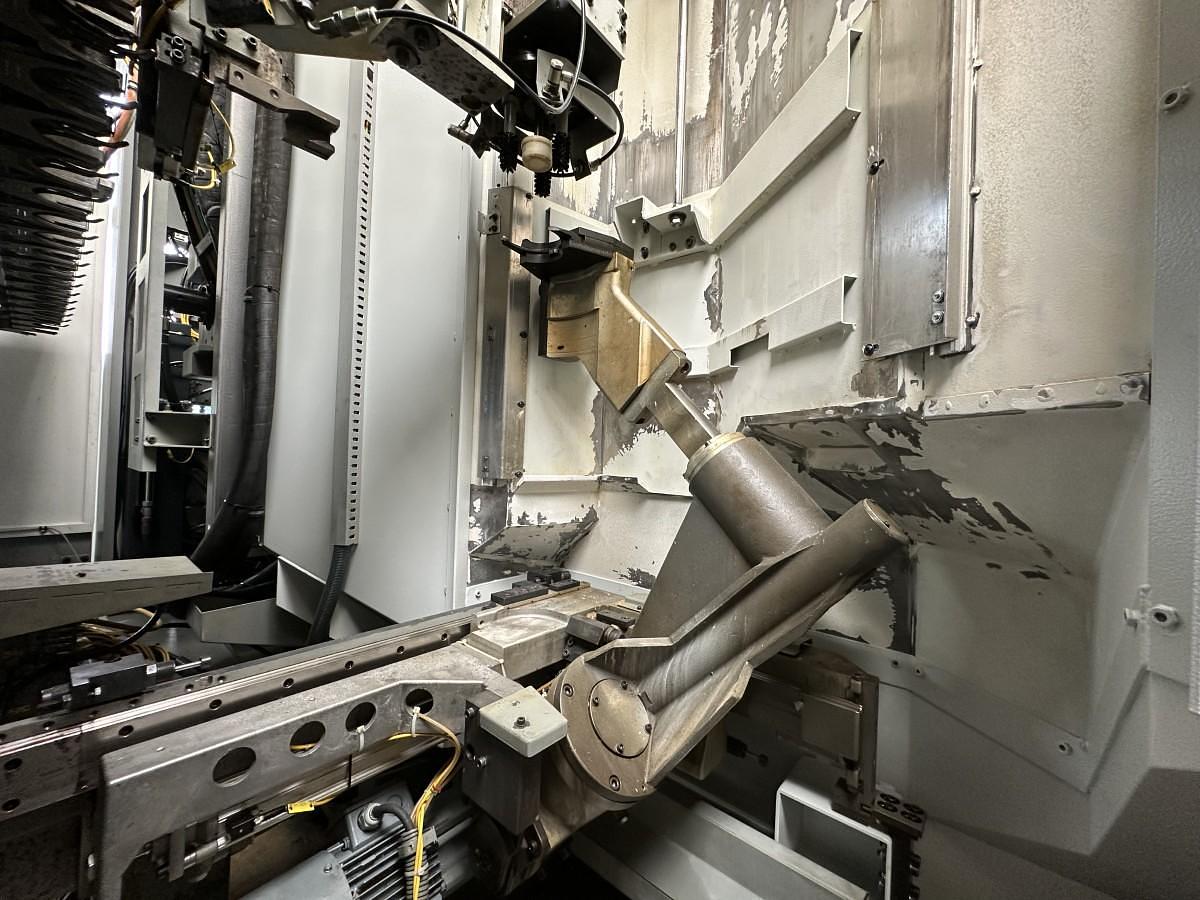

| Automatic Tool Magazine | Chain Type |
| Automatic Tool Changer | 120 Position |
| Automatic Tool Changer | Double Gripper |
