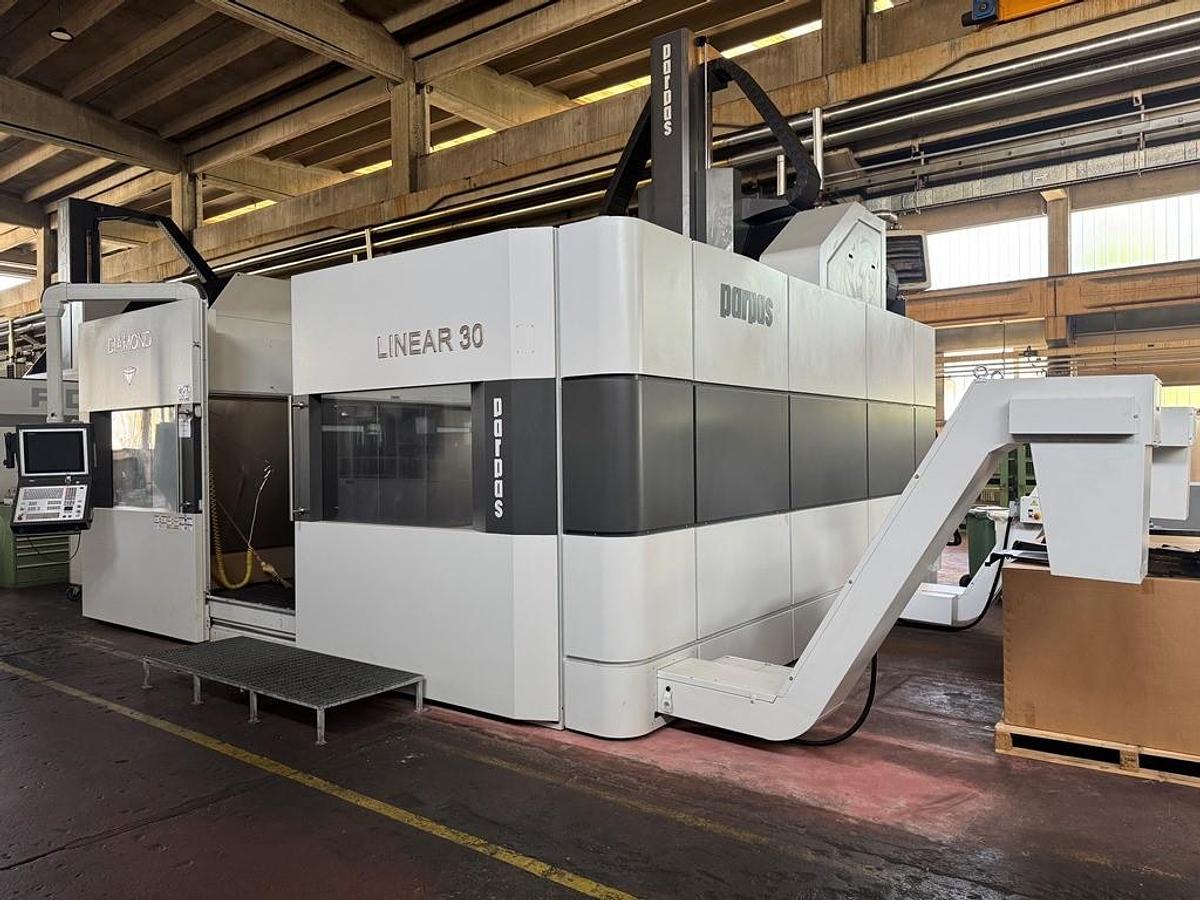

Parpas Diamond Linear 30 5-Axis CNC Gantry Type Milling Machine
Parpas Diamond Linear 30 5-Axis CNC Gantry Type Milling Machine
Description

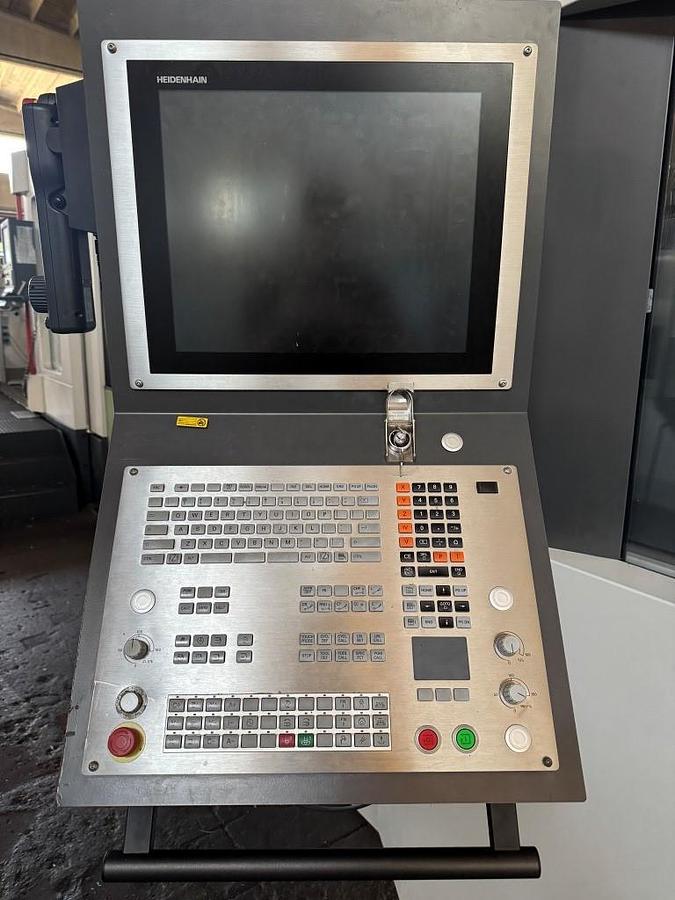

Heidenhain 640 CNC Control

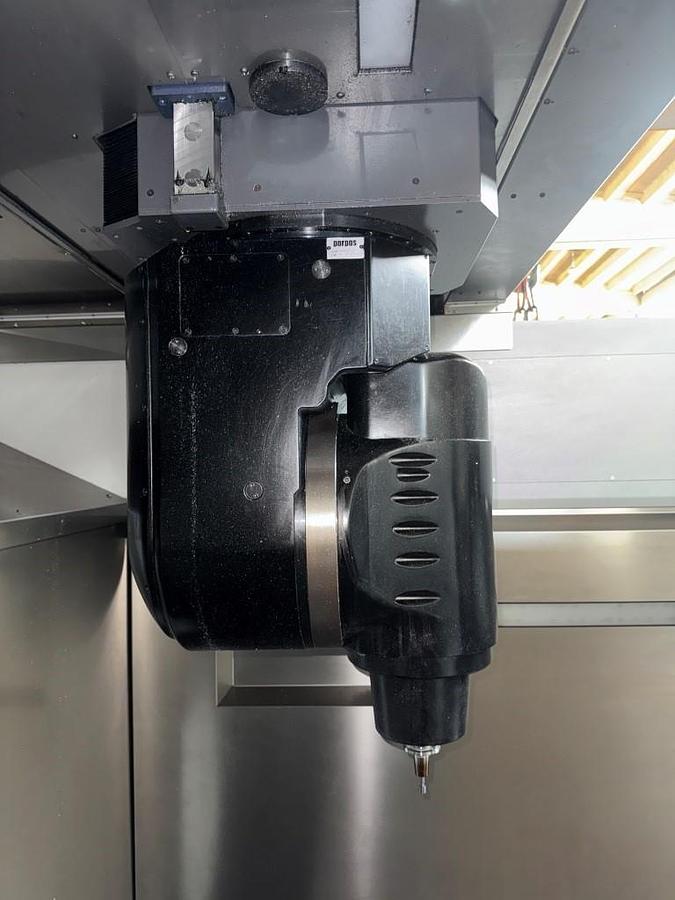

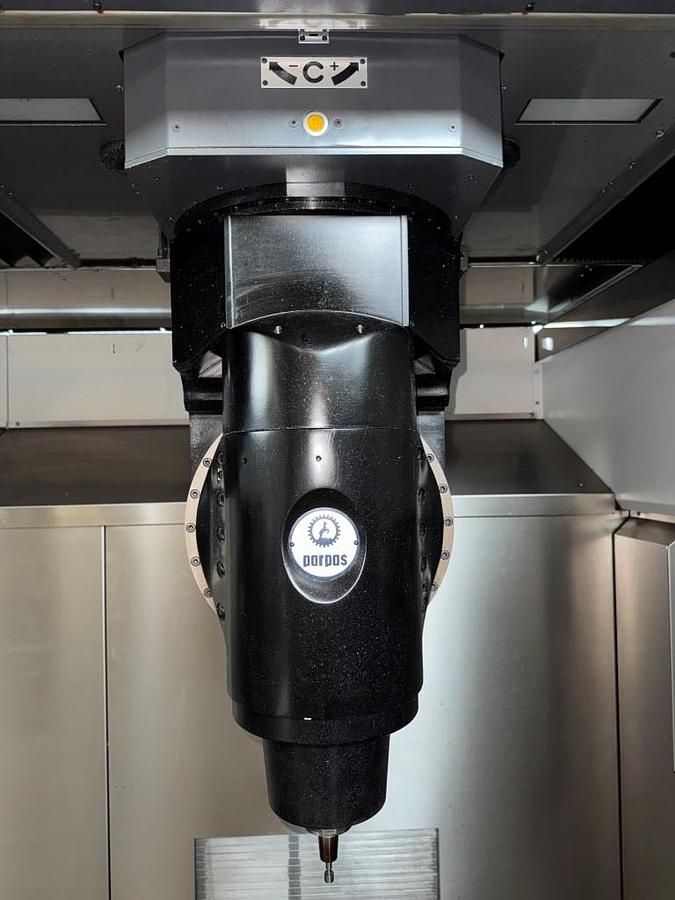

TOE 5 Axis Continuous Orthogonal Head
Torque up to 175 Nm
Power up to 78 KW
Speed up to 24.000 RPM
Spindle taper HSK-63A

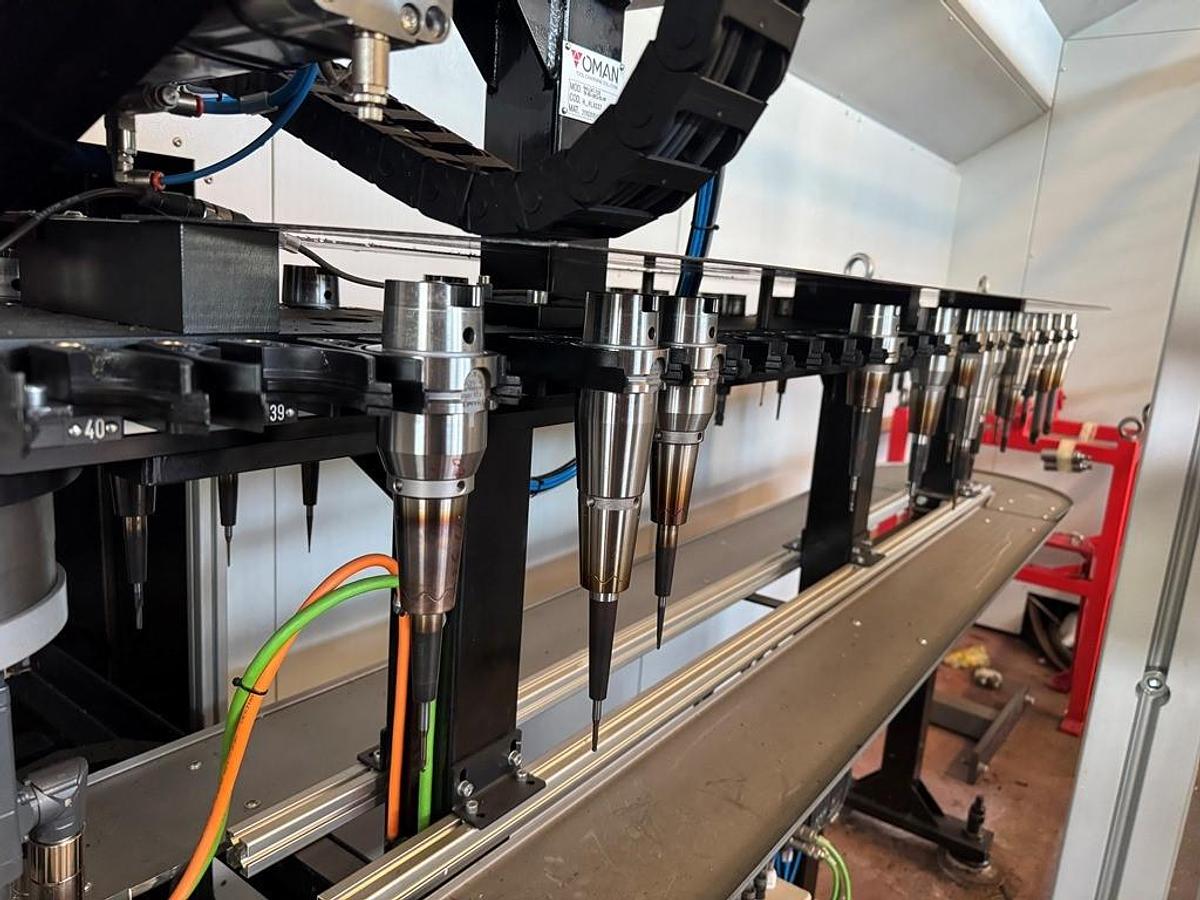

60 Position Automatic Tool Changer

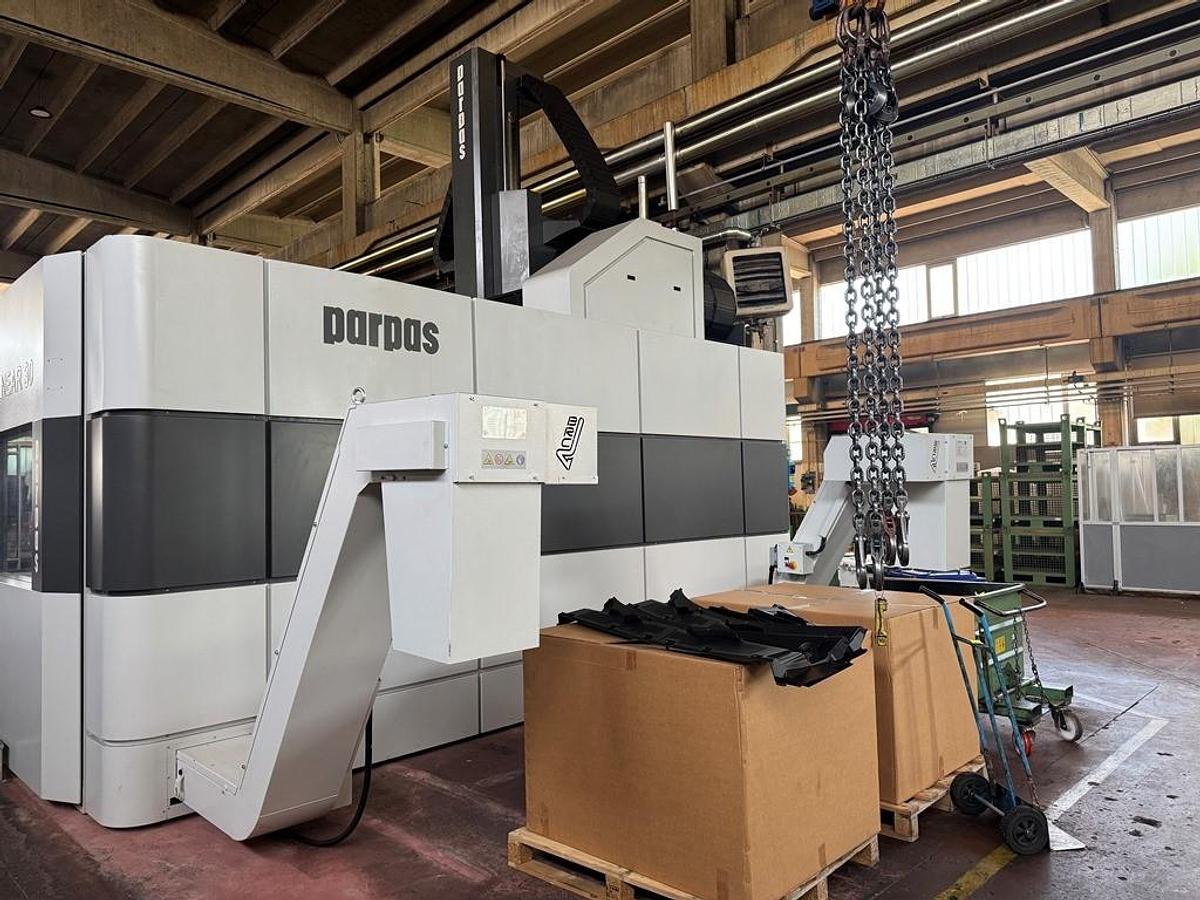

2 Chip Conveyors
HR 550FS Handwheel

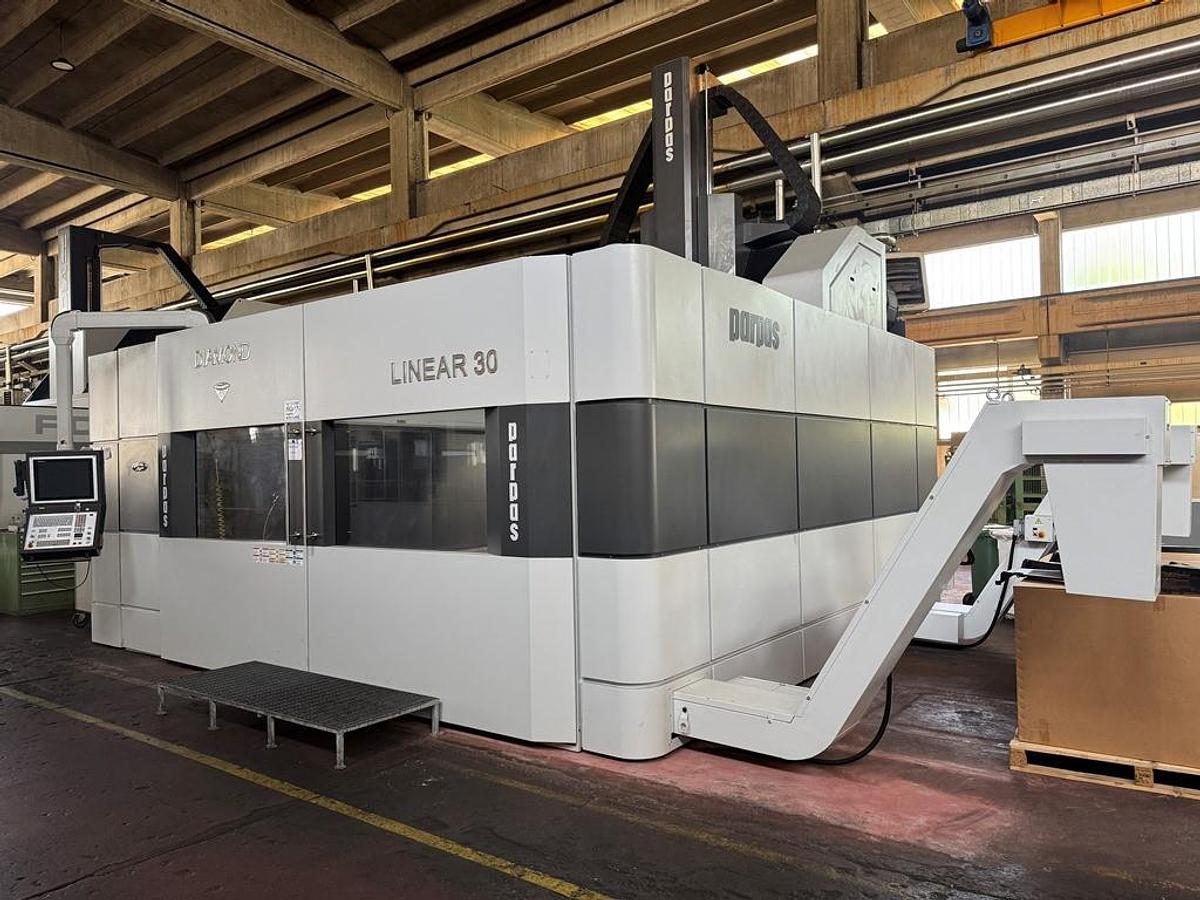

The DIAMOND 30 is a Gantry 5 axis high precision and reliability machining center, ideal for highspeed machining.
It is characterized by a monobloc structure, with a traverse with gantry configuration and piece always fixed, completely with linear motors for both linear and rotary axes with torque motors.
Extremely effective in high-speed roughing operations and extremely accurate and reliable in semi-finishing and finishing operations. All this allows the machine to be, in the same way, highly performing even unmanned.
Product can be customized according to customer requirements (Heads, CNC, tool magazine, etc.) but with standard strokes.
Specifications
| Manufacturer | Parpas |
| Model | Diamond Linear 30 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 11231 |
| X axis travel | 2,600 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,400 mm |

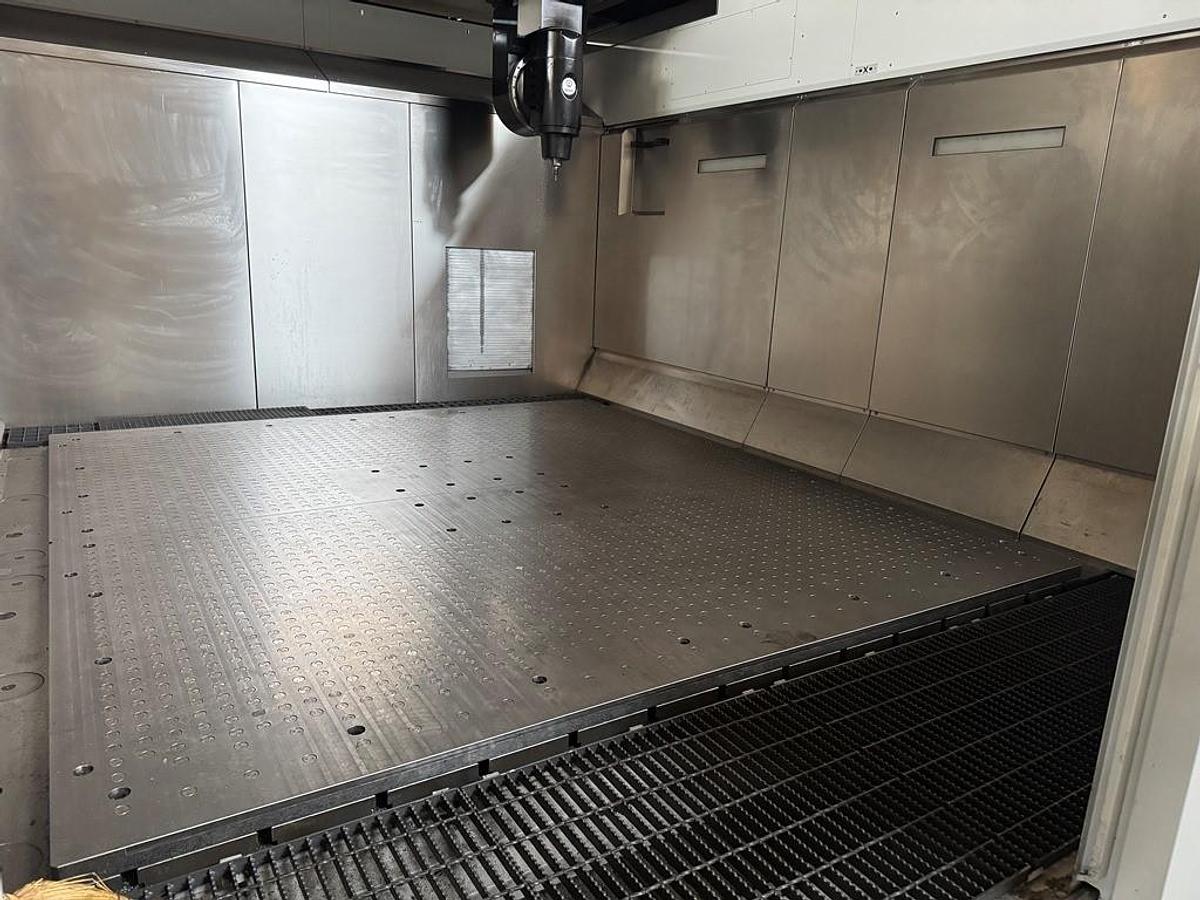

| Table dimensions | 3,100 x 2,800 mm |
| Feed rate X/Y/Z | 60 m/min |
| Spindle taper | HSK 63A |
| Machine dimensions | 11 x 8 x 6 m |
