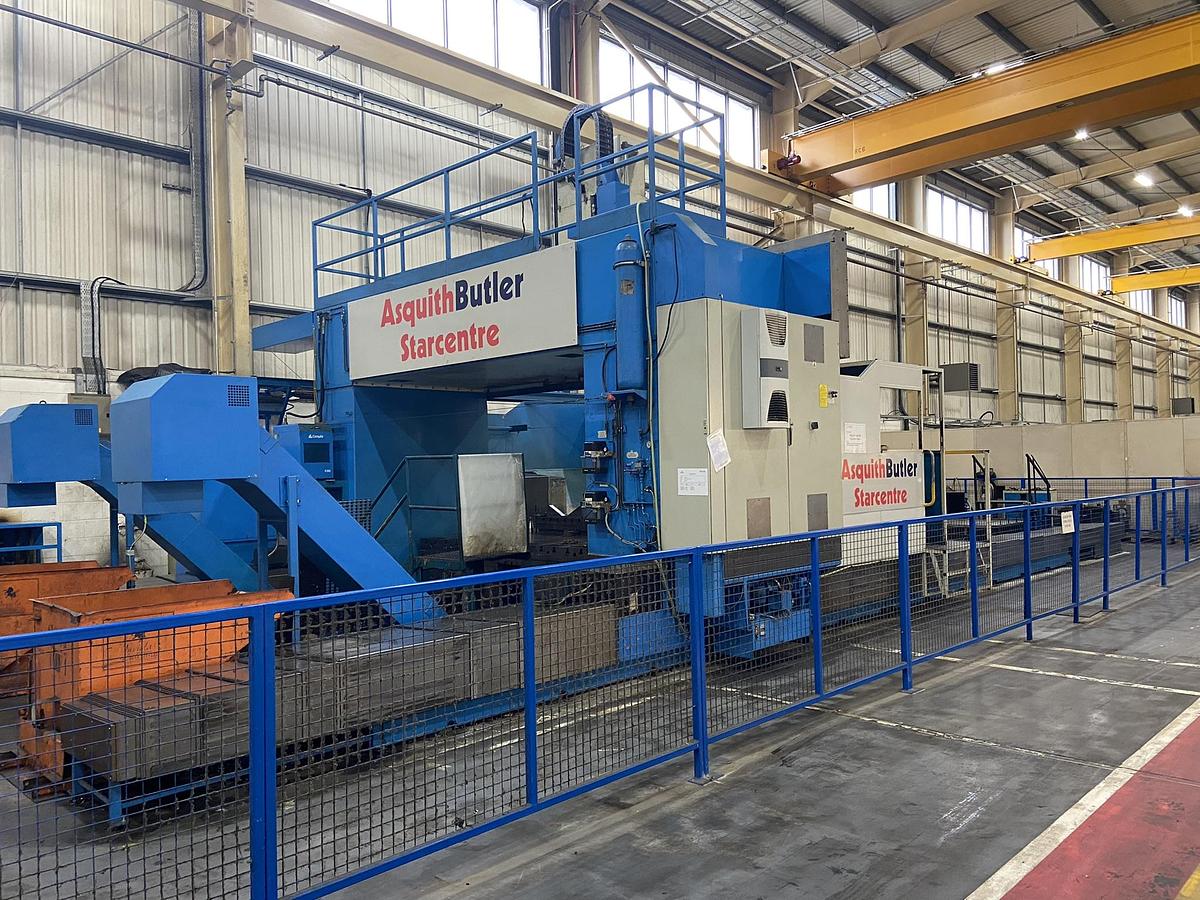

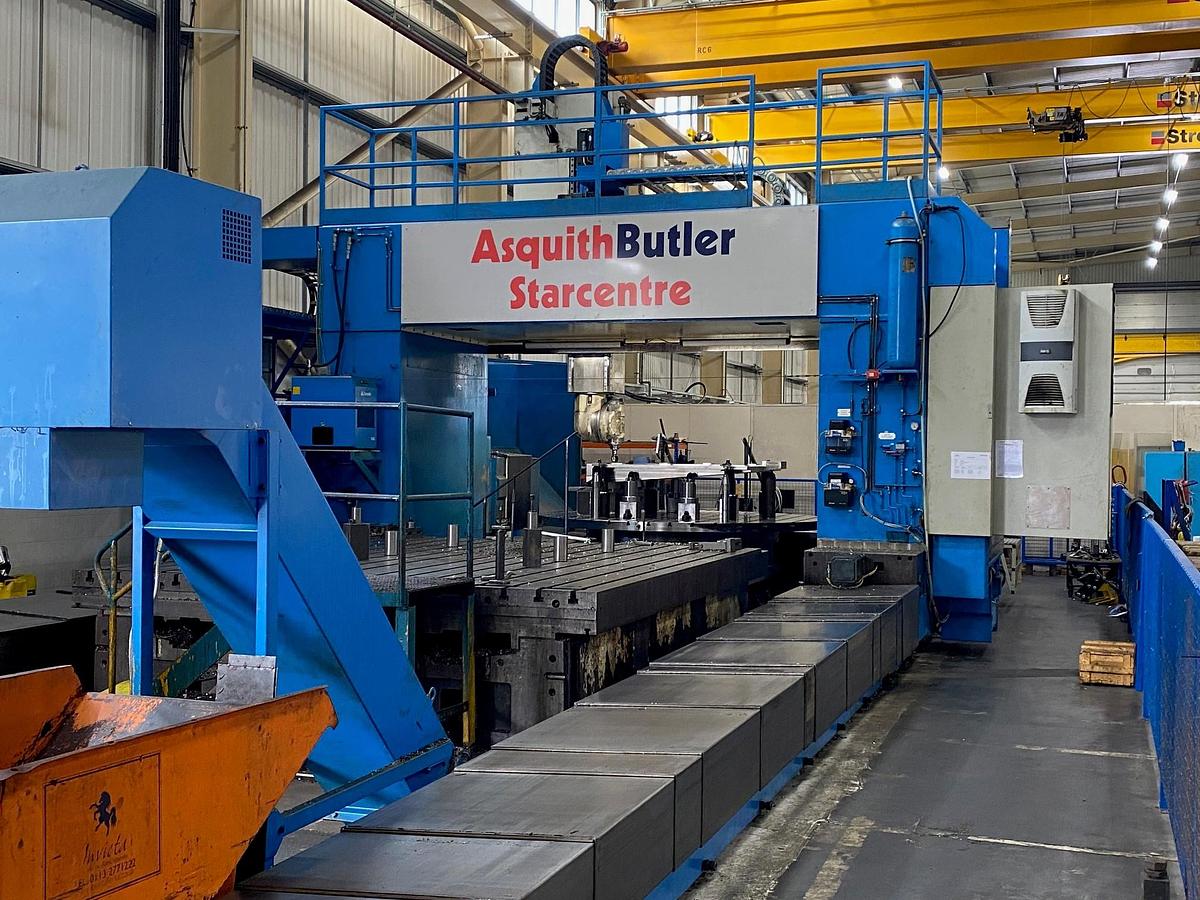

ASQUITH BUTLER Starcentre 250 CNC Gantry Type Milling Machine with Turn Table & Indexing Head
ASQUITH BUTLER Starcentre 250 CNC Gantry Type Milling Machine with Turn Table & Indexing Head
or
Call 770-509-0744
Description
MECHANICALLY UPGRADED & RETROFITTED WITH SIEMENS 840DSL CONTROL IN 2016
TRAVELLING GANTRY FIXED BED CNC MILLING CENTRE WITH ORTHOGONAL AUTOMATINC INDEXING MILLING HEAD, 60 STATION ATC & EIMELDINGEM 2000 / 3000 MM NC ROTARY TABLE
- SIEMENS 840DSL CNC CONTROL SYSTEM

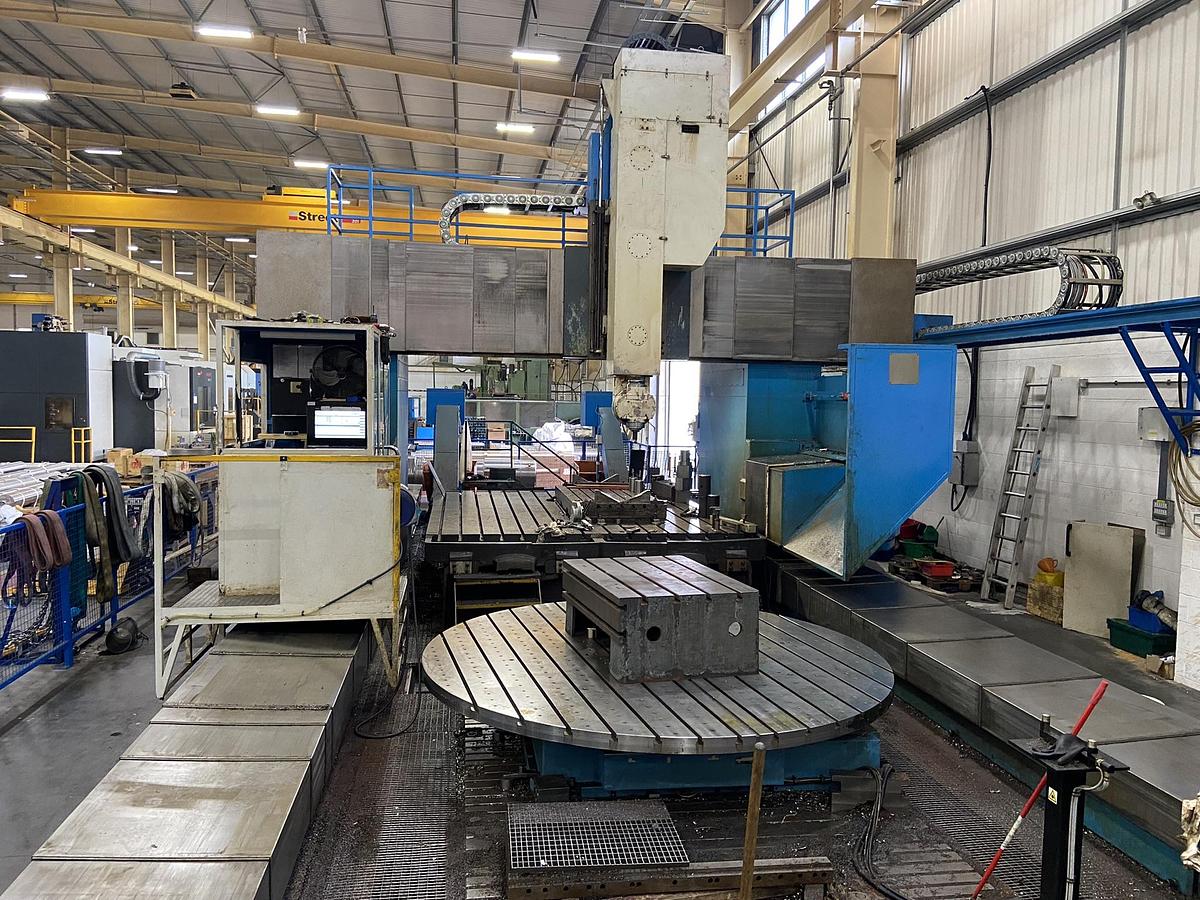

- INTEGRATED EIMELDINGEN ROTATING MILLING TABLE CAP 2000 MM/10 TONNES WITH 3000 MM SUB TABLE
- ADDITIONAL HEIGHT INCREASER BASE FOR THE EIMELDINGEN ROTARY TABLE
- 30.0 KW, 2.5 DEG x 2.5 DEG, 3,000 RPM, OIL COOLED AUTOMATIC INDEXING HEAD
- 60 STATION AUTOMATIC TOOLCHANGER

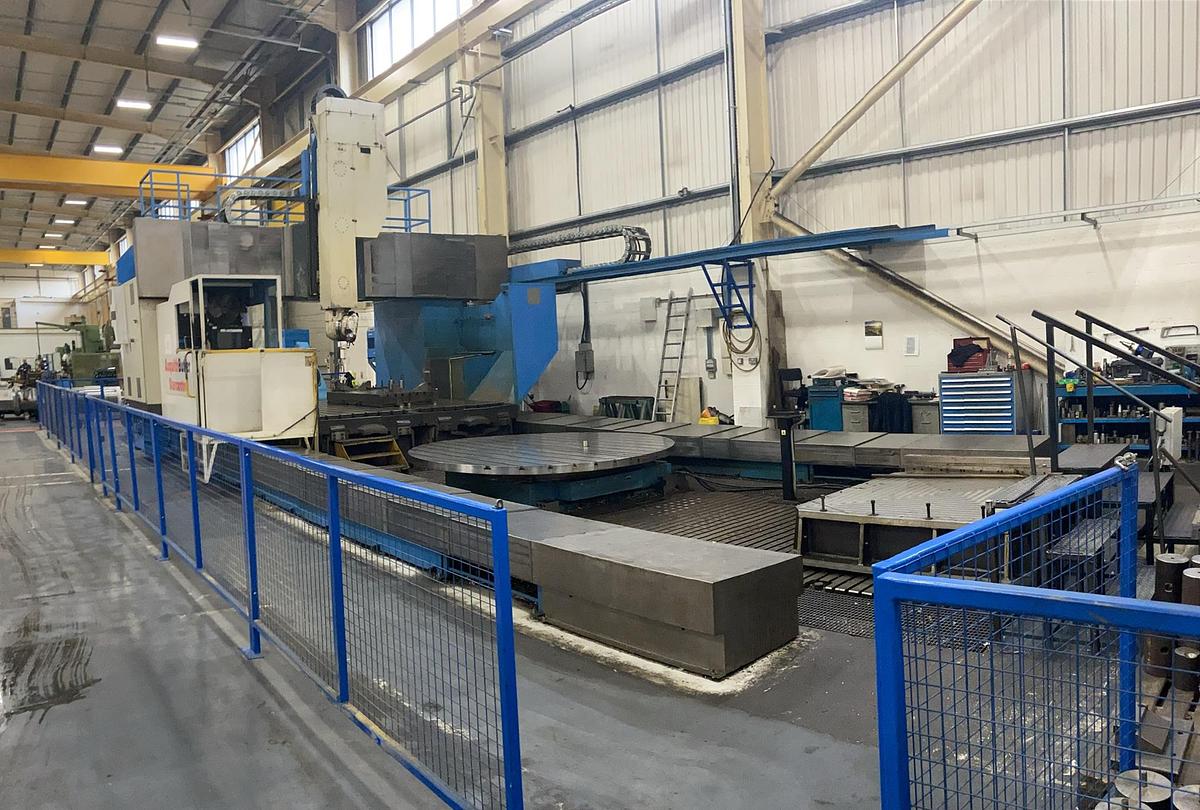

- GUARDING SYSTEM WITH SIDE FENCES.
- TWIN CHIP CONVEYORS.

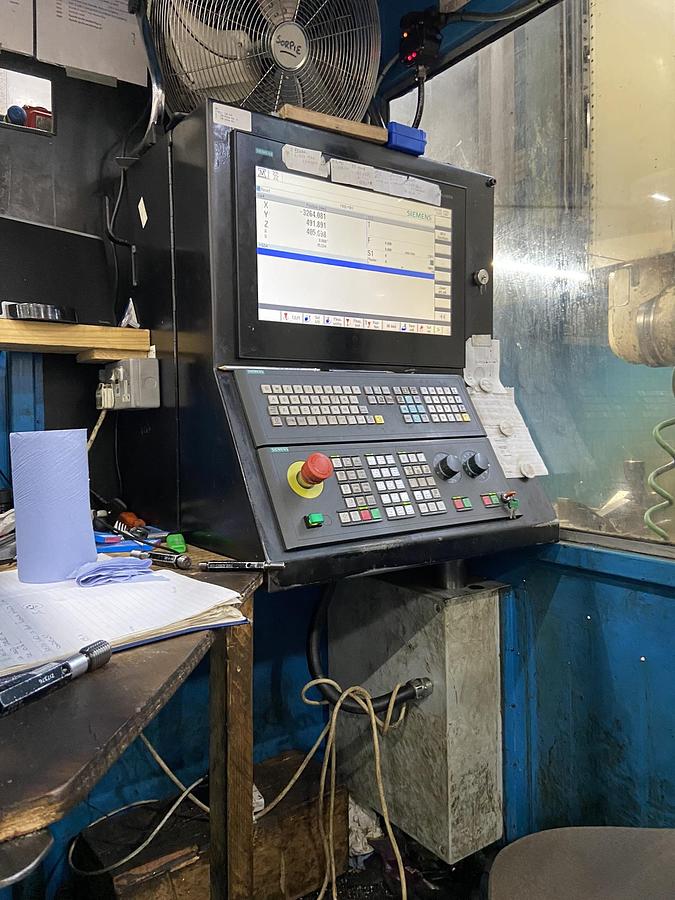

- COLUMN MOUNTED OPERATOR STATION INCORPORATING OPERATOR’S PENDANT

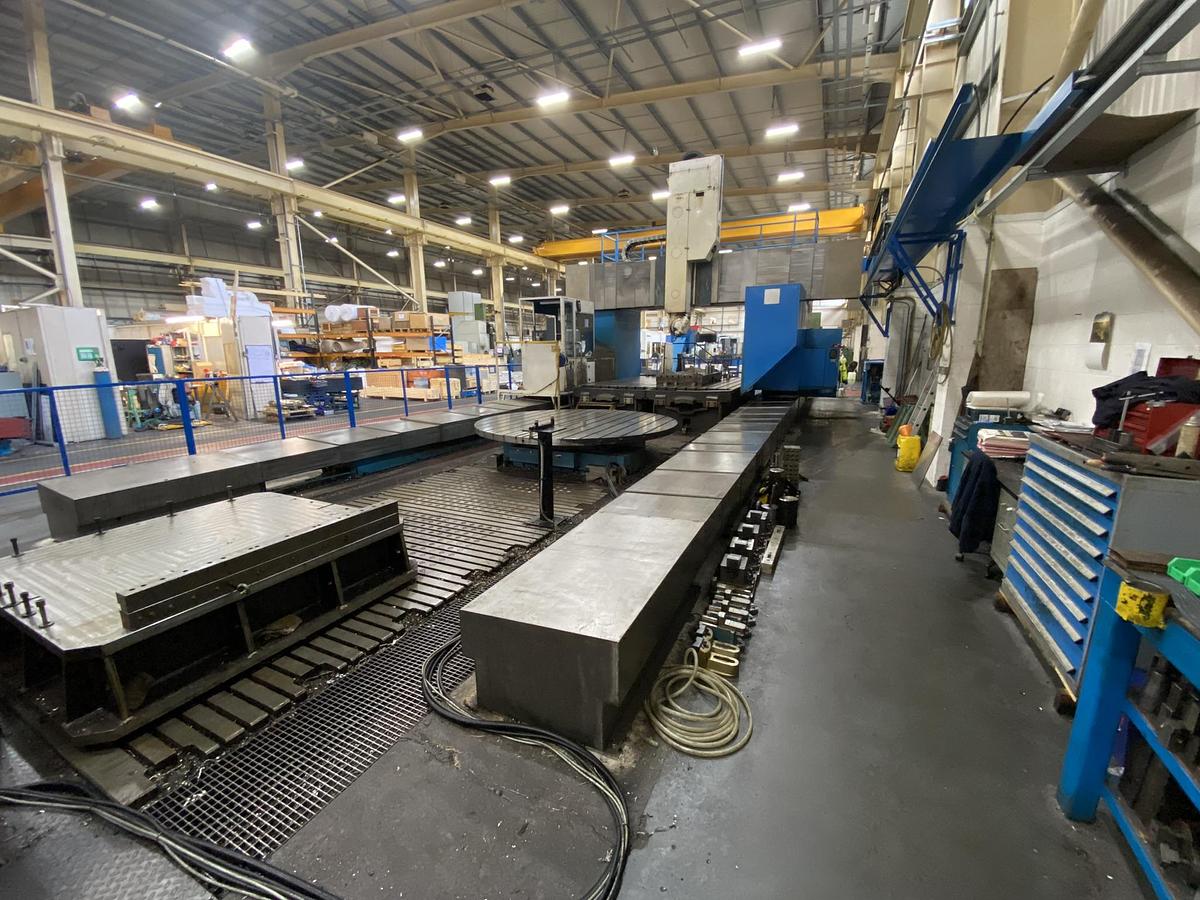

- FLOOR PLATE & ADDITIONAL BOX TABLES
Specifications
| Manufacturer | ASQUITH BUTLER |
| Model | Starcentre 250 |
| Year | 1998 |
| Condition | Used |
| Stock Number | 11224 |
| Between columns | 3,850 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 10,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,350 mm |
| Rapid Feed X/Y/Z | 16,000 mm/min |
