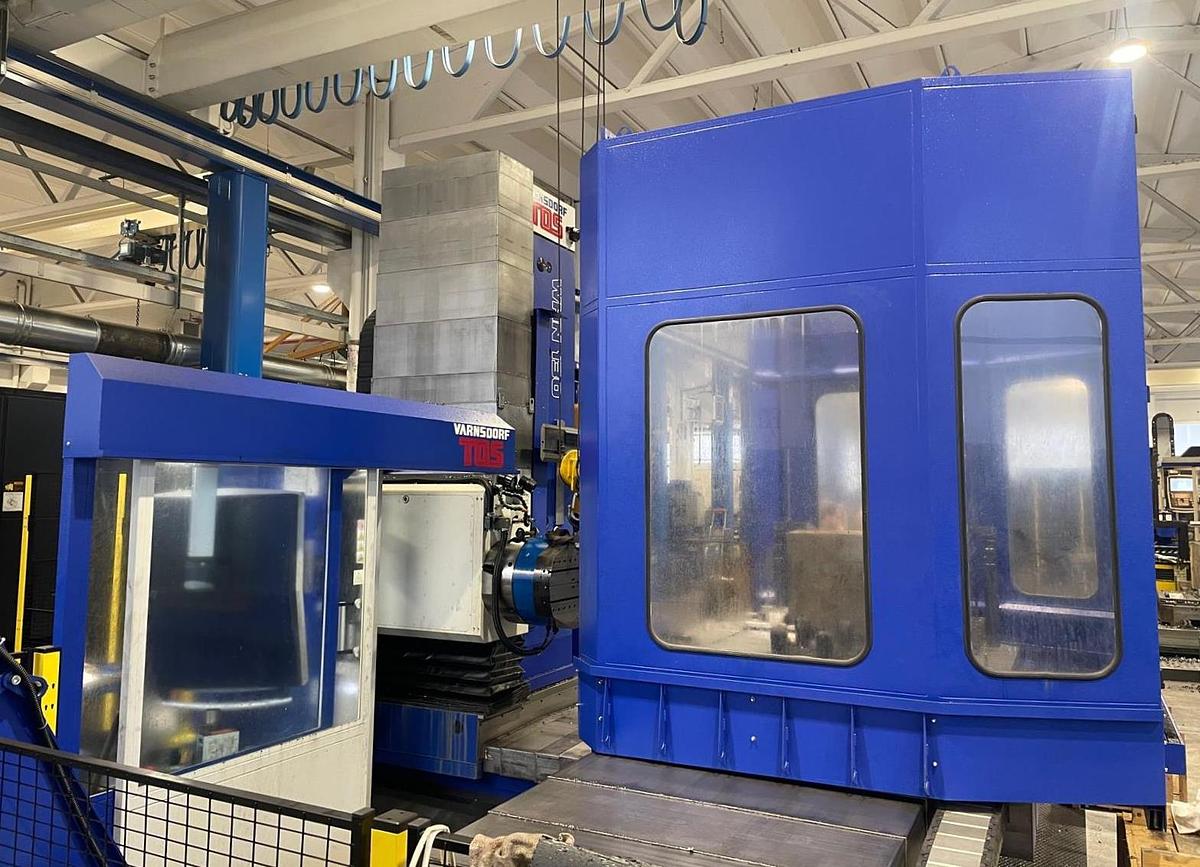

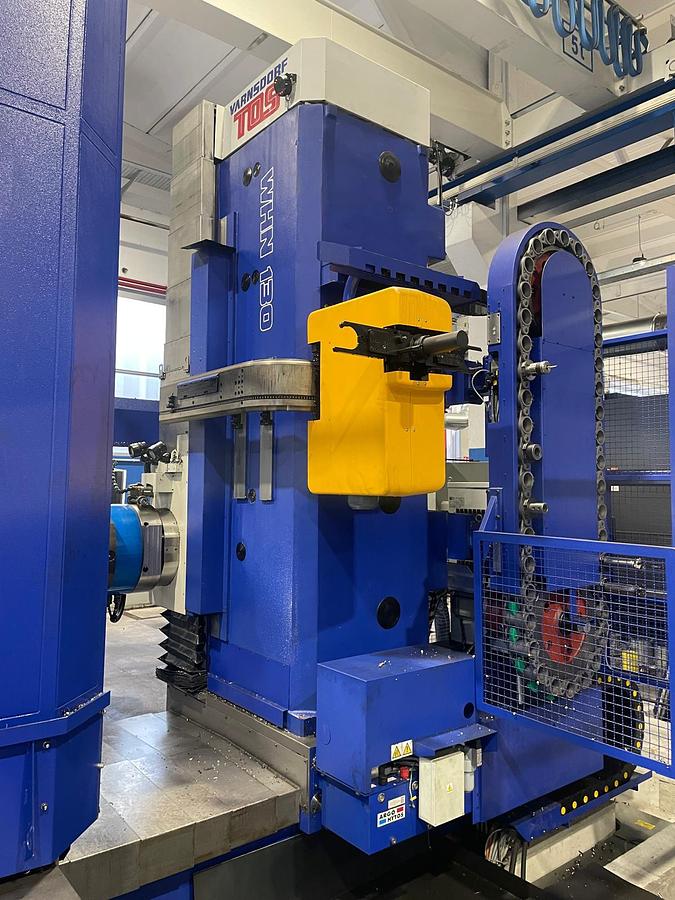

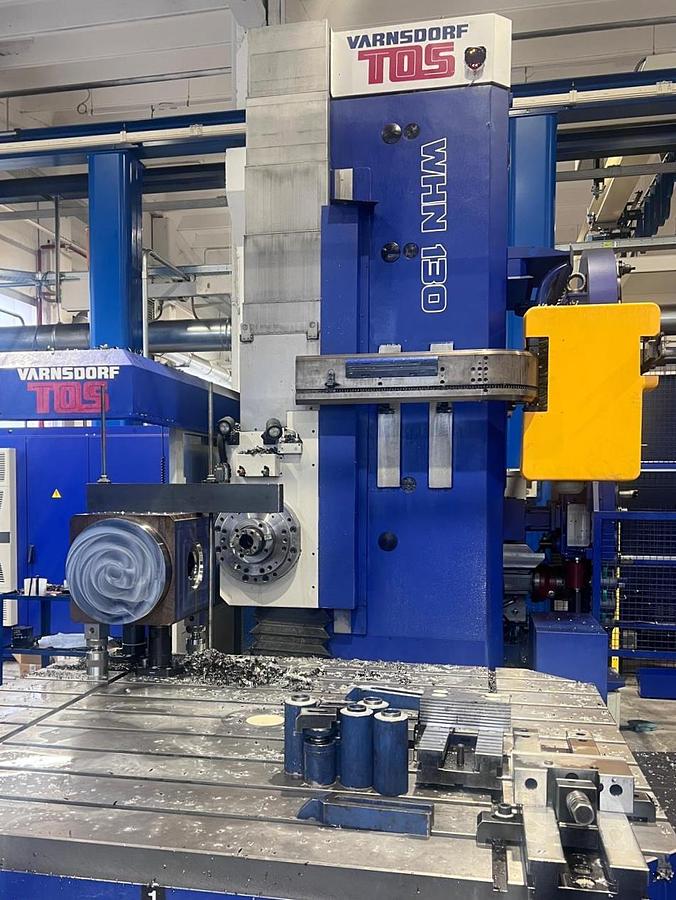

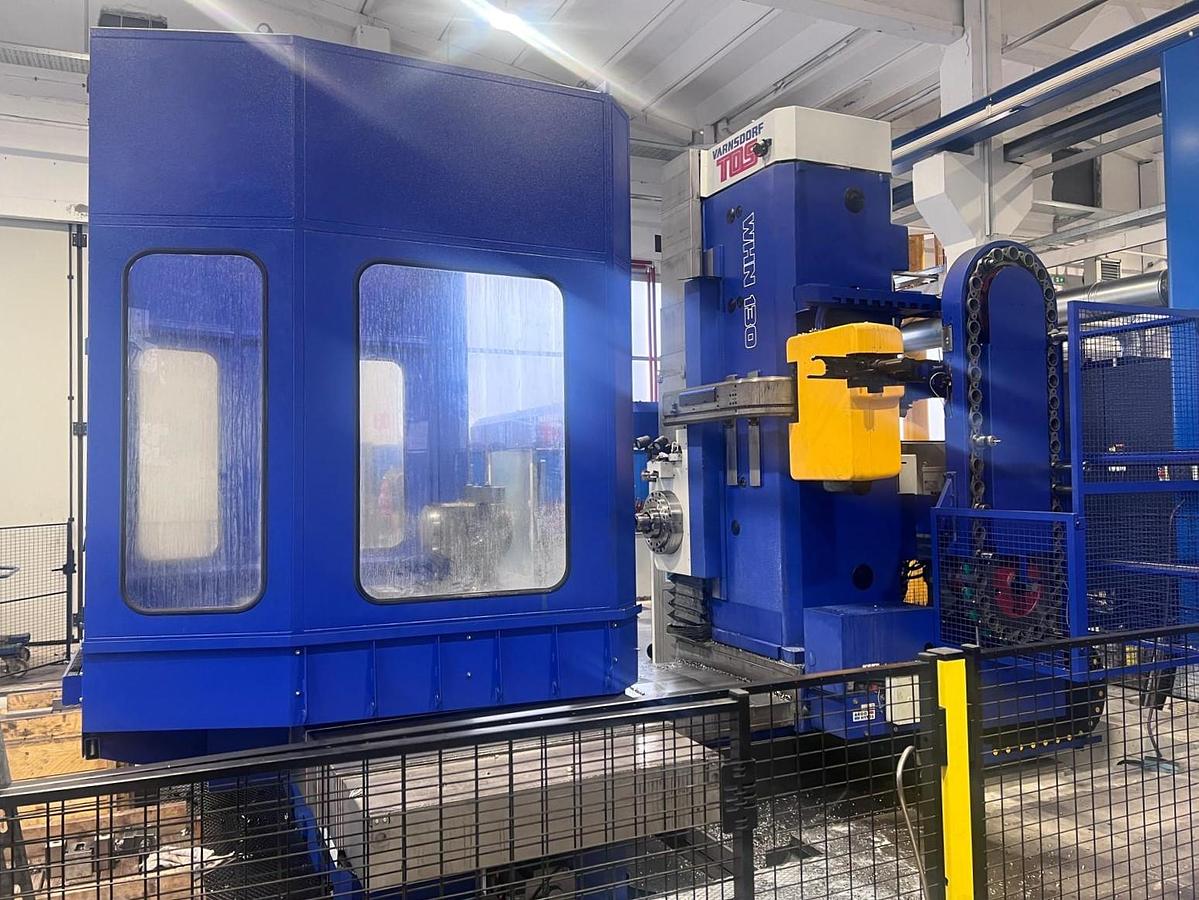

Tos Varnsdorf WHN 130Q CNC Table Type Horizontal Boring Machine
Tos Varnsdorf WHN 130Q CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description

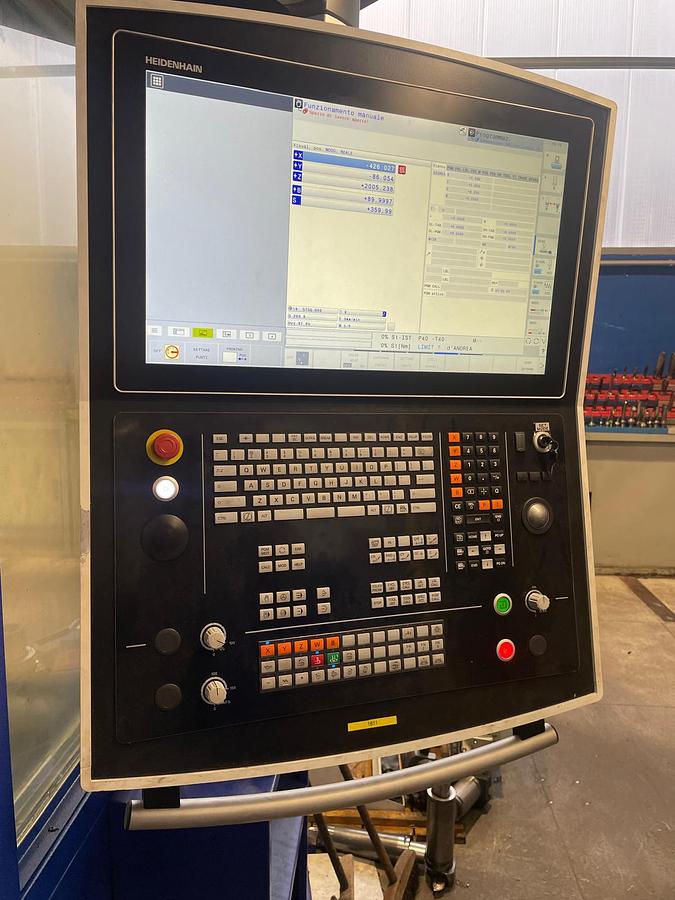

Heidenhain TNC 640 CNC Control
CNC Display 24" TFT And Remote Handwheel HR 510-2 With 3-Meter Cable
40 Position Magazine Automatic Tool Changer
Coolant Through Spindle 70 Bar Adjustable
Heidenhain Pressurized Optical Scales With 0.001 mm Resolution
Chip Conveyor

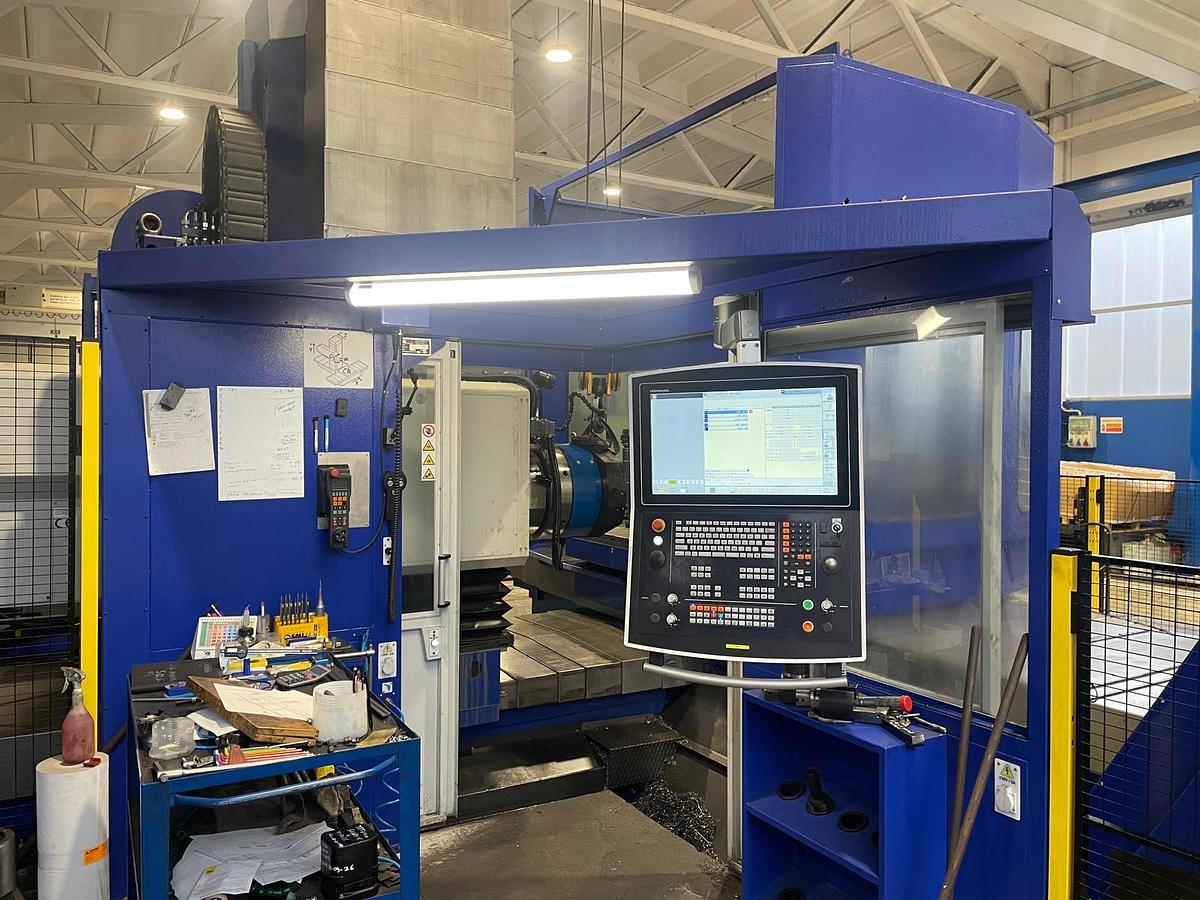

Operator Cabin
Mobile Protective Cover For The Working Area
Renishaw RMP 60 Q 3D Measuring Probe
Front And Side Machine Safety Fences

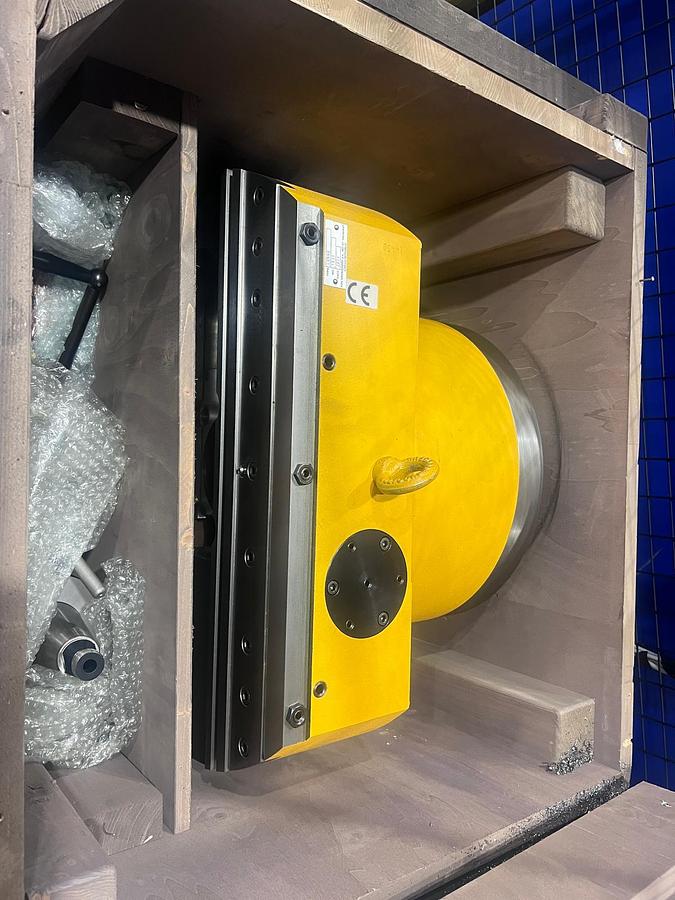

Facing Head L650:
Diameter: 650 mm
Max. Facing Turning Diameter: 1,000 mm
Boring Diameter Range: Ø 300 - 1,000 mm
U-Axis Stroke: 170 mm
Max. Speed: 150 rpm
Max. Spindle Speed with Mounted Head: 200 rpm
Working and Rapid Feed: 1,000 mm/min
Weight: 200 kg
Specifications
| Manufacturer | Tos Varnsdorf |
| Model | WHN 130Q |
| Year | 2024 |
| Condition | Used |
| Stock Number | 11214 |
| Spindle diameter | 130 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 2,500 mm |
| Y axis travel | 1,600 mm |
| Z axis travel | 1,000 mm |

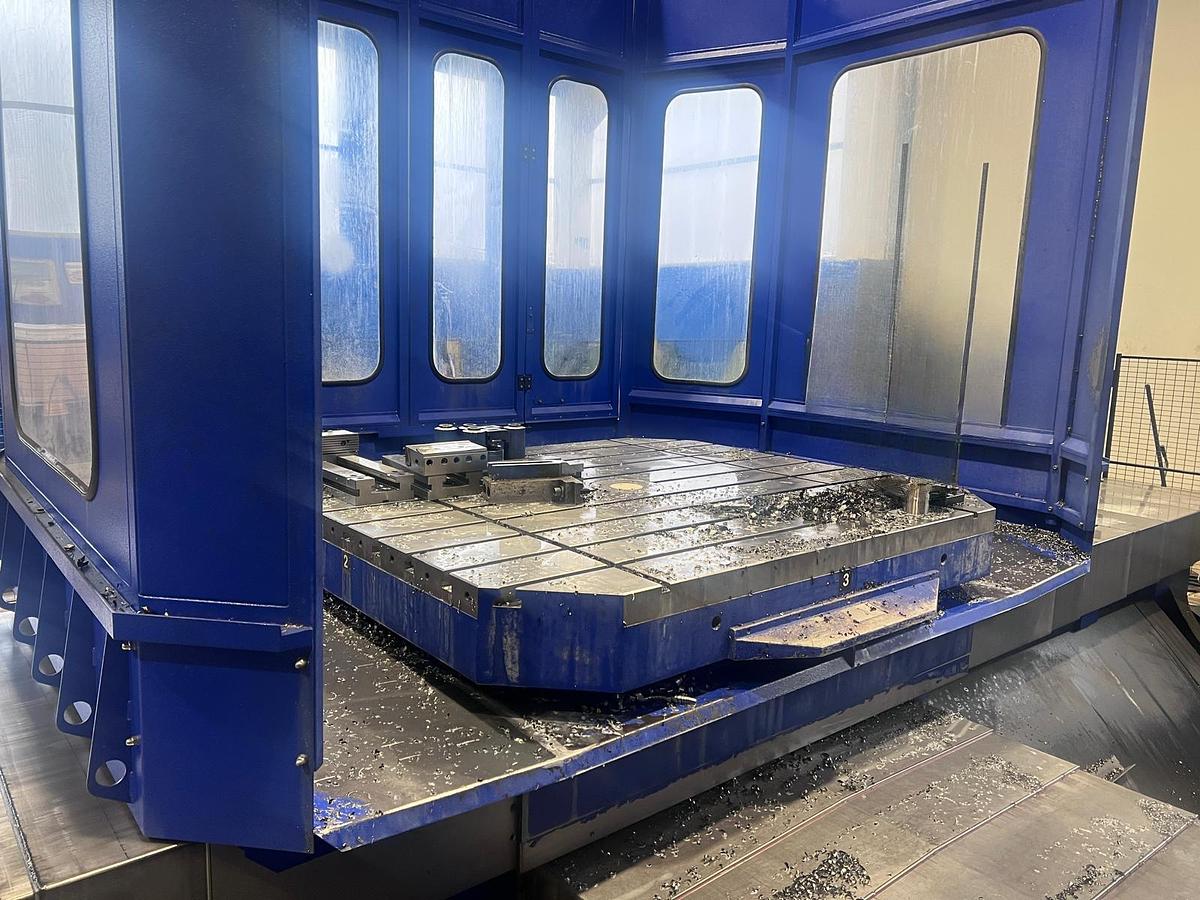

| Table dimensions | 1,600 x 1,800 mm |
| Table capacity | 12 Ton |
| W axis travel | 800 mm |
| Spindle taper | ISO 50 DIN 69871/A |
| Spindle motor power | 37 kW |
| Feed speed X,Y,Z,W | 10,000 mm/min |
