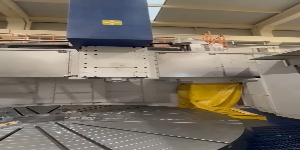

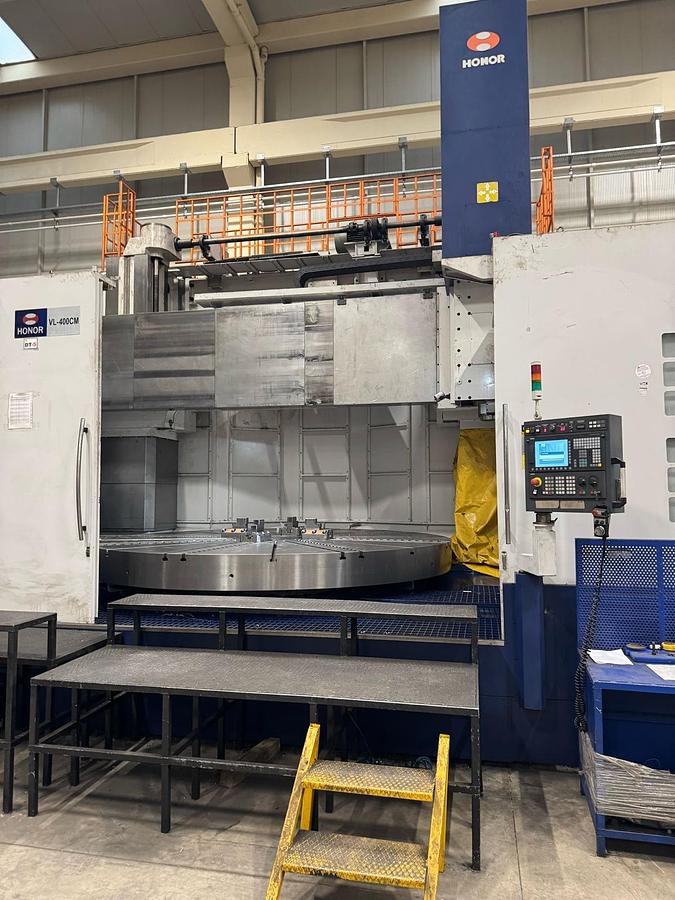

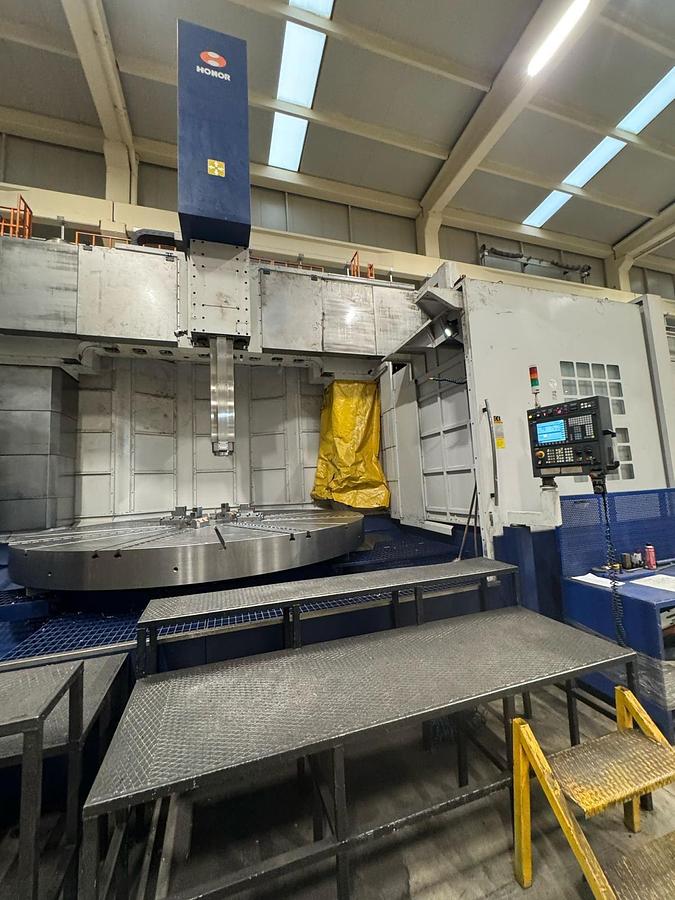

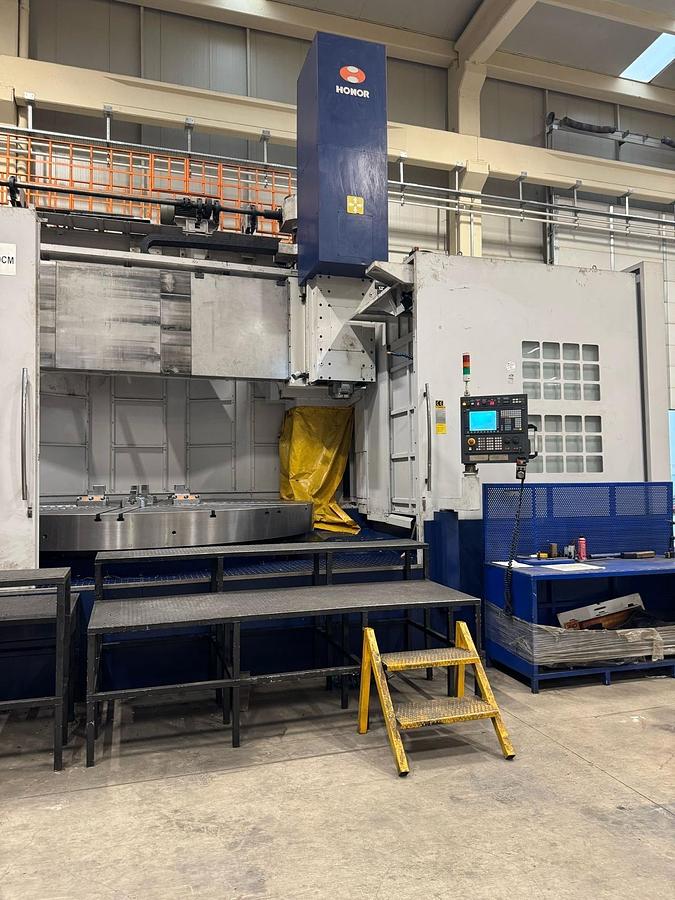

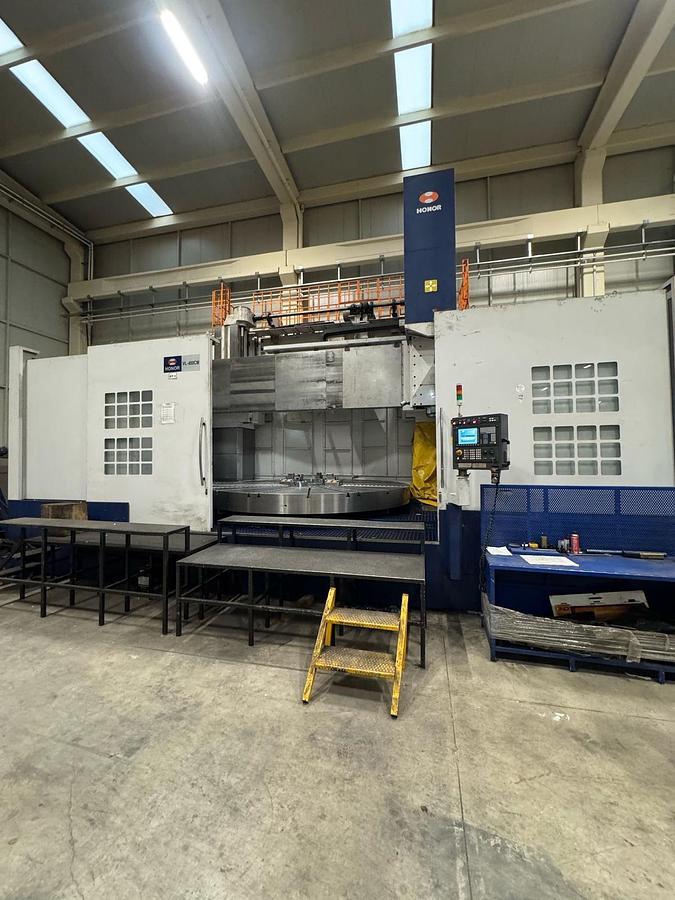

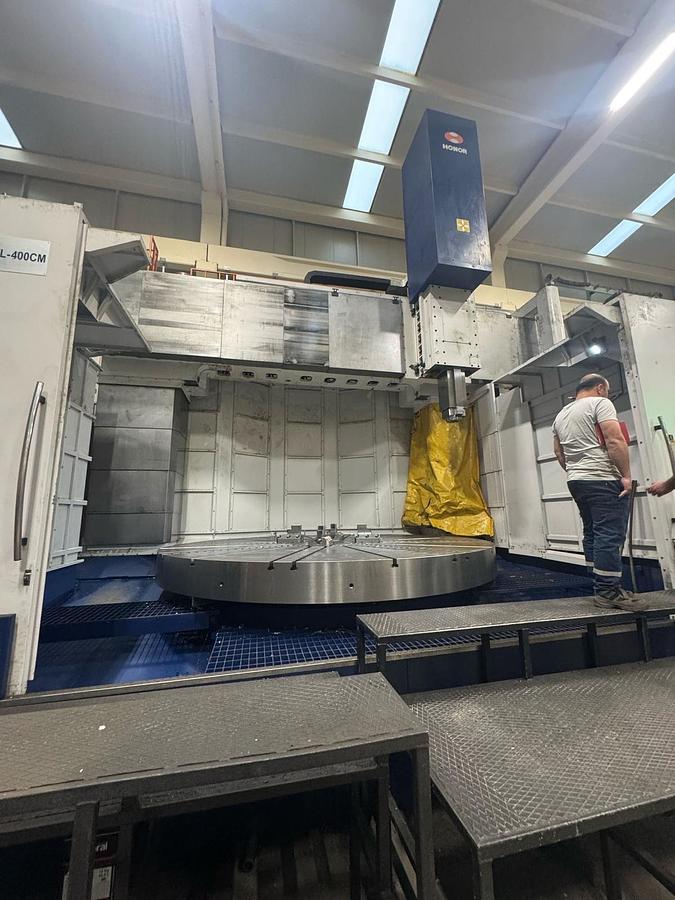

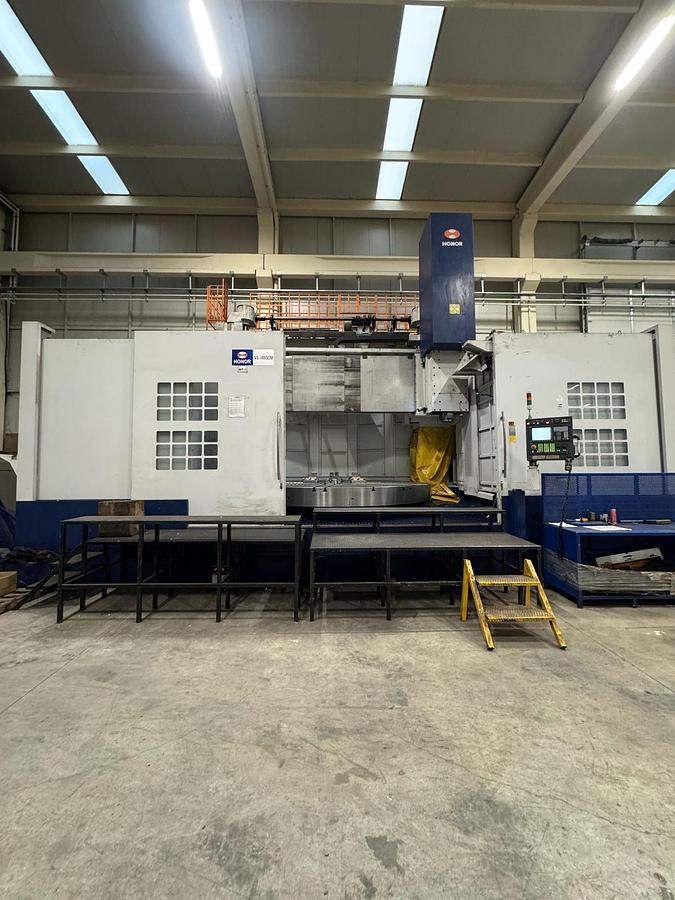

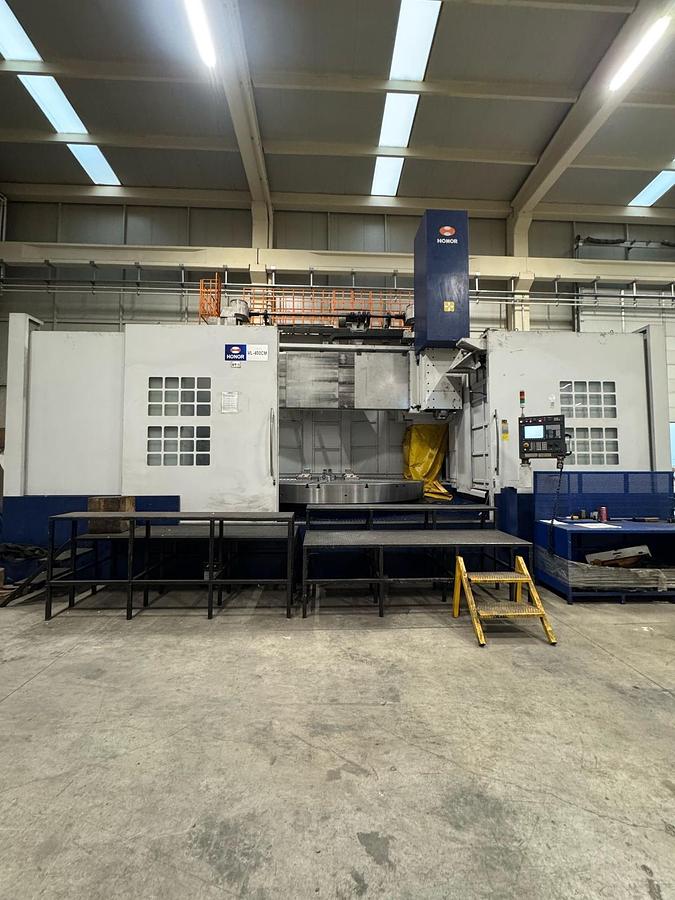

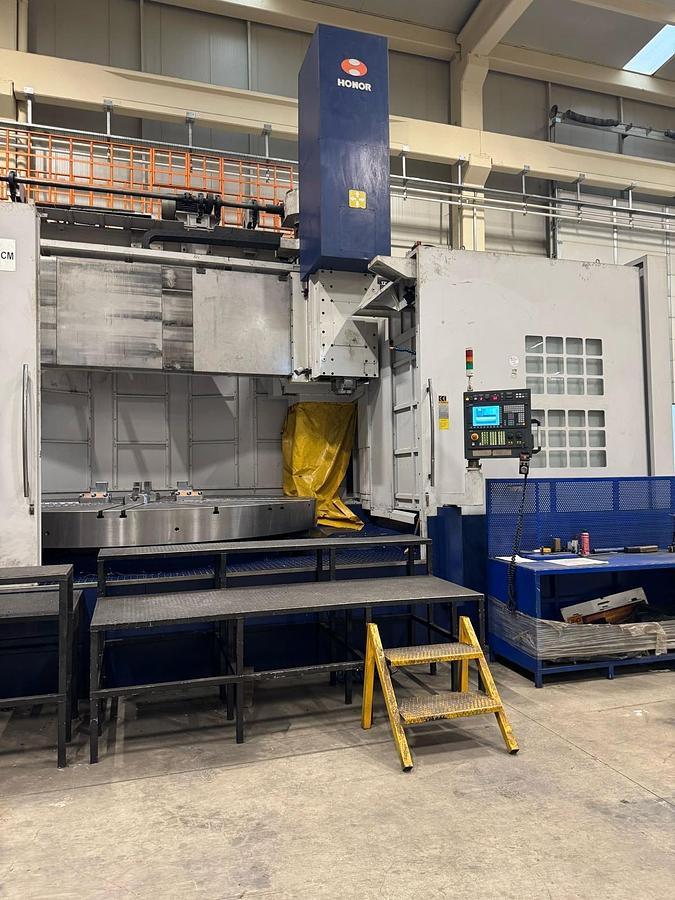

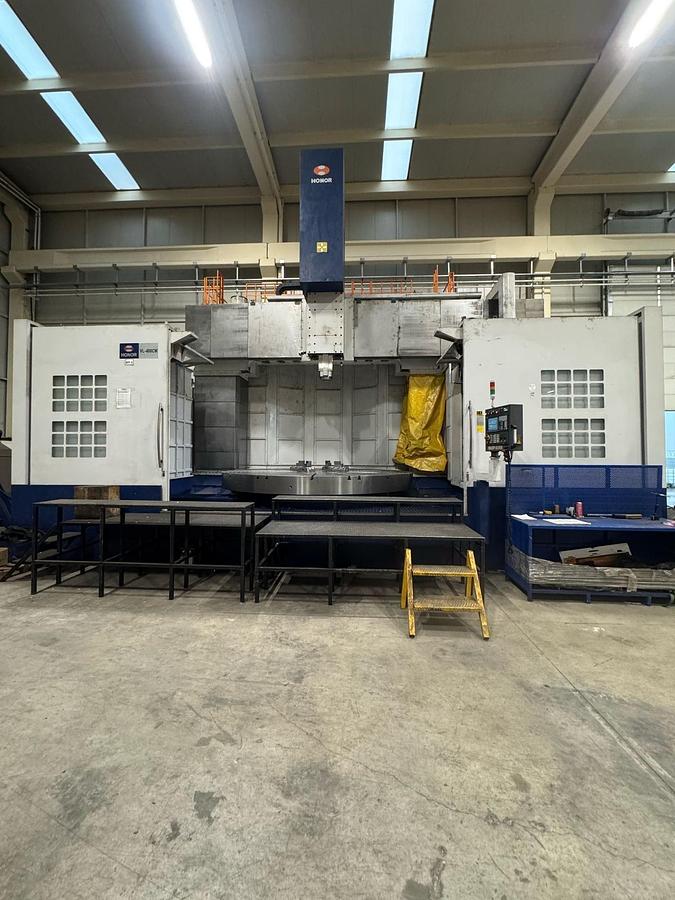

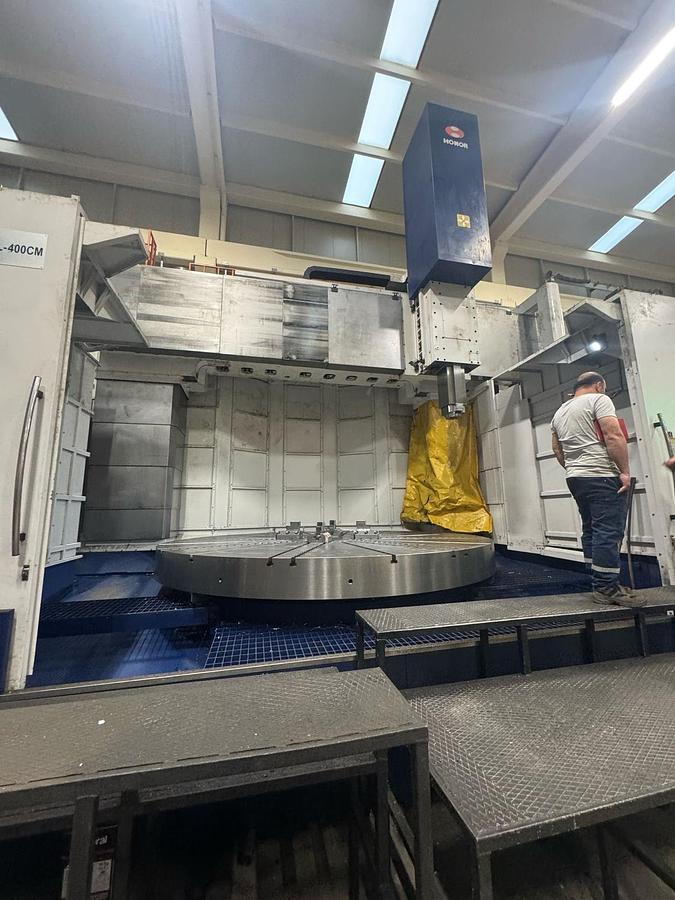

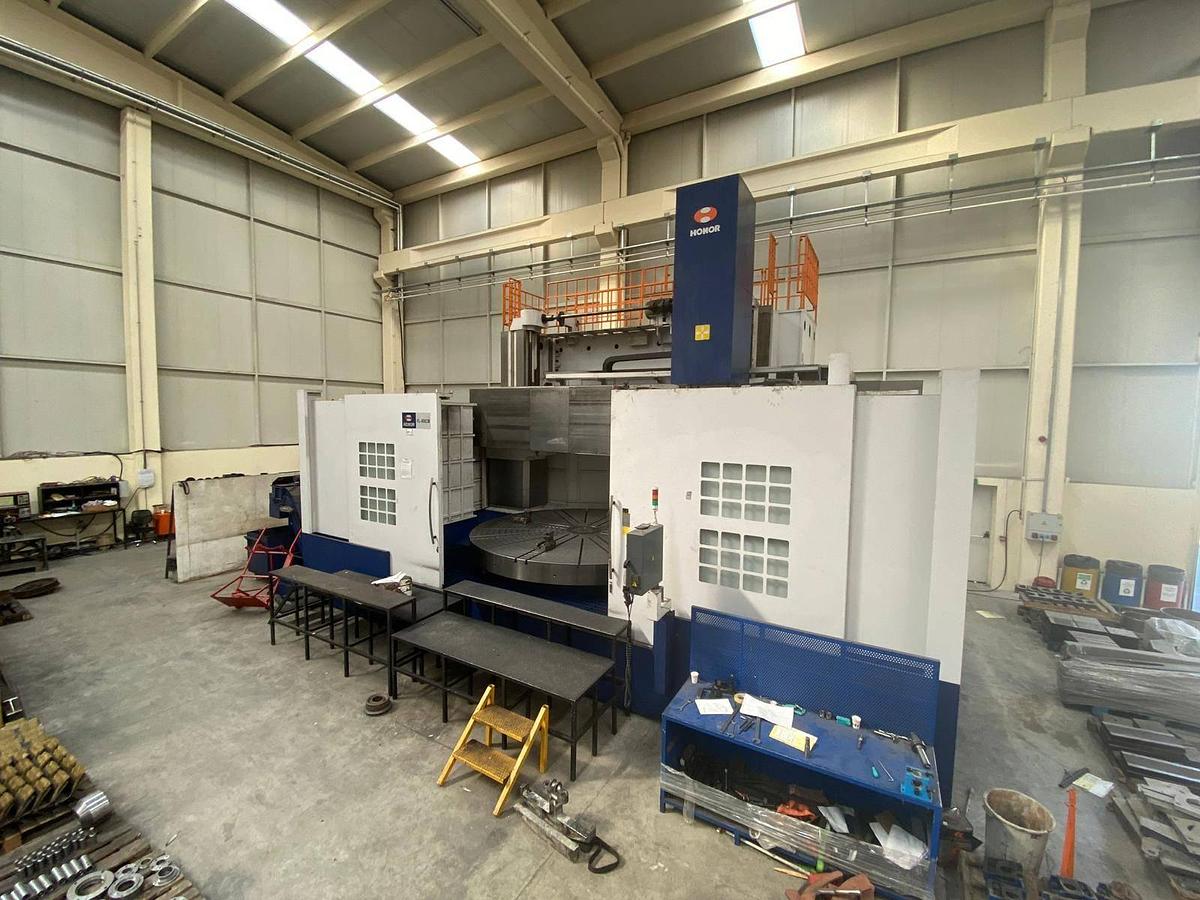

Honor Seiki VL-400CM CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
Honor Seiki VL-400CM CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description

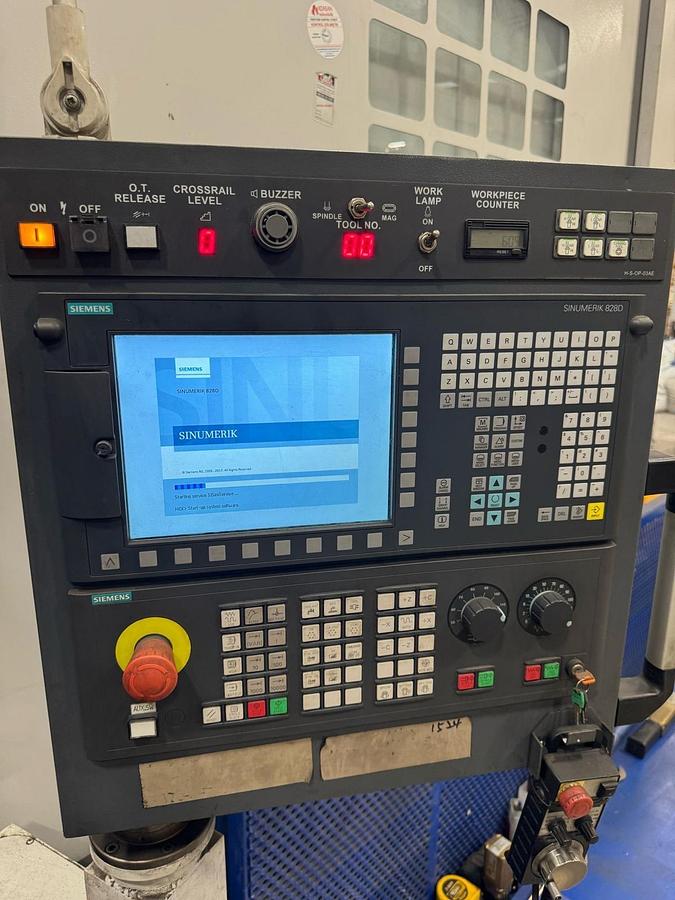

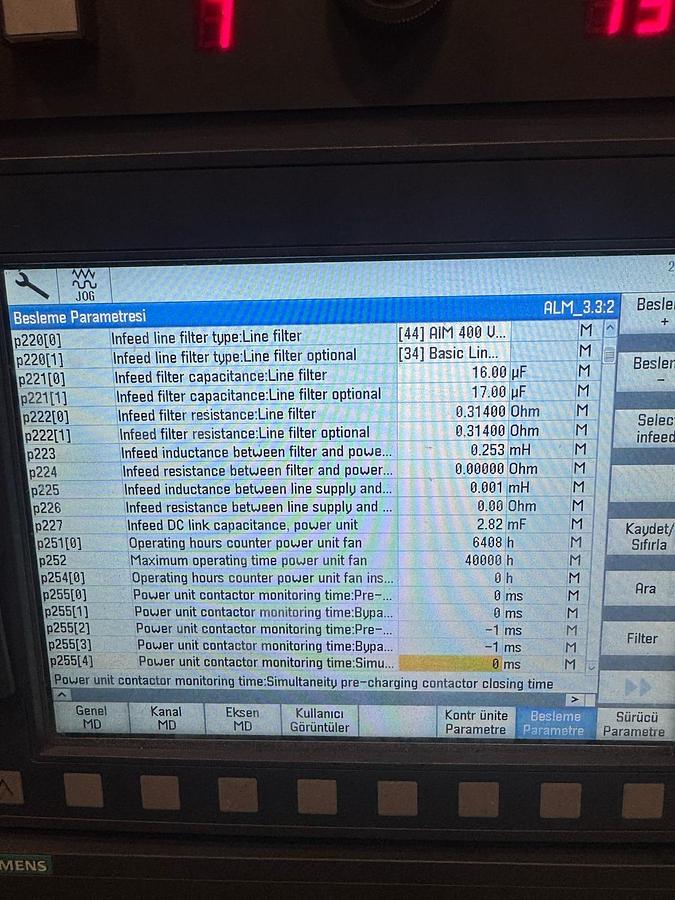

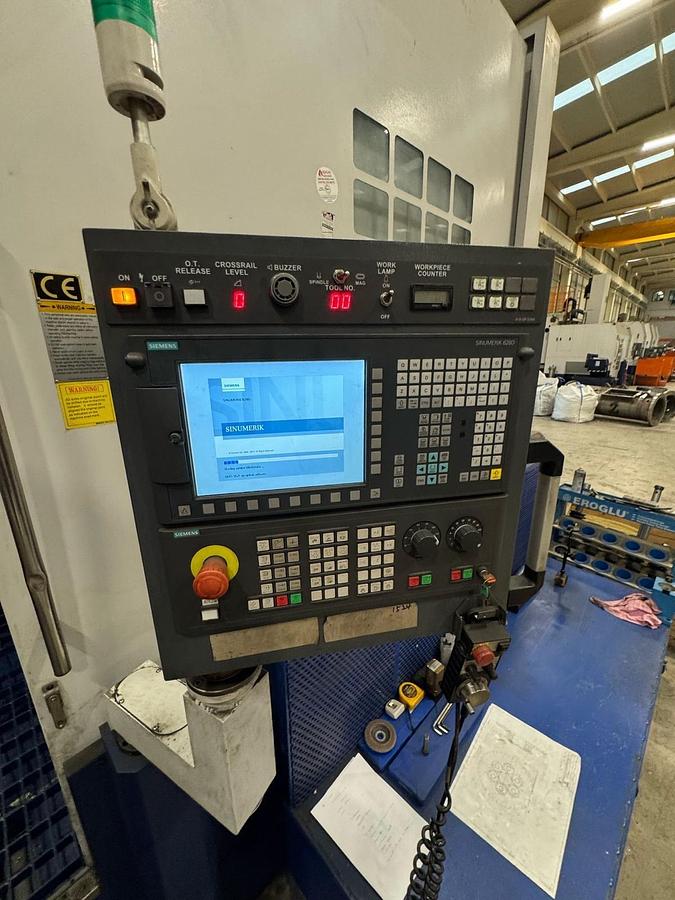

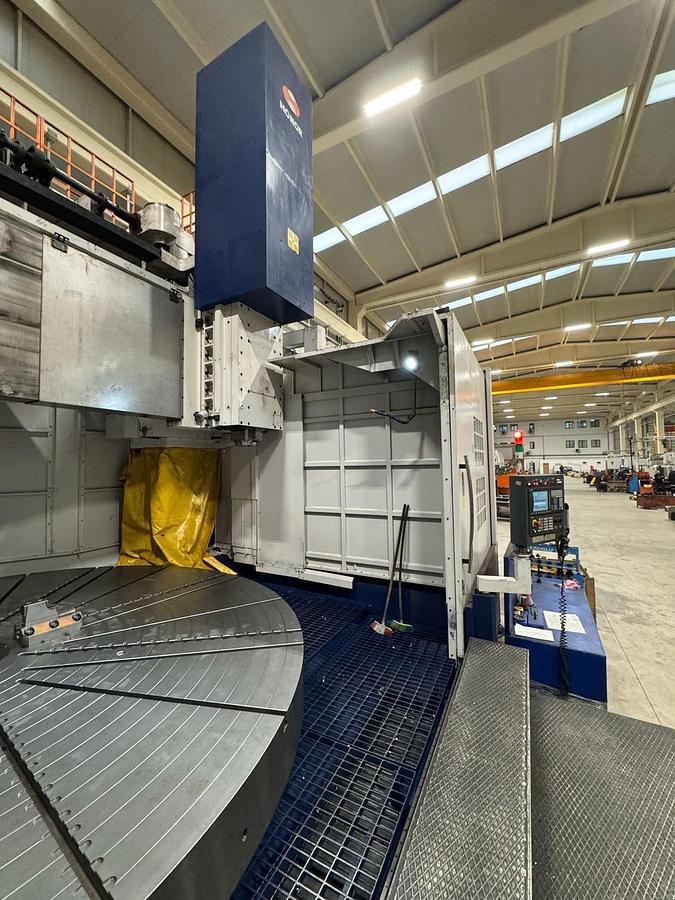

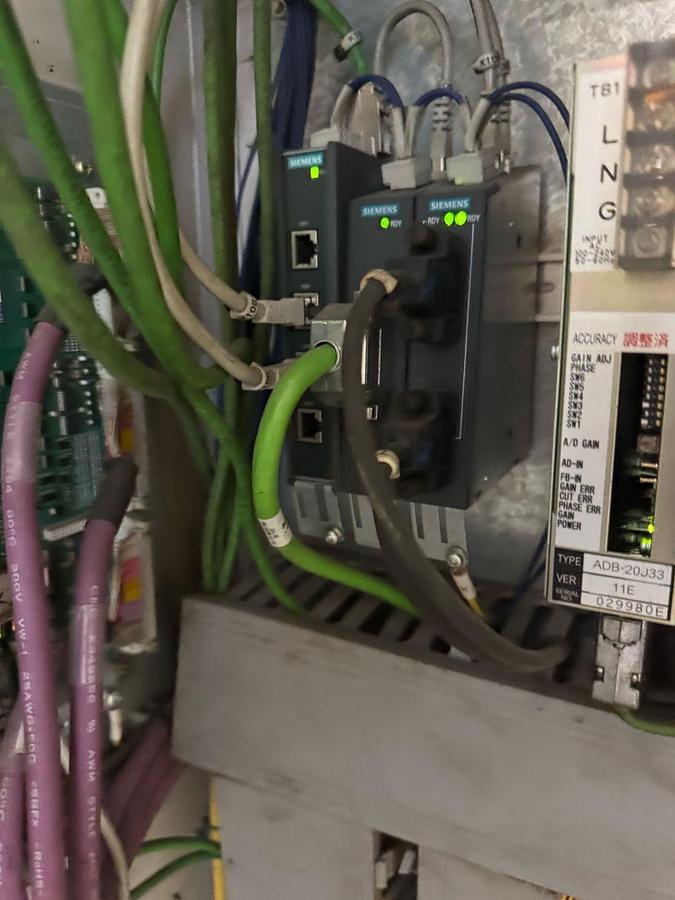

Siemens SINUMERIK 840D

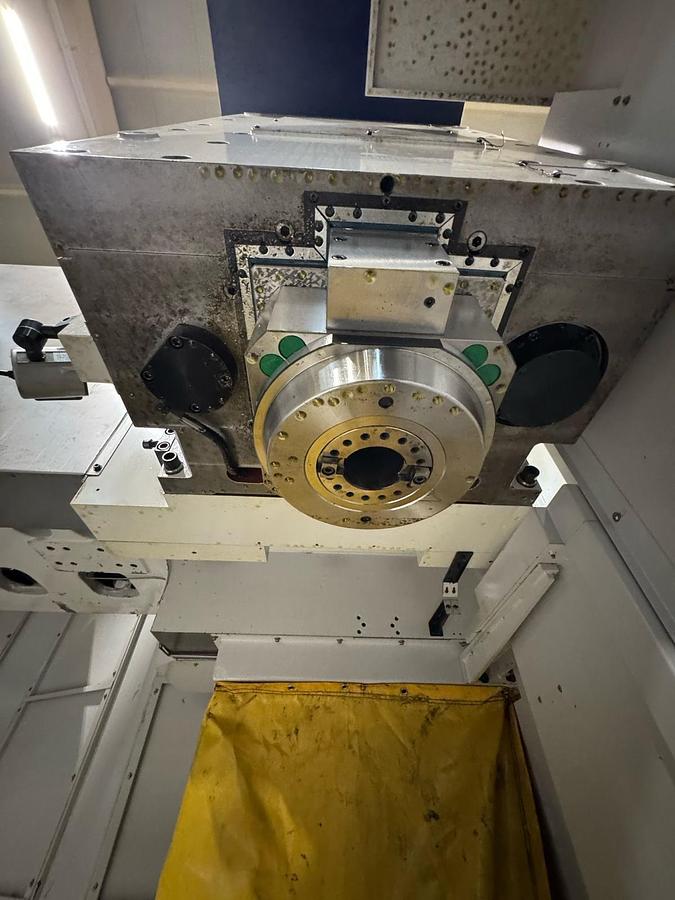

Live Spindle & Table C-Axis

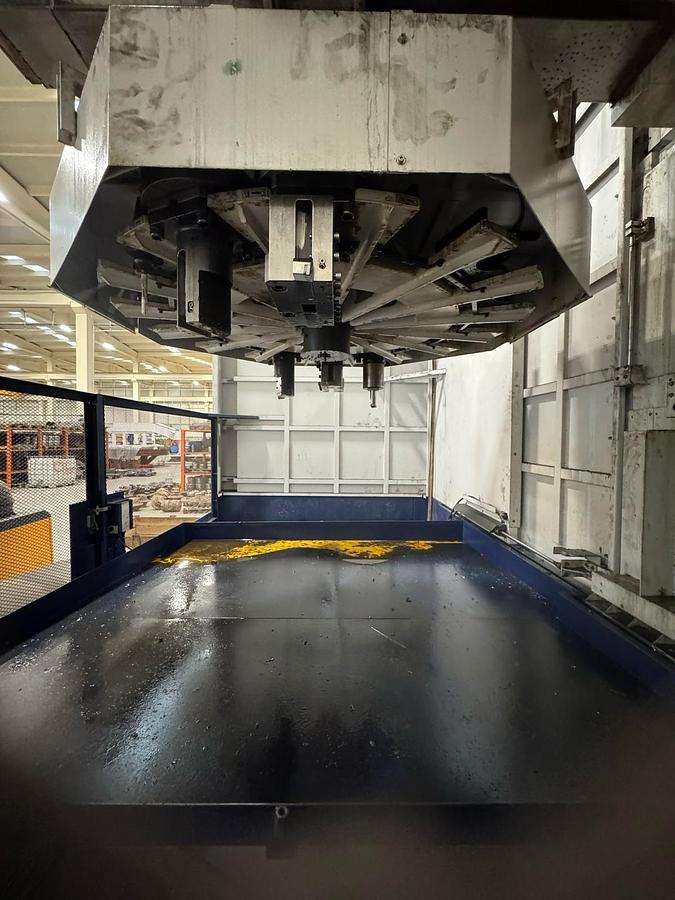

ATC (Automatic tool change)
Chip Conveyor
Complete Splash Guard
Coolant System with Tank
High Pressure Coolant Through Spindle, 10 bar
Auto Lubrication for all Slides and Ball Screws
Auto Lubrication Chiller for Gear & Bearing

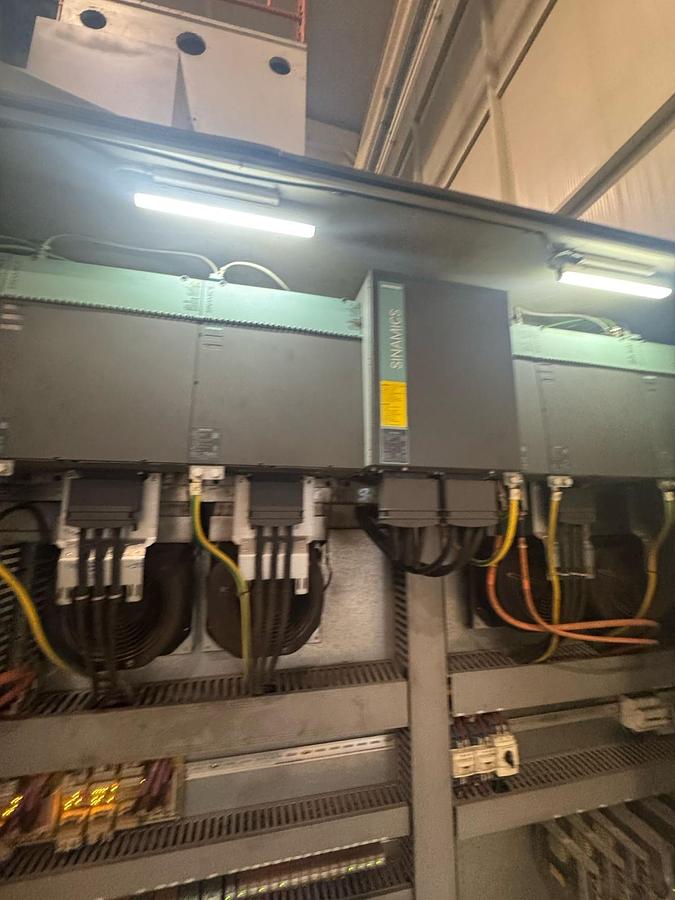

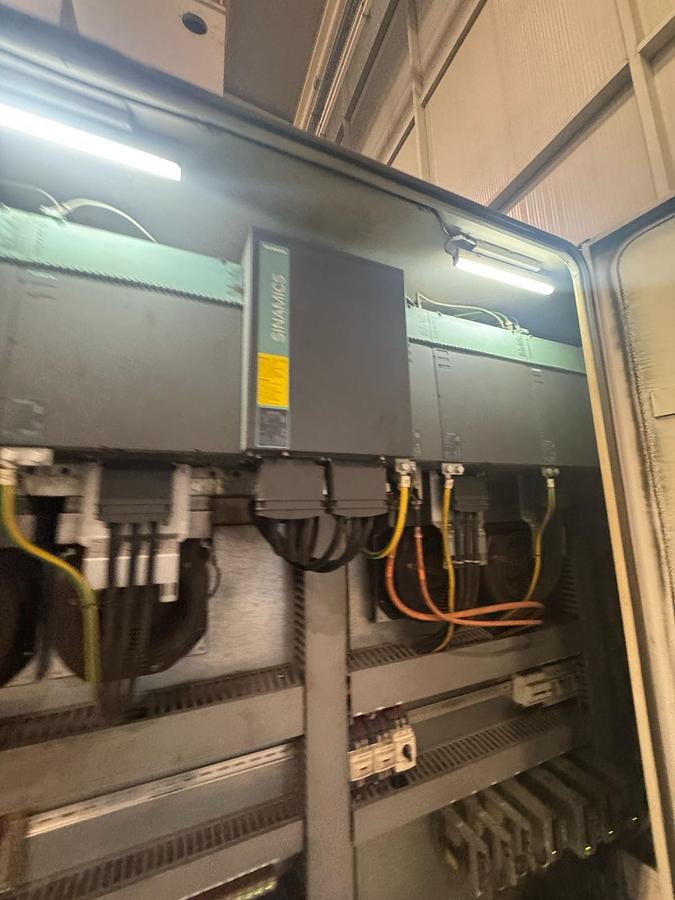

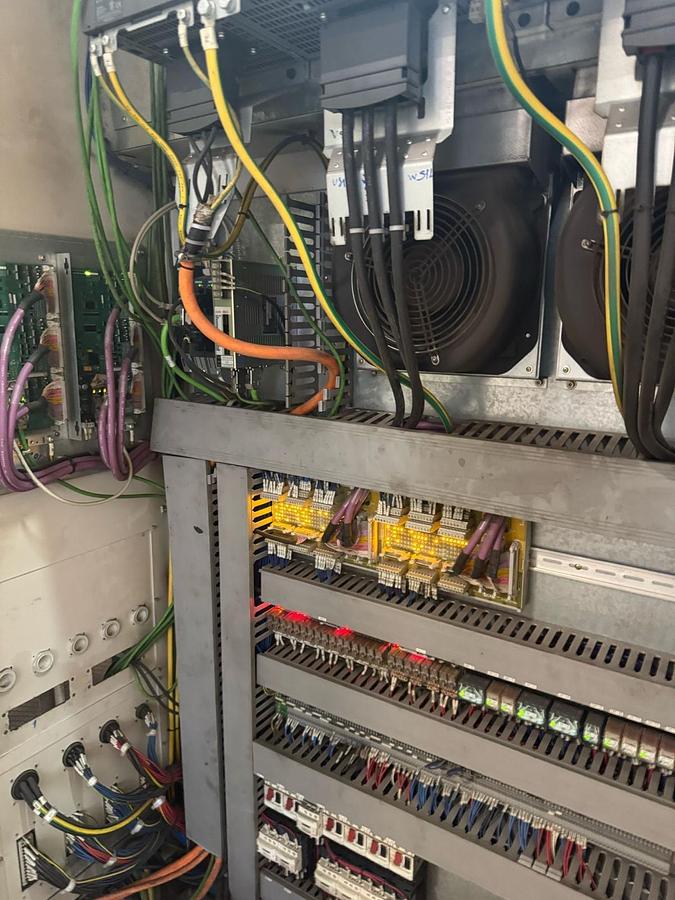

Air Conditioner for Electrical Cabinet

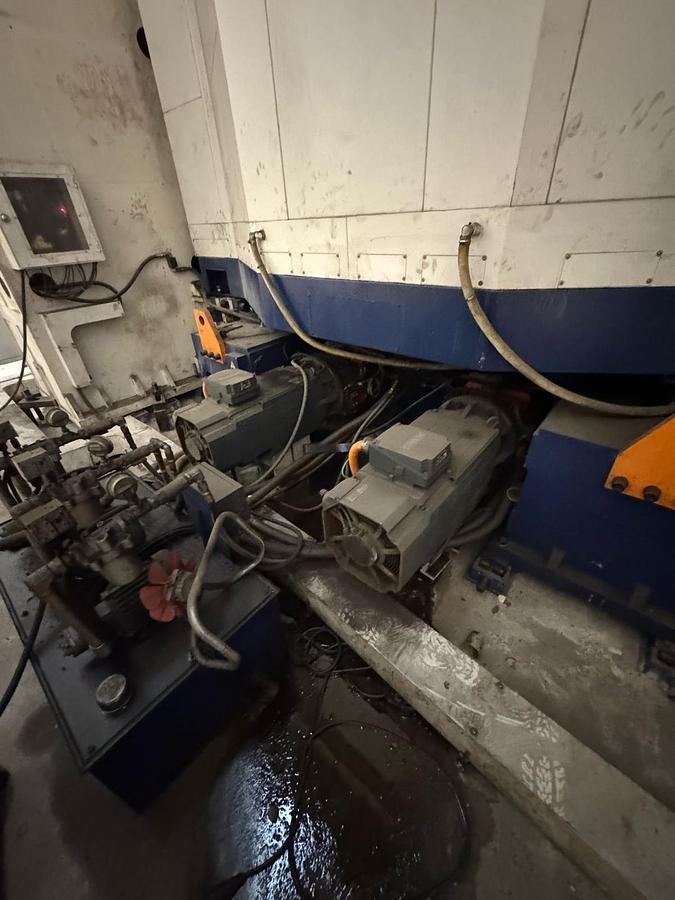

Hydraulic Unit (Air Cooling )
Work Light
Warning Light(R/Y/G)
Linear Scale of X - axis (Heidenheim)
Linear Scale of Z - axis, travel 1500 (Heidenheim)
Specifications
| Manufacturer | Honor Seiki |
| Model | VL-400CM |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11208 |

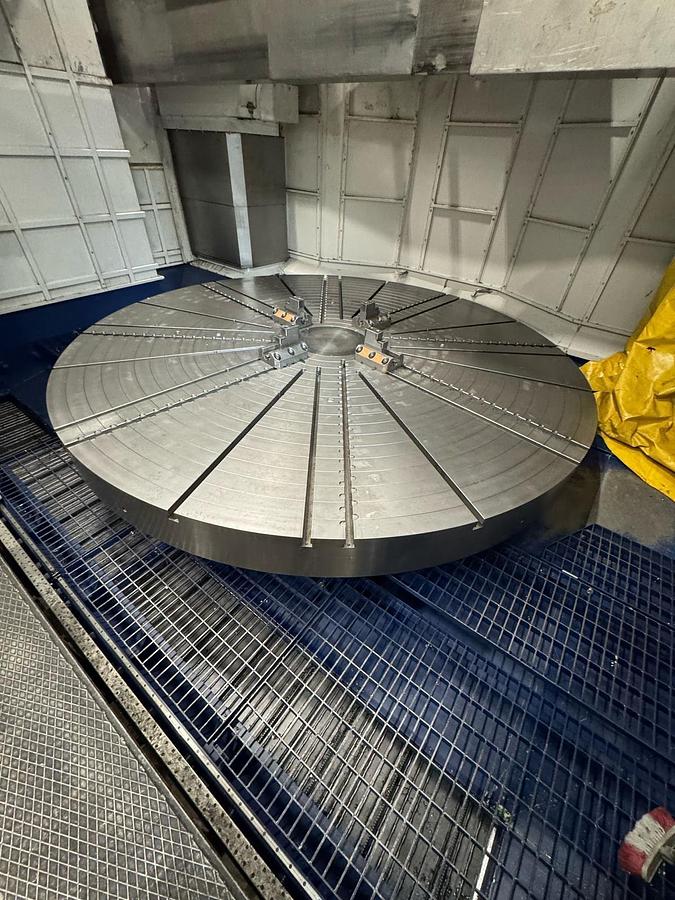

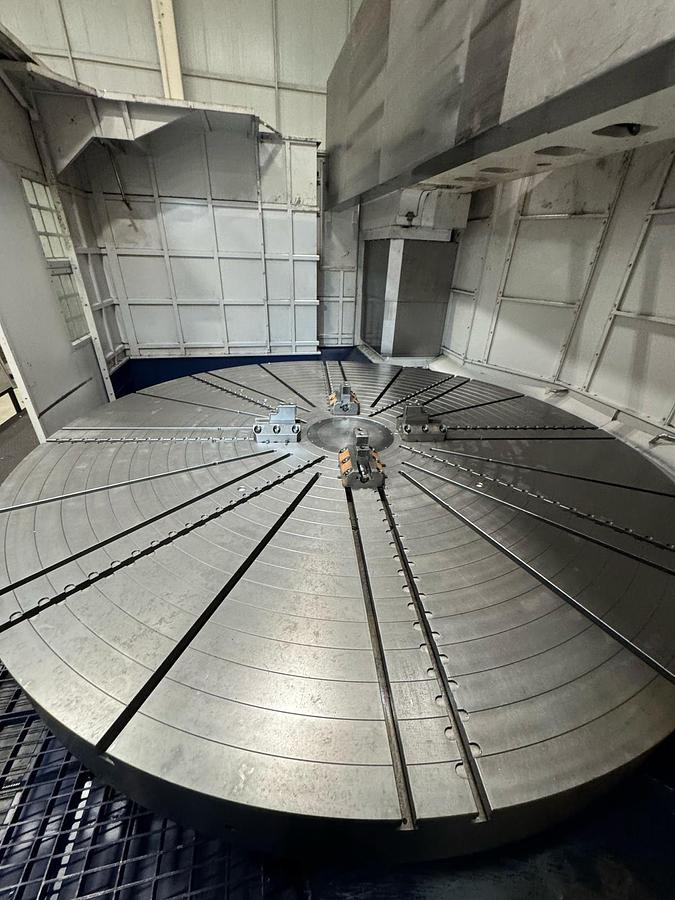

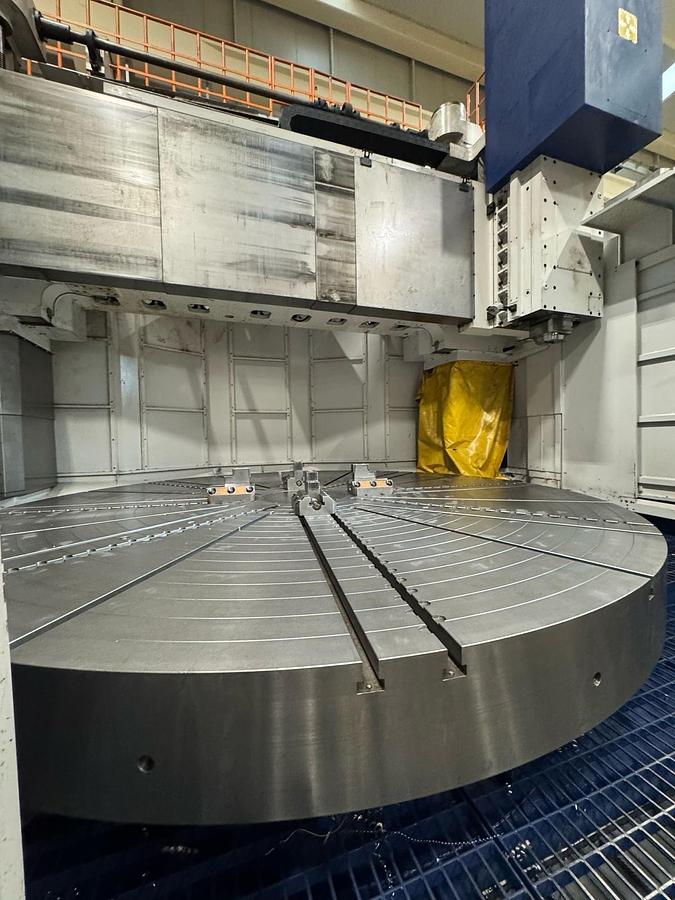

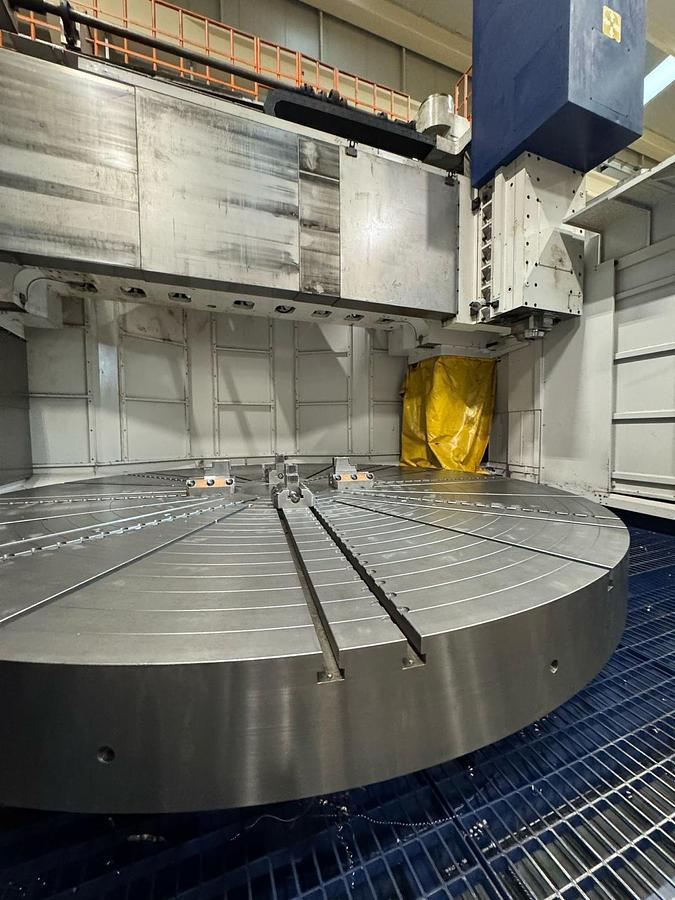

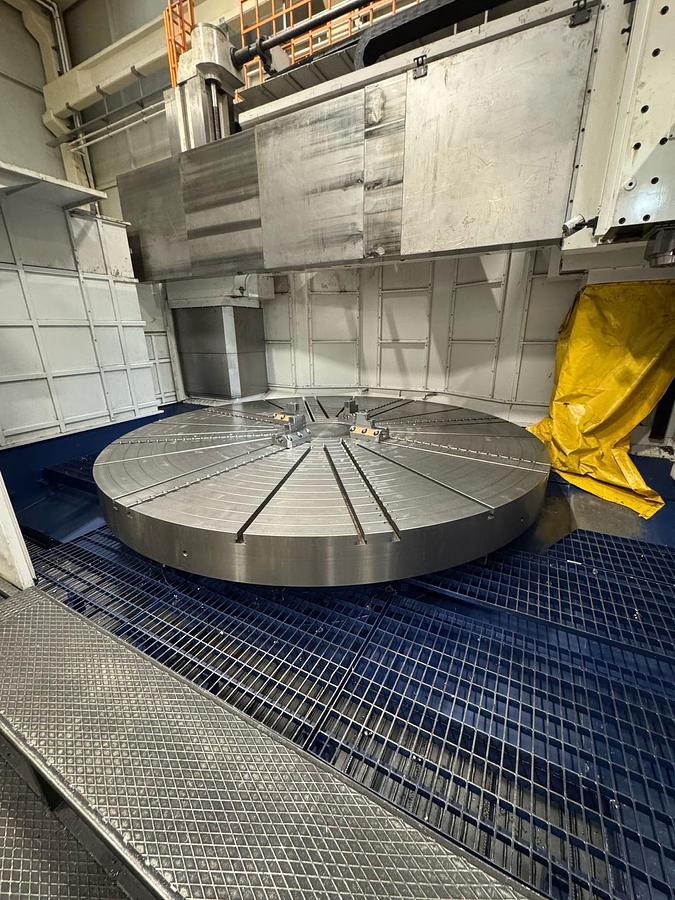

| Table diameter | 4,000 mm |
| Swing | 4,500 mm |
| Turning height | 3,000 mm |
| Table capacity | 35 Ton |
| Table turn speed | 85 rpm |

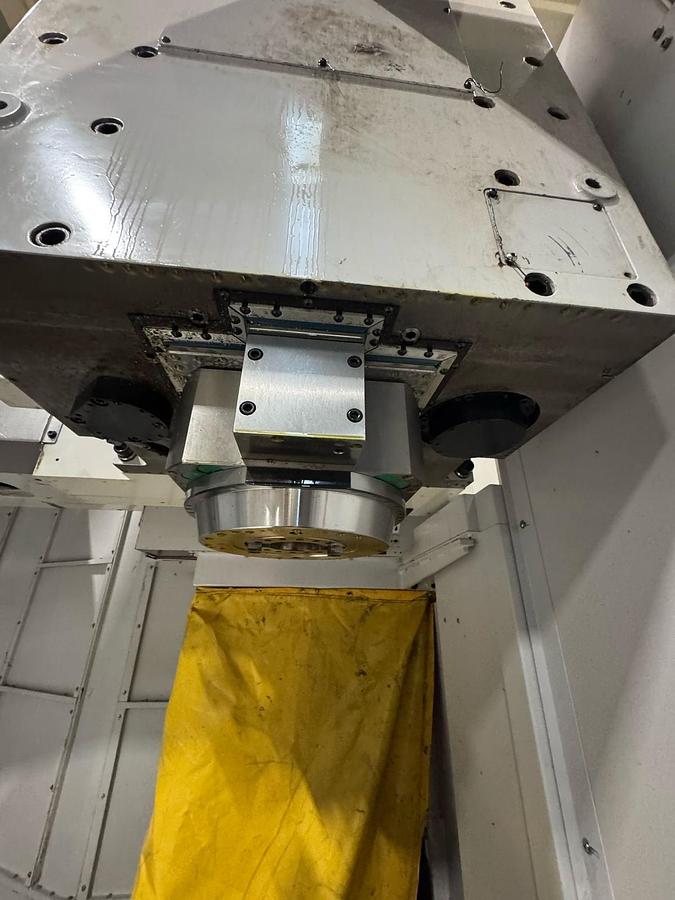

| Live spindle speed | 2,250 rpm |
| Distance faceplate crossbeam support | 820 - 3,320 mm |
| Rapid traverse X/Z | 10 m/min |
| Spindle motor drive - AC | 60/75/100 kW |
| Crossbar adjustment | 300 x 300 mm |
| Machine dimensions | 9,500 x 7,000 mm |
| Machine height | 8,000/9,100 mm |
| Machine weight | 115 Ton |
