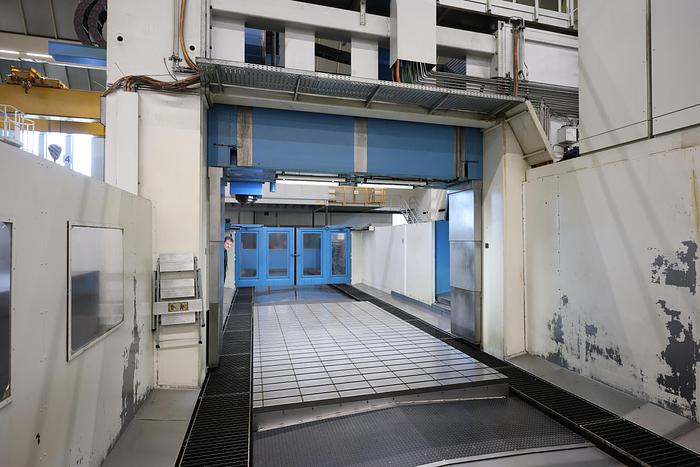

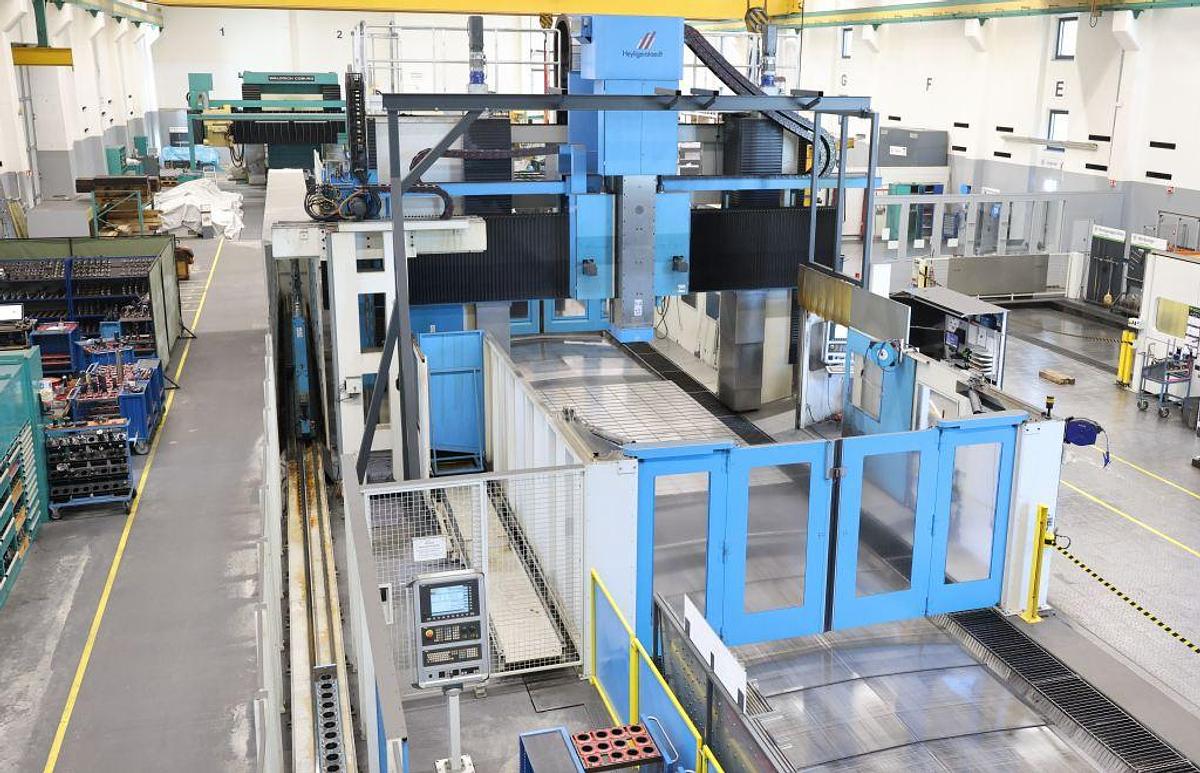

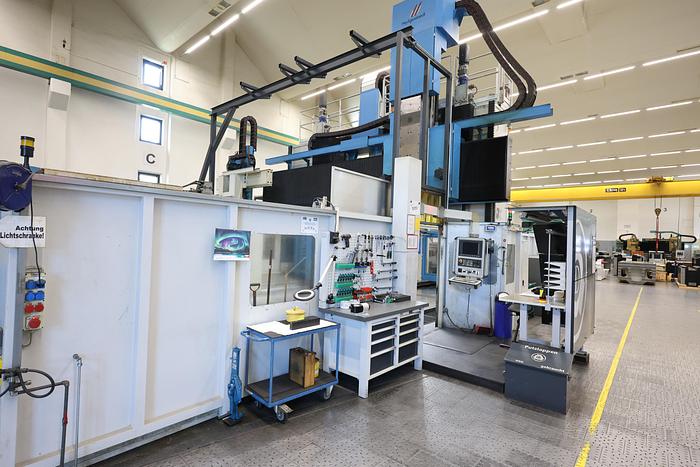

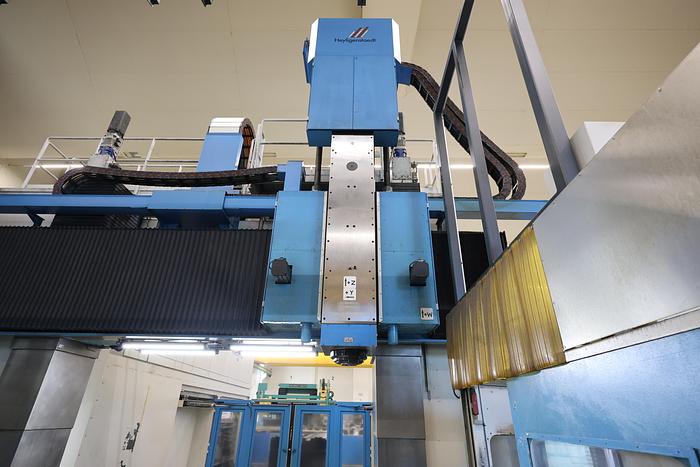

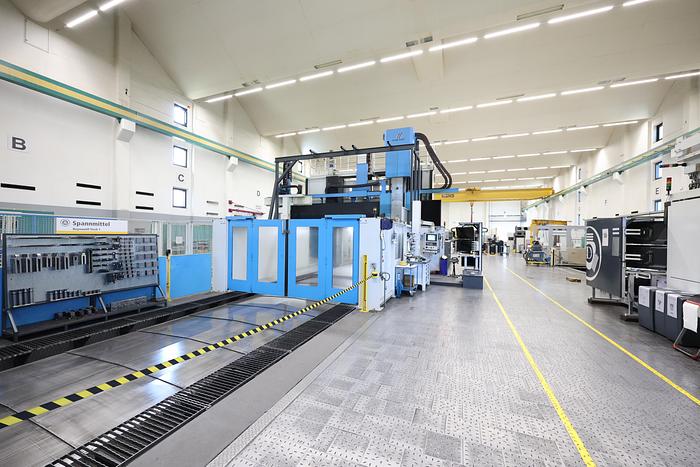

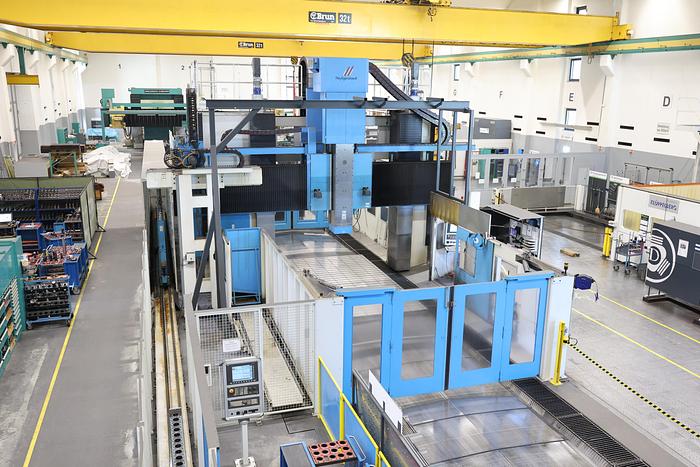

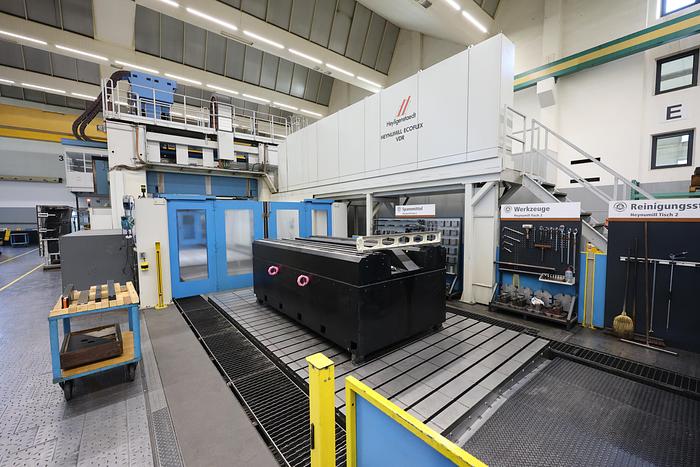

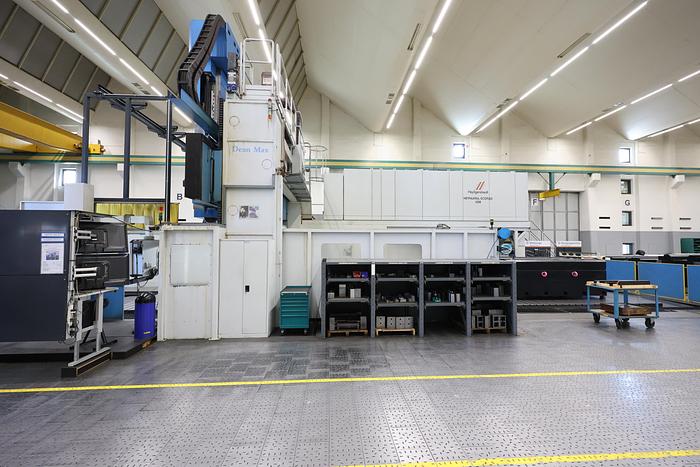

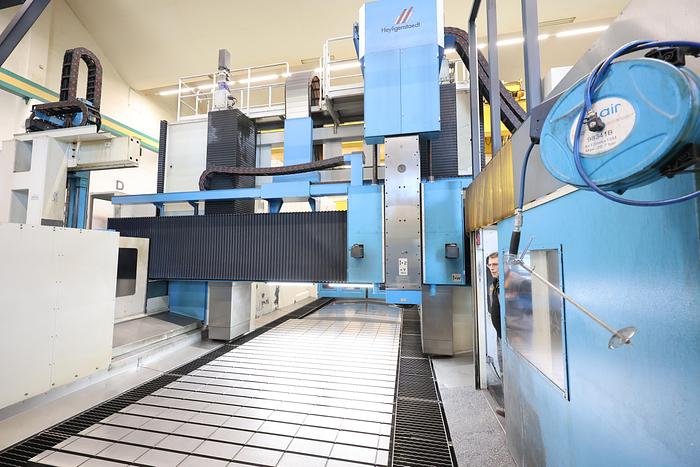

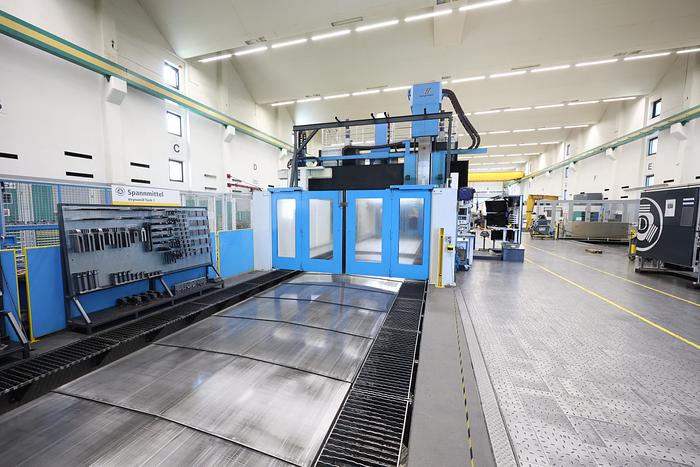

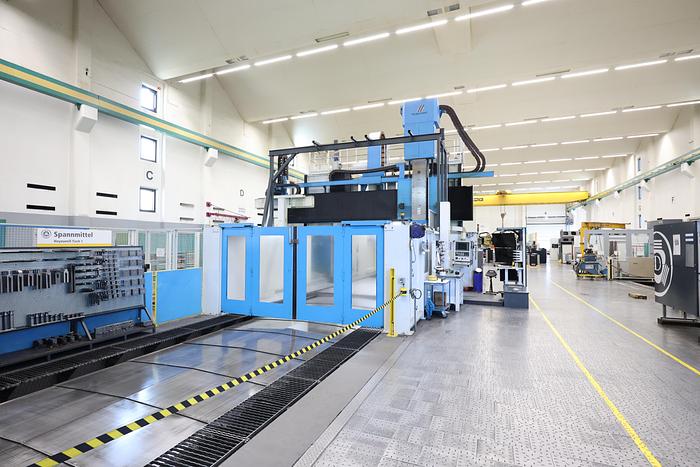

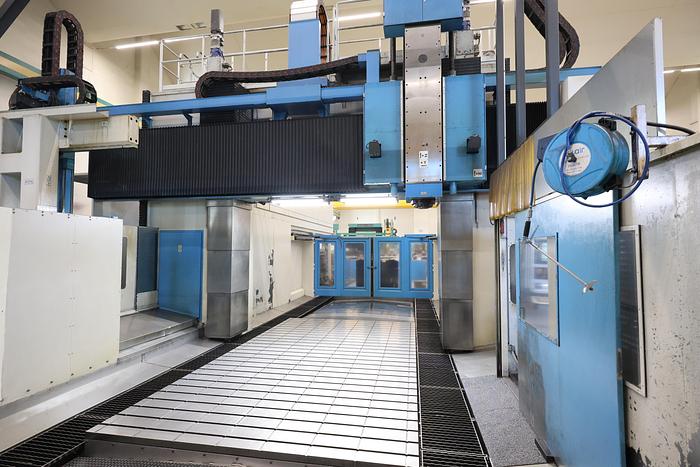

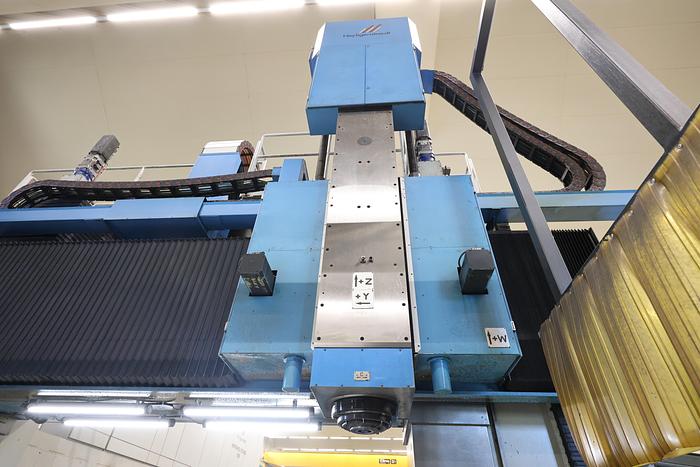

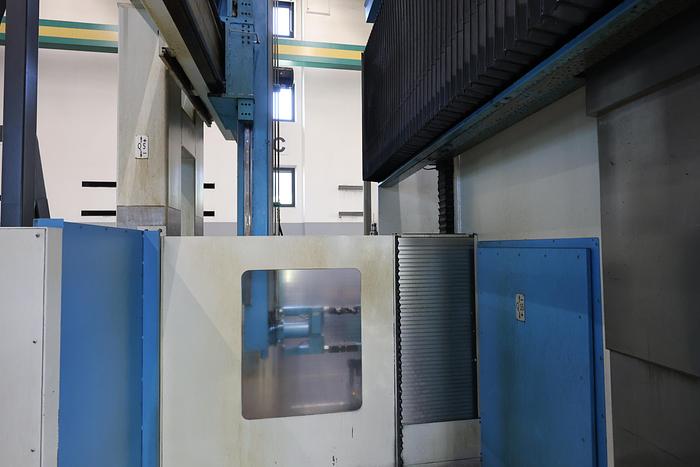

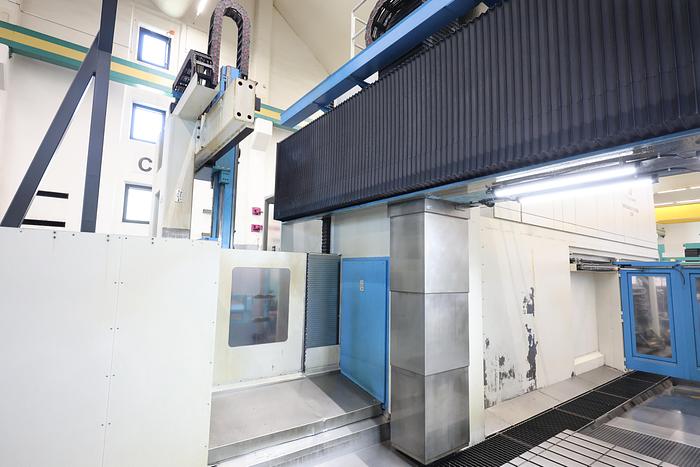

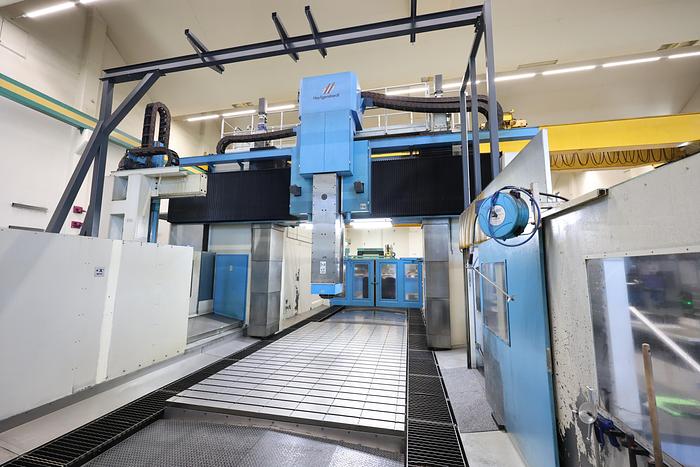

Heyligenstaedt Heynumill Ecoflex CNC Double Column Planer Type Milling Machine. Excellent Condition
No longer available
Heyligenstaedt Heynumill Ecoflex CNC Double Column Planer Type Milling Machine. Excellent Condition
Description

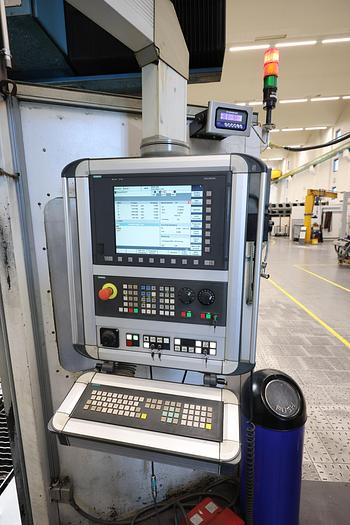

SIEMENS 840D CNC Control
212 Position Automatic Tool Changer

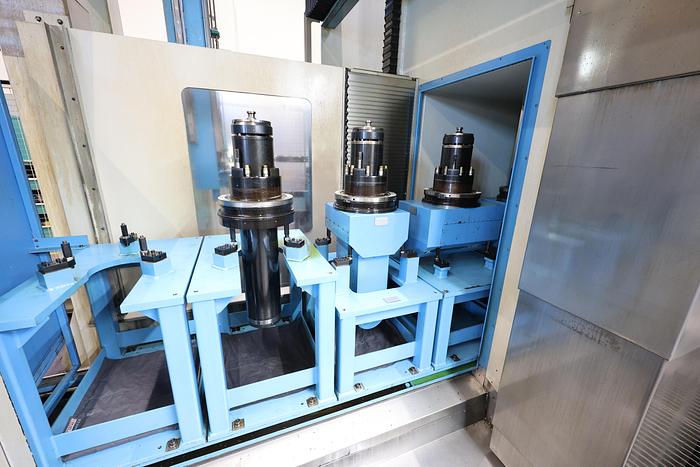

Automatic Attachment Changer for 6 Milling Heads

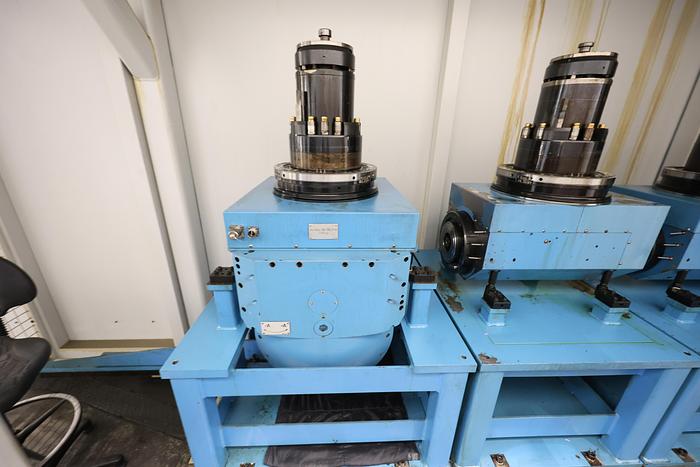

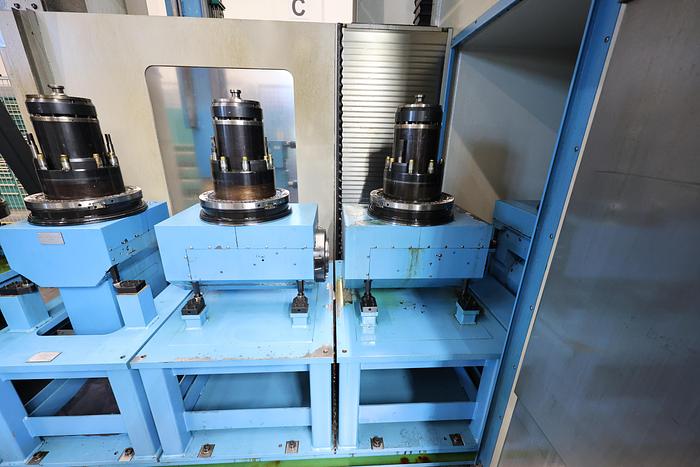

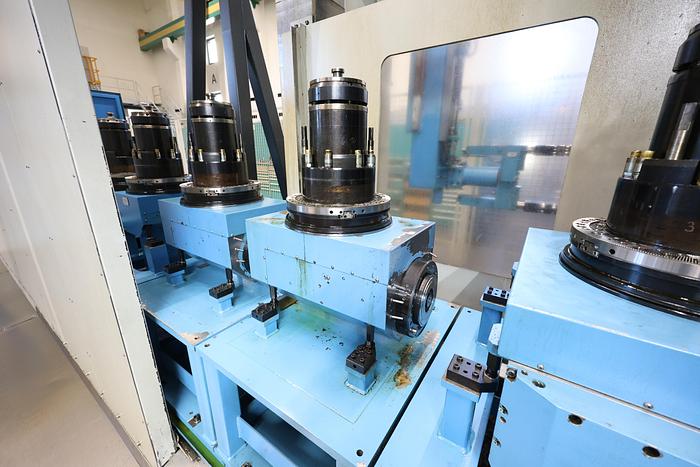

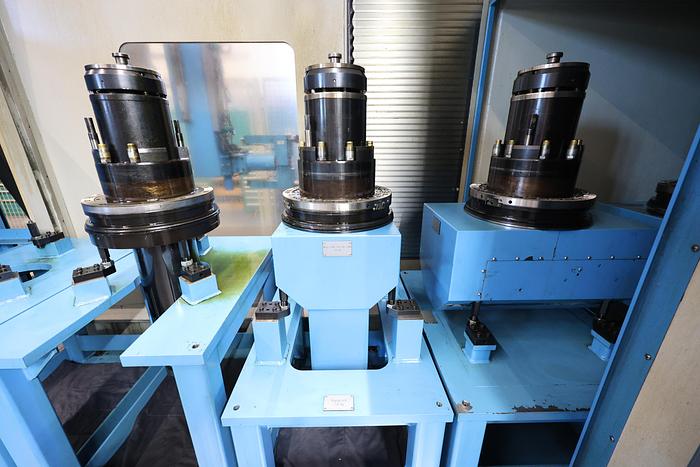

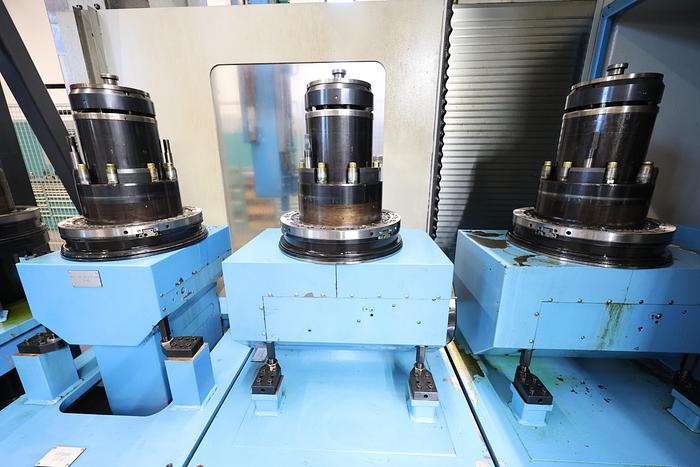

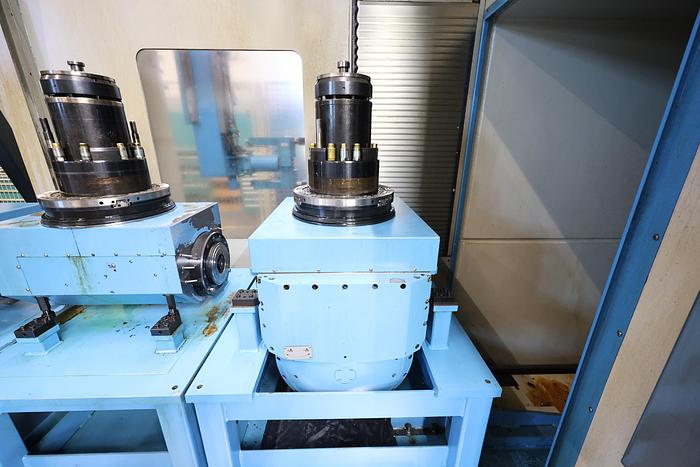

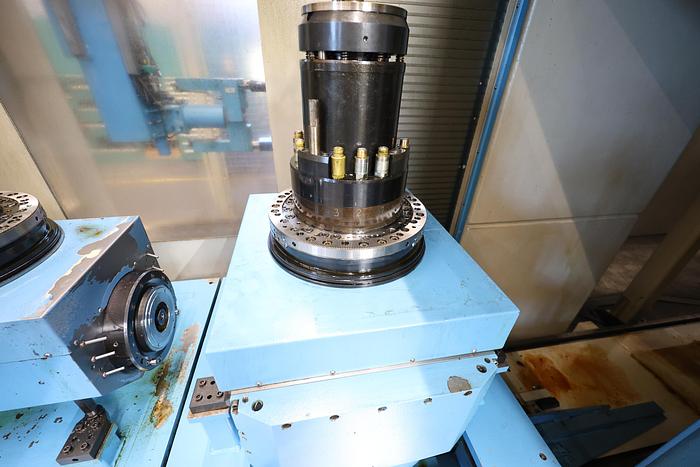

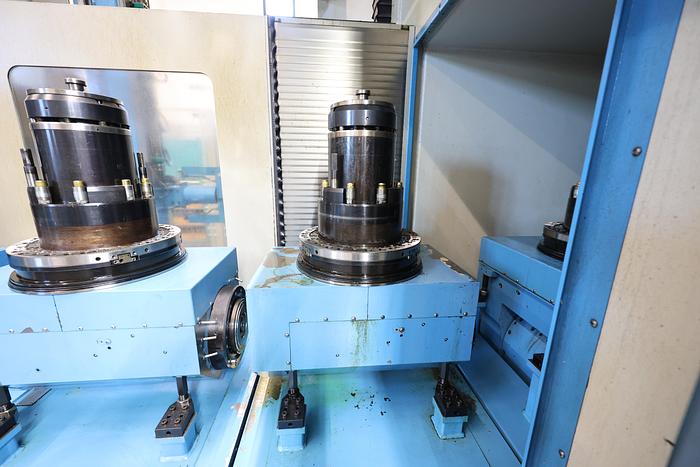

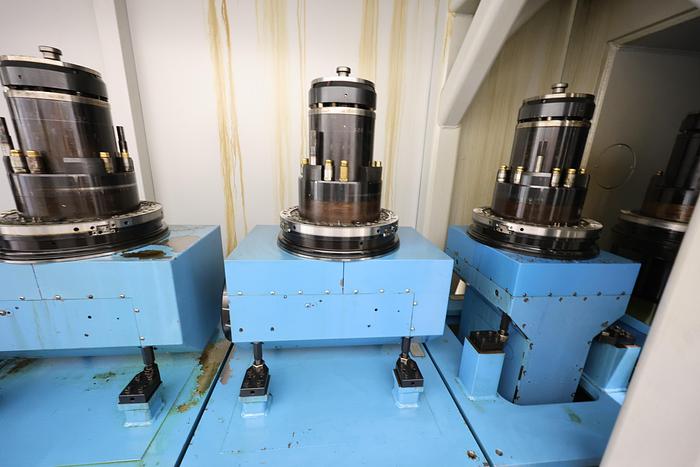

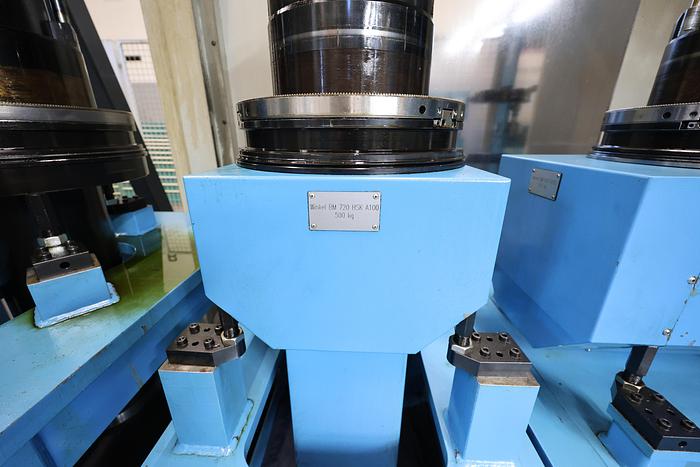

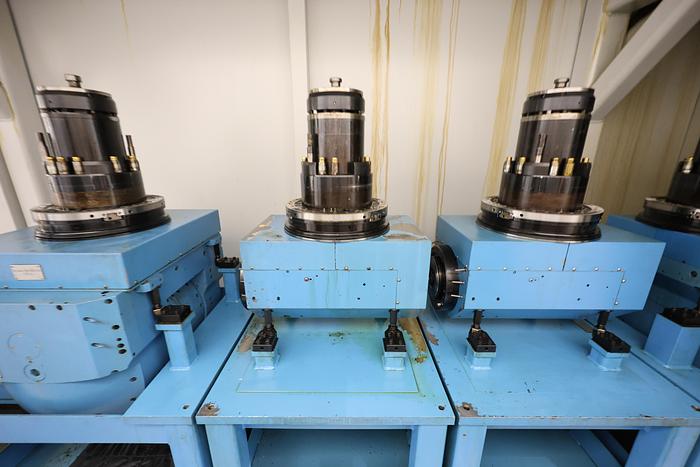

Machining modules/ Milling heads:
1. Machining module -straight- 67 kW, 2900 Nm, 5000 rpm, HSK-A 100
2. Machining module -straight extended- 40 kW, 1700 Nm, 5000 rpm, HSK-A 100
3. Machining module -angle BM extended- 40 kW, 4000 rpm, 1800 Nm, HSK-A 100
4. Machining module -angle BM - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100
5. Machining module -angle BM - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100
6. Machining module -Universal Index BM - 40 kW, 4000 rpm, 2100 Nm
C-axis 360 x 1°, B-axis +/- 110 x 1°, HSK-A 100
Measuring probe
Coolant device
Chip conveyor
Technical documentation
Specifications
| Manufacturer | Heyligenstaedt |
| Model | Heynumill Ecoflex |
| Year | 2010 |
| Condition | Used |
| Stock Number | 11198 |
| Between columns | 3,000 mm |
| Spindle speeds | 5,000 rpm |
| Distance spindle nose and table | 3,000 mm |
| X axis travel | 6,500 / 13,500 mm |
| Y axis travel | 4,000 mm |
| Z axis travel | 1,500 mm |
| Table size | 5,500 / 12,500 x 3,000 mm |
| Table capacity | 50 / 75 Ton |
| W axis travel | 2,250 mm |
| Z + w axis (ram + crossrail) | 3,750 mm |
| Spindle drive motor | 63 kW |
| Spindle torque | 2900 Nm |
| Spindle taper | HSK-A 100 - DIN 69893 |

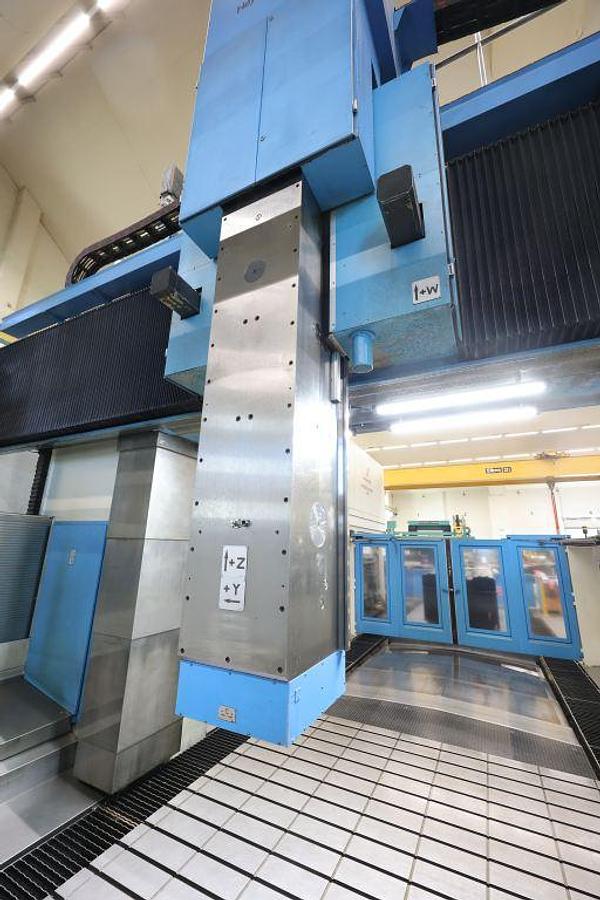

| Ram dimensions | 520 x 625 mm |
| Feeds X/Y/Z | 24 m/min |
| Feeds W | 6 m/min |
| Rapid traverse X/Y/Z | 40 m/min |
| Total power requirement | 120 kW |
| Machine weight | 250 Ton |
| Machine dimensions | 29.5 x 9.5 x 8.2 m |
