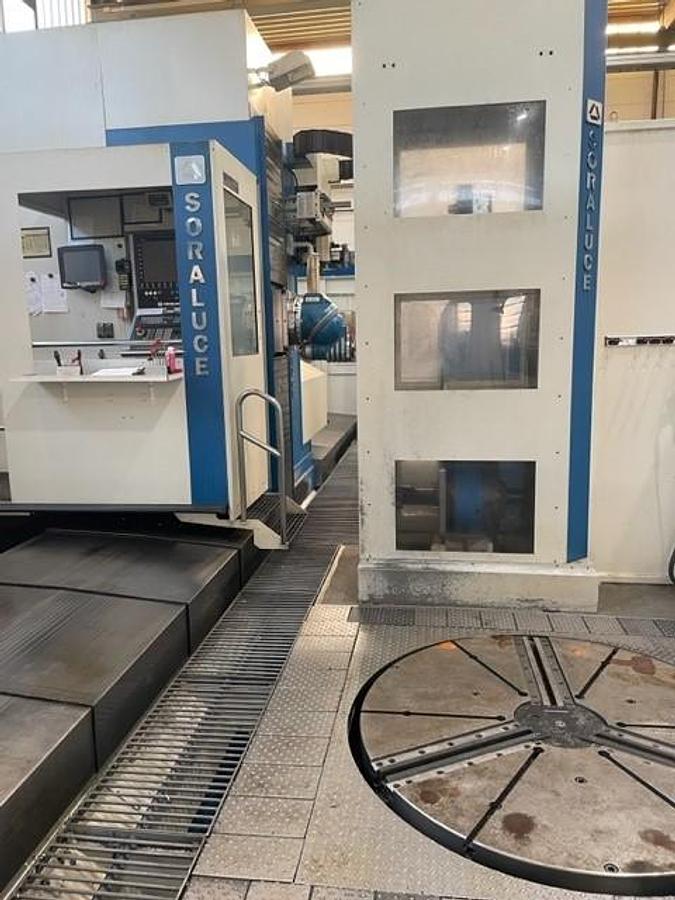

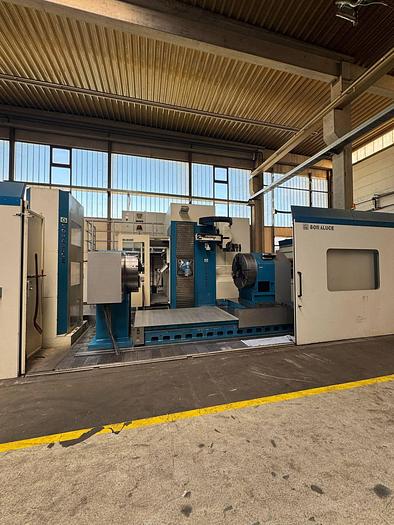

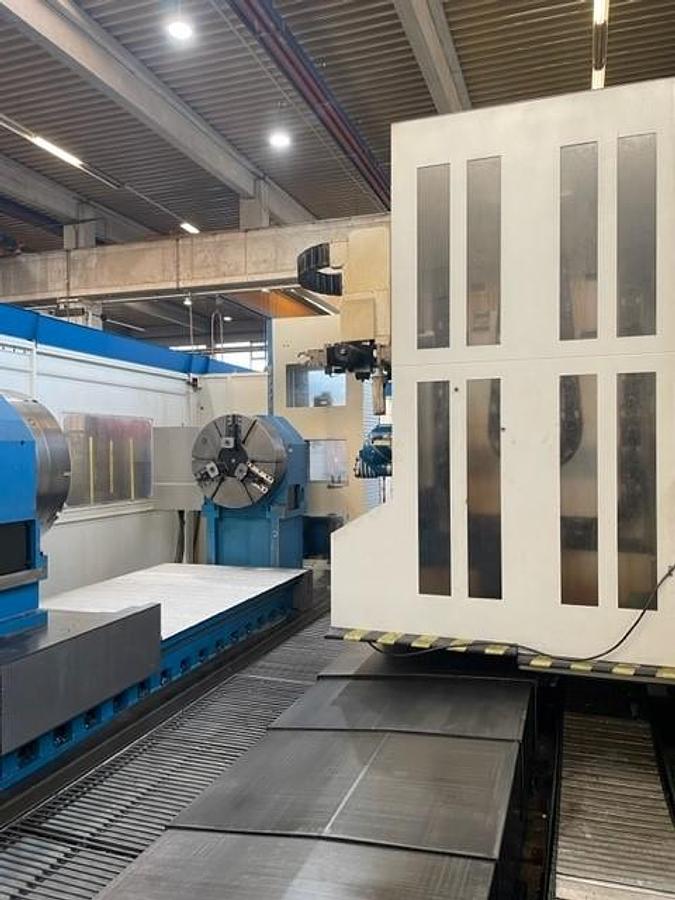

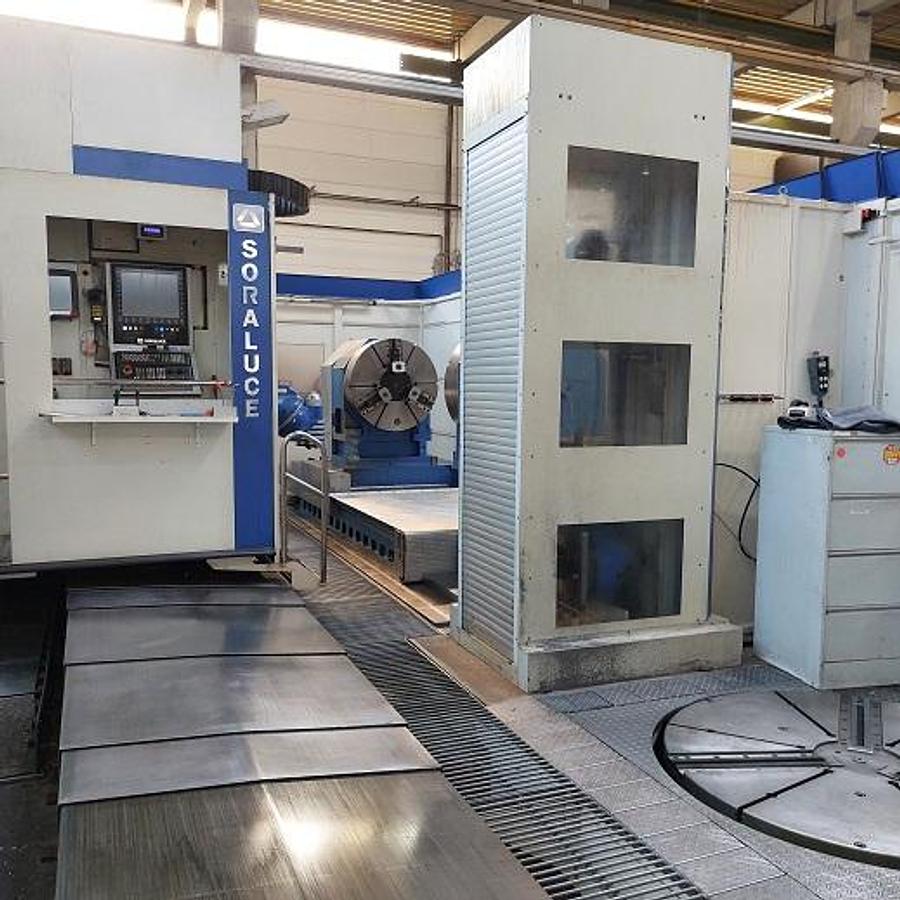

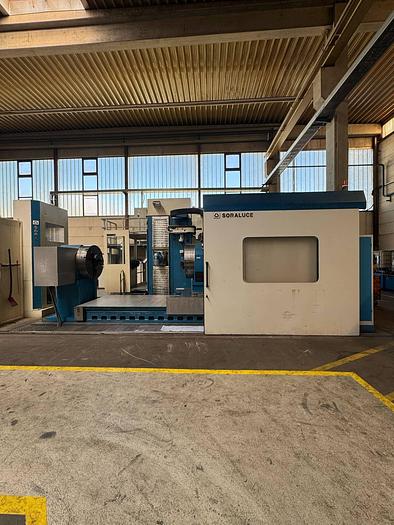

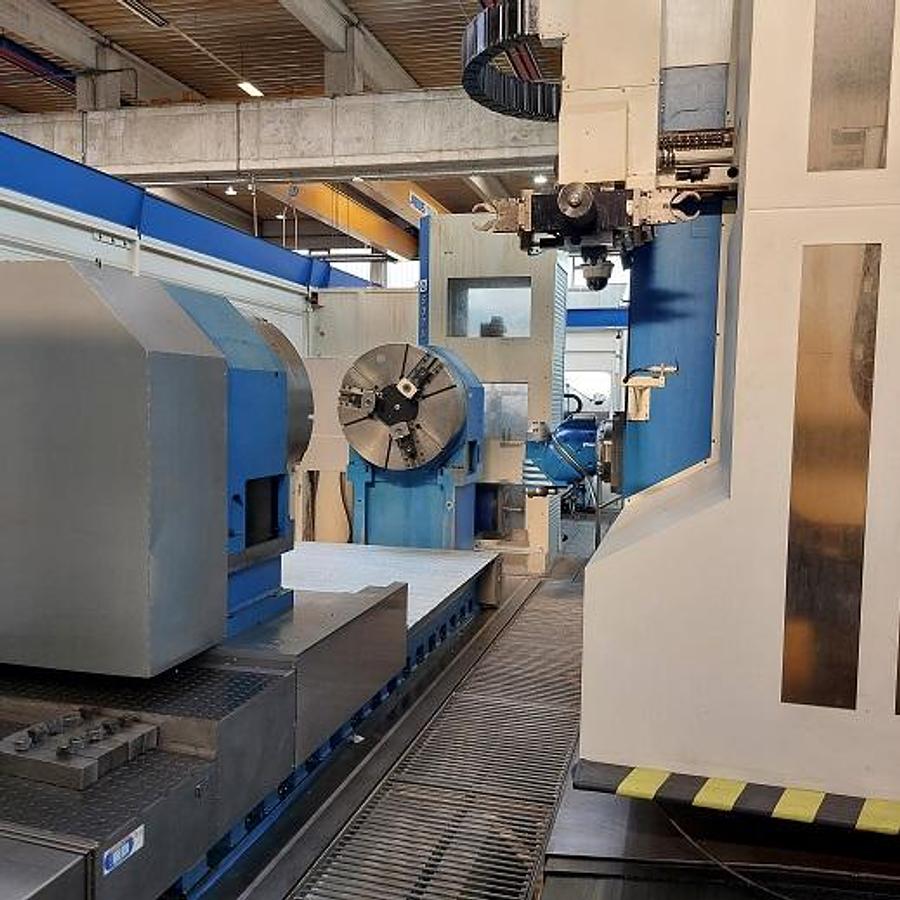

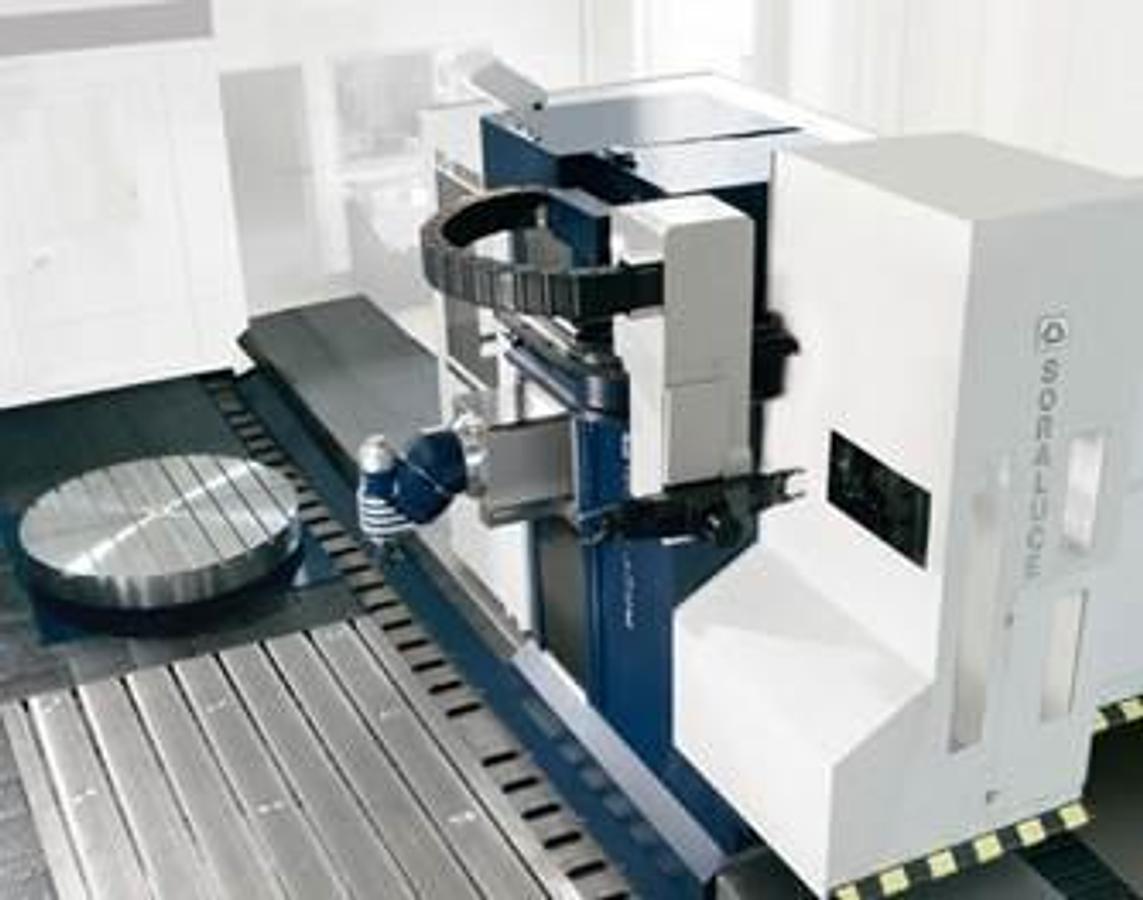

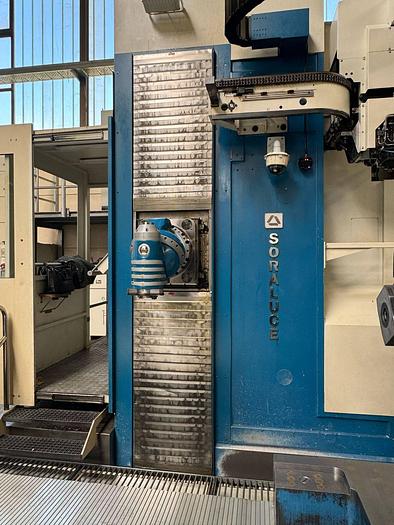

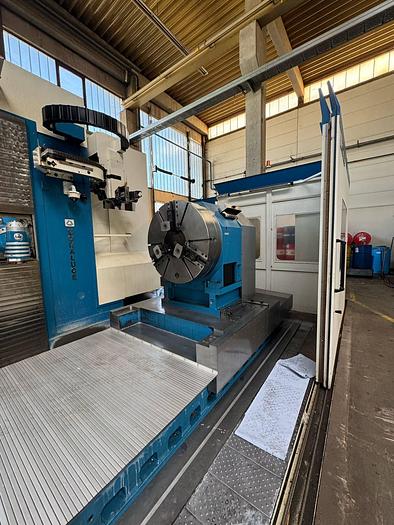

Soraluce FL 8000 CNC Universal Machining Center with 6 Axes and Turn Table

Soraluce FL 8000 CNC Universal Machining Center with 6 Axes and Turn Table

Description

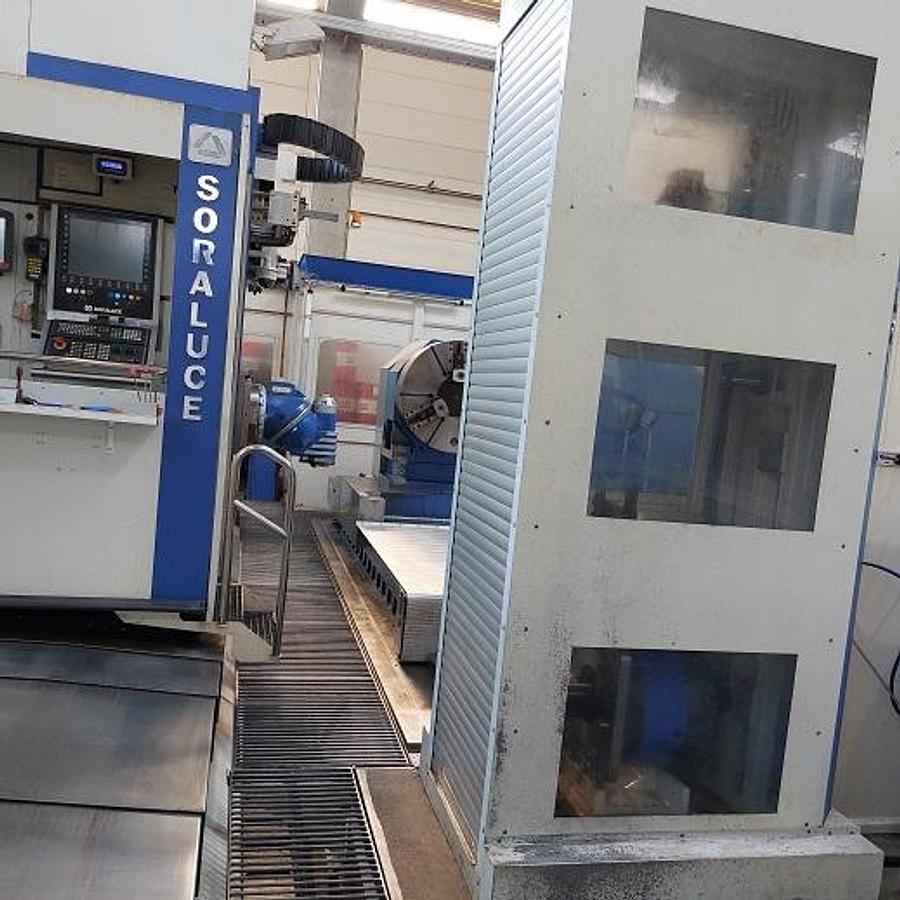

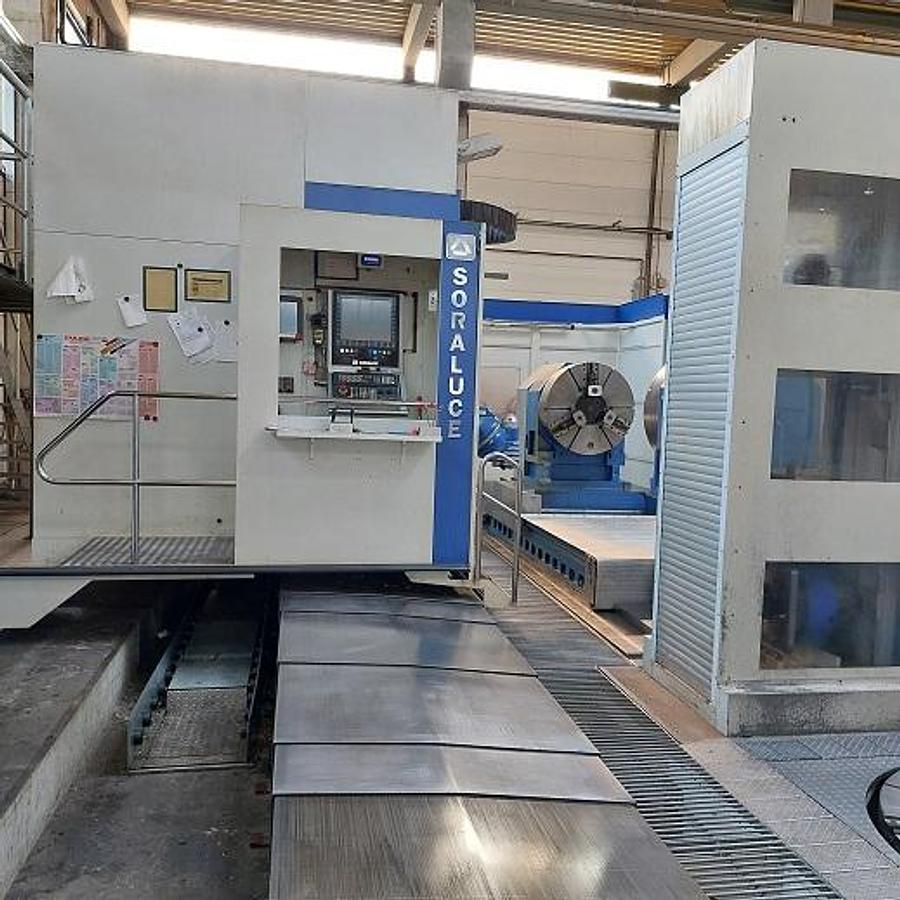

Siemens SINUMERIK 840D SL CNC Control

Turning Table for Turning & Milling Operations:

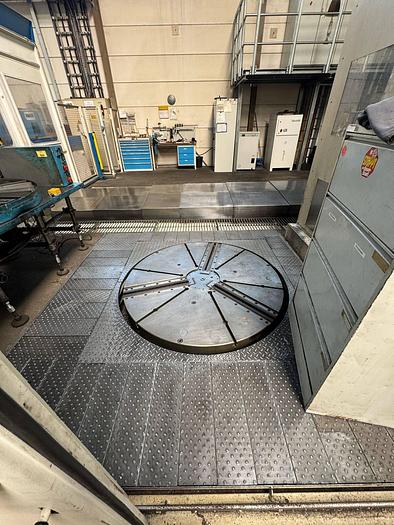

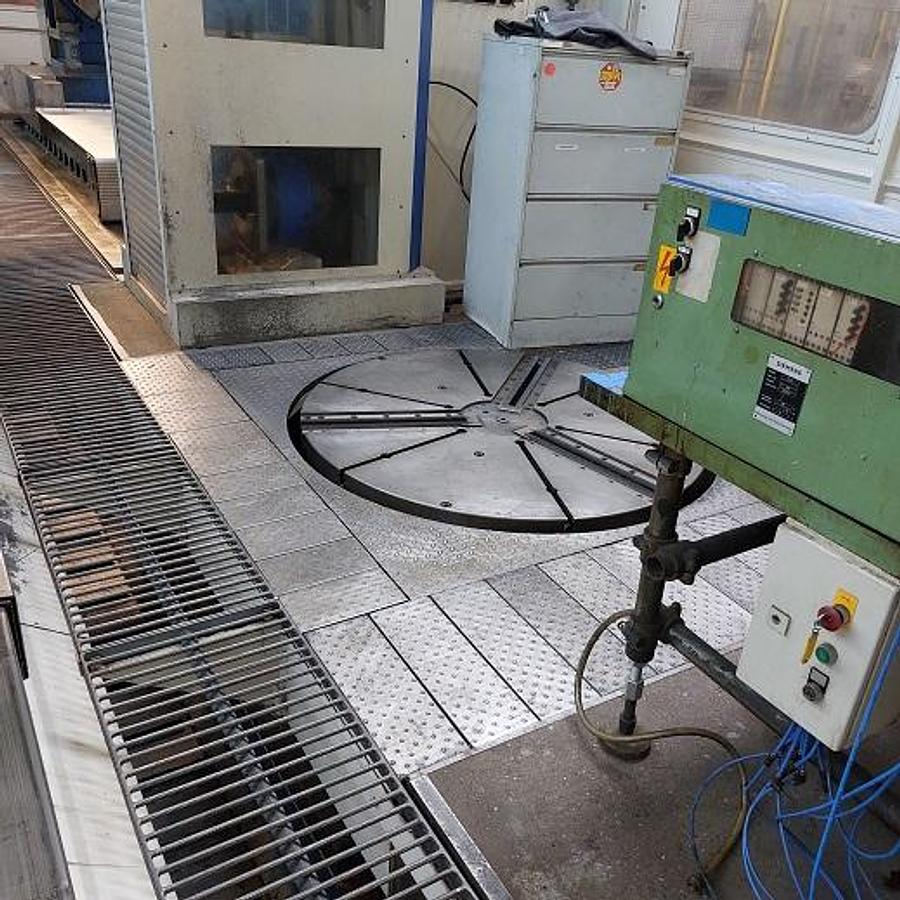

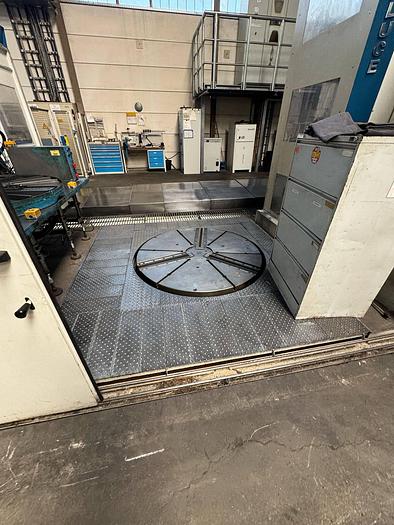

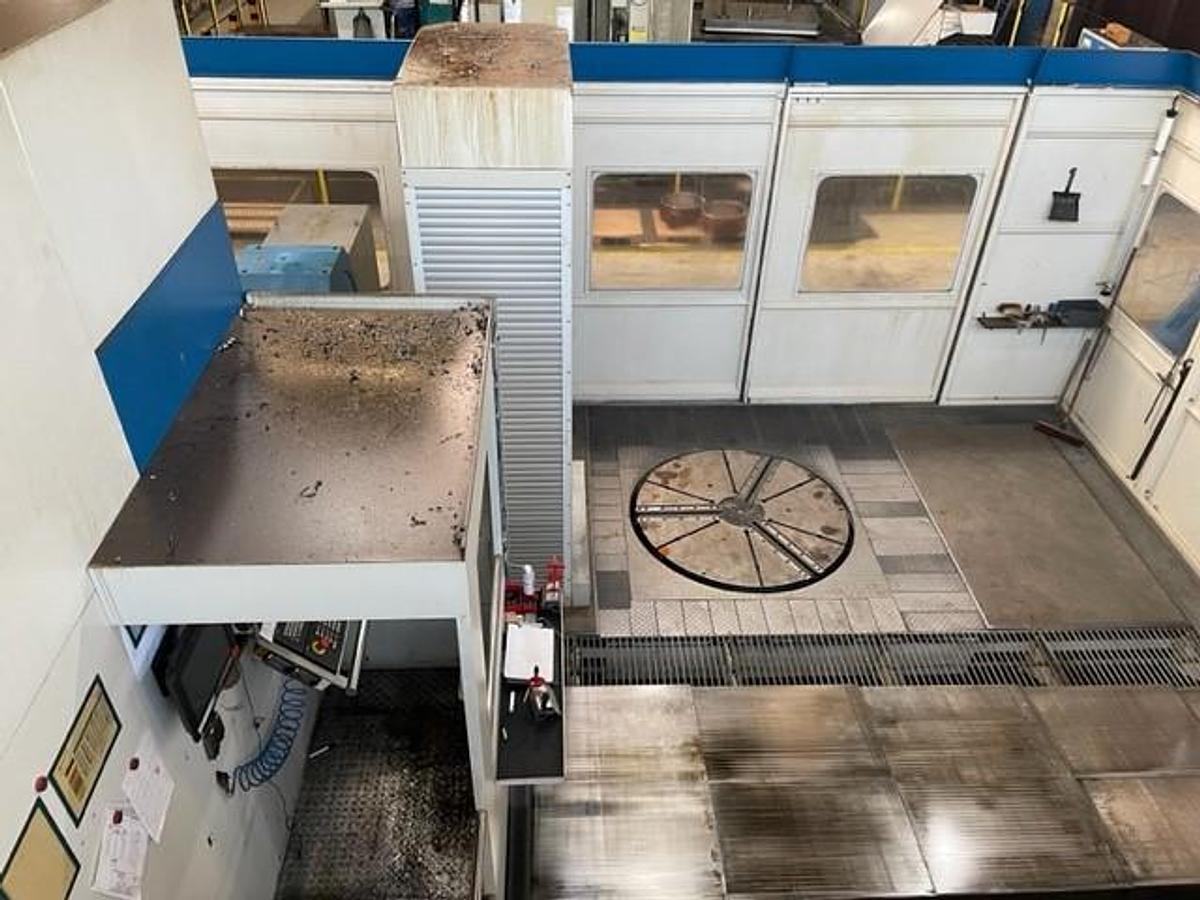

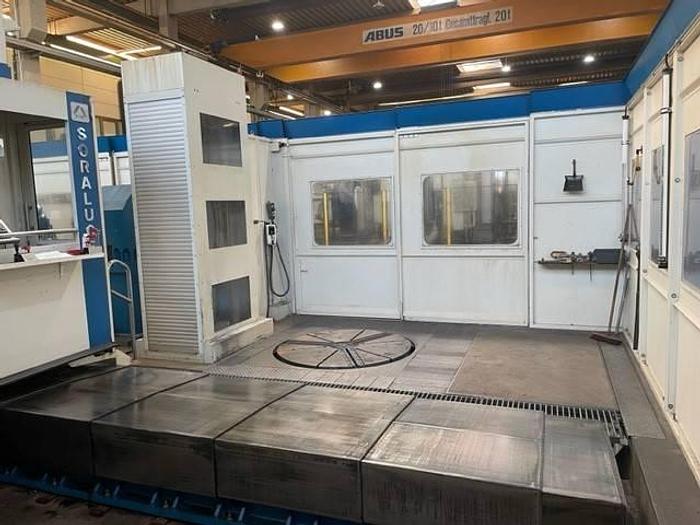

Fibro carousel turntable - 1,600 mm Diameter

TURNING:

Max Speed 250 rpm

Torque at 250 rpm - 2,000 Nm

Workpiece Weight - 8,000 - 15,000 kg

MILLING:

Clamping - Hydraulic

Max Workpiece Weight - 15,000 kg

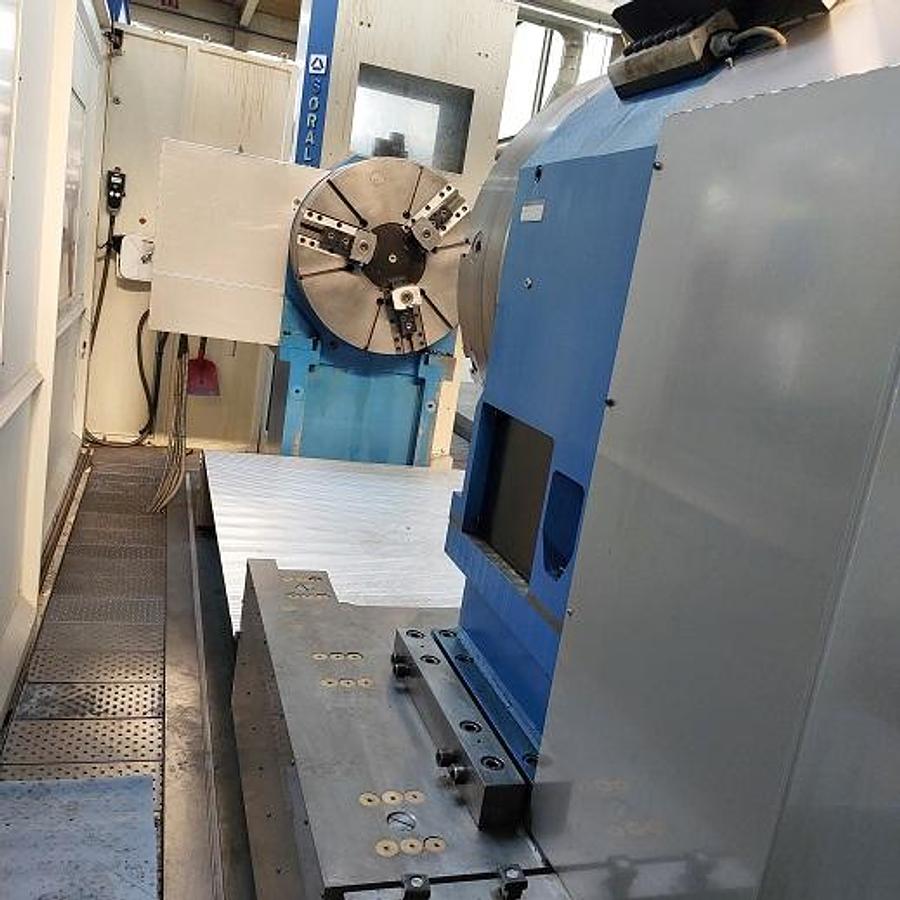

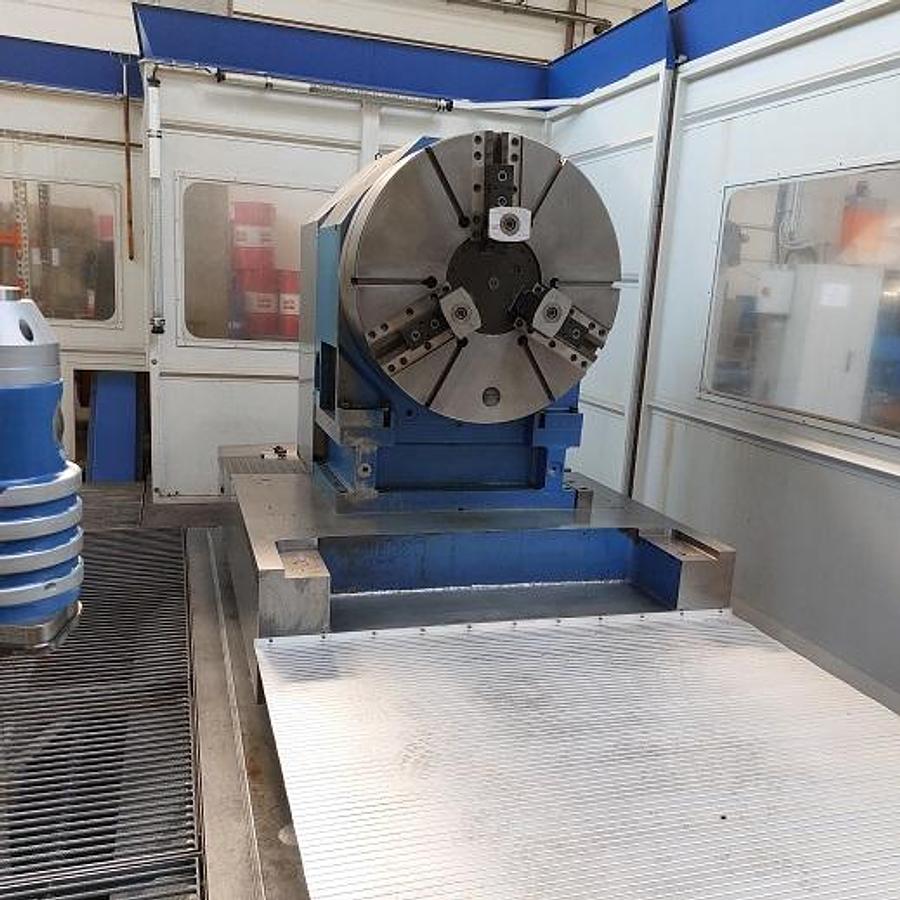

D'Andrea facing slide / grooves 22 H7 mm

Speed range for D'Andrea facing slide: 1 - 315 rpm

Max Torque 5,000 Nm

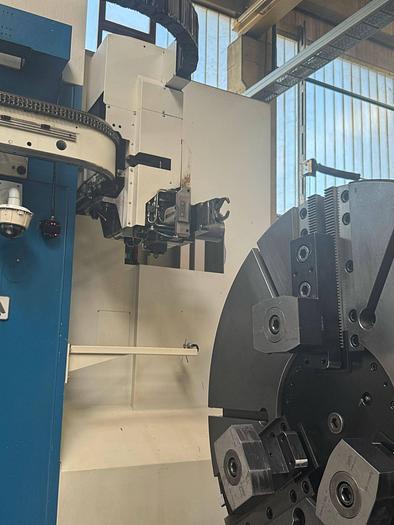

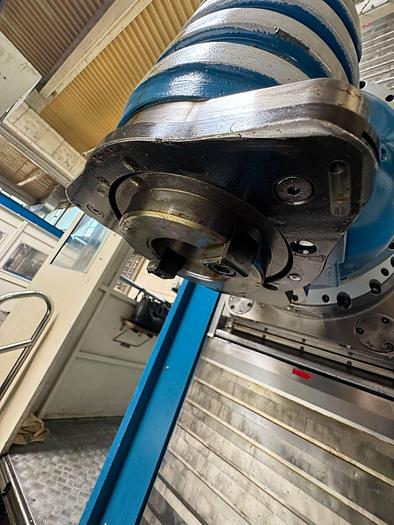

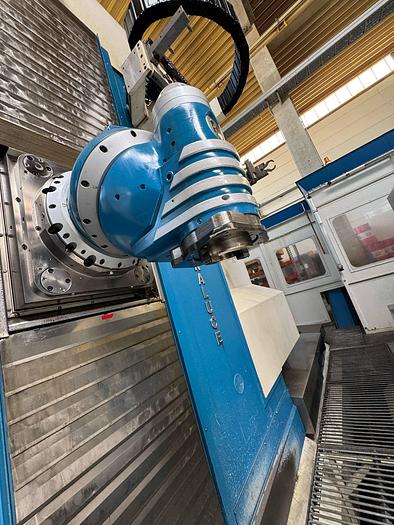

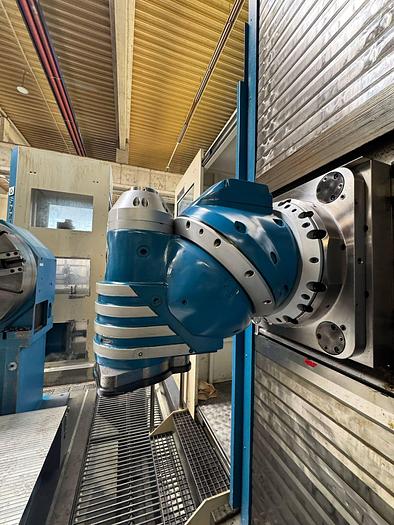

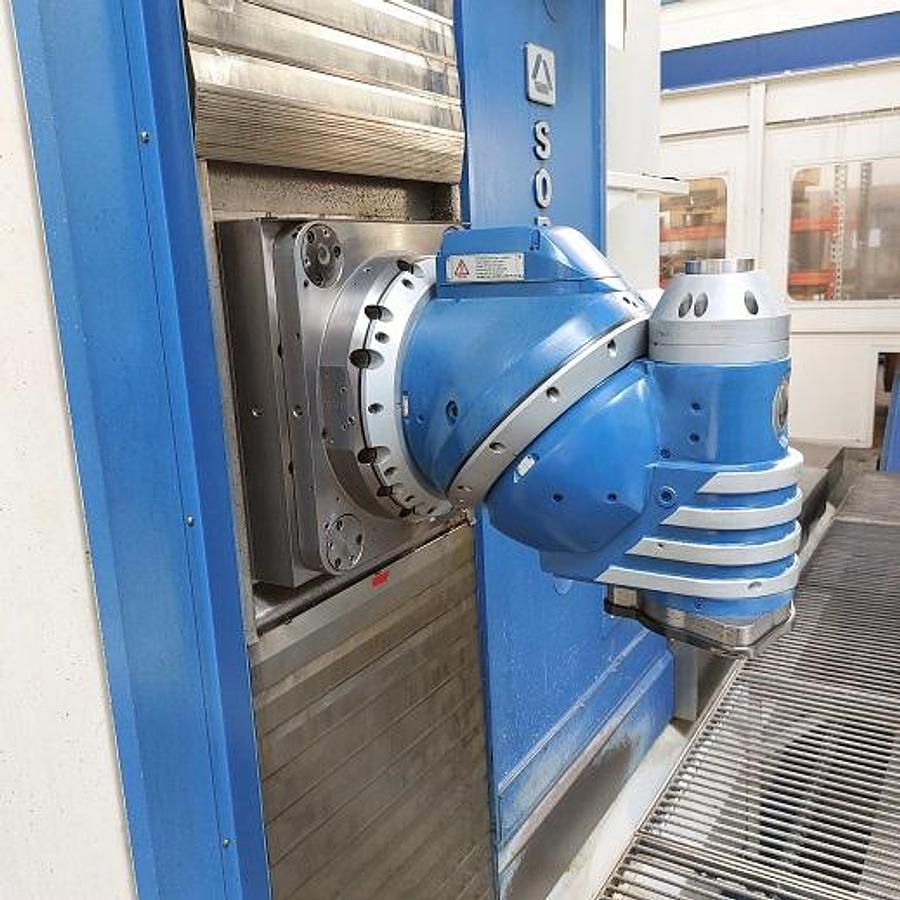

Automatic Indexing Milling Head - 4,000 rpm - 32 kW - 900/1045 Nm - 60 bar

A-Axis Indexing Accuracy - 0.001° - 360,000 Positions

C-Axis Indexing Accuracy 0.001° - 360,000 Positions

Stepless Adjustments in 2 Planes

Milling Head can move to any 0.001° Position and Reaches 360,000 Positions per Swivel Plane

Hirth Couplings with a 2.5° Pitch are Used - Adjusted by Servomotors

Reversible clamp dimensions: H x W x U: 1100 x 900-3000 x 2200 mm

H94D Automatic Head Changing System with Adapter Plate - 3 Milling Head Positions

Tool holder ISO 50 / torque 900Nm / torque at 150 min-1: 2787 Nm

Air pressure 0.7 bar

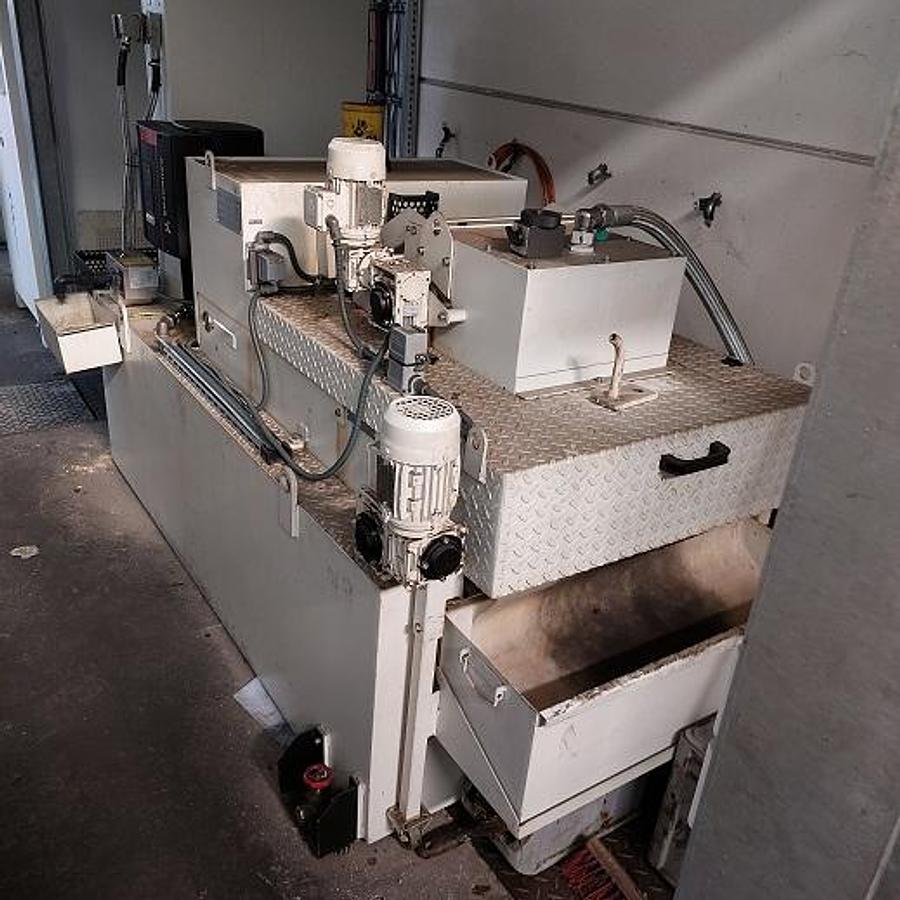

Coolant System - External Cooling with outlet at Milling Head - 500 L Tank

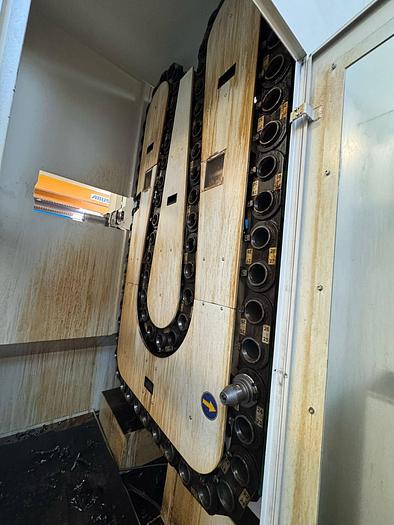

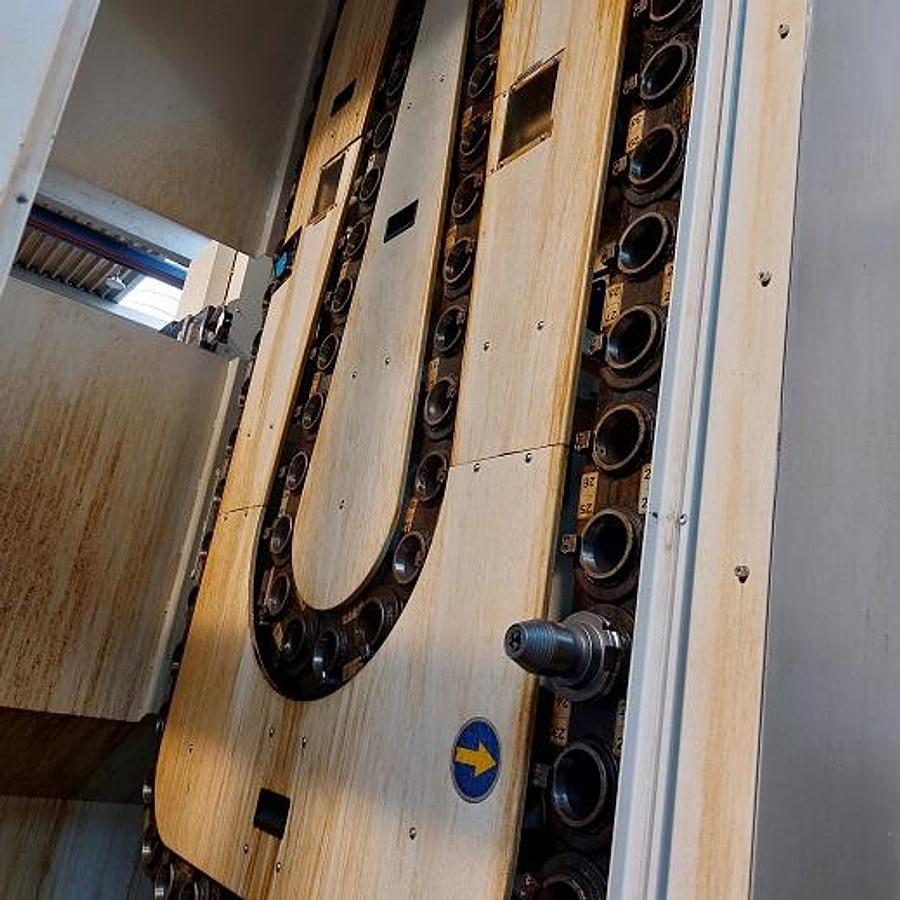

80 Position Tool Magazine

Tools + accessories

Angle

Chip Conveyor

3D Measuring Probe

Clamping Device

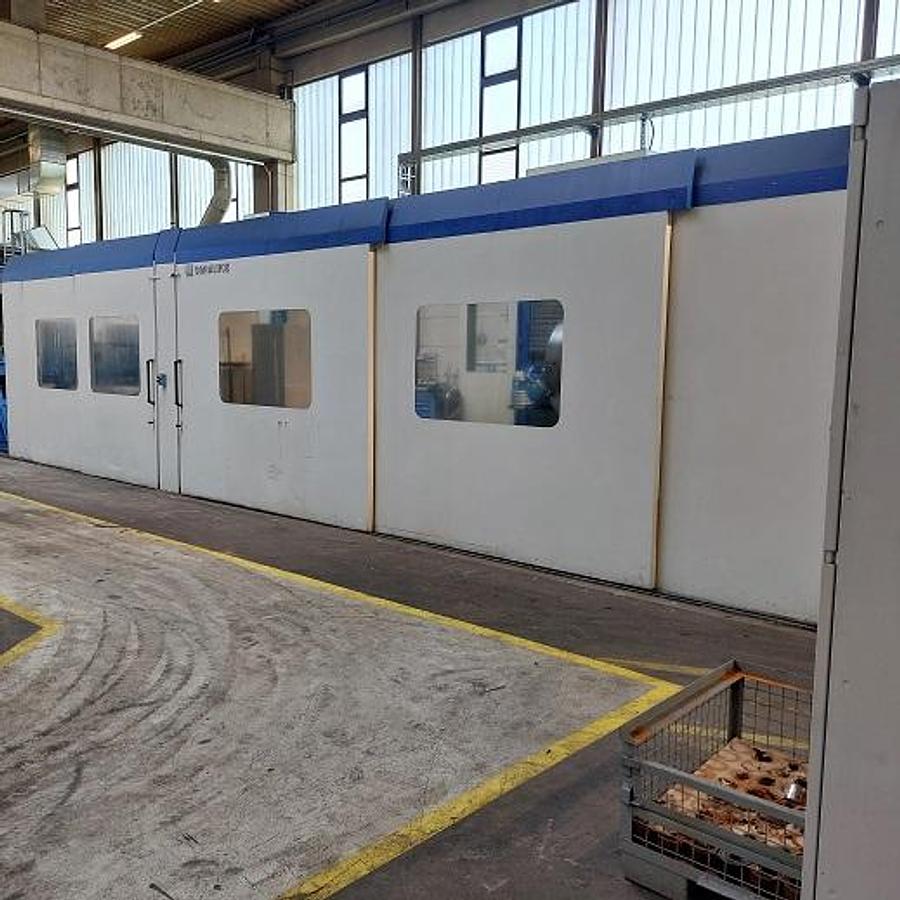

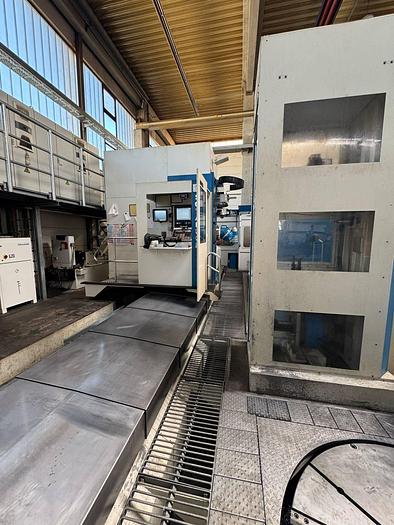

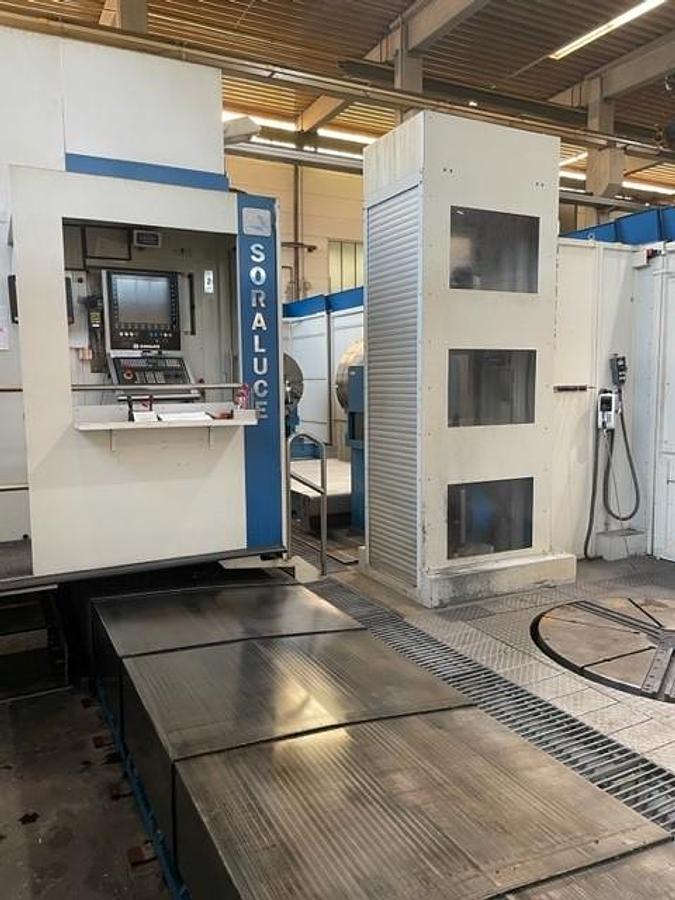

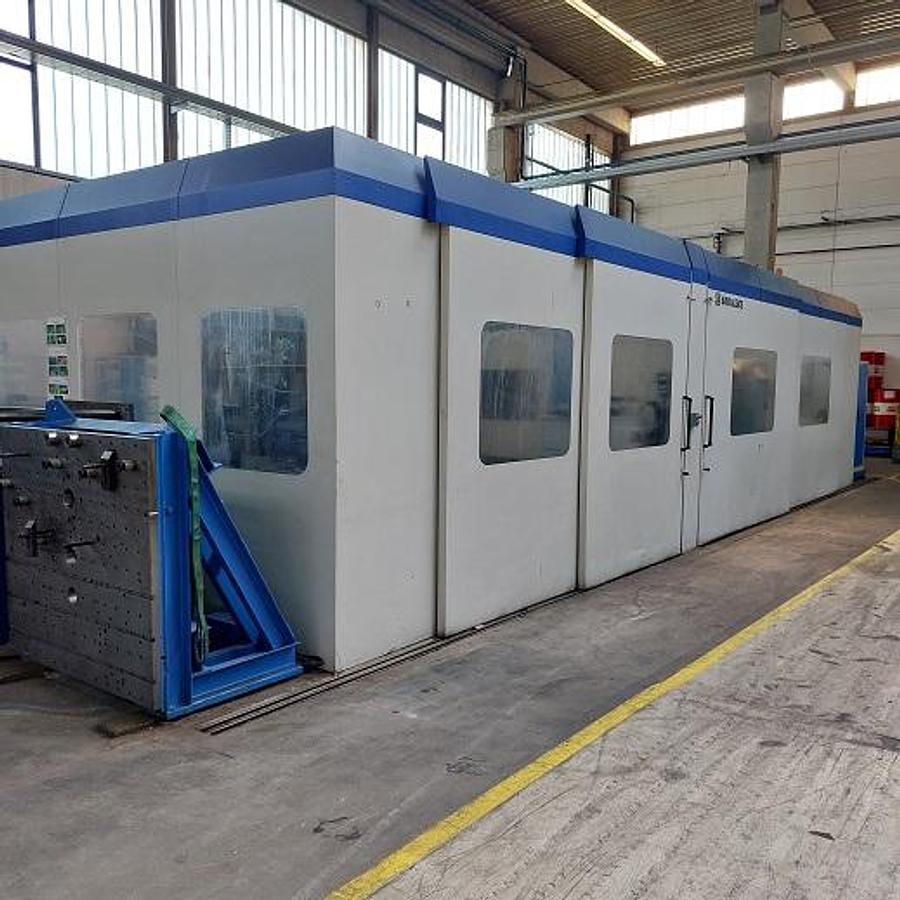

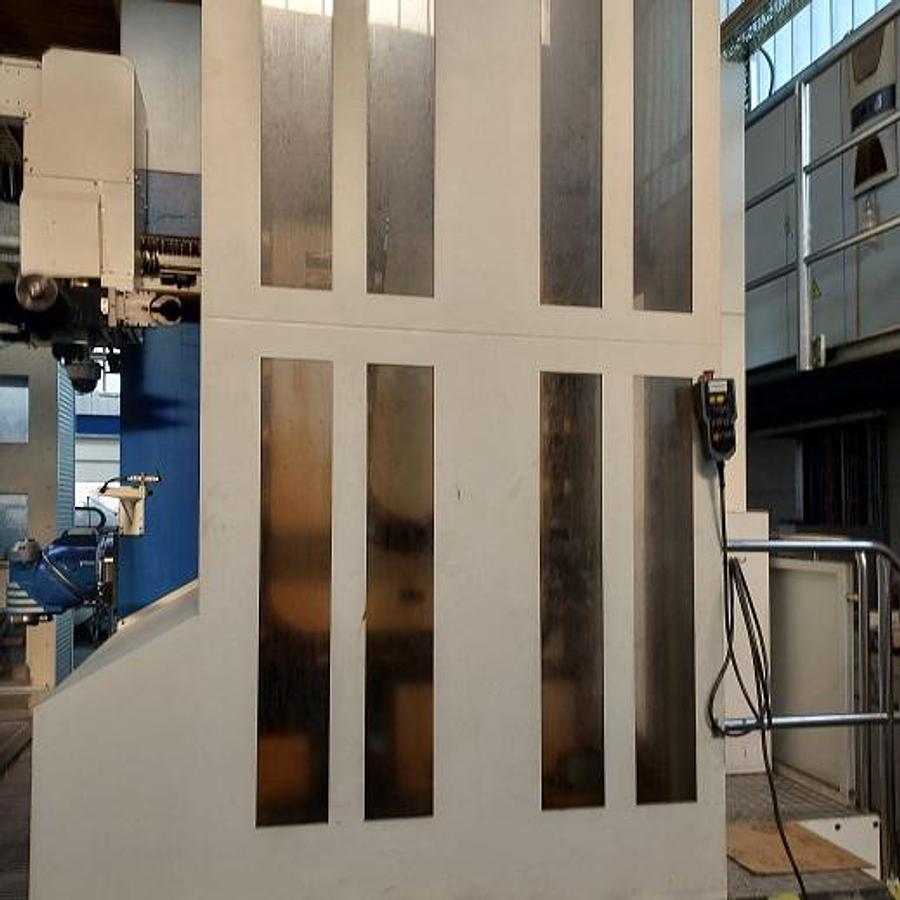

Longitudinally traveling operator platform with front sliding door and viewing windows as well as side railings

Rack and Pinion Drive in X-Axis via 2 Servo Motos Controlled by Master Slave Process

Ball Screw in Y & Z Axis

Heidenhein Direct Linear Measuring System in All Axes

Automatic Central Lubrication with Pressure & Time Monitoring for All Axes & Moving Parts

Control Cabinet A/C Unit

Work Area Lighting

Renishaw RMP60 M RMP60 Touch Probe System

Specifications

ManufacturerSoraluce
ModelFL 8000
Year2014
ConditionUsed
Stock Number11189
Spindle speeds4,000 rpm
X axis travel8,000 mm
Y axis travel1,300 mm
Z axis travel2,200 mm
Spindle diameter90 mm
B axis360°
Turn table diameter1,600 mm
Turn table speed250 rpm
Tool taperSK50 / Capto C8
Spindle motor43 kW
Machine weight37 Ton
Machine dimensions15 x 6 x 3.8 m
