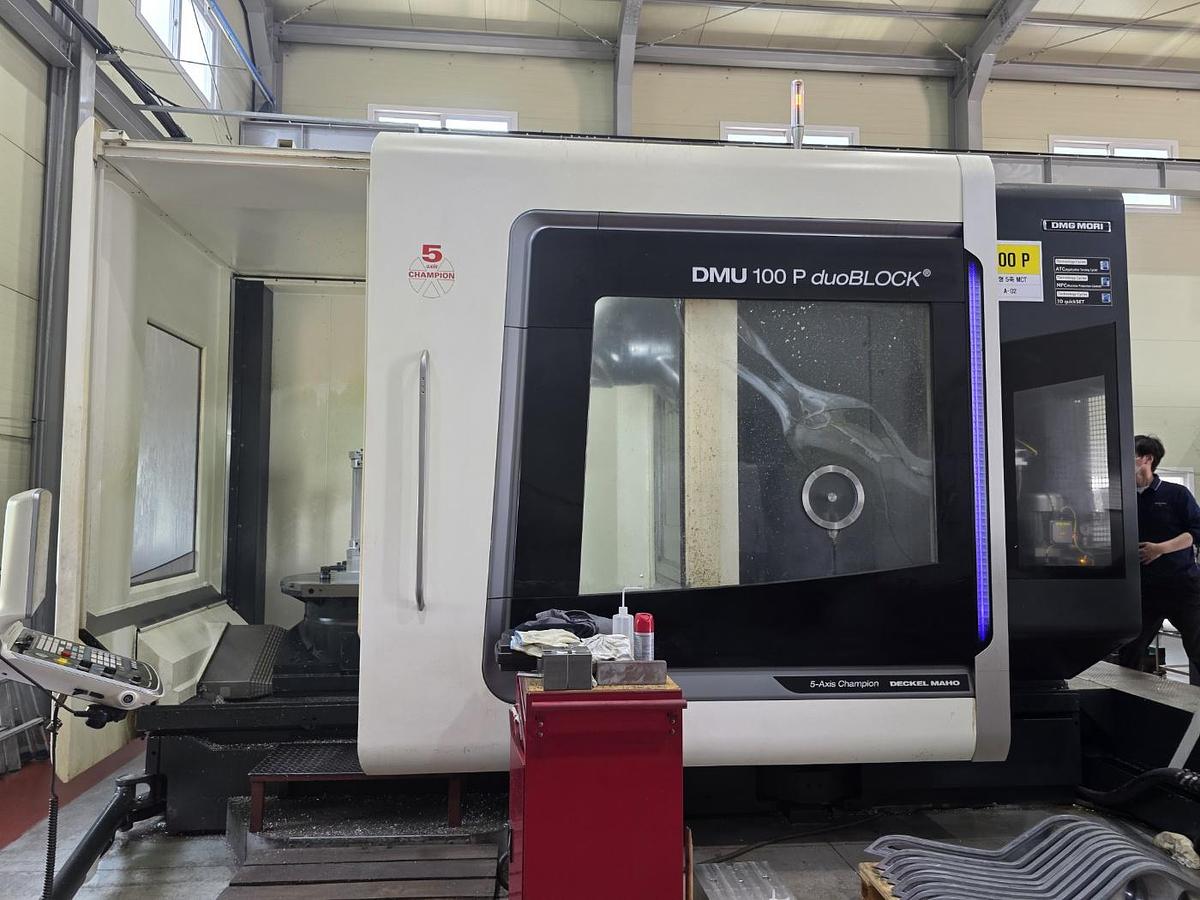

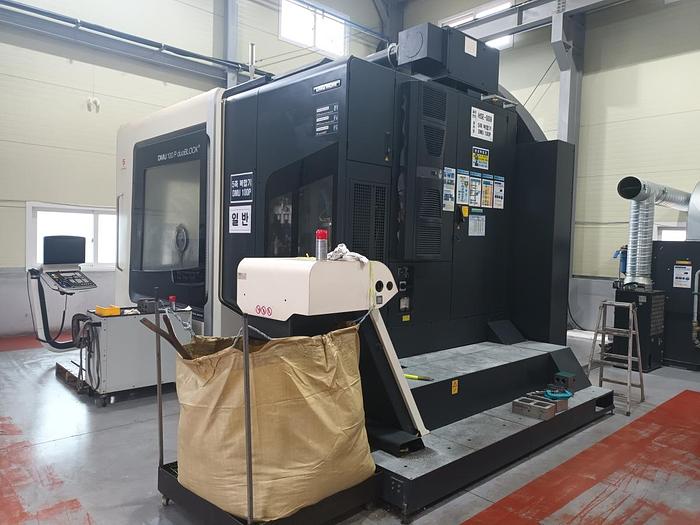

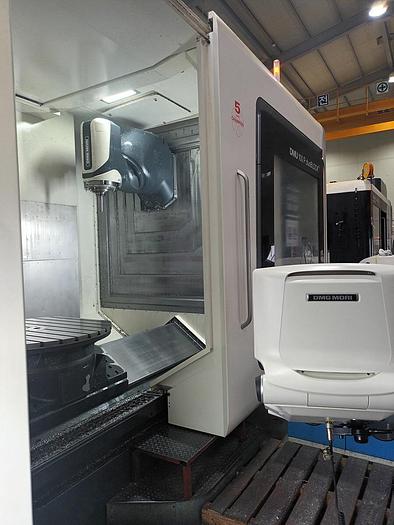

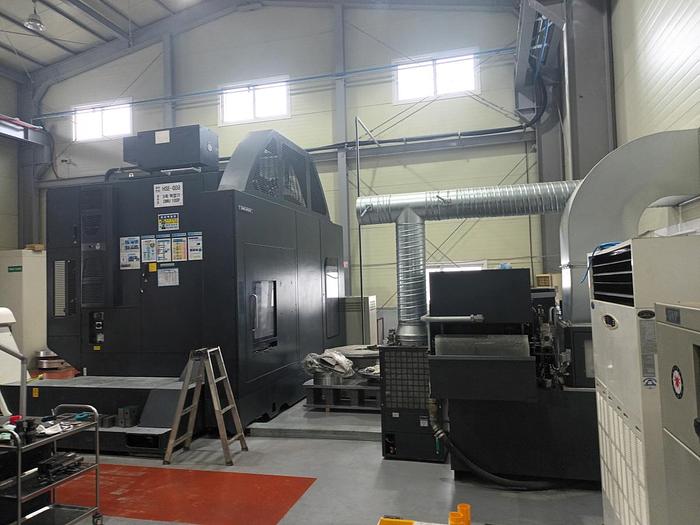

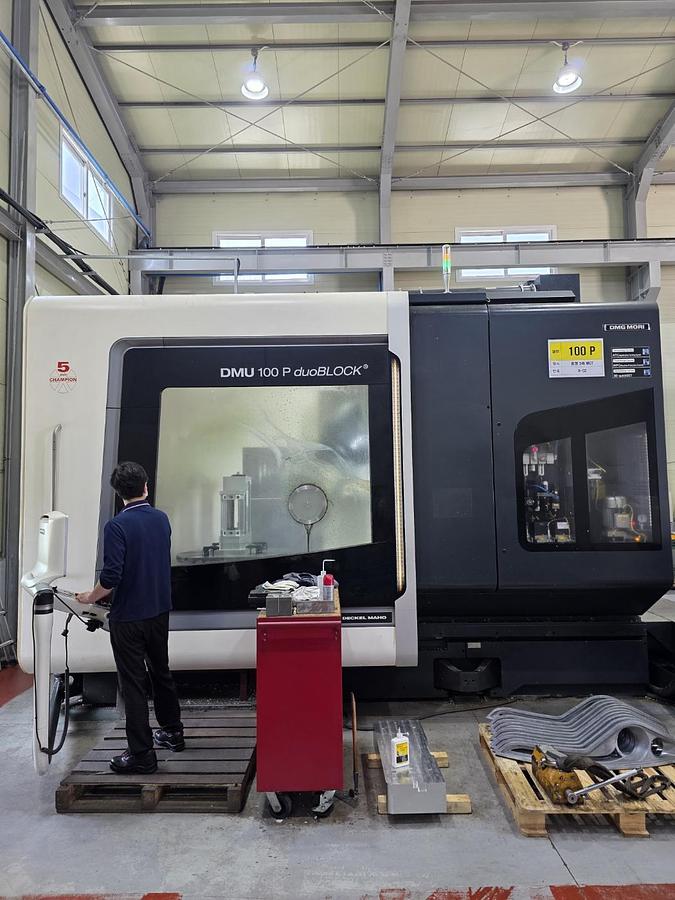

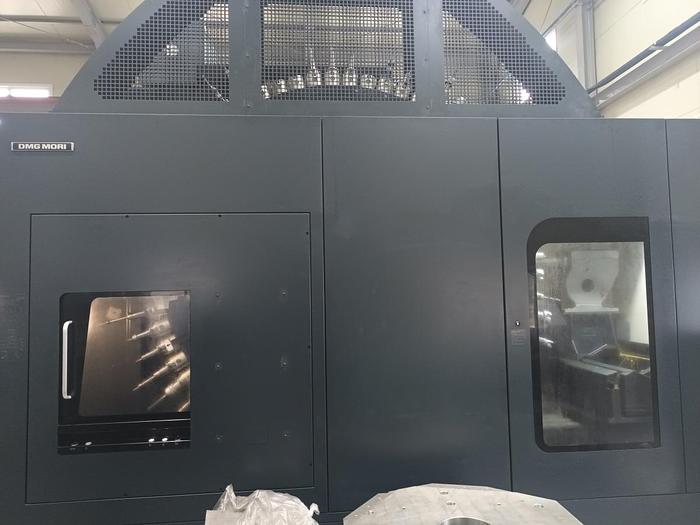

DMG DMU 100 P duoBLOCK CNC 5-Axis Machining Center
DMG DMU 100 P duoBLOCK CNC 5-Axis Machining Center
or
Call 770-509-0744

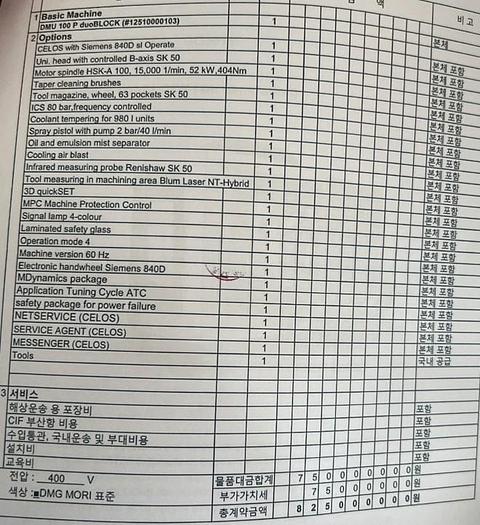

Description
5-Axis Machining

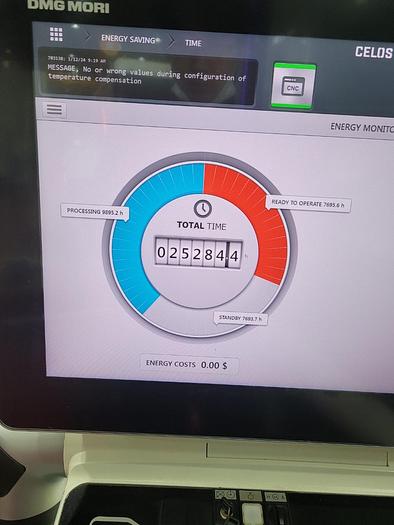

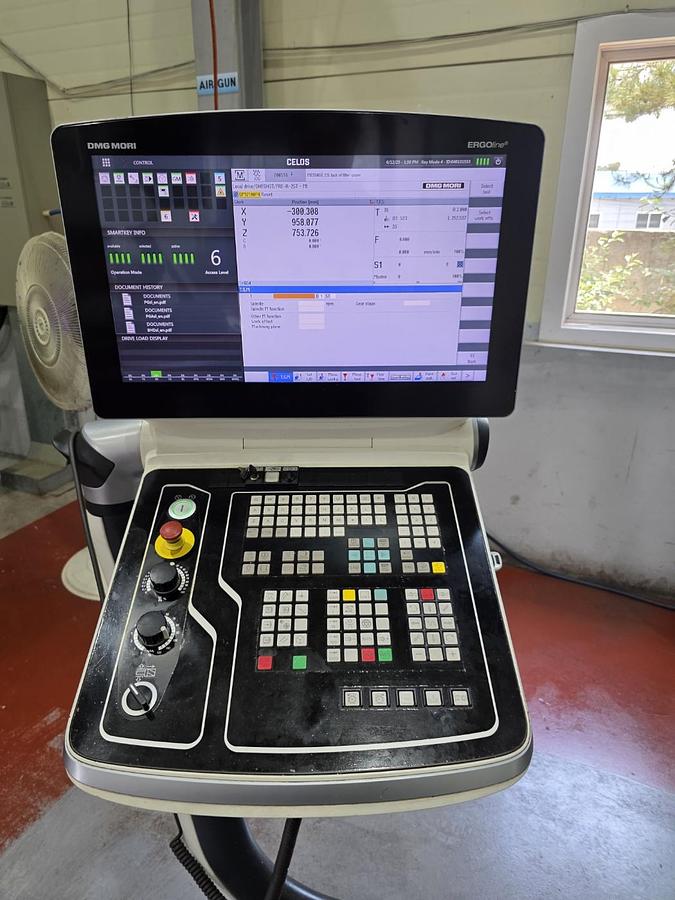

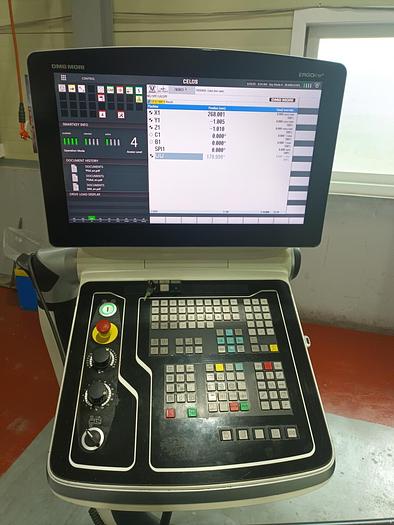

Siemens CELOS 840D CNC Control
63 Position Automatic Tool Changer

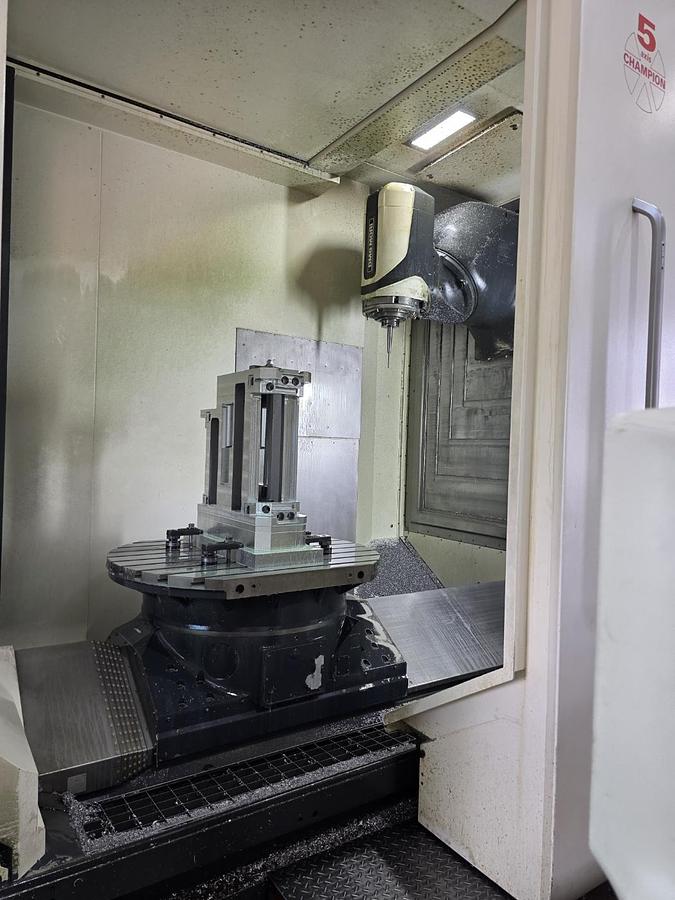

Universal B-Axis Swiveling Spindle
Contouring Table 1,100 x 910 mm
Probing
Tool Measurement
Coolant Thru-Spindle (80 Bar)

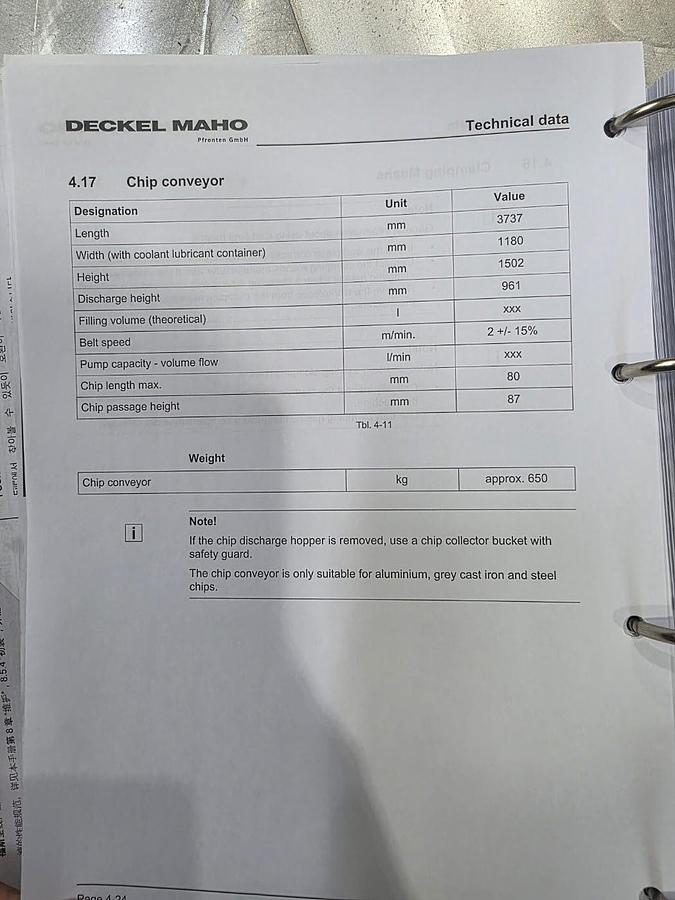

Chip Conveyor
Specifications
| Manufacturer | DMG |
| Model | DMU 100 P duoBLOCK 5 AXIS MILLING MACHINING CENTER |
| Year | 2016 |
| Condition | Used |
| Stock Number | 11184 |

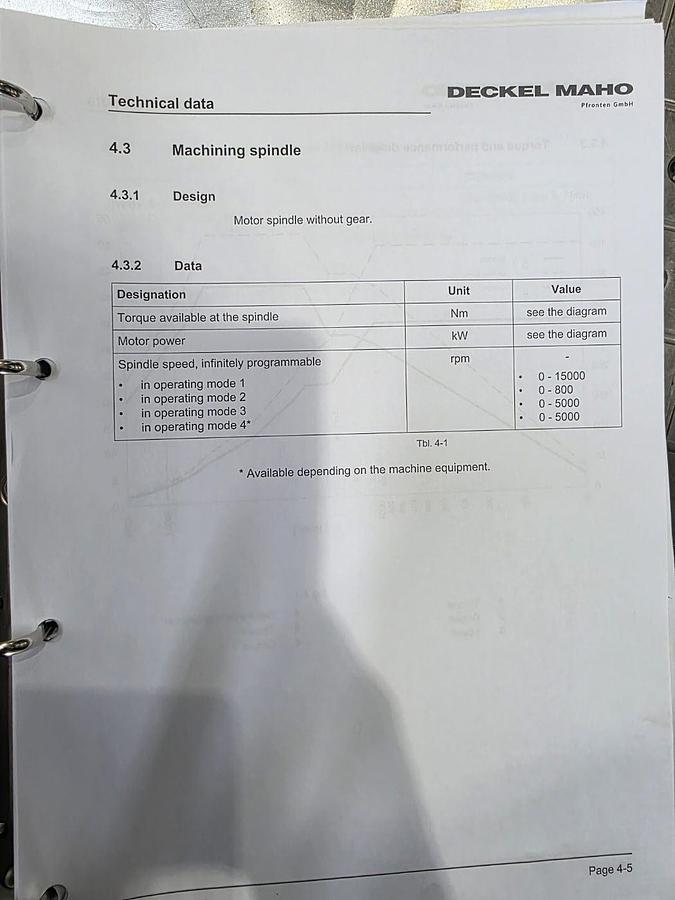

| Spindle speeds | 15,000 rpm |

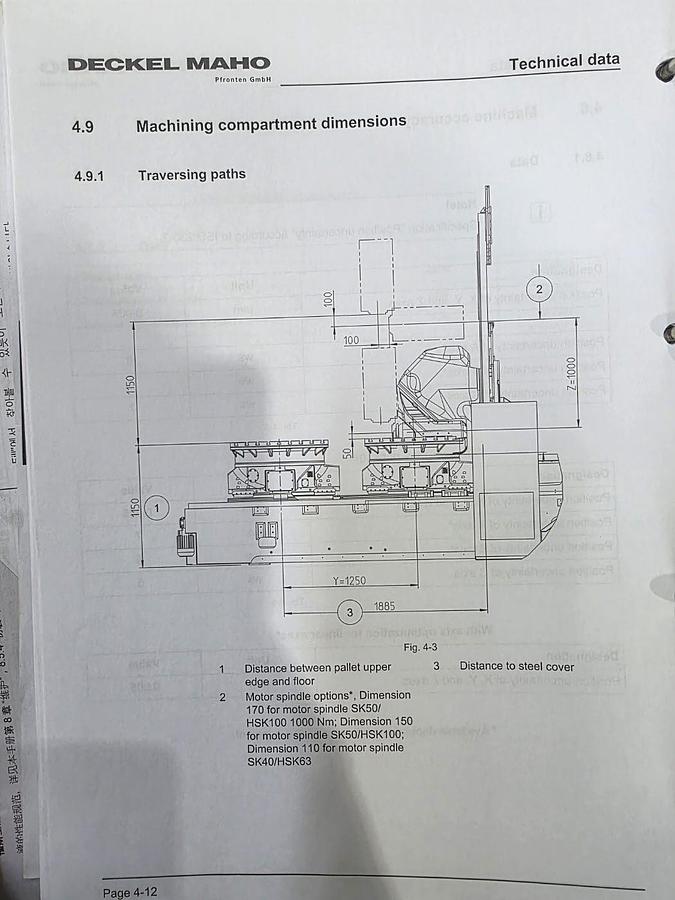

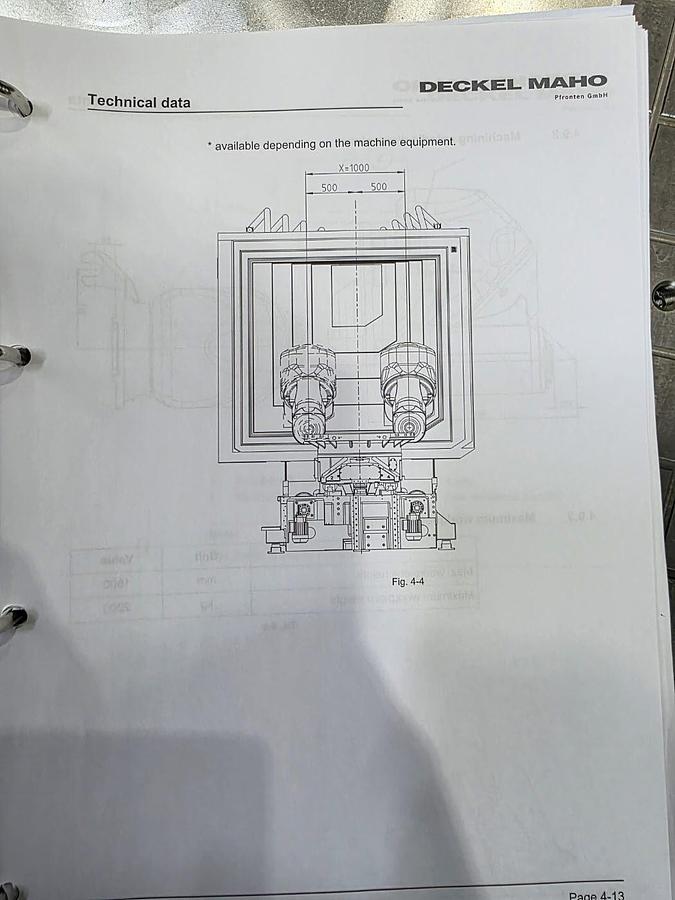

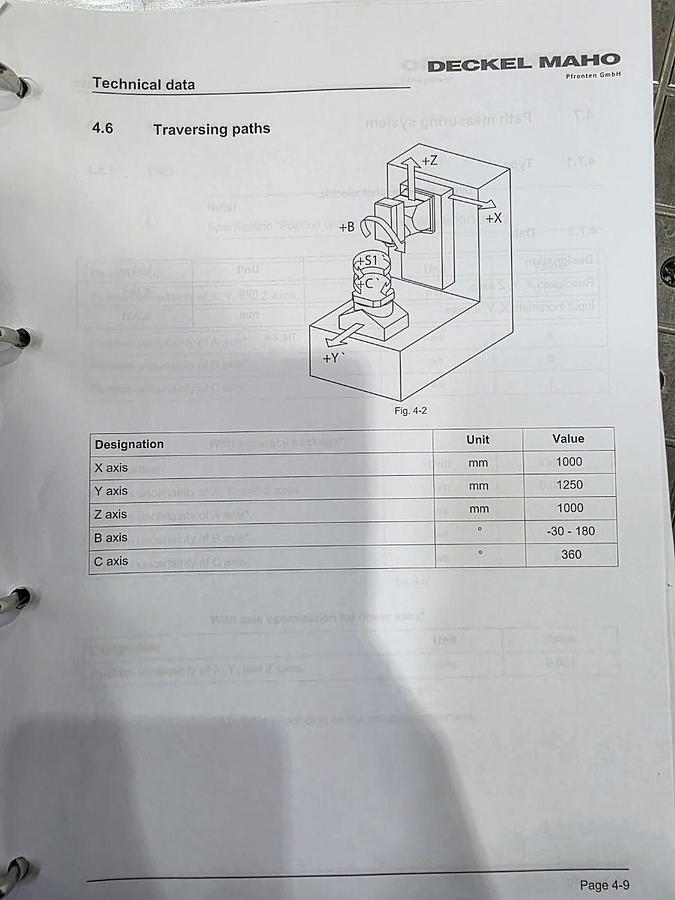

| X axis travel | 1,000 mm |
| Y axis travel | 1,250 mm |
| Z axis travel | 1,000 mm |
| Workpiece Diameter | 1,100 mm dia. |

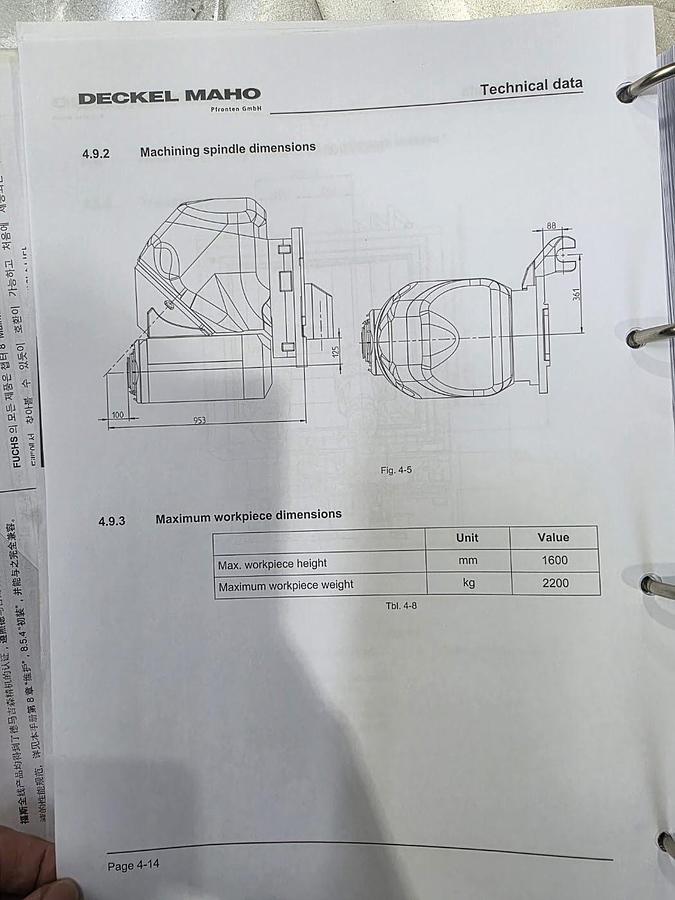

| Max cutting height | 1,600 mm |
| Table capacity | 2,200 kg |

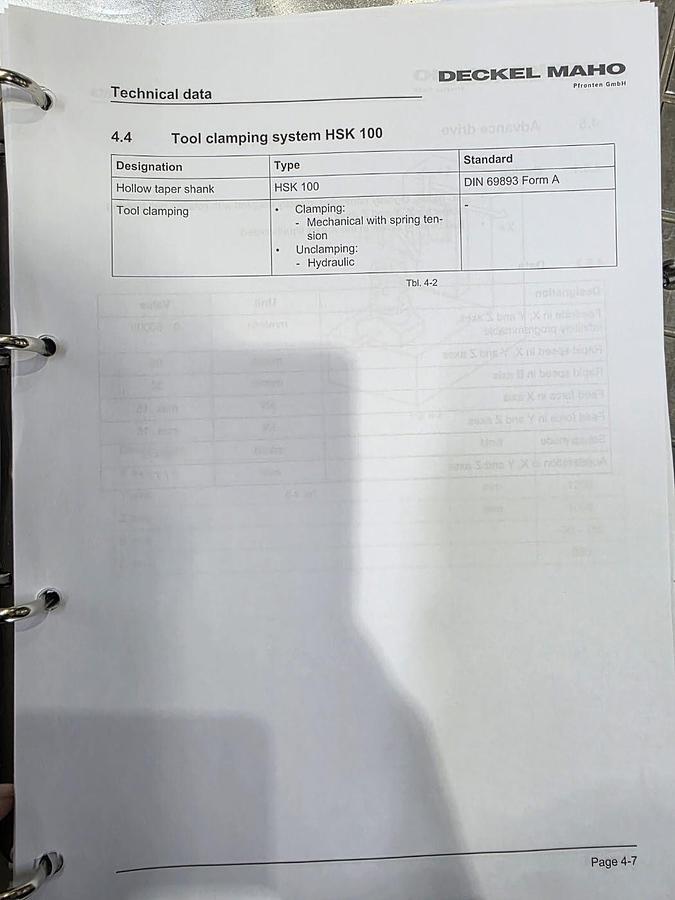

| Spindle taper | HSK 100 |
| Table speed | 35 rpm |

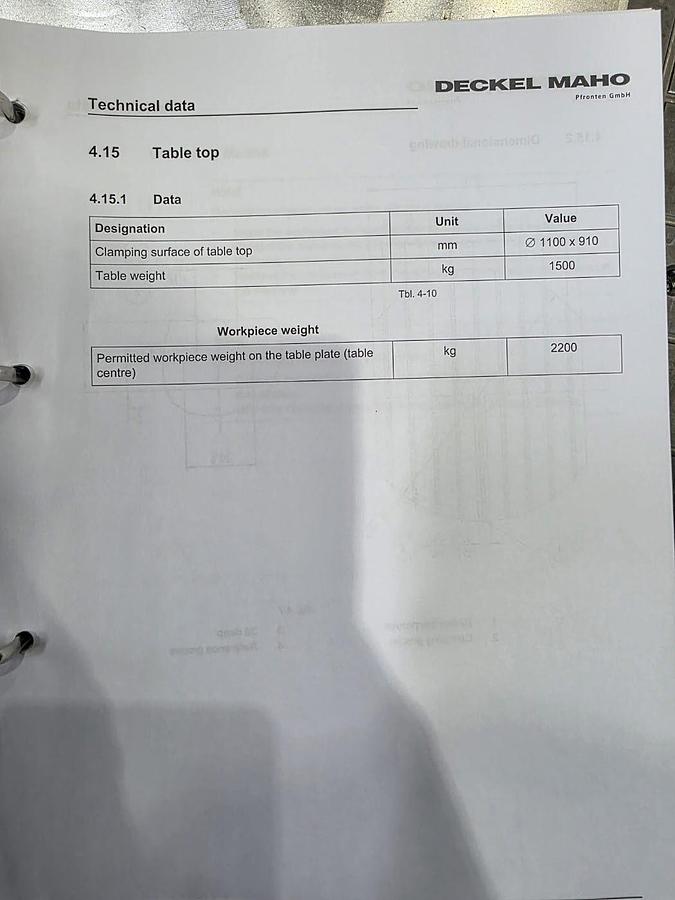

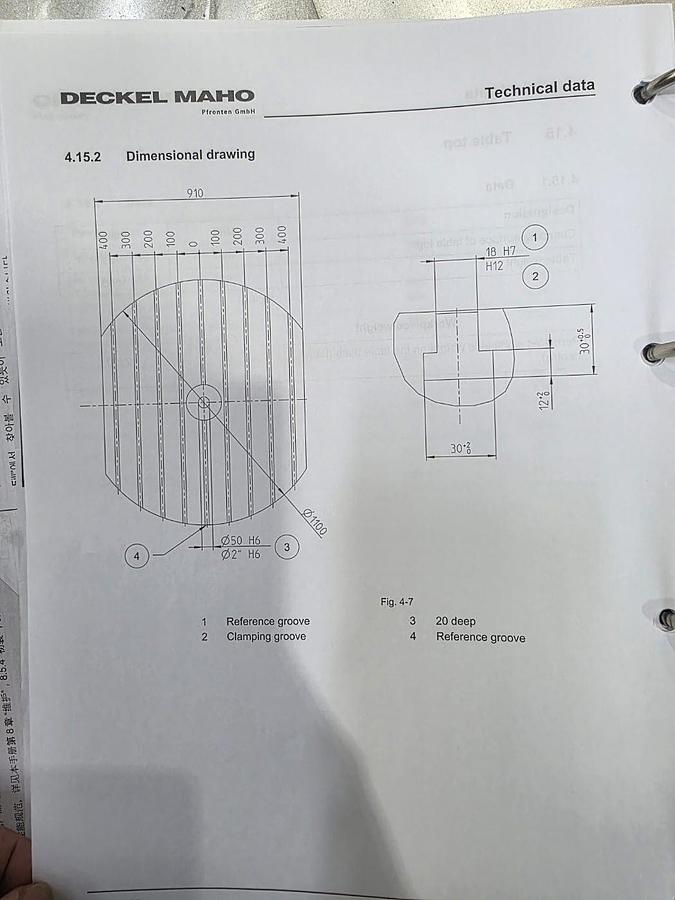

| Table size | 1,100 mm x 910 mm |

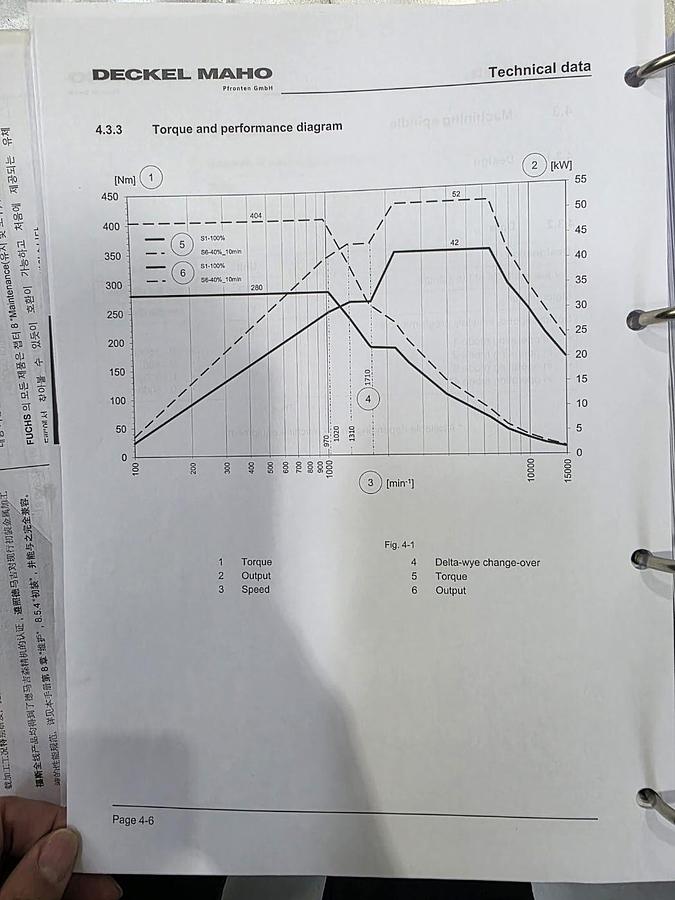

| Spindle motor | 69 HP |
| B-Axis | -30 - 180 Degrees |
| C-Axis | 360 Degrees |

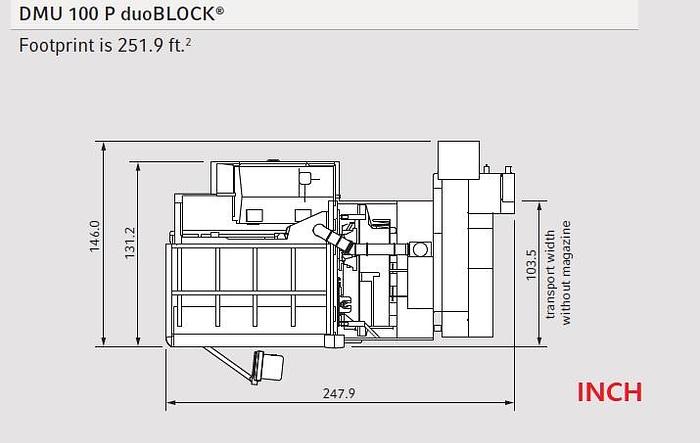

| Floor Space approx. | 6,560 mm x 6,560 mm |
| MachineHeight approx. | 3,606 mm |
| Approximate machine weight | 25,540 kg |
