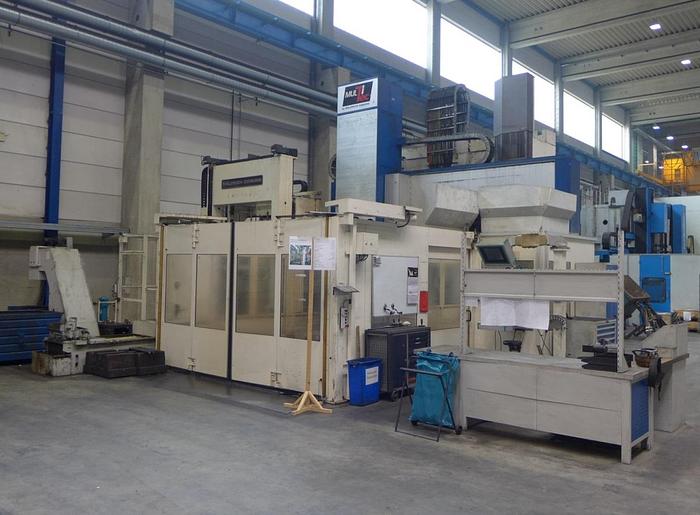

Waldrich Coburg Multitec 2500 AP CNC Bridge Type Machining Center

Description

Siemens 840D CNC Control

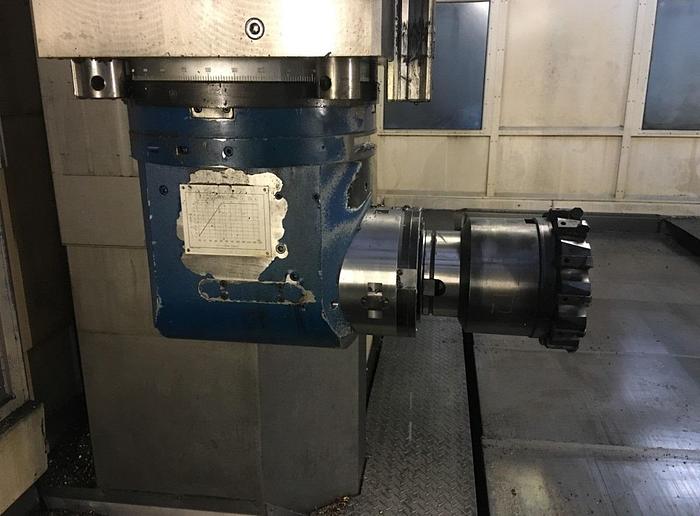

Angle Milling Head

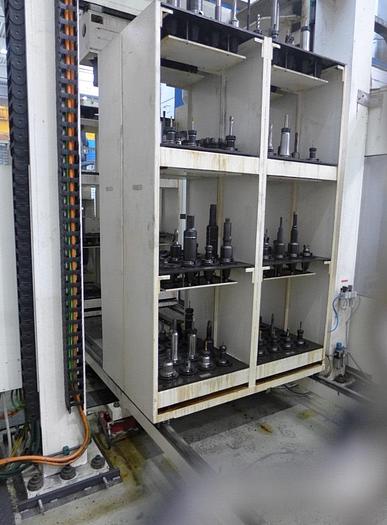

200 Position Automatic Tool Change Unit

Tool length max - 400 mm

Tool diameter - 135/250 mm

Weight of tools max - 50 kg

Ball Screws

Guideway Cover

Coolant System

High-Pressure Cooling System (Internal Cooling)

Full Work Area Paneling

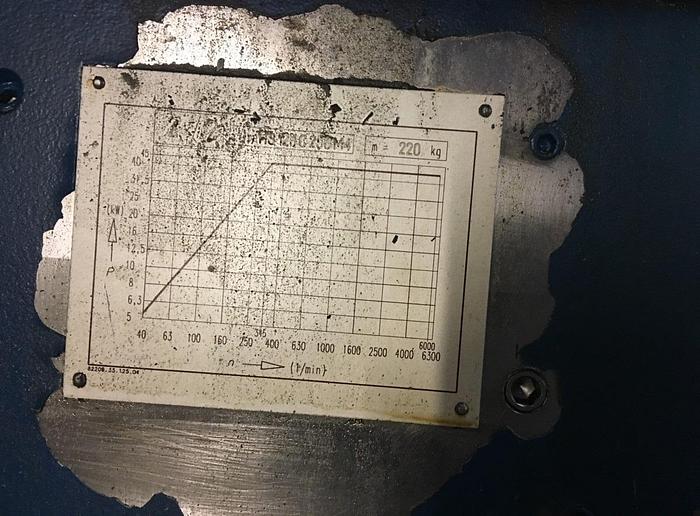

Spindle Turning Speed Range 5-6000 rpm

Transmission Ratio 2

Specifications

ManufacturerWaldrich Coburg
ModelMultitec 2500 AP
Year2002
ConditionUsed
Stock Number11180
Column daylight2,500 mm
Spindle speeds6,000 rpm
X axis travel4,000 mm
Y axis travel3,500 mm
Z axis travel1,500 mm
Table size3,000 x 2,000 mm
Workpiece weight10,000 kg
W axis travel1,500 mm
Z + w axis (ram + crossrail)3,000 mm
Spindle drive motor45 kW
Spindle torque1,250 Nm
Spindle taperISO SK-50
