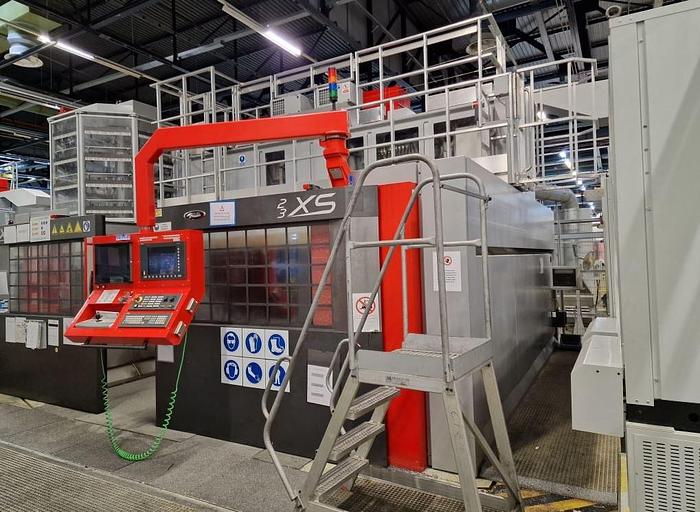

Parpas XS 23 CNC 5-Axis Gantry Type Milling Machine
Parpas XS 23 CNC 5-Axis Gantry Type Milling Machine
or
Call 770-509-0744
Description
Siemens 840D SL CNC Control
Worktable:
- Table clamping surface 2000 mm
- Max. workpiece weight 5 Ton
- B-axis 360 °
- Distance table-UK-spindle 293 - 1631 mm
- Column clearance 3000 mm
Accessories:

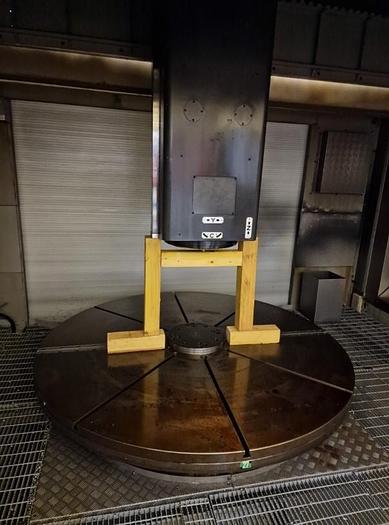

- Rotary Table TD 2000 - 2000 mm diameter
- 5-Axis milling head - TWM 60
- 300 Position Tool Changer (Capto C8)
- Coolant System
- Chip Conveyor
- Documentation
Specifications
| Manufacturer | Parpas |
| Model | XS 23 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 11176 |
| Spindle speeds | 5,000 rpm |
| X axis travel | 2,100 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,500 mm |
| C axis | 0.001° ±200° |
| A axis | ±100° |
| Table capacity | 5 Ton |
| Power capacity | 45 kW |
| Rapid Feed X/Y/Z | 80 / 40 / 40 m/min |
| Tool taper | Capto C8 |
