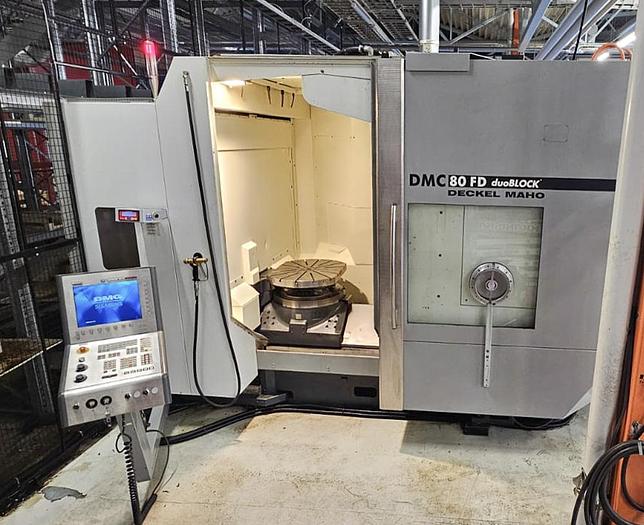

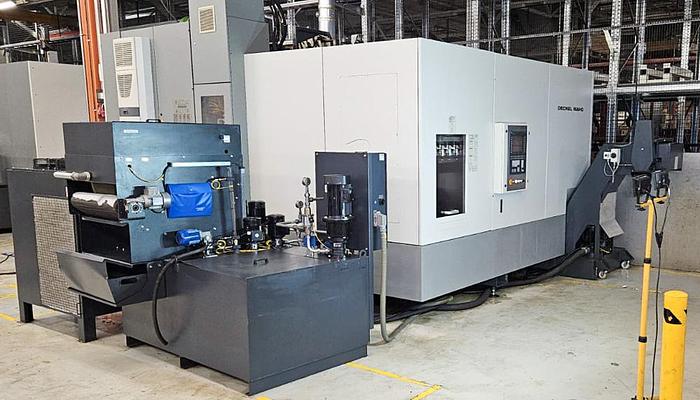

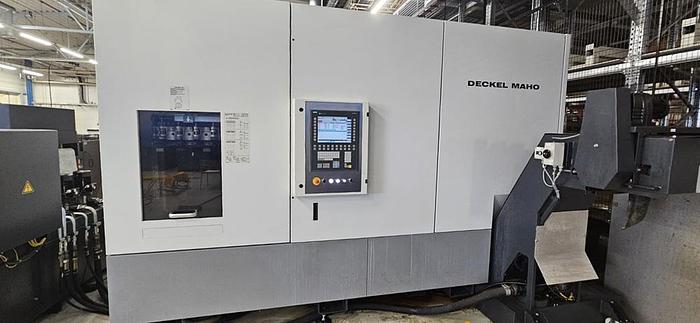

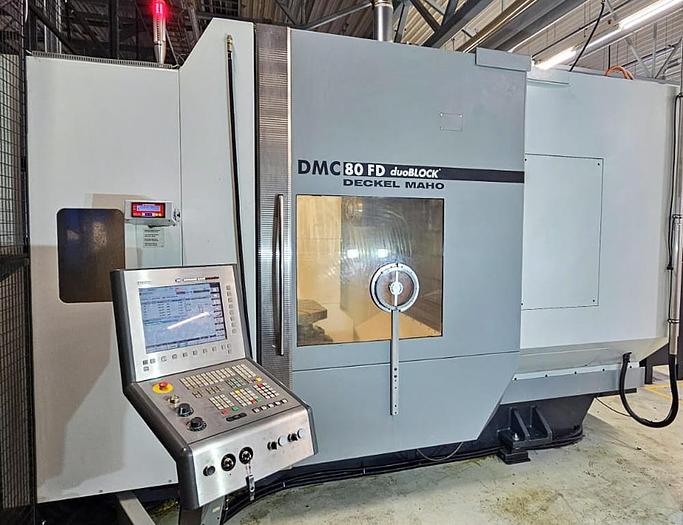

DMG DMC 80 FD duoBLOCK CNC 5-Axis Machining Center with 2 Pallet Changer

DMG DMC 80 FD duoBLOCK CNC 5-Axis Machining Center with 2 Pallet Changer

Description

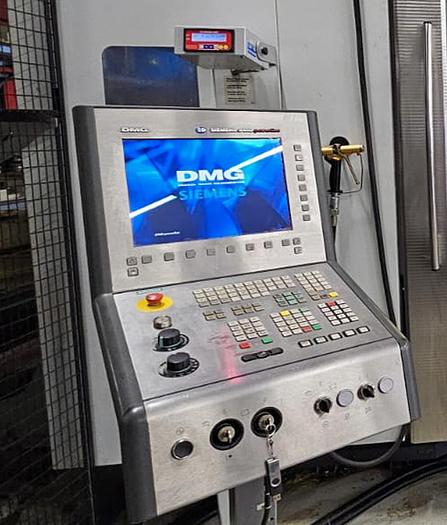

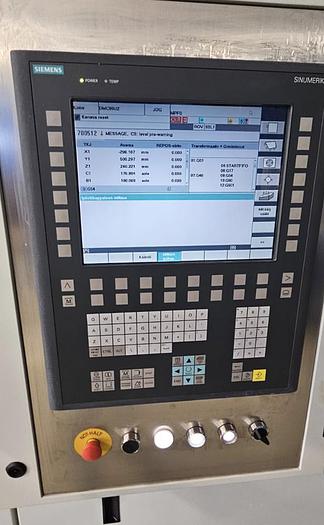

Siemens 840D PowerLine CNC Control

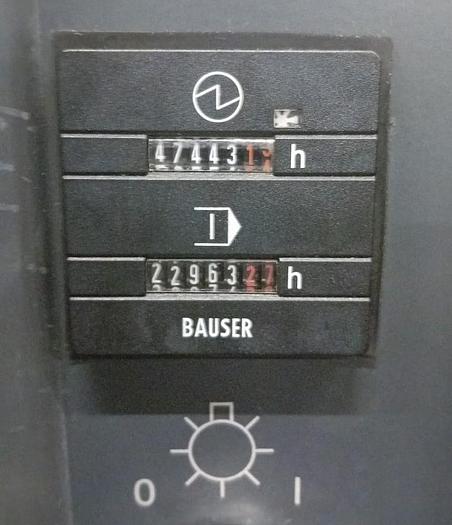

Under Power Hours - 47,443

Spindle Working Hours - 22,963

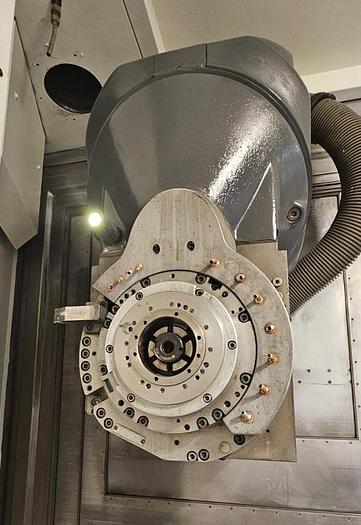

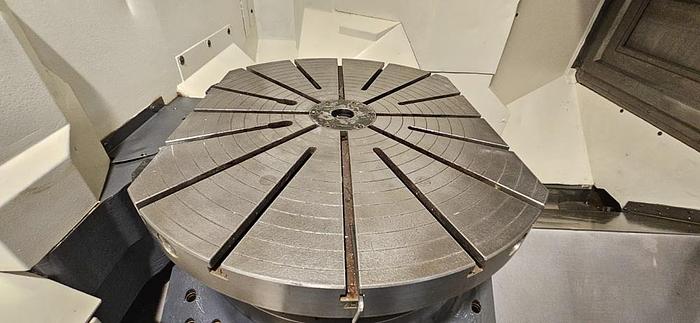

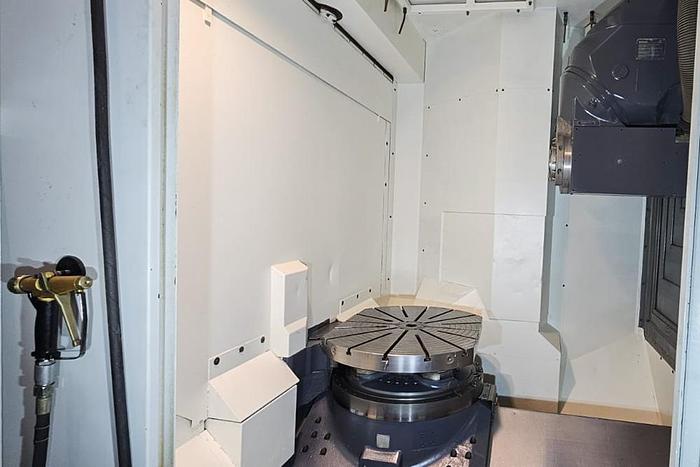

2 Pallets/Turn Tables (800 x 630 mm)

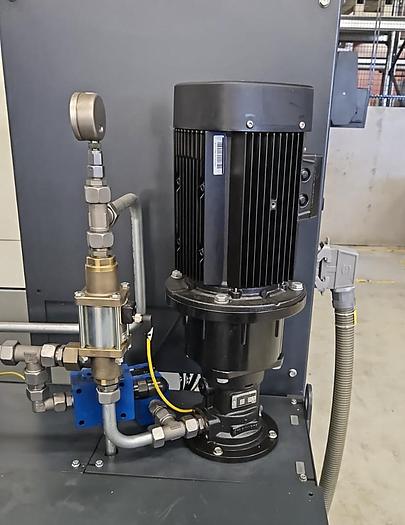

Cooling Through Spindle Center - 40 bar - 980 L Tank Capacity

180 Position Magazine Automatic Tool Changer - Chip-to-chip 4.5 Second

Electronic Handwheel

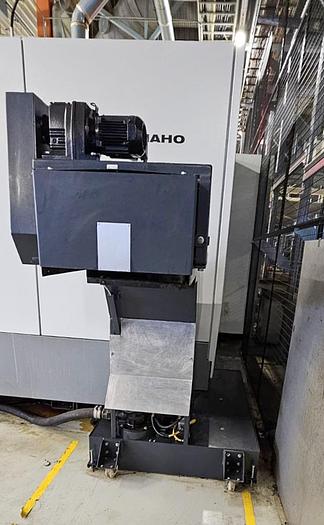

Chip conveyor

Infrared probe

Rinsing gun

Operating mode 4

blowing air through spindle center selectable via M-function

Signal lamp

3D quickSET

Machine interface for FASTEMS system

Paper Band Filter

Specifications

ManufacturerDMG
ModelDMC 80 FD duoBLOCK
Year2009
ConditionUsed
Stock Number11162
Spindle speeds10,000 rpm
X axis travel800 mm
Y axis travel800 mm
Z axis travel800 mm
Pallet dimensions (x2)800 x 630 mm
Max workpiece weight1,000 kg
Table turn speed800 rpm
Table turn torque980 Nm
Spindle drive power (40%/Continuous)44 / 32 kW
Spindle torque288 / 187 Nm
Tool holderHSK-A 100
C axis360° (0.001°)
B axis0 - 190°
Feed rates60 m/min
Rapid traverse60 m/min
Machine dimensions4,956 x 5,064 x 2,900 mm
Machine weight14 Ton
Electrics400V 60HZ
