Zimmermann FZU 32 CNC 5-Axis Double Column Gantry Type Machining Center
Zimmermann FZU 32 CNC 5-Axis Double Column Gantry Type Machining Center
or
Call 770-509-0744
Description
The FZU32 is a remarkably compact 5-axis portal milling machine for machining aluminum machining of aluminum, fiber composites, plastics, ureol and steel.
steel. Thanks to the particularly rigid, newly developed center-guiding gantry, it can meet the increasing requirements in model, tool and mould making.
This thermo-symmetrical design makes the FZU32 less susceptible to adverse environmental conditions.

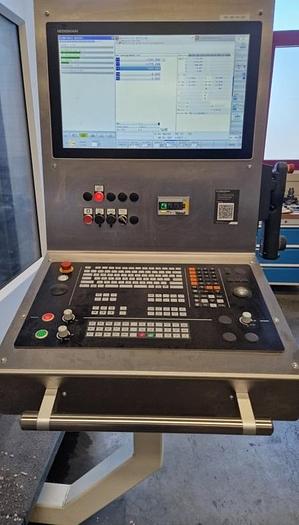

Heidenhain TNC CNC Control
5-Axis Machining
60 Position Automatic Tool Changer

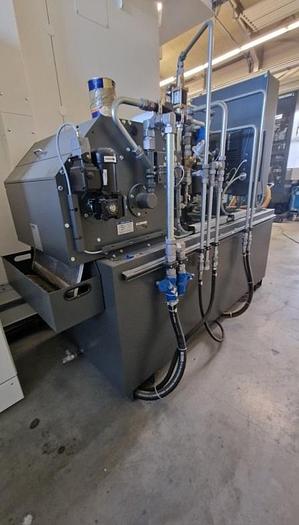

Coolant IKZ 70 bar
Specifications
| Manufacturer | Zimmermann |
| Model | FZU 32 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 11153 |
| Spindle speeds | 24,000 rpm |
| X axis travel | 2,500 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,500 mm |

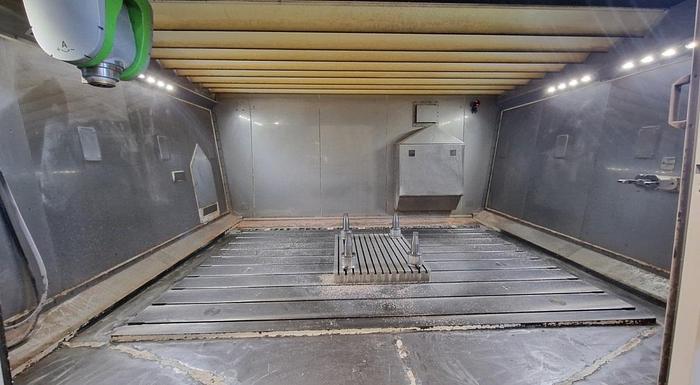

| Table dimensions | 2,500 x 3,500 mm |
| Table capacity | 6 Ton/m² |
| Spindle taper | HSK-A63 |
| C axis | ±360° |

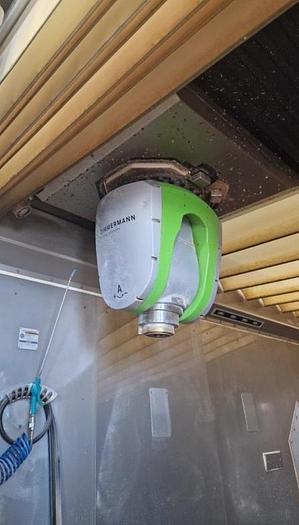

| Milling head swivable A | ±110° |
| Milling head swivable B | ±360° |
| Feed speed | 60 m/min |
| Spindle motor S6 (40% / 2 min) | 41 kW |
| Spindle motor S1 (100% / 2 min) | 34 kW |
| Spindle torque S6 (40% / 2 min) | 49 Nm |
| Spindle torque S1 (100% / 2 min) | 39 Nm |
| Machine weight | 74 Ton |
| Machine dimensions | 4 x 7.5 x 5.4 m |
