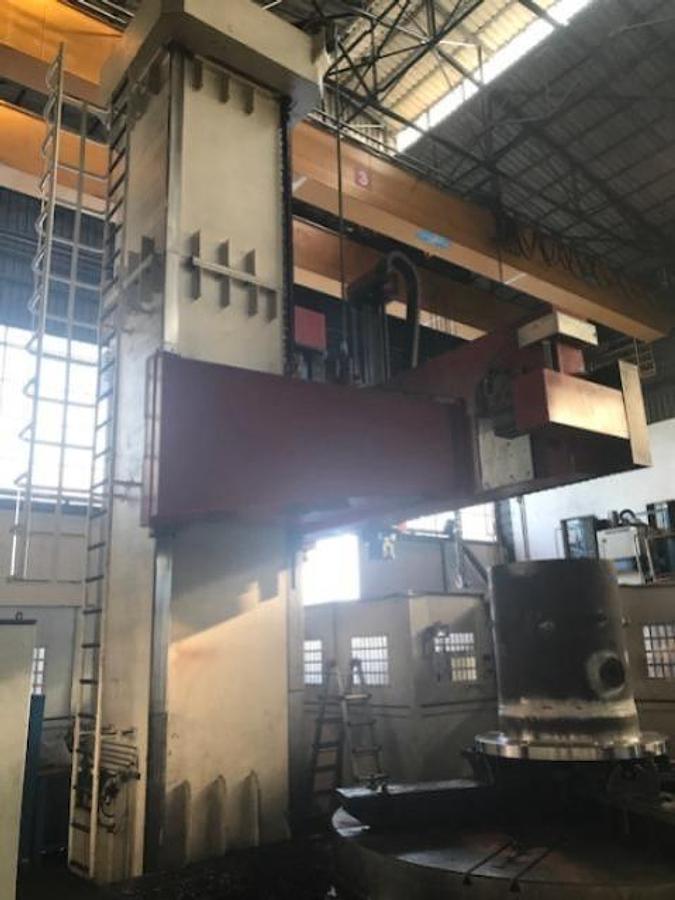

CAMU – AEPI 10MT CNC SINGLE COLUMN VERTICAL TURNING & BORING MACHINE with Y-AXIS MOVABLE COLUMN (2) RAMS with Live Spindle & Table C Axis
CAMU – AEPI 10MT CNC SINGLE COLUMN VERTICAL TURNING & BORING MACHINE with Y-AXIS MOVABLE COLUMN (2) RAMS with Live Spindle & Table C Axis
or
Call 770-509-0744
Description
- Fagor 8055 CNC Control
- Chip Conveyor
- Set of Boring Bar holders and 9 Turning Tool Holders
- FAGOR Electronic handwheel for axis movement in manual changeover and touches
- package of 5 motorizations (4 axes and an ISO 50 drilling spindle)
- SIEMENS vector 100KW AC motor variable speed for platform spindle with 4 ranges up to 30 rpm max
- High precision spindle center encoder for drilling
- (2) Two Automatic Tool Changer Carousels with 12 Positions
- Automatic door and air jet
- for turning RAM with hydraulic cylinder tool coupling system with standard AEPI attachment
- Milling and drilling spindle - tapping inside the second RAM carriage including the automatic ISO 50 tool attachment
- For interlocking in drilling and tapping with a maximum speed of 1500 rpm including precise positioning and locking of the spindle by means of an electro-hydraulic system with sliding jaws
- This position includes the application of the 18 KW drilling spindle motor and related power supply and control equipment and the external refrigeration system
- Operator protections and accident prevention equipment with 16 safety microswitches

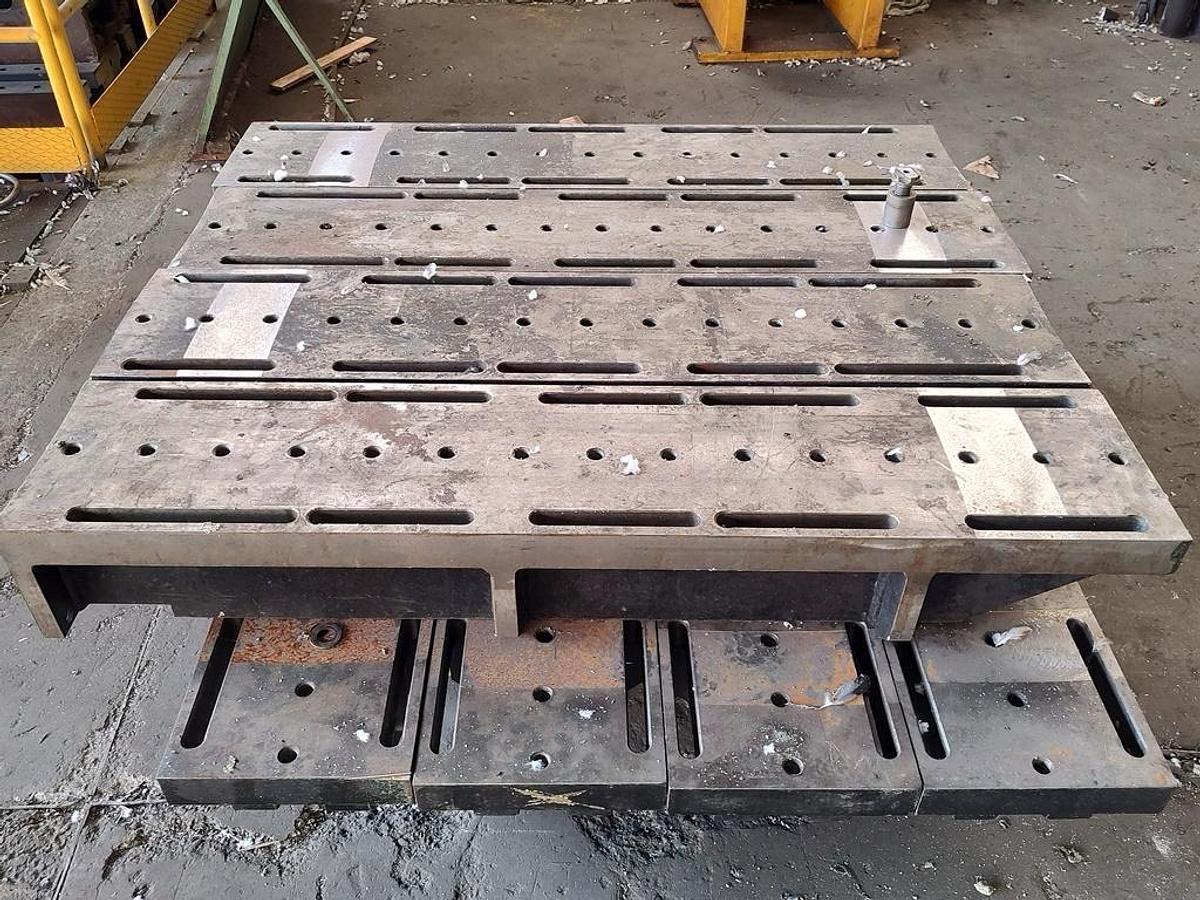

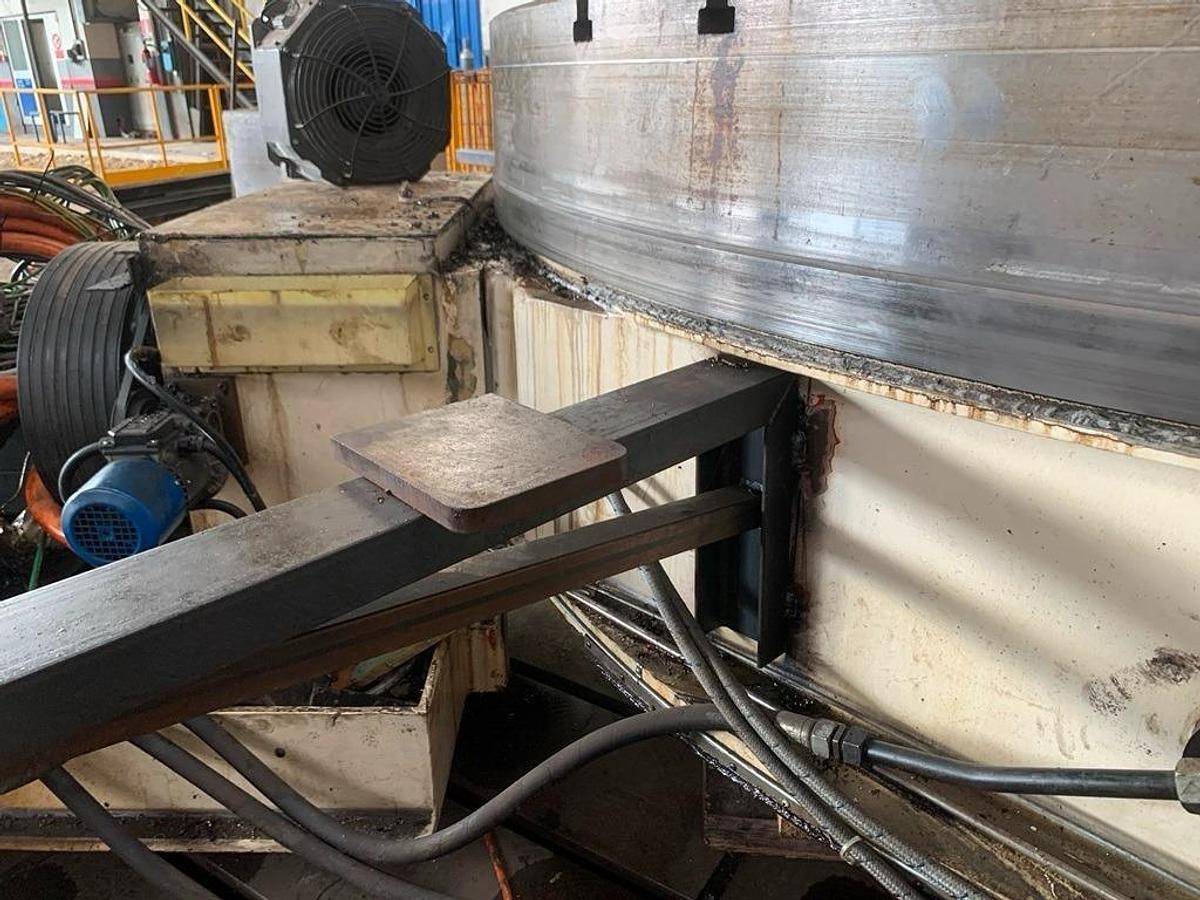

- Table Outriggers to support 10,000 mm diameter workpiece
Specifications
| Manufacturer | CAMU - AEPI |
| Model | 10 MT |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11150 |
| Table diameter | 3,400 mm (Includes Table Outriggers to support 10,000 mm diameter workpiece) |
| Swing | 10,000 mm |
| Turning height | 5,000 mm |
| Table capacity | 50 Ton |
| Table turn speed | 30 rpm |
| Dimensions, machine only | 12,800 x 5,800 x 8,000 mm |
| Motor power | 100 kW |
| Machine weight | 80 Ton |
