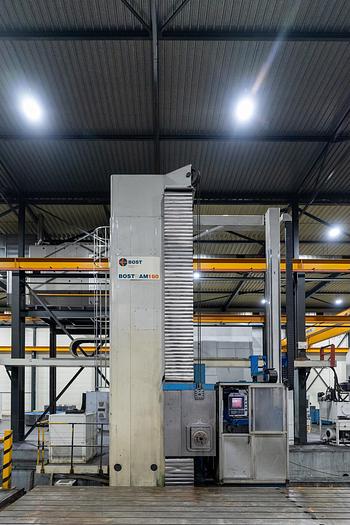

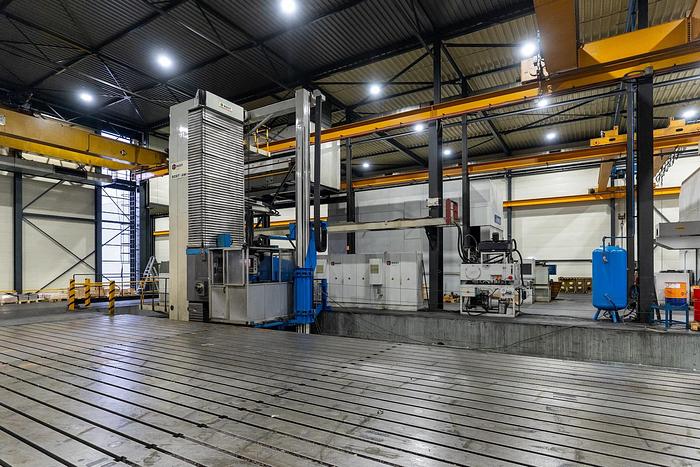

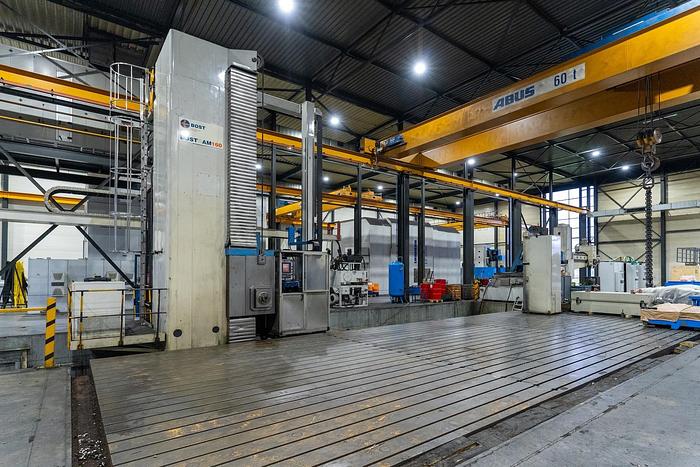

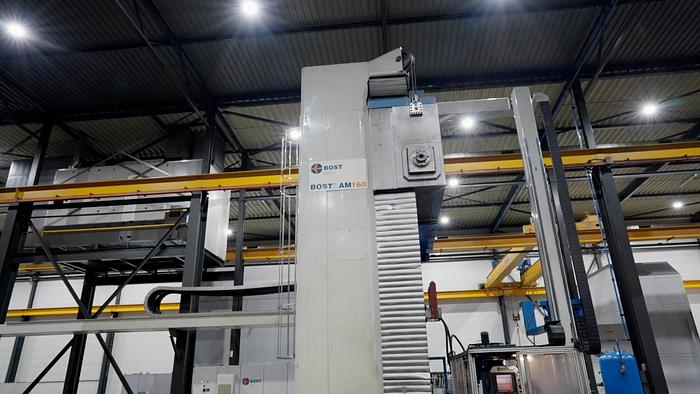

Bost Bostram 160 CNC Floor / Ram Type Horizontal Boring Machine

Bost Bostram 160 CNC Floor / Ram Type Horizontal Boring Machine

Description

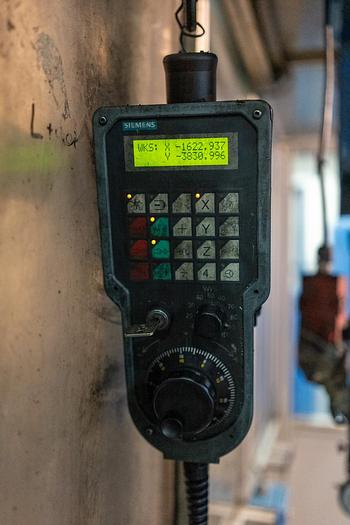

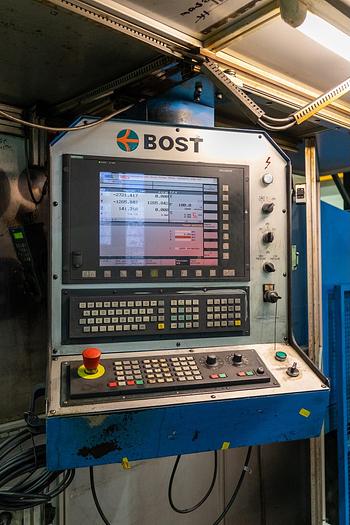

Siemens 840D Power Line CNC Control

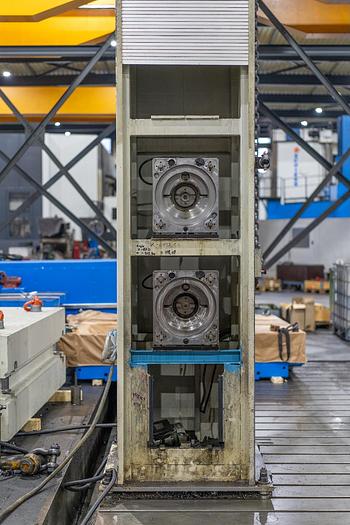

Pickup Station for Heads:

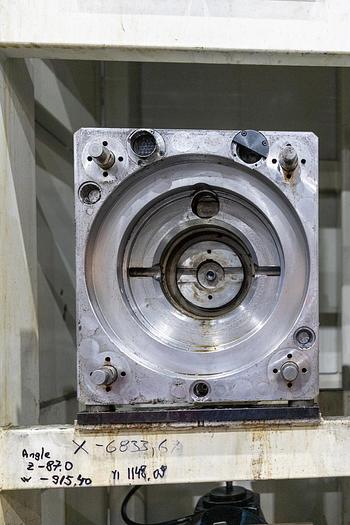

Universal Head

Right Angle Head

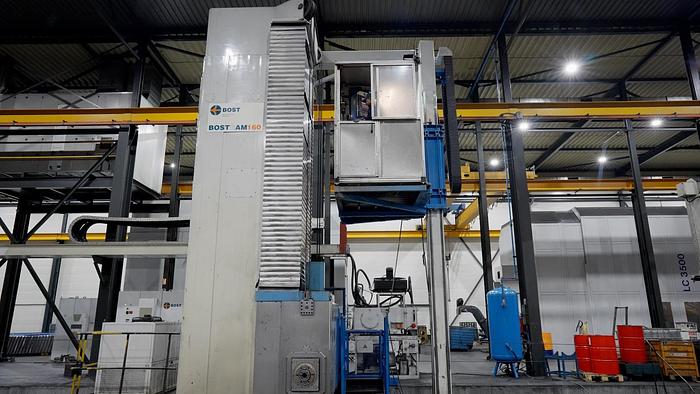

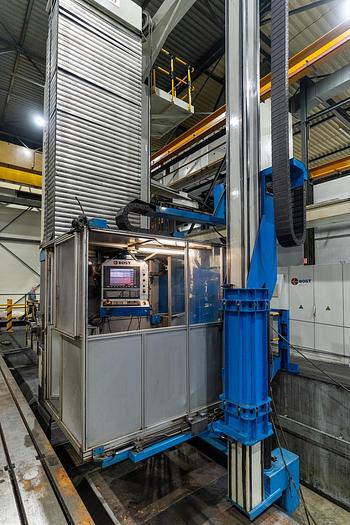

Operator Platform

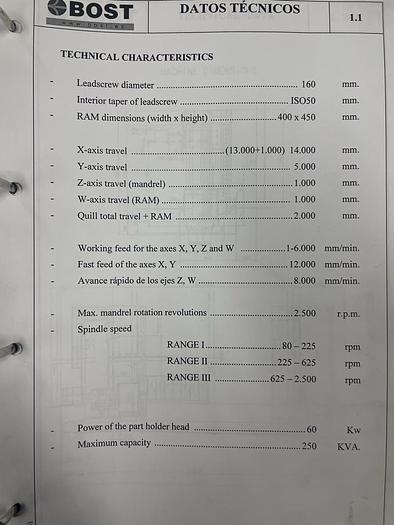

Specifications

ManufacturerBost
ModelBostram 160
Year2005
ConditionUsed
Stock Number11142

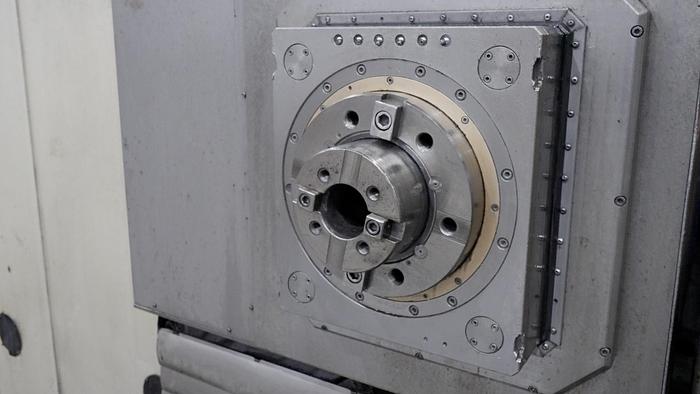

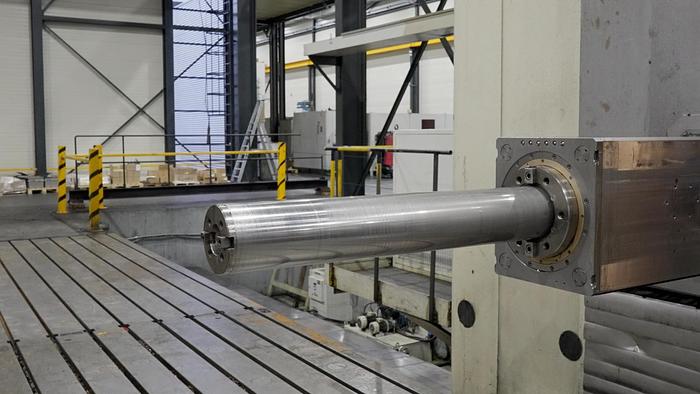

Spindle diameter160 mm

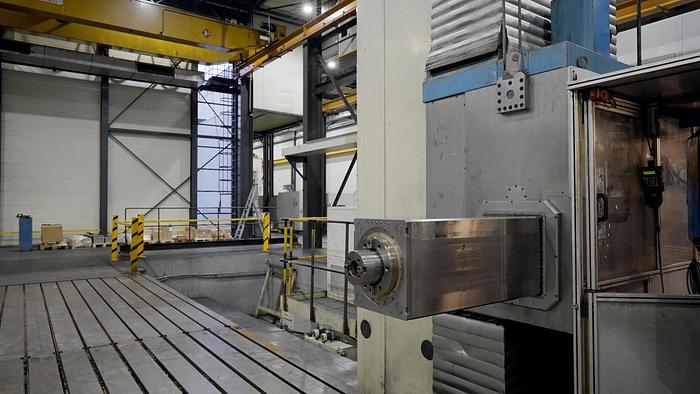

Ram dimensions400 x 450 mm
Taper of boring spindleISO 50
Spindle speeds2,500 rpm

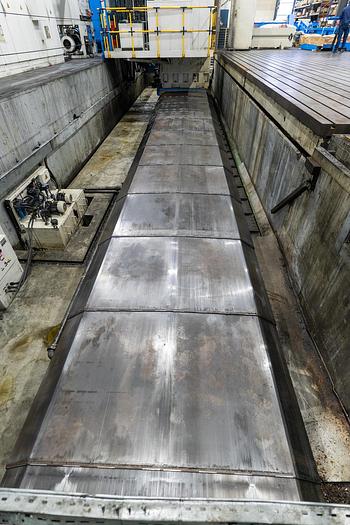

X axis travel14,000 mm
Y axis travel5,000 mm
W axis travel1,000 mm
Z axis travel1,000 mm
Z + w - ram + spindle travel2,000 mm
Spindle motor power60 kW
Working feedsX, Y, Z & W axis 1 - 6000 mm/min.
Rapid feedsX & Y axis 12,000 mm/min.
Rapid feedsZ & W axis 8,000 mm/min.
