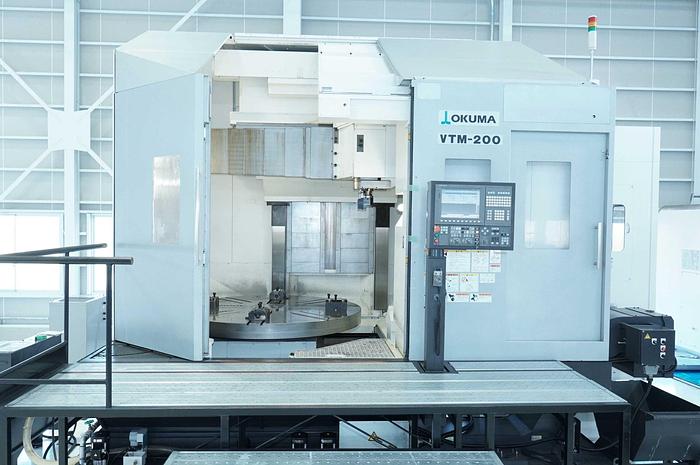

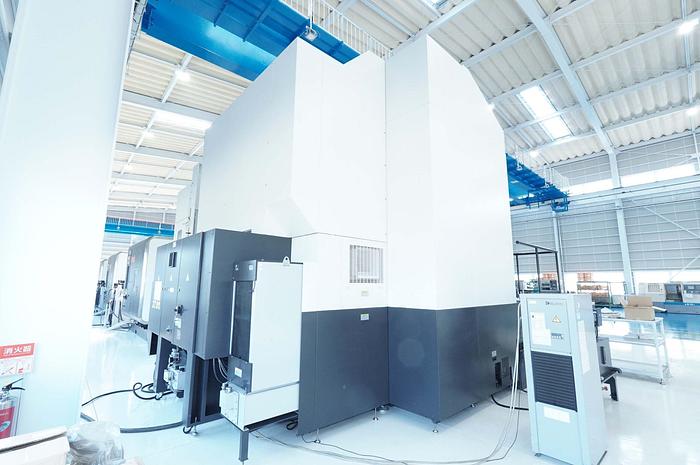

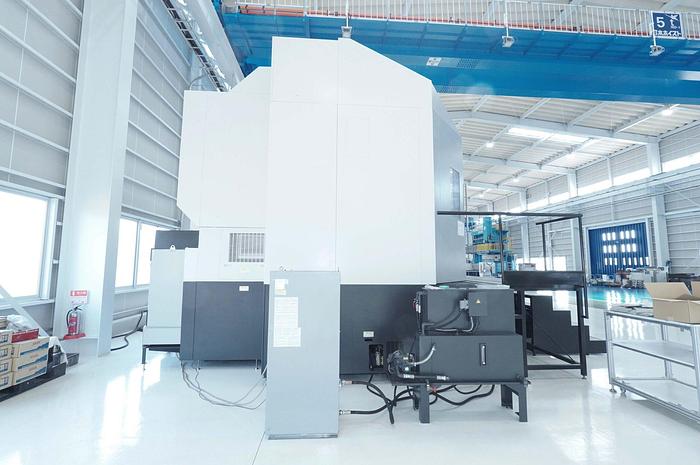

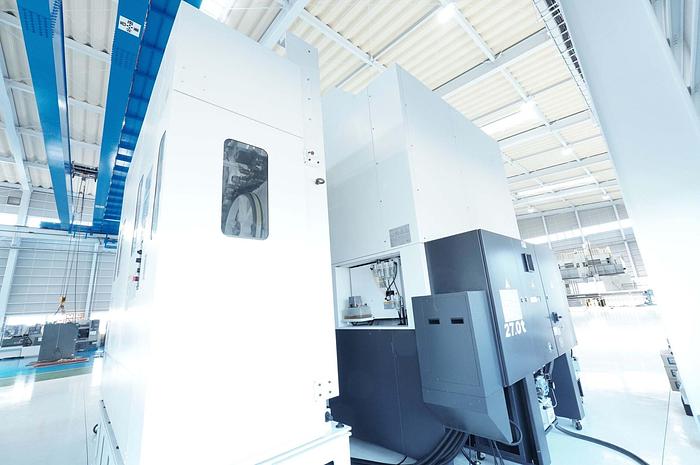

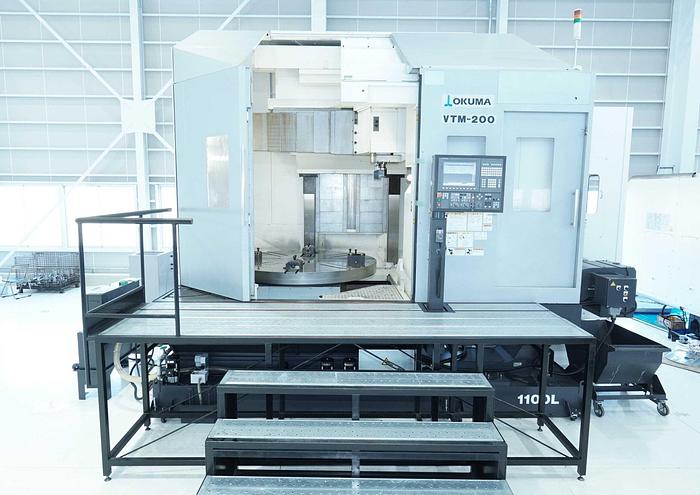

Okuma VTM 200 CNC Vertical Turning & Boring Machine with Live Spindle & Table C-Axis

Okuma VTM 200 CNC Vertical Turning & Boring Machine with Live Spindle & Table C-Axis

Description

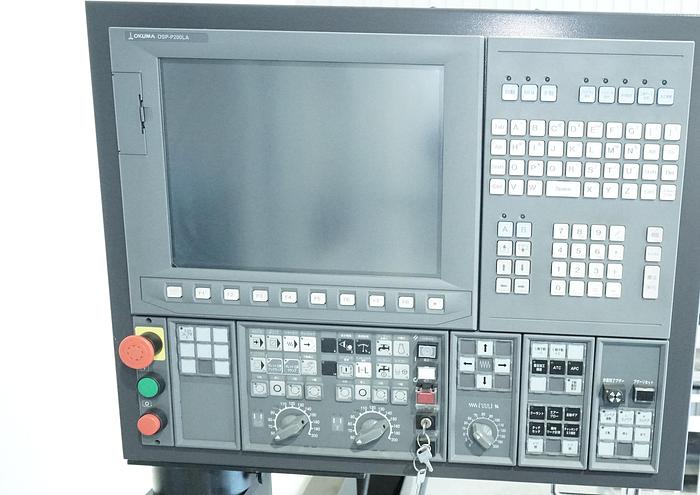

  • OSP-P200LA CNC Control

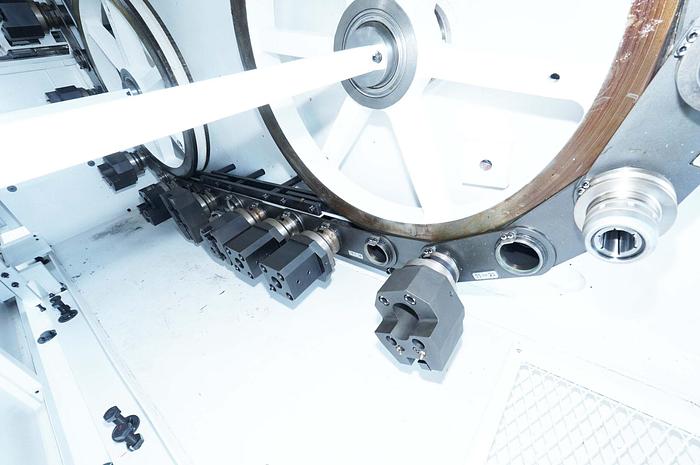

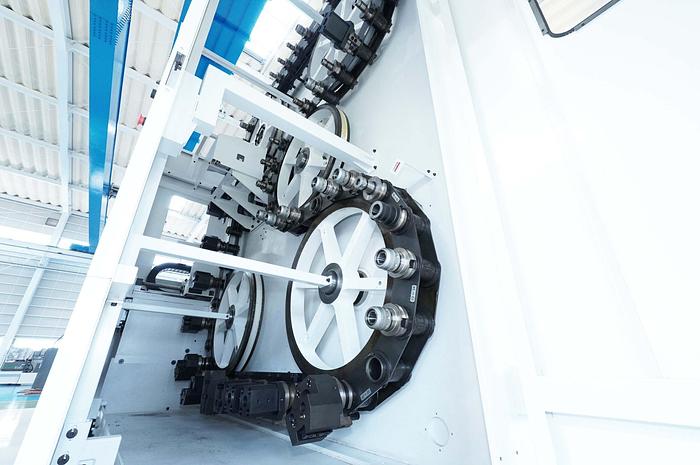

  • 60 Position Automatic Tool Changer

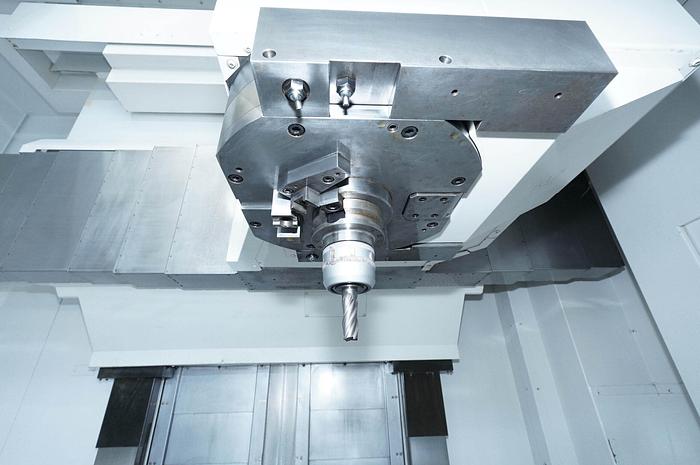

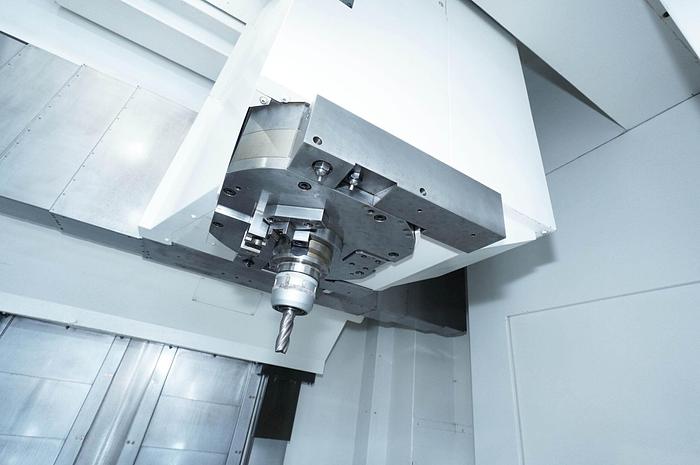

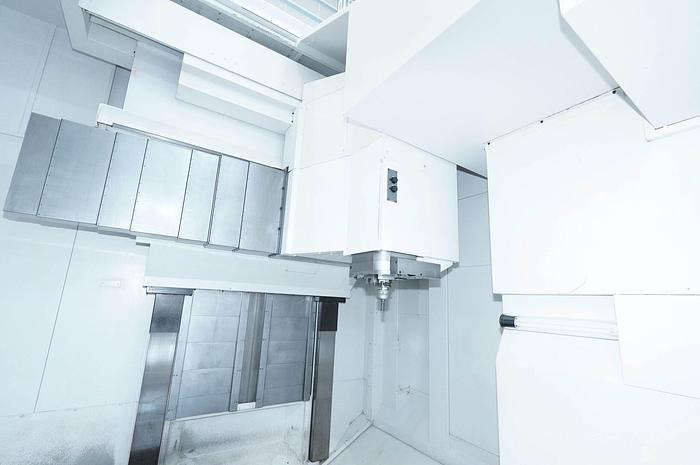

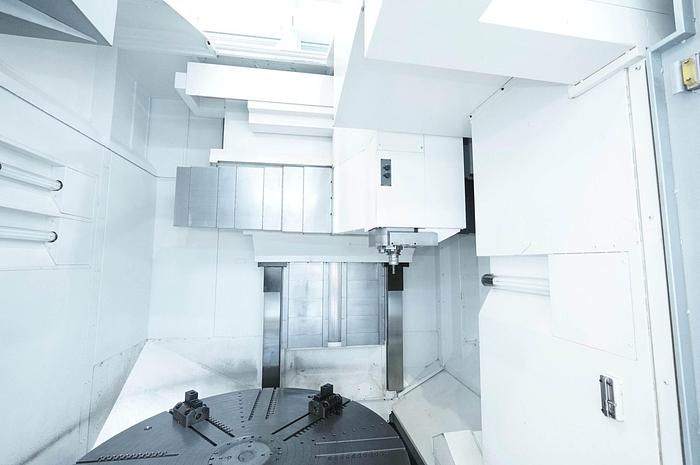

  • Live Spindle
  • C ~ axis deg 0.001 Positioning accuracy of C-axis deg ±0.01
  • Through Spindle Coolant
  • Touch-setter Synchronous tapping
  • Main spindle ultra-low speed cutting function
  • Target seat exchange
  • Generative machining Arc threading function
  • Program store: 2 GB User task 2

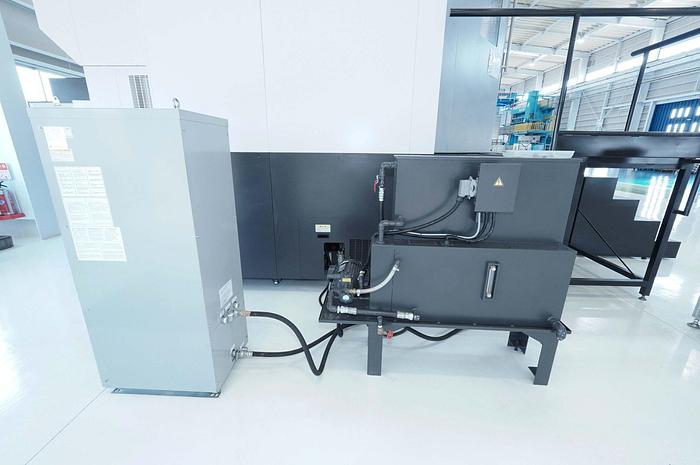

  • Coolant tank 1000ℓ Cutting oil temperature control

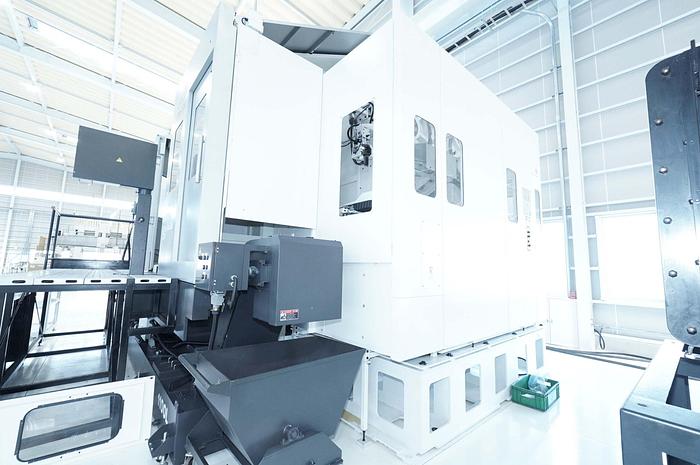

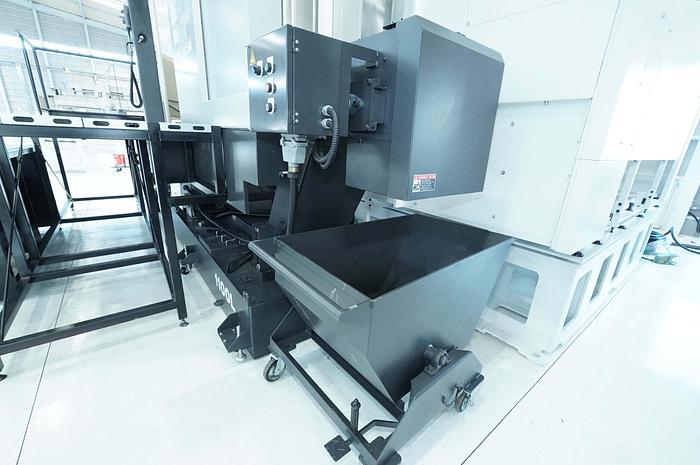

  • Chip conveyor
  • Oil skimmer
  • Tooling set

Specifications

ManufacturerOkuma
ModelVTM 200
Year2012
ConditionUsed
Stock Number11135

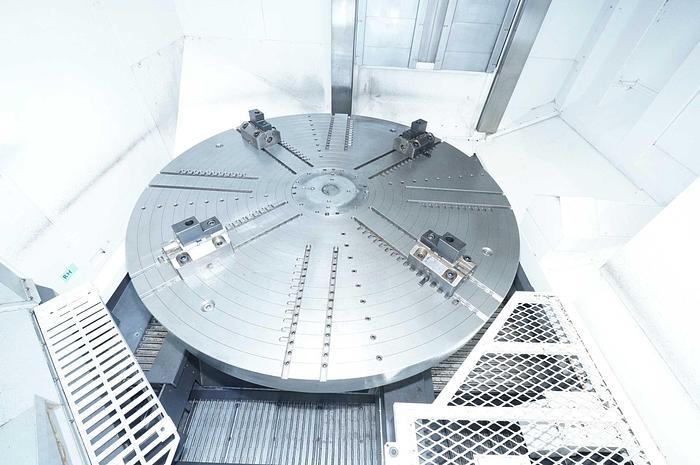

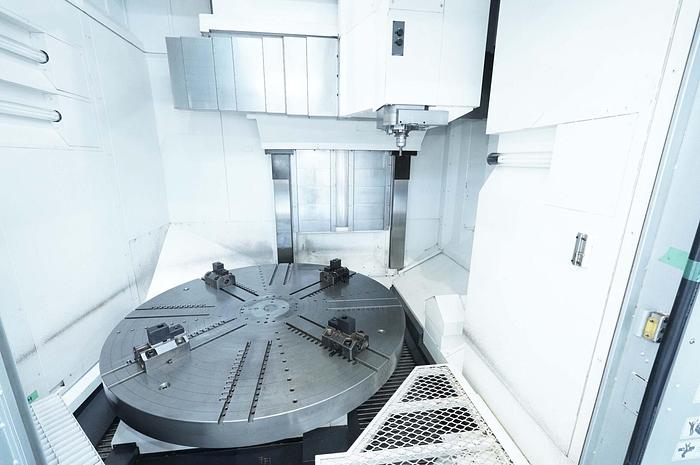

Table diameter2,000 mm
Swing2,400 mm
Turning height1,200 mm
Table capacity7 Ton
Table turn speed200 rpm
Live spindle speed4,500 rpm

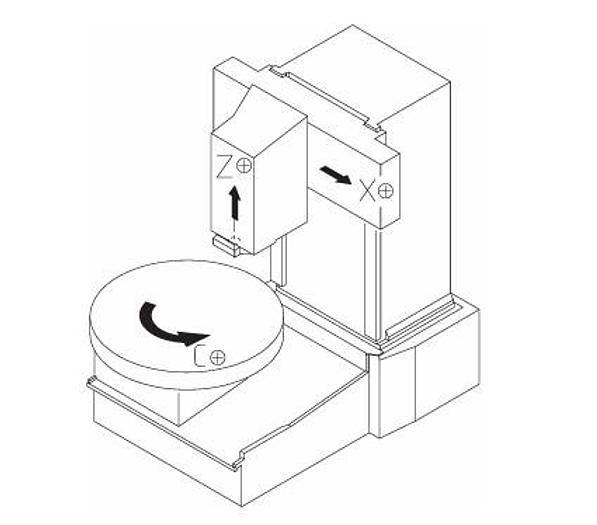

X axis travel1,600 mm
Z axis travel1,200 mm
C axis indexing0.001°
Thru-spindle hole diameter160 mm
Spindle nose diameter380 mm
Live spindle motor15 kW
Spindle taperBT 50 BIG PLUS
Table power30 kW
Rapid traverse x axis16 m/min
Rapid traverse z axis16 m/min
Cutting feedrate X/Z axis0.001 - 500 m/rev
Machine dimensions5,557 x 5,251 x 4,570 mm
Machine weight27 Ton
