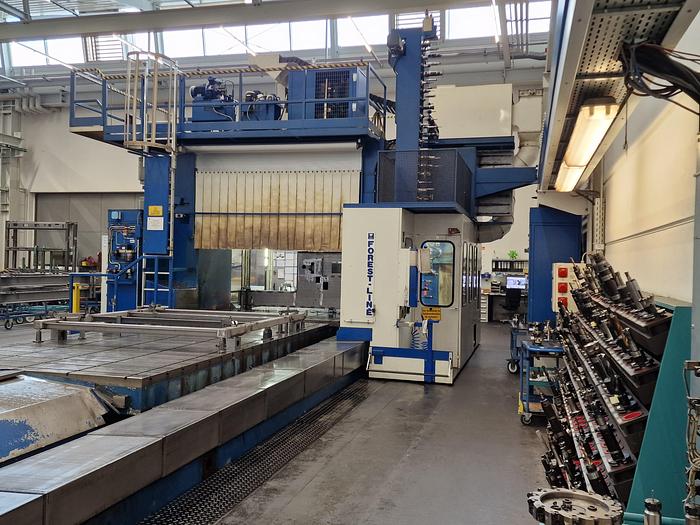

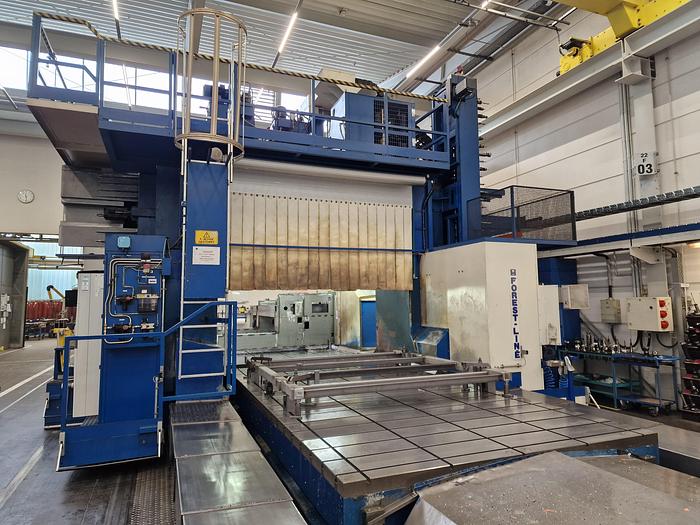

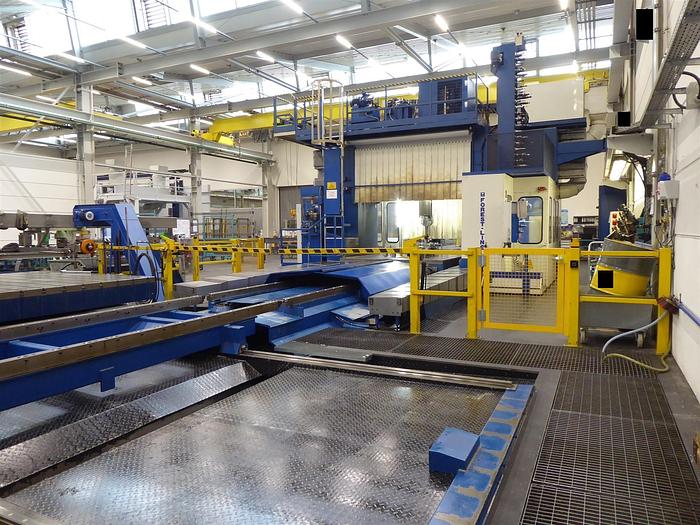

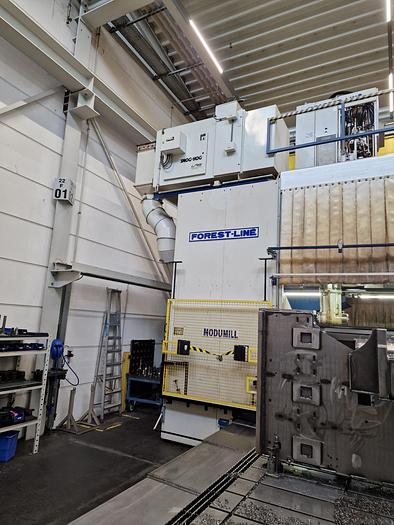

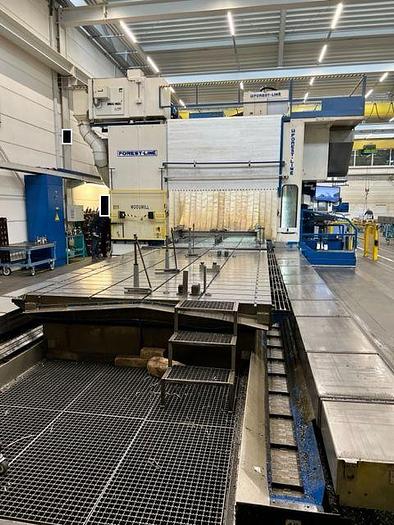

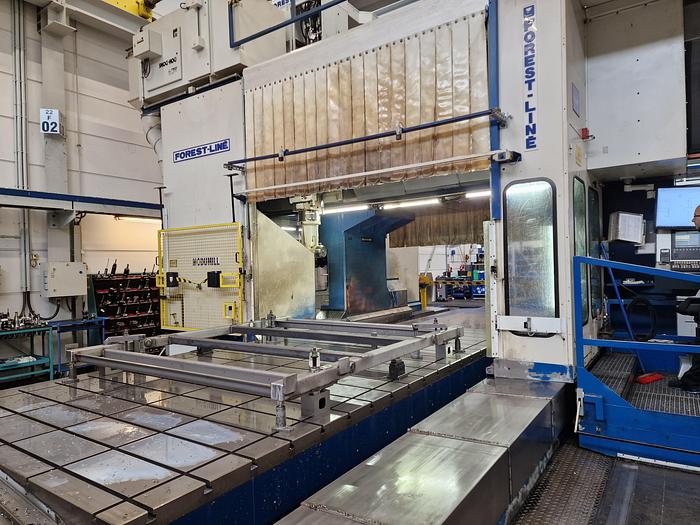

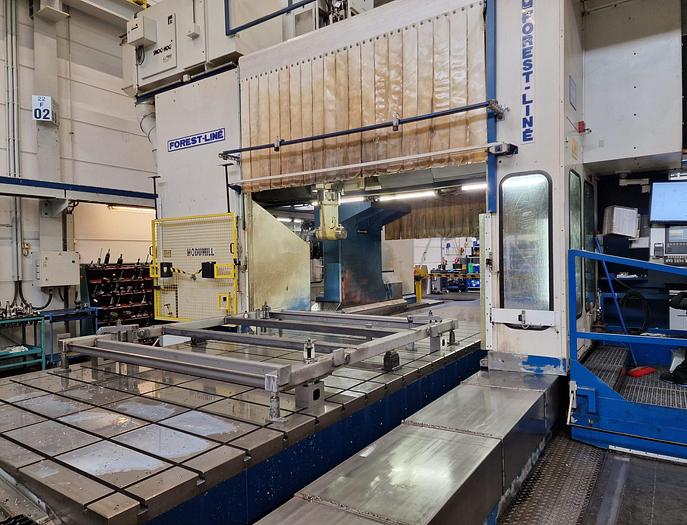

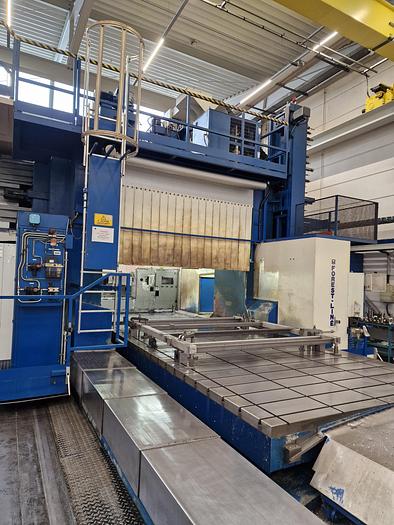

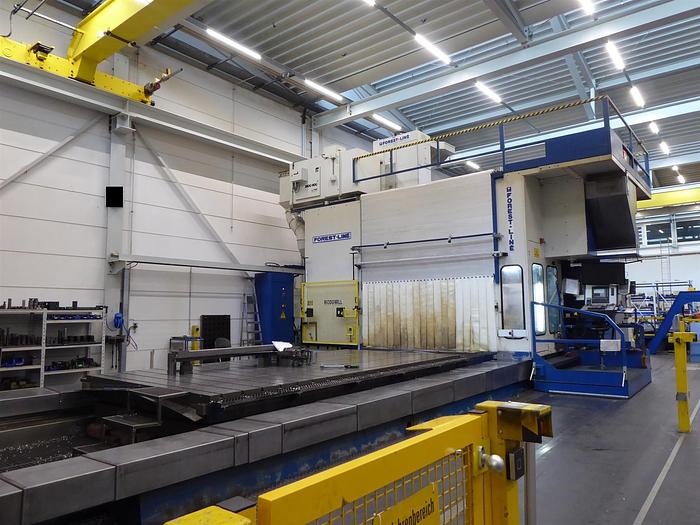

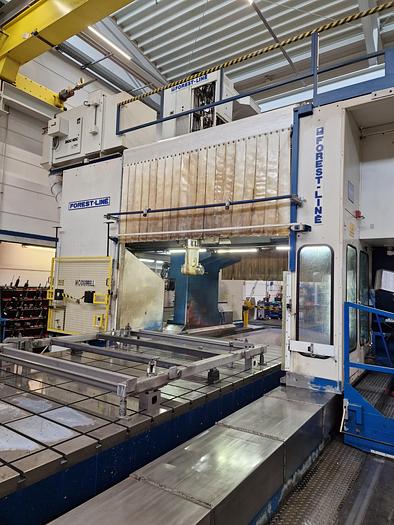

Forest Line Seramill CNC Gantry Machining Center with Pallet Changer
Forest Line Seramill CNC Gantry Machining Center with Pallet Changer
Description
New in 1999. Rebuilt & Retrofitted in 2021

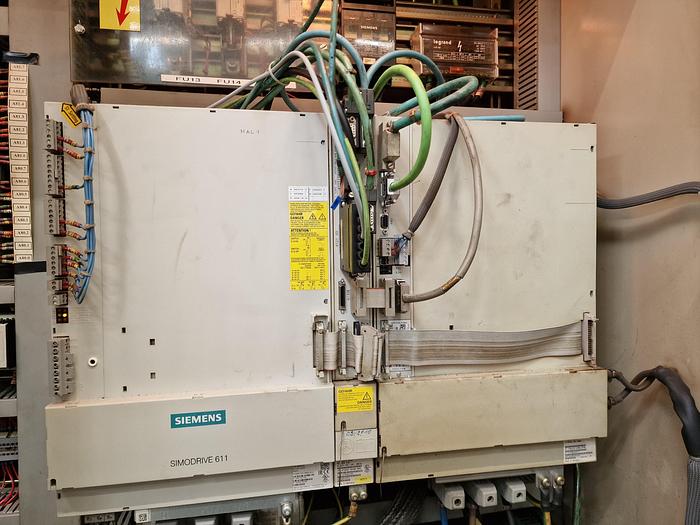

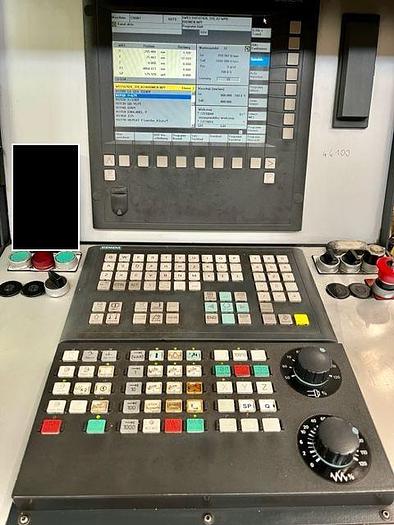

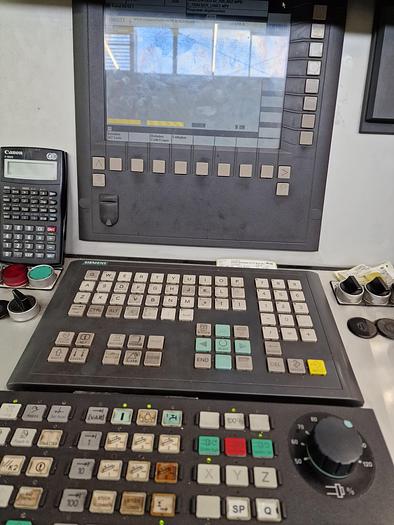

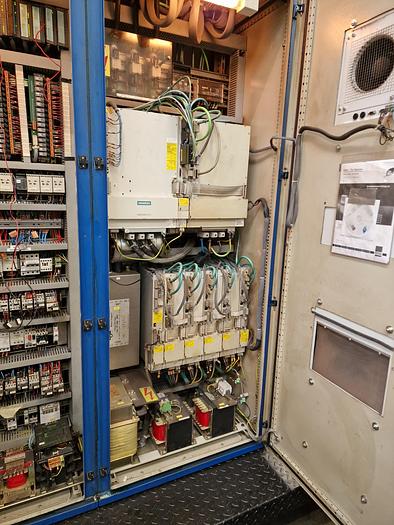

Siemens SINUMERIK 840D CNC Control

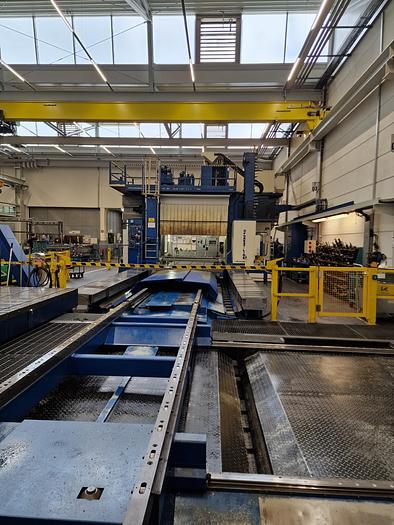

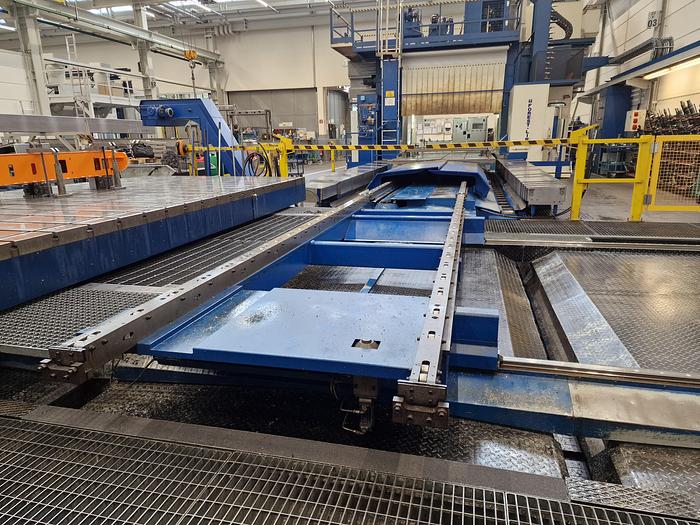

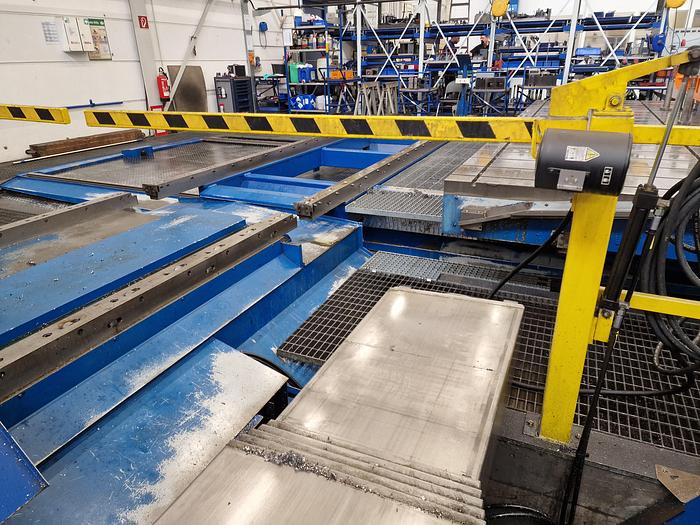

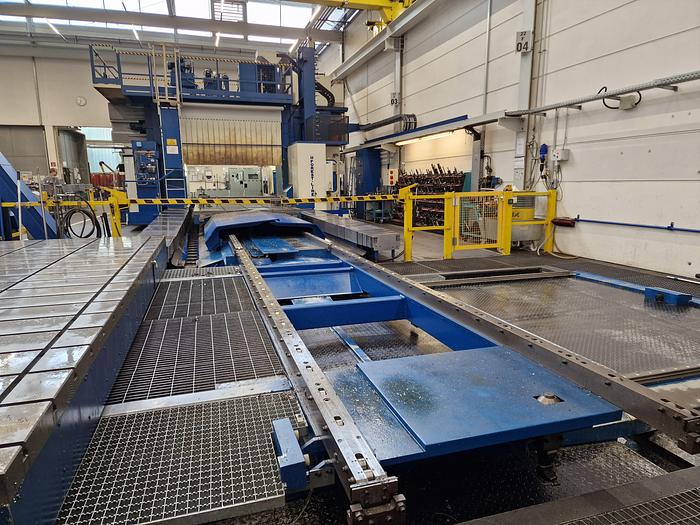

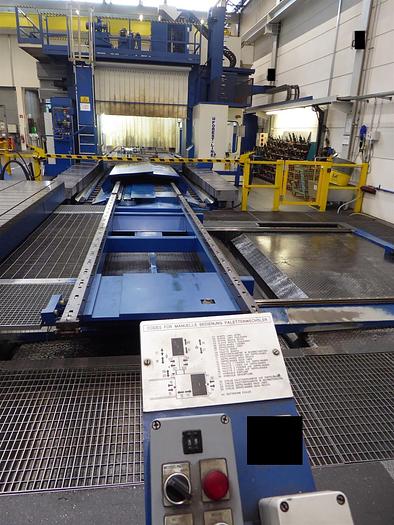

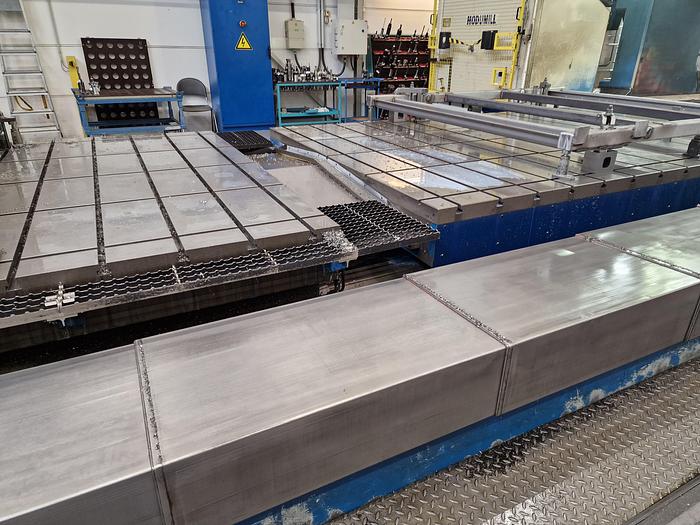

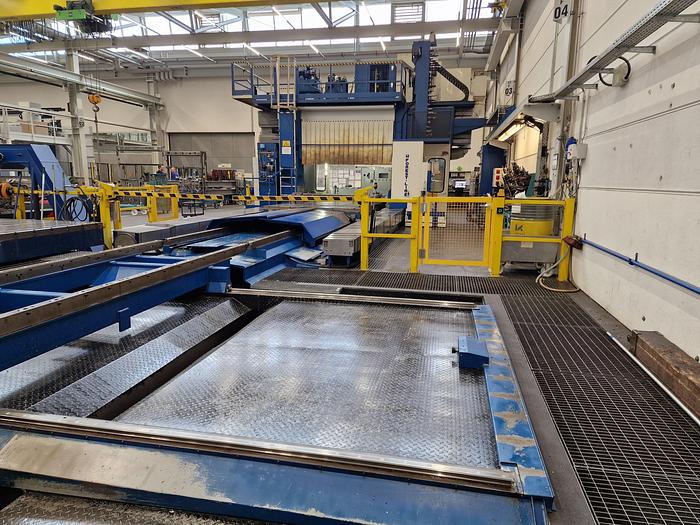

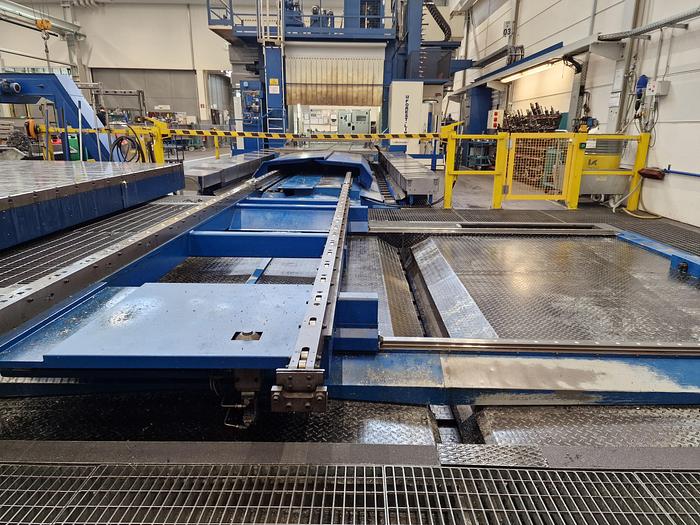

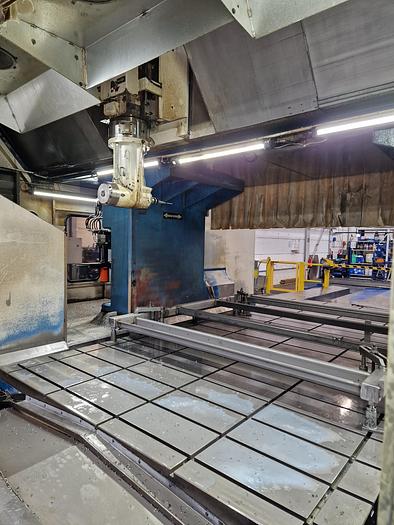

Longitudinal Pallet System:
1 pallet shuttle with 2 storage stations
1 manual pallet transfer system between machine and shuttle
2 workpiece holder pallets: 5,000 x 2,500 mm

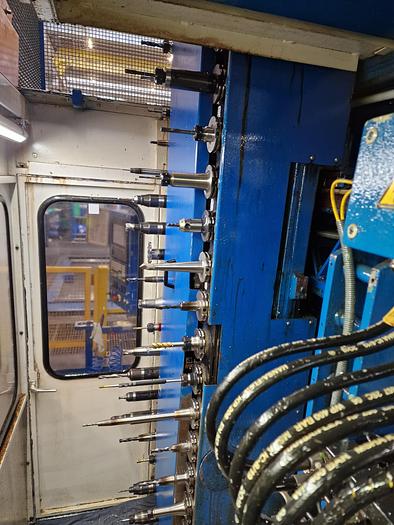

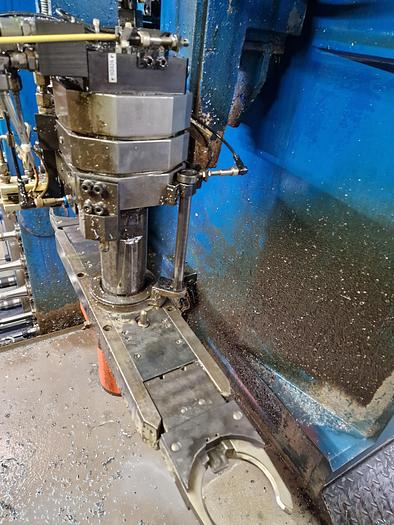

80 Position Automatic Tool Changer
Cooling Devices:
Cooling via Orientable Nozzles
Cooling through Spindle Center - 3,000 L Tank
Capacity 30 L/min - Pressure 7 bar at the tool
2 chip conveyors - discharge height: approx. 1,250 mm
Gantry Panelling

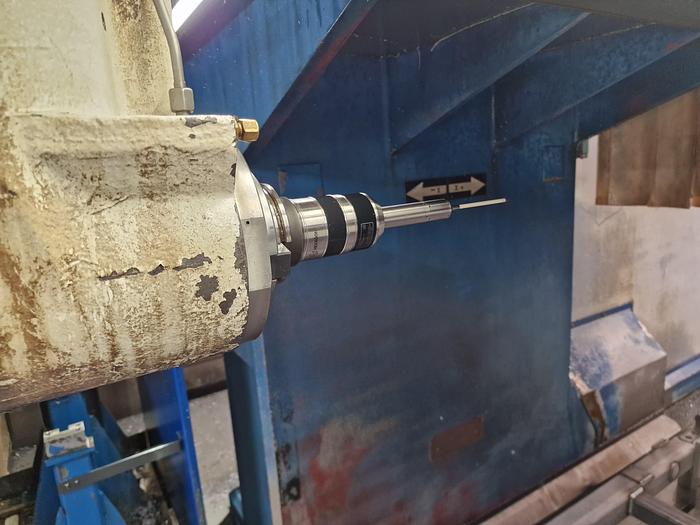

Touch probe - RENISHAW MP14

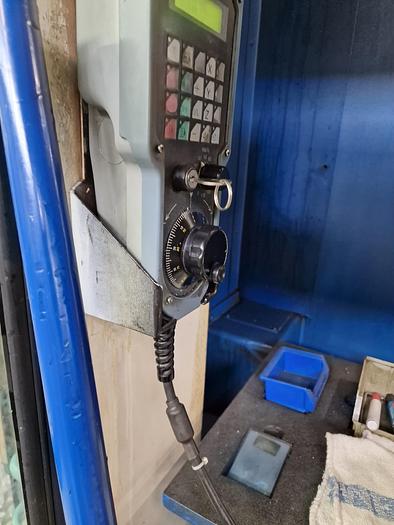

Electronic hand wheel
Remote diagnosis
Tool management and wear management
CE marking
Milling unit: Type FA 305 C:
Available power 30 kW
Torque max. 1,070 Nm
Speed max. 4,000 rpm
Cross section of the slider 360 x 360 mm

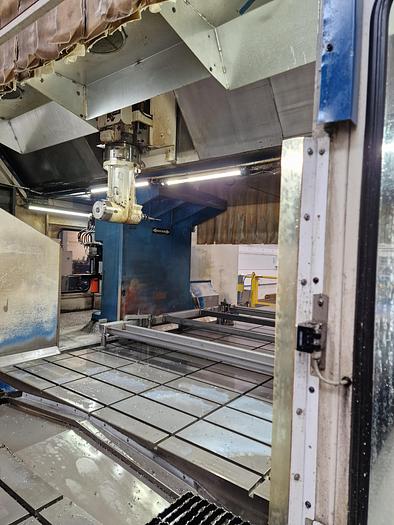

Vertical head with spindle:
Available power 30 kW
Speed max. 4,000 rpm
Torque max. 1,070 Nm
Rapid traverse in X, Z: 25,000 mm/min
Rapid traverse in Y: 20,000 mm/min
Continuously adjustable work feed in X, Y and Z: 10,000 mm/min
Compressive force of each axis: 25,000 N
Tool holder: SK 50

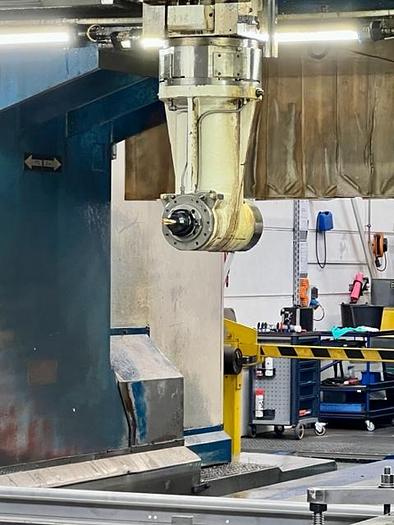

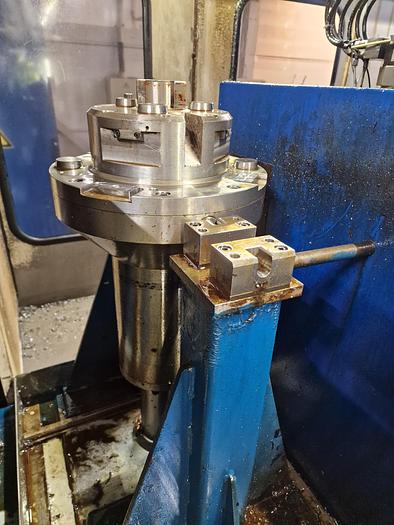

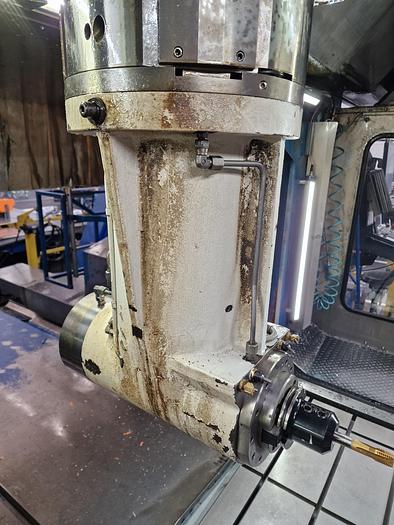

Angled head horizontal with graduation 144 x 2,5°, with spindle SK50:
Available power: 30 kW
Speed max. 4,000 rpm
Torque max. 1,070 Nm
Positioning increment: 2.5°
Specifications
| Manufacturer | Forest Line |
| Model | Seramill |
| Year | 2021 |
| Condition | Refurbished |
| Stock Number | 11134 |
| Between columns | 3,000 mm |
| Spindle speeds | 4,000 rpm |
| Height below vertical spindle | 1,400 mm |
| X axis travel | 11,450 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,250 mm |
| Table dimensions | (2x) 5,000 x 2,500 mm |
| Cross section of Z-axis slider | 360 x 360 mm |
