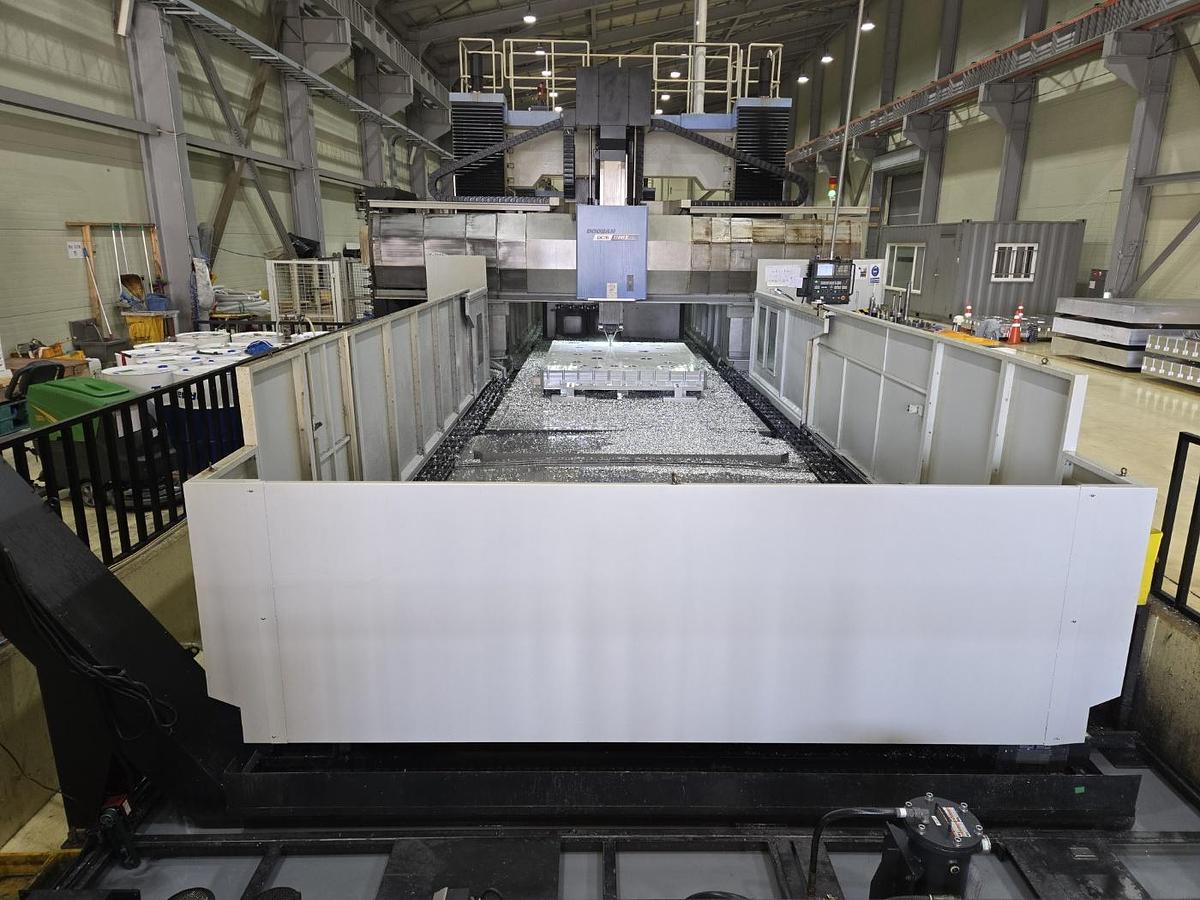

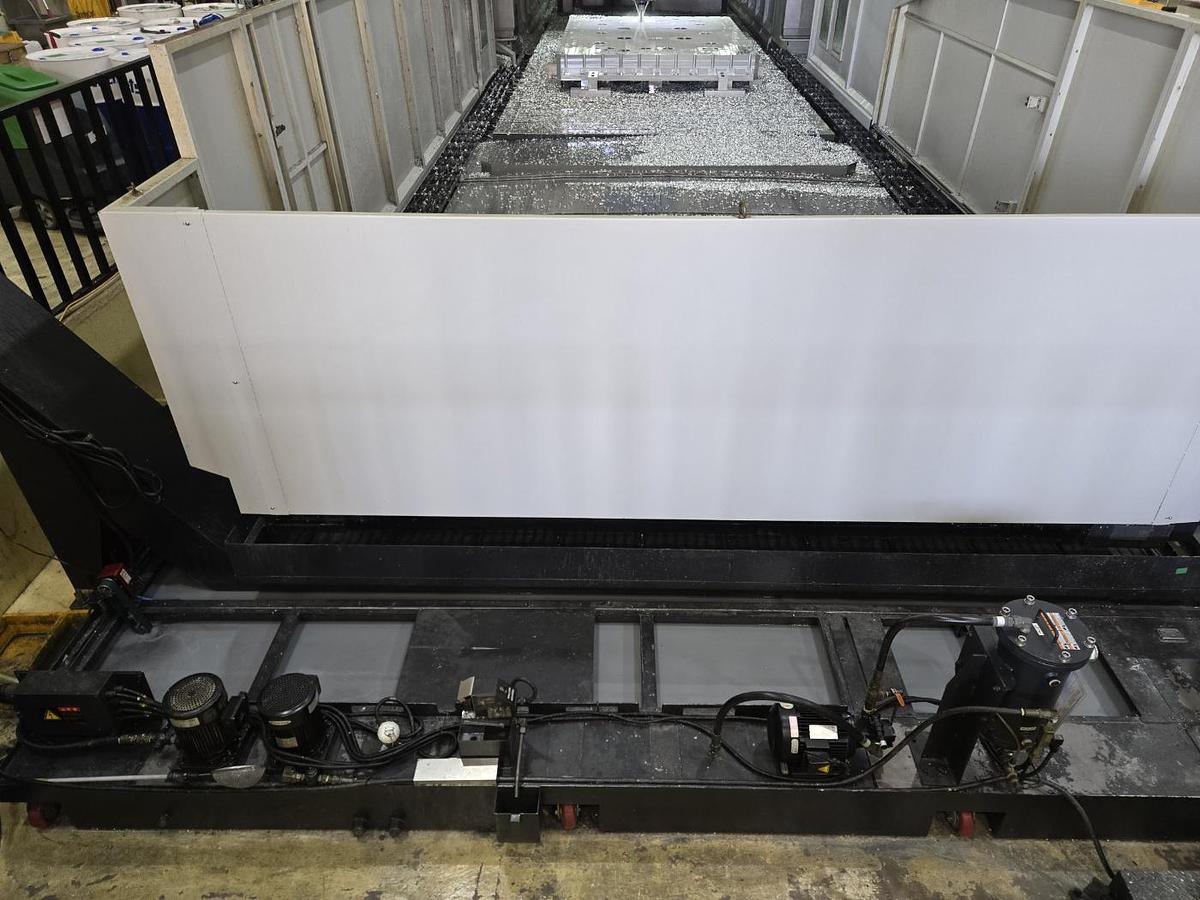

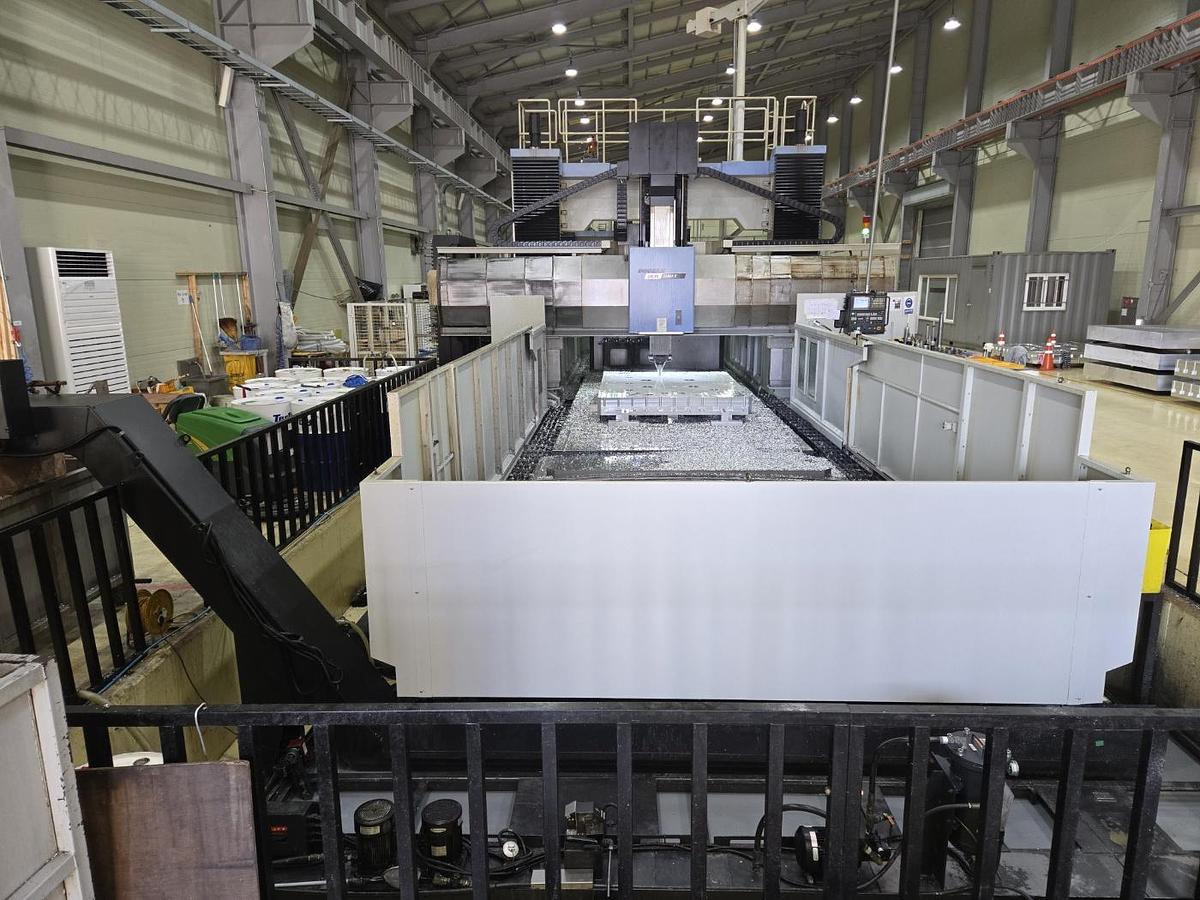

Doosan DCM 3780F II CNC Double Column Machining Center
Doosan DCM 3780F II CNC Double Column Machining Center
or
Call 770-509-0744
Description
Fanuc 31iB CNC Control
90 Position Automatic Tool Changer
Through Spindle Coolant (TSC) 20 Bar
3 Station Automatic Attachment Changer
90-degree Angle Head
Extension Head 400mm
Linear Scale for X,Y,Z,W-axes
Chip Conveyors. 2 Side
Splash Guard (semi cover + rear top cover)
Auto. Tool Length Measurement
High Column
Specifications
| Manufacturer | Doosan |
| Model | DCM 3780F II |
| Year | 2019 |
| Condition | Used |
| Stock Number | 11130 |
| Between columns | 3,700 mm |
| Spindle speeds | 6,000 rpm |
| Table to spindle nose | 2,350 mm |
| X axis travel | 8,250 mm |
| Y axis travel | 4,200 mm |
| Z axis travel | 1,000 mm |
| Table size | 3,200 x 8,100 mm |
| Table capacity | 45 Ton |
| W axis travel | 1,400 mm |
| Z + w axis (ram + crossrail) | 2,400 mm |
| Ram size | 380 x 380 mm |
| Spindle drive motor | 25 / 22 kW |
| Taper Tool Shank | BT 50 (CAT 50) |
| Machine Size | 8730 x 19710 mm |
| Machine height | 6700 mm |
| Machine Weight approx. | 112,000 kg |
