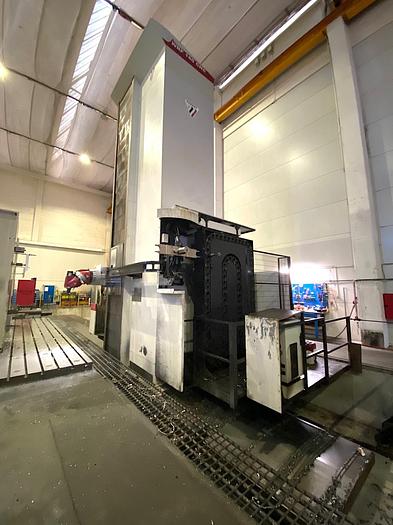

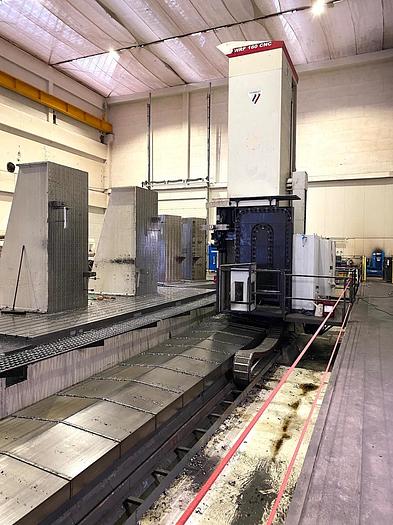

Fermat WRF 160 CNC Floor Type Horizontal Boring Machine

No longer available

Fermat WRF 160 CNC Floor Type Horizontal Boring Machine

Description

Approximately 11,000 Working Hours

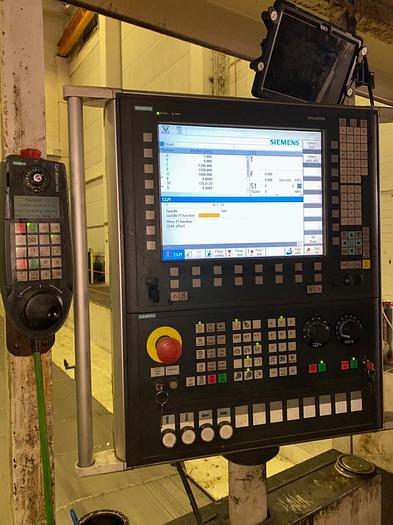

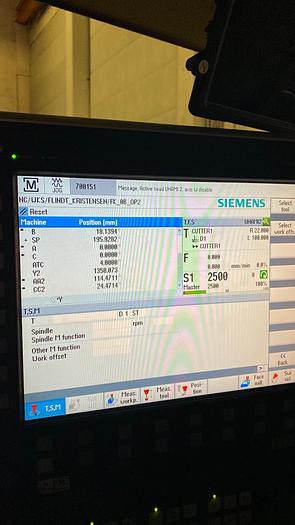

Siemens 840D CNC Control

90 Position Automatic Robot Tool Changer

Through Spindle Coolant - 50 bar

External Coolant - 4 bar

Double Pinion Drive on X axis and V axis Table

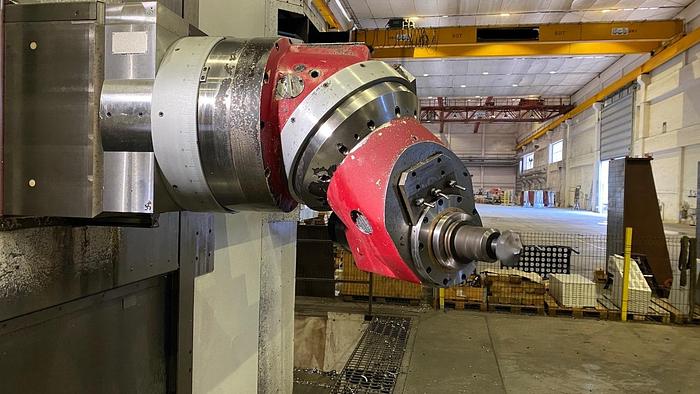

Automatic 2-Axis Micro-indexed Head - A & C axis, 360.000°, with Internal / External Coolant and Air

Touch probe M&H

Chip conveyor alongside X axis

Oil separator for coolant

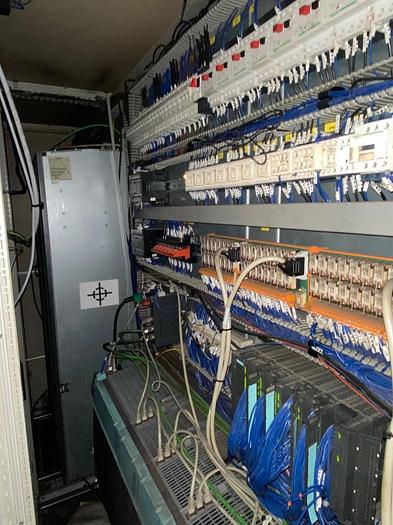

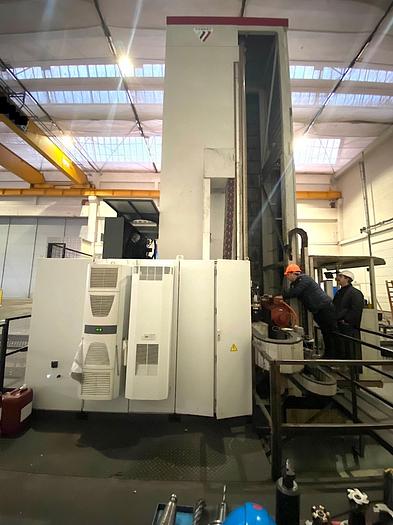

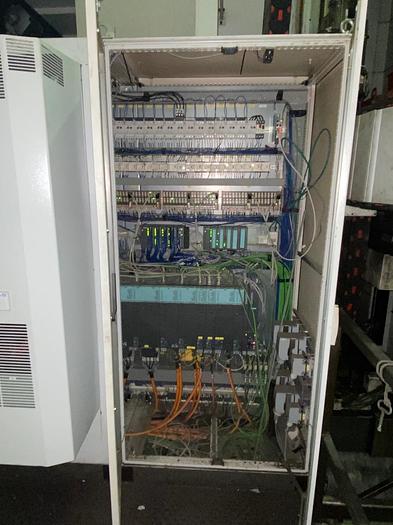

Air conditioner - Electrical cabinet

Pick-Up station, on rail to avoid limitation of work space

Linear guide ways on all axis

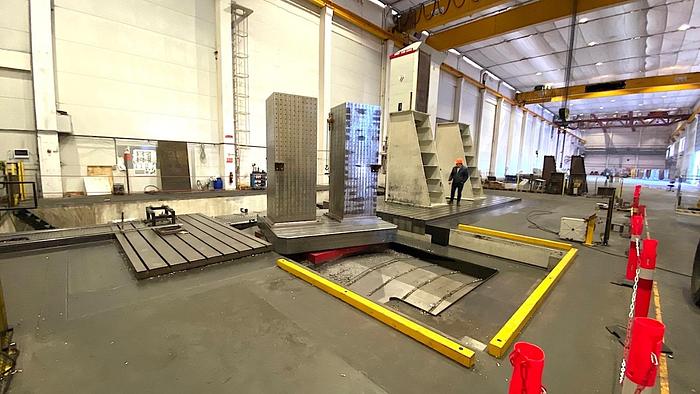

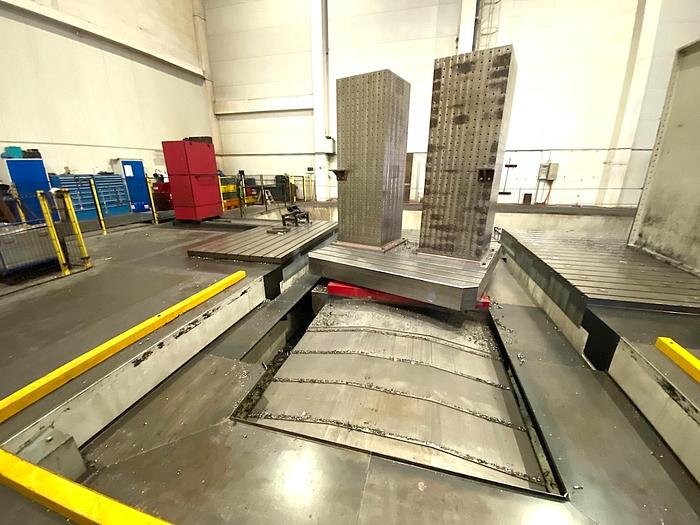

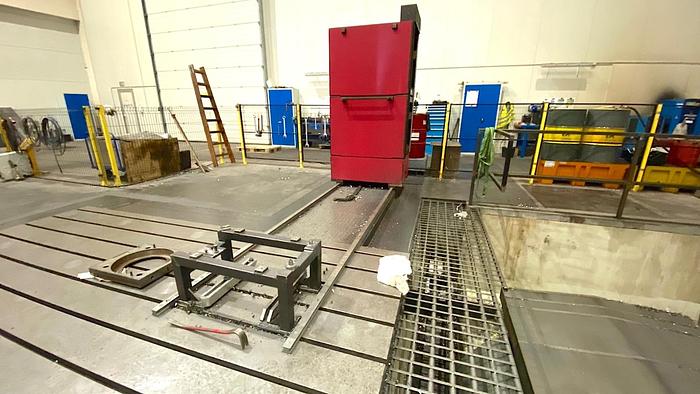

Rotary Table 3,000 x 4,000 mm - 80 Ton Capacity

Specifications

ManufacturerFermat
Year2014
ConditionUsed
Stock Number11121

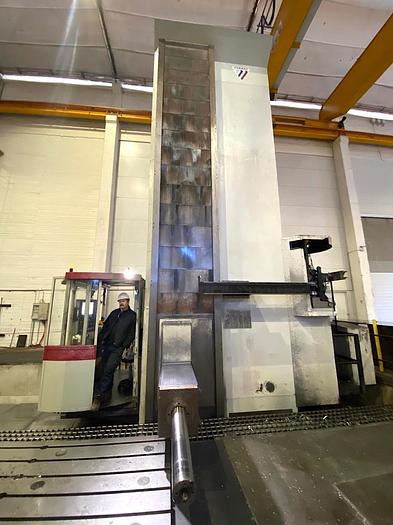

Spindle diameter160 mm
Spindle speeds2,500 rpm
X axis travel14,800 mm
Y axis travel6,000 mm
Z axis travel1,200 mm
Table dimensions3,000 x 3,000 mm
Table capacity80 Ton
W axis travel1,000 mm

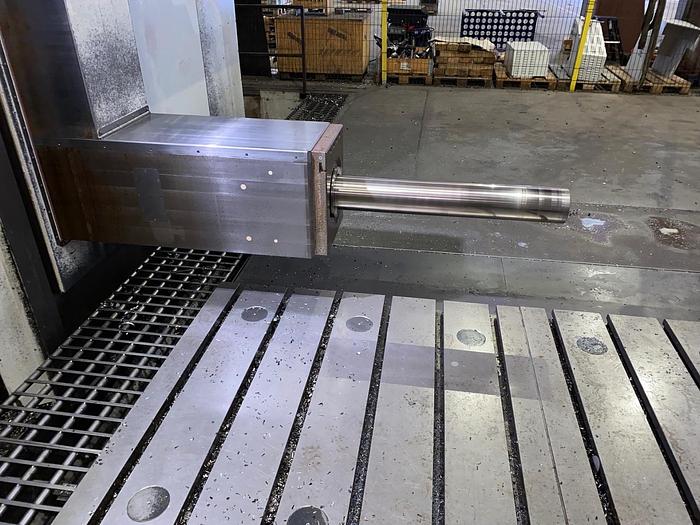

Ram dimensions480 x 480 mm
Spindle motor power2 Step, ZF 60 kW
Taper of boring spindleISO 50
Z + w - ram + spindle travel2,200 mm
V axis table travel3,300 mm
C axis360,000°
