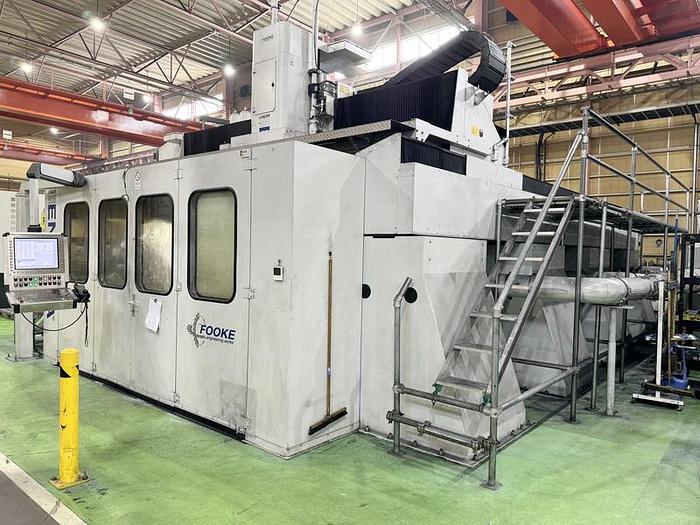

Fooke ENDURA 908 Linear CNC 5-Axis Double Column Gantry Milling Machine
No longer available
Fooke ENDURA 908 Linear CNC 5-Axis Double Column Gantry Milling Machine
Description

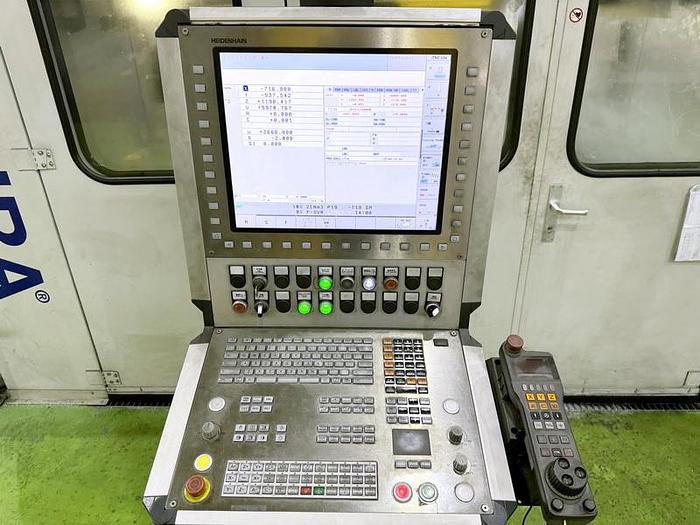

Heidenhain iTNC 530 HSCI CNC Control

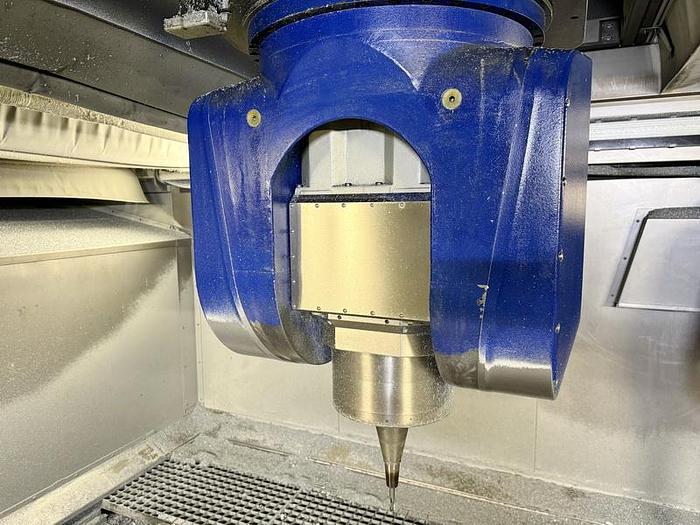

Fork-Turn-Swivel-Milling Head Type 8 (A+C Axis)
5-Axis and 5-Side-HSC-Machining (simultaneous)
High Dynamic - Construction
Coolant System
Chip Conveyor
26 Position Automatic Tool Changer (Tool Presetter)
Max Tool Length - 400 mm
Max Tool Diameter - 130 mm
Max Tool Weight - 15 kg
Parts Measurement System - M&H
Laser Breakage Control
Oil Mist Extraction
Central Lubrication
Direct Travel Measurement System - X/Y/Z + A/C
Specifications
| Manufacturer | Fooke |
| Model | ENDURA 908 Linear |
| Year | 2017 |
| Condition | Used |
| Stock Number | 11111 |
| Spindle speeds | 15,000 rpm |
| Max workpiece length | 4,940 mm |
| Max workpiece width | 2,440 mm |
| Max workpiece height | 970 mm |
| X axis travel | 6,000 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,500 mm |

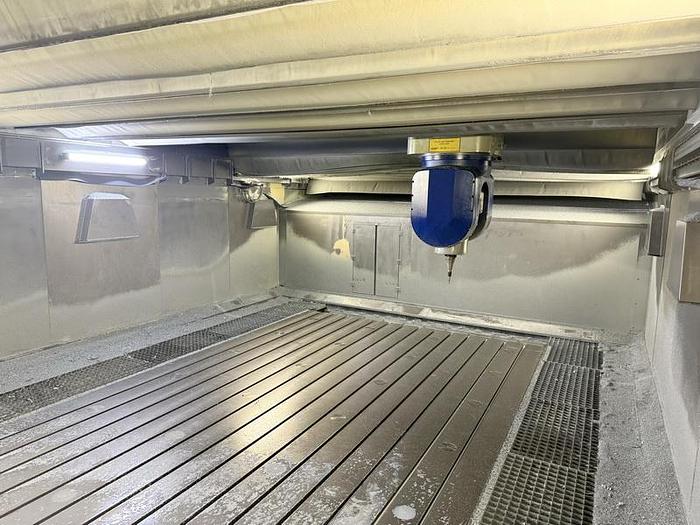

| Table dimensions | 6,000 x 3,500 mm |
| Spindle power | 84 / 63 kW |
| Spindle torque | 400 / 300 Nm |
| A axis swivel | 200° (±100°) |
| C axis rotation | 550° (±275°) |
| Rapid Feed X/Y/Z | 65 m/min |
| Spindle taper | HSK 100A DIN 69893 1+2 |
| Machine weight | 130 Ton |
| Machine dimensions | 11 x 10 x 7 m |
| Total power requirement | 150 kW |
