Doosan VC 630-5AX CNC Simultaneous 5-Axis Machining Center
Doosan VC 630-5AX CNC Simultaneous 5-Axis Machining Center
orCall 770-509-0744
Description
Simultaneous 5-Axis Vertical Machining Center
Very Low Hours

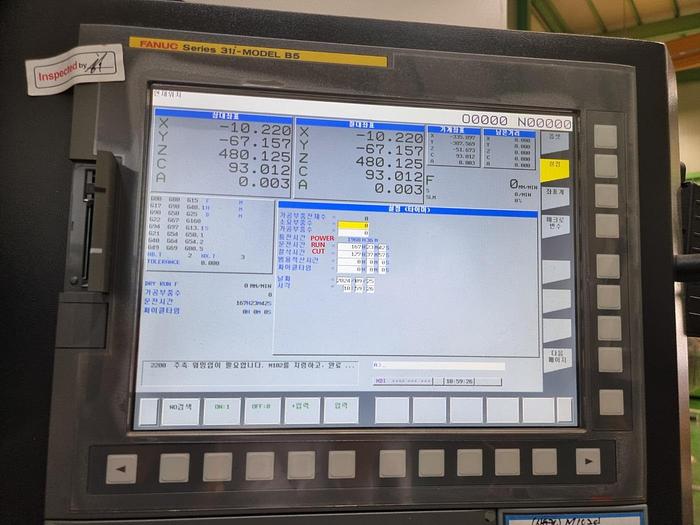

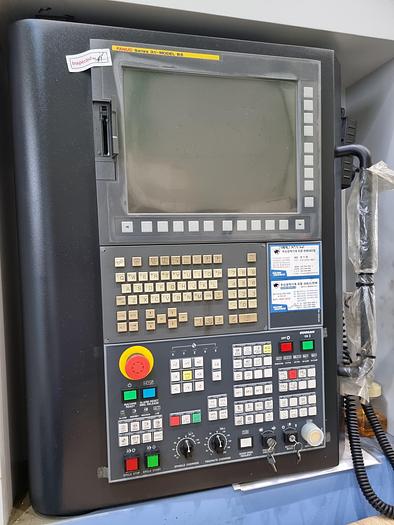

Fanuc 31i B5 CNC Control

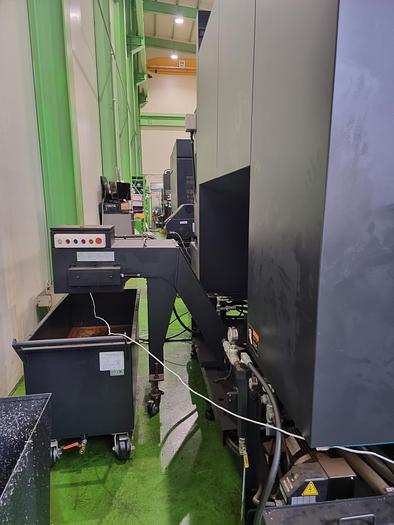

Chip Conveyor
Through Spindle Coolant - 1.5 kW 2.0 MPA
60 Position Automatic Tool Changer
Scales for X,Y,Z,A,C Axes
Renishaw OMP60 Workpiece Measurement Touch Probe
Renishaw TS-27R Tool Length Measurement
Specifications
| Manufacturer | Doosan |
| Model | VC 630-5AX |
| Year | 2021 |
| Condition | Used |
| Stock Number | 11107 |
| Spindle speeds | 12,000 rpm |
| X axis travel | 650 mm |
| Y axis travel | 765 mm |
| Z axis travel | 520 mm |

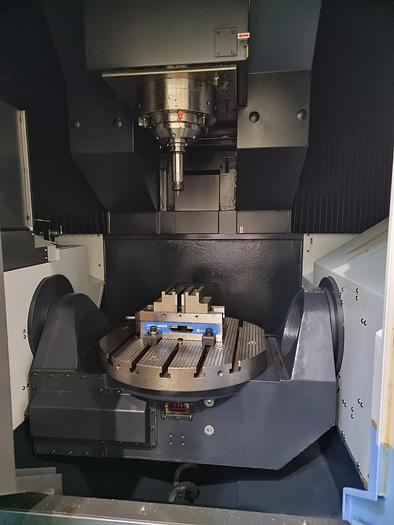

| Table diameter | 630 mm |
| Table load capacity | 500 kg |
| Table indexing | 0.001° |
| A axis | 150° (+30° -120°) |
| C axis | 360° |
| Tool shank | BIG PLUS BT 40-DIN 15 |
| Electrics | AC 220V - 3 Ph - 50/60 Hz |
| Machine weight | 12.5 Ton |
