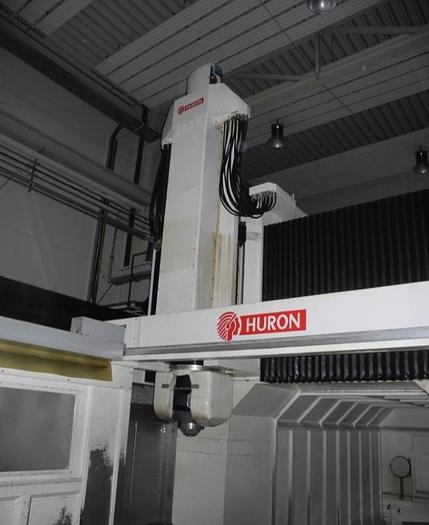

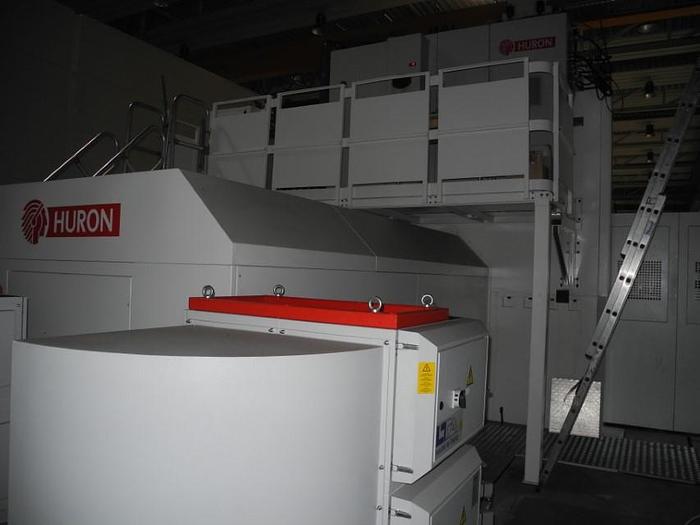

Huron KX 300 CNC 5-Axis Machining Center
Huron KX 300 CNC 5-Axis Machining Center
or
Call 770-509-0744
Description

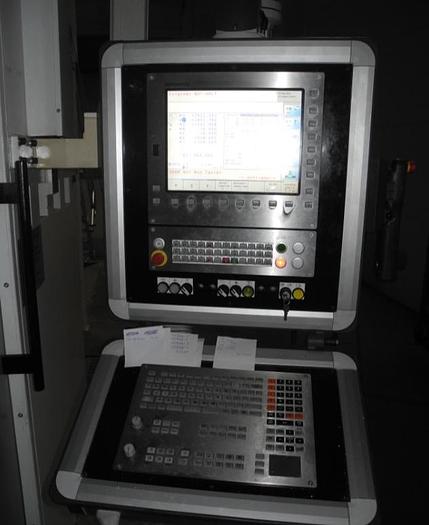

Heidenhain iTNC 530 CNC Control

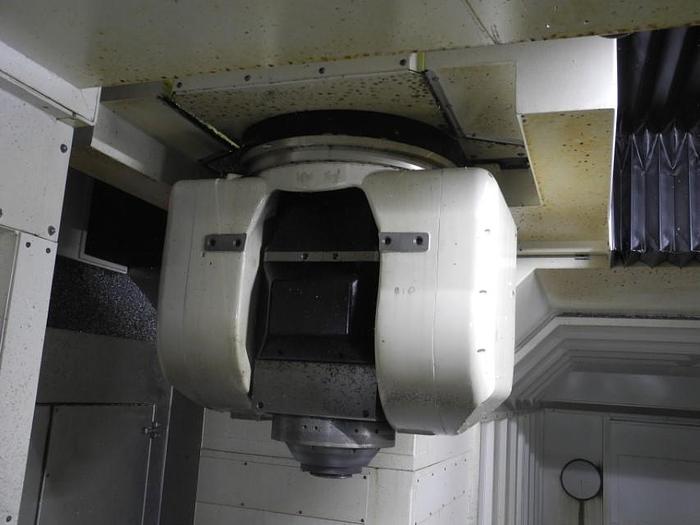

Simultaneous 2-Axis Milling Head
B-Axis ±105°
C-Axis ±190°

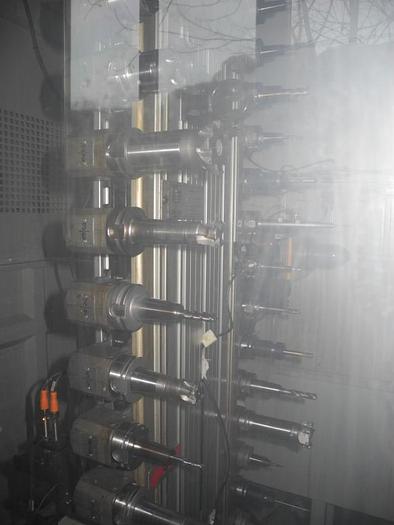

60 Position Automatic Tool Changer
Heidenhain TS 400 Probe
BLUM laser
Air blow Via Jets
Air Blow System Through Spindle

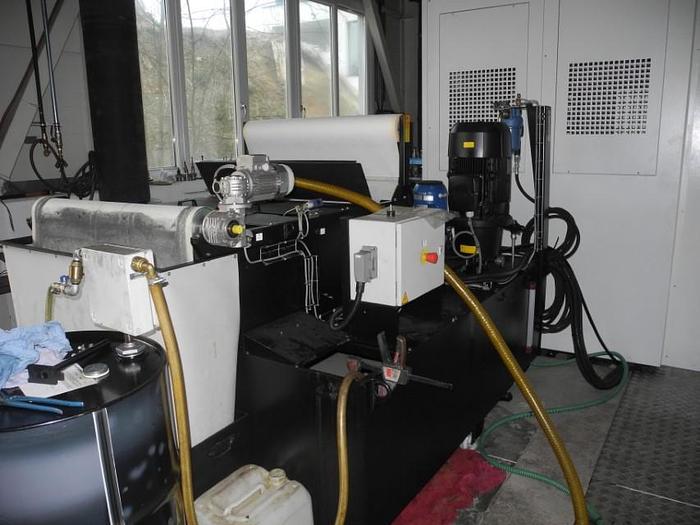

Coolant Through Spindle - 50 BAR

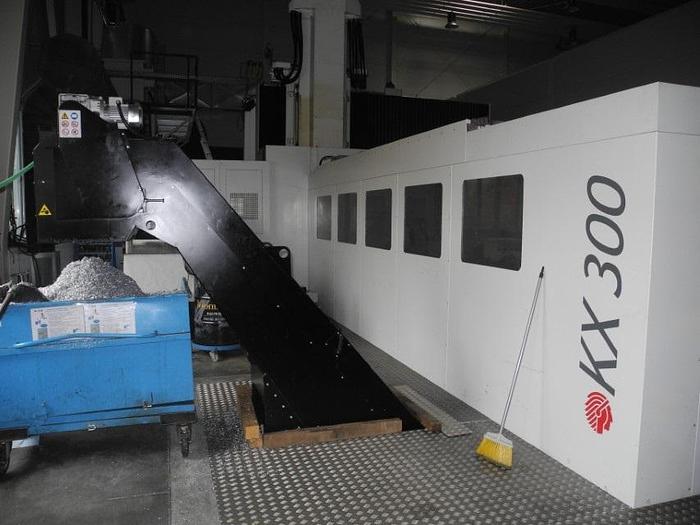

Chip Conveyor
Specifications
| Manufacturer | Huron |
| Model | KX 300 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11104 |
| Between columns | 2,650 mm |
| Spindle speeds | 18,000 rpm |
| Distance spindle vertical table | 1,500 mm |
| Distance spindle horizontal table | 1,800 mm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,100 mm |
| Z axis travel | 1,500 mm |

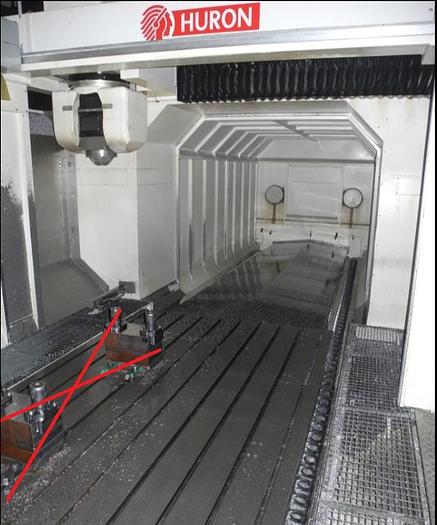

| Table size | 5,200 x 2,000 mm |
| Table capacity | 20 Ton |
| Spindle drive motor | 30 kW |
| Spindle taper | HSK 63 |
| Rapid traverse | 20 m/min |
| Machine dimensions | 8.9 x 15 x 6.4 m |
| Machine weight | 95 Ton |
