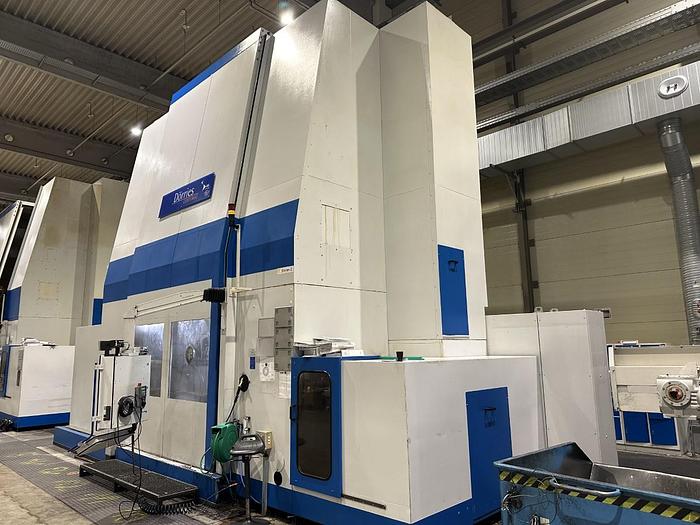

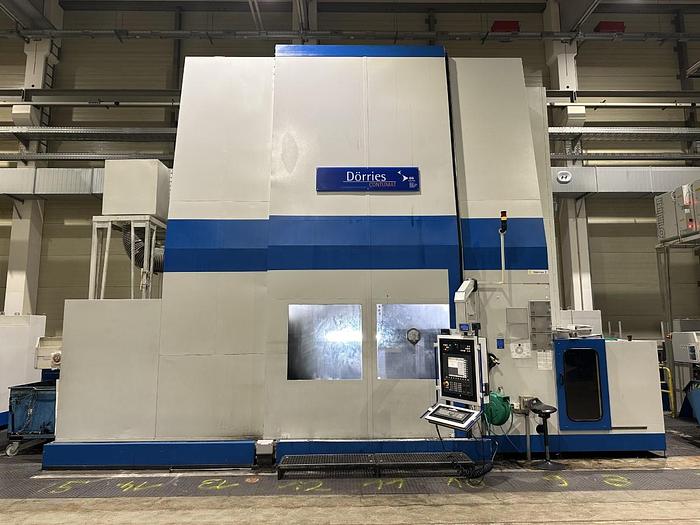

Dorries CONTUMAT VCE 2400/200 SM CNC Vertical Boring Machine with Live Spindle
No longer available
Dorries CONTUMAT VCE 2400/200 SM CNC Vertical Boring Machine with Live Spindle
Description

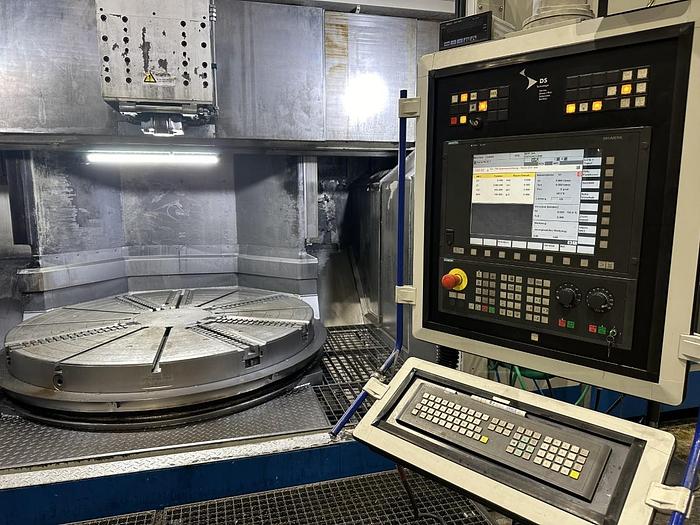

Siemens 840D CNC Control

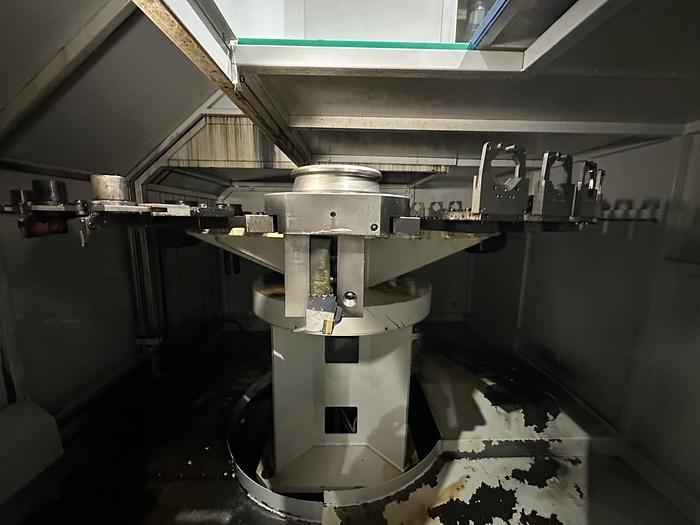

72 Position Automatic Tool Changer
Milling Drive 100 kW
Live Spindle Speed in 2 Gear Stages 8 - 3000 rpm
Table C-Axis

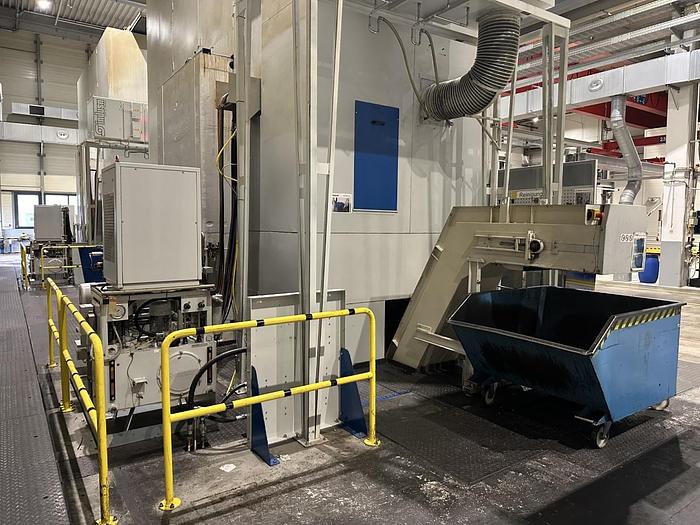

Chip Conveyor
Direct Measuring System
Coolant Supply via Central Coolant System
Hydraulic Chuck
Electronic Handwheel
Automatic Work Area Door

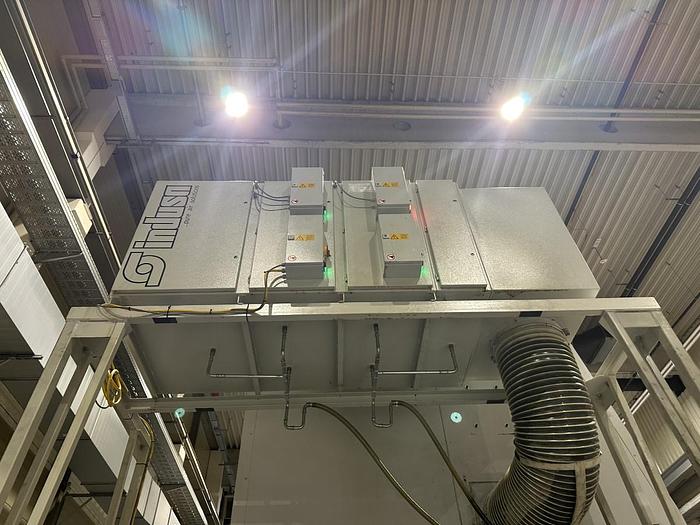

Electrostatic Emulsion Mist Seperator
Machine Dimensions: Length 10,000 Width 5,500 x Height 7,100 mm
Weight 75,000 kG
Specifications
| Manufacturer | Dorries |
| Model | VCE 2400/200 SM |
| Year | 2008 |
| Condition | Used |
| Stock Number | 11103 |
| Spindle speeds | 3,000 rpm |

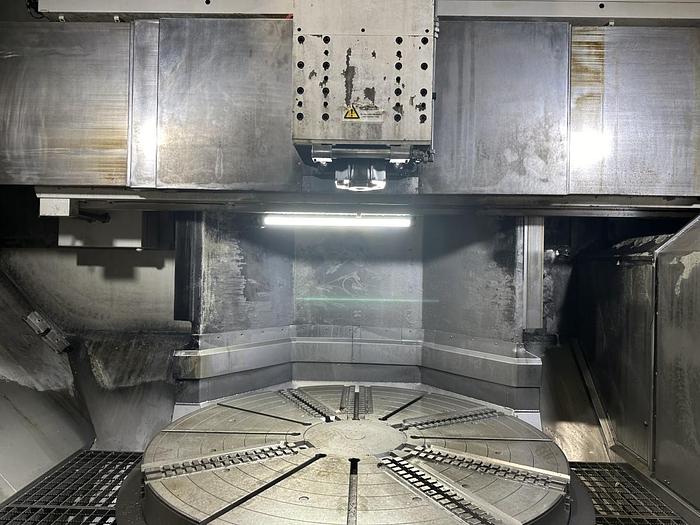

| Table diameter | 2,000 mm |
| Swing | 2,400 mm |
| Turning height | 2,445 mm |
| Table capacity | 17 Ton |
| Table turn speed | 250 rpm |
| Z axis travel | 1,500 mm |
| X axis travel | ±1,350 mm |
| W axis travel | 1,000 mm |
| Crossbeam grid spacing | 100 mm |
| Distance milling spindle to table | 2,350 mm |

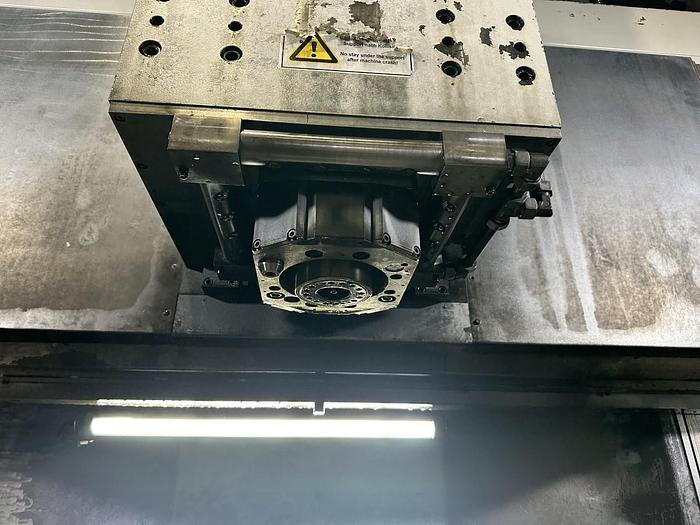

| Ram size | 250 x 250 mm |
| Table technology | Gear Table, 2-Stage |
| Table drive power | 100 kW |
| Table torque | 39,700 Nm |
| Table holding torque in milling mode | 44,800 Nm |
| Support plunge diameter | 380 mm |
| Turning tool holder | Capto C6 |
