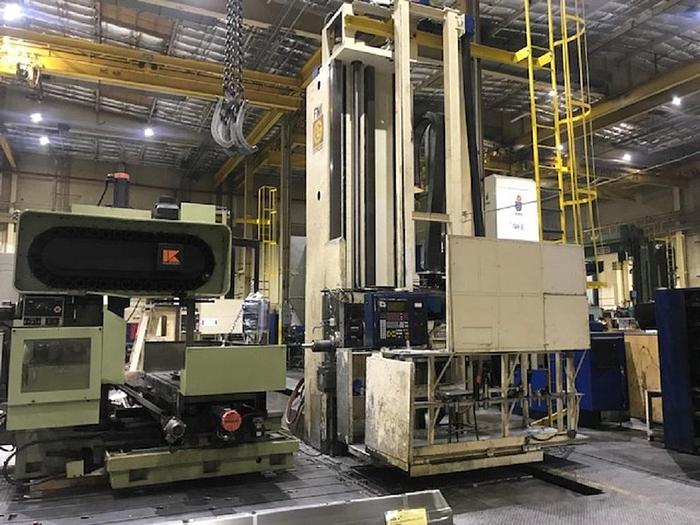

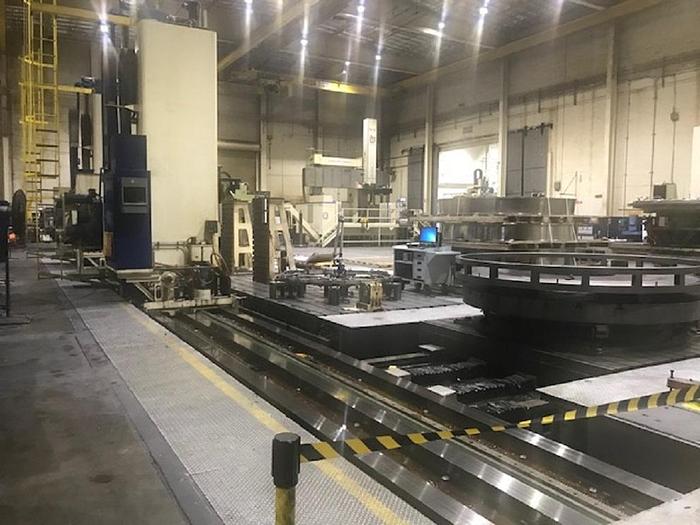

Giddings & Lewis 70-H6-UF CNC Floor Type Horizontal Boring Machine with 2 Machines on Shared X Axis Bed
No longer available
Giddings & Lewis 70-H6-UF CNC Floor Type Horizontal Boring Machine with 2 Machines on Shared X Axis Bed
Description
Machine New in 1972 - Rebuilt & Retrofitted In 1987
2 Machines on a Shared X-Axis Bed
(2) Two GE-1050 CNC Controls
Infeeding Sliding Table - 3,050 x 3,200 mm
Infeeding Travel – 2,750 mm
Auxiliary Rotary Table Diameter 3,050 mm
6 Axis Total CNC Control
Spindle Support
Induction Scale Feedback System X, Y, W Axis
Z, Z1 Axis Resolvers Feedback
Precision Ball Screws Y, Z, W Axis
Dual Pinion (Anti-Backlash) Drive X Axis
Operator Platform
Floor Plates - 3,175 x 14,528 mm
Spindle Speed (3 Speed) 5.6 - 1,050 rpm
Specifications
| Manufacturer | Giddings & Lewis |
| Model | 70-H6-UF |
| Year | 1987 |
| Condition | Refurbished |
| Stock Number | 11084 |
| Spindle diameter | 152 mm |
| Spindle speeds | 1,050 rpm |
| X axis travel | 13,715 mm |
| Y axis travel | 3,910 mm |
| Z axis travel | 1,220 mm |
| Table dimensions | 3,050 x 3,200 mm |
| W axis travel (auxiliary table) | 3,050 mm |
| Ram dimensions | 305 x 305 mm |
| Spindle motor power | 30 kW |
| Spindle taper | #50 AISI |
