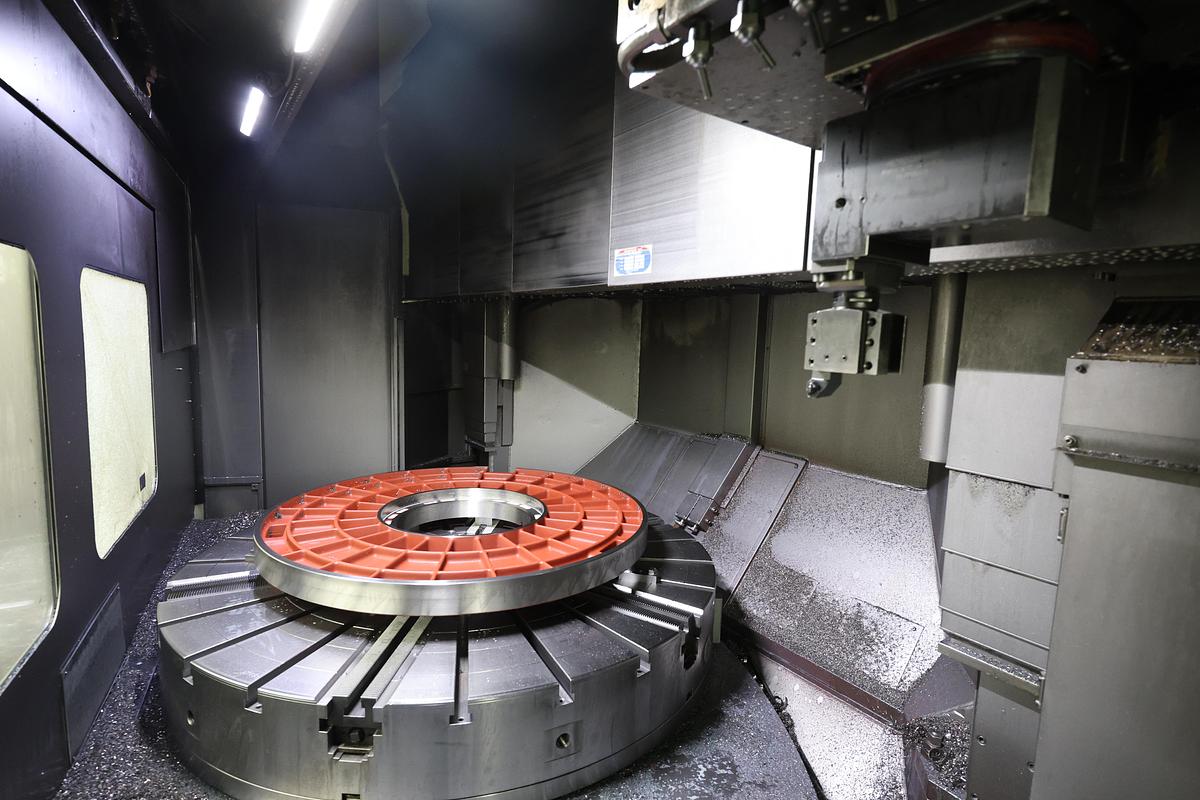

Pietro Carnaghi AC 20 TM-1800 Single Column CNC Vertical Boring & Milling Machine with Live Spindle Table C-Axis & 2 Pallet Changer
Pietro Carnaghi AC 20 TM-1800 Single Column CNC Vertical Boring & Milling Machine with Live Spindle Table C-Axis & 2 Pallet Changer
or
Call 770-509-0744
Description

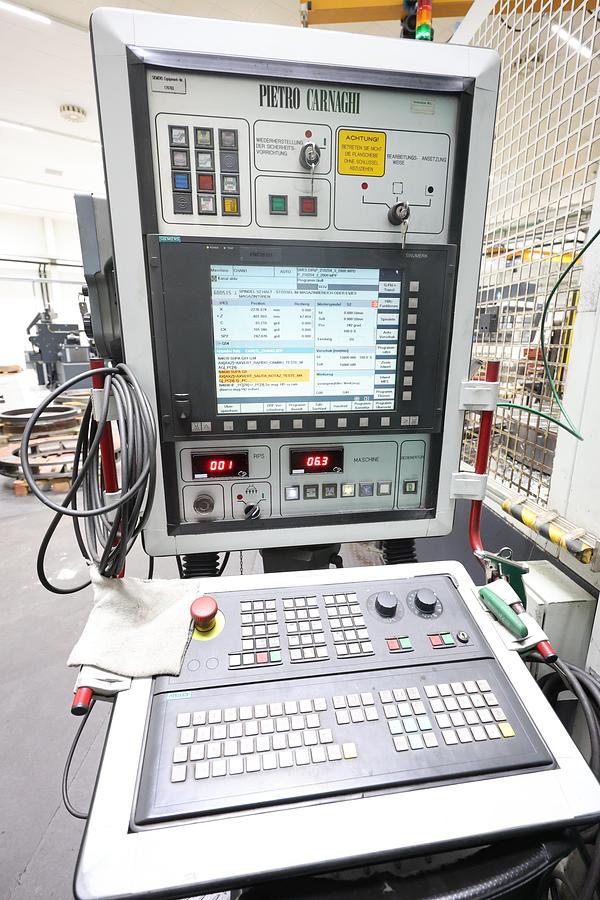

Siemens 840 CNC Control
(2) Two Pallets with Auto Pallet Changer

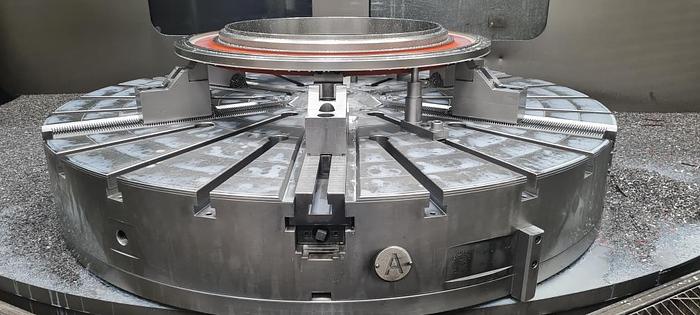

(1) x Pallet with Claw Box - 1,800 mm Diameter

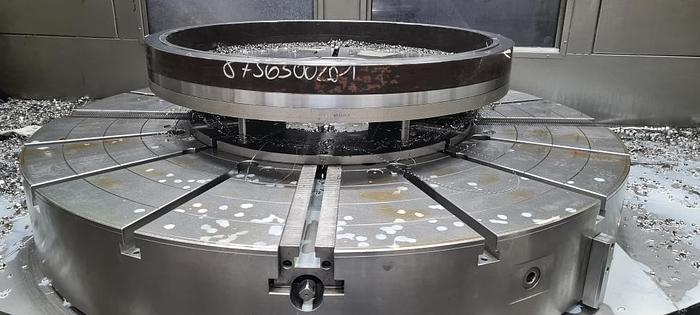

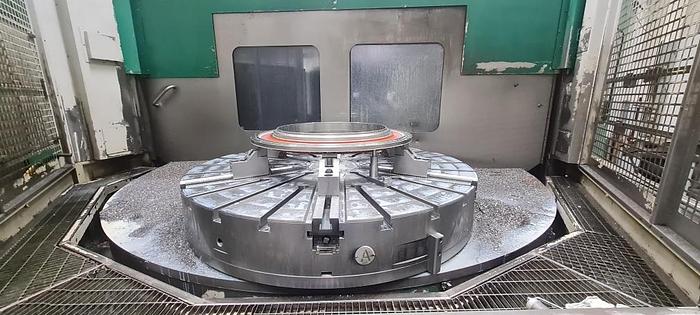

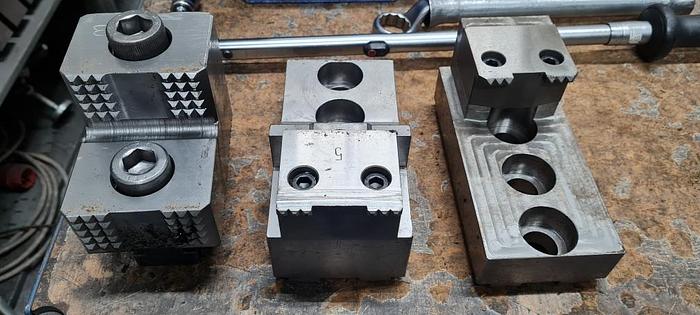

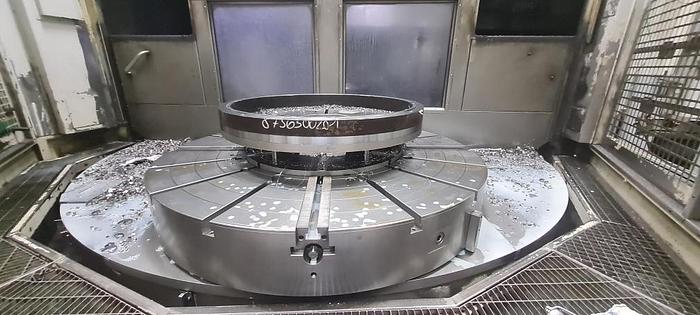

(1) x Hydraulic Chuck with Base Jaws - 1,800 mm Diameter
Live Spindle (Milling, Drilling, Grinding) - 3,000 rpm - 37 kW
Table Indexing C Axis - 360°

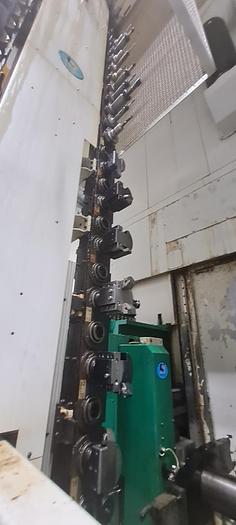

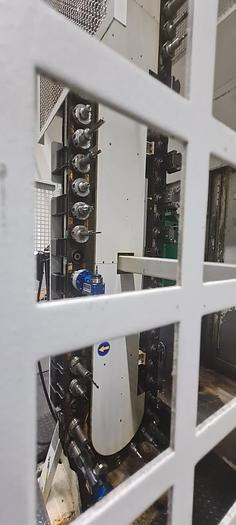

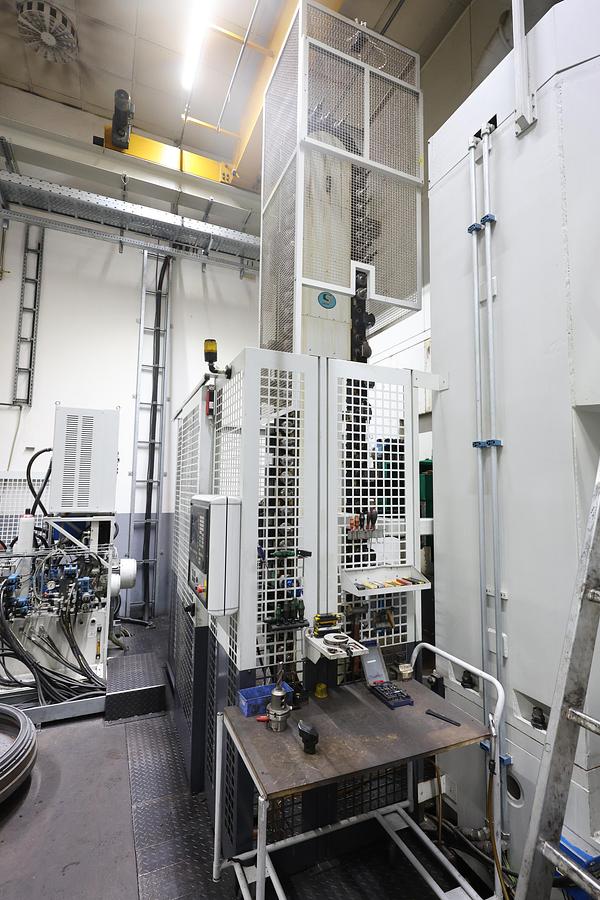

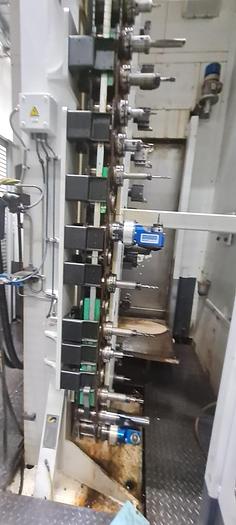

80 Position Chain Tool Magazine

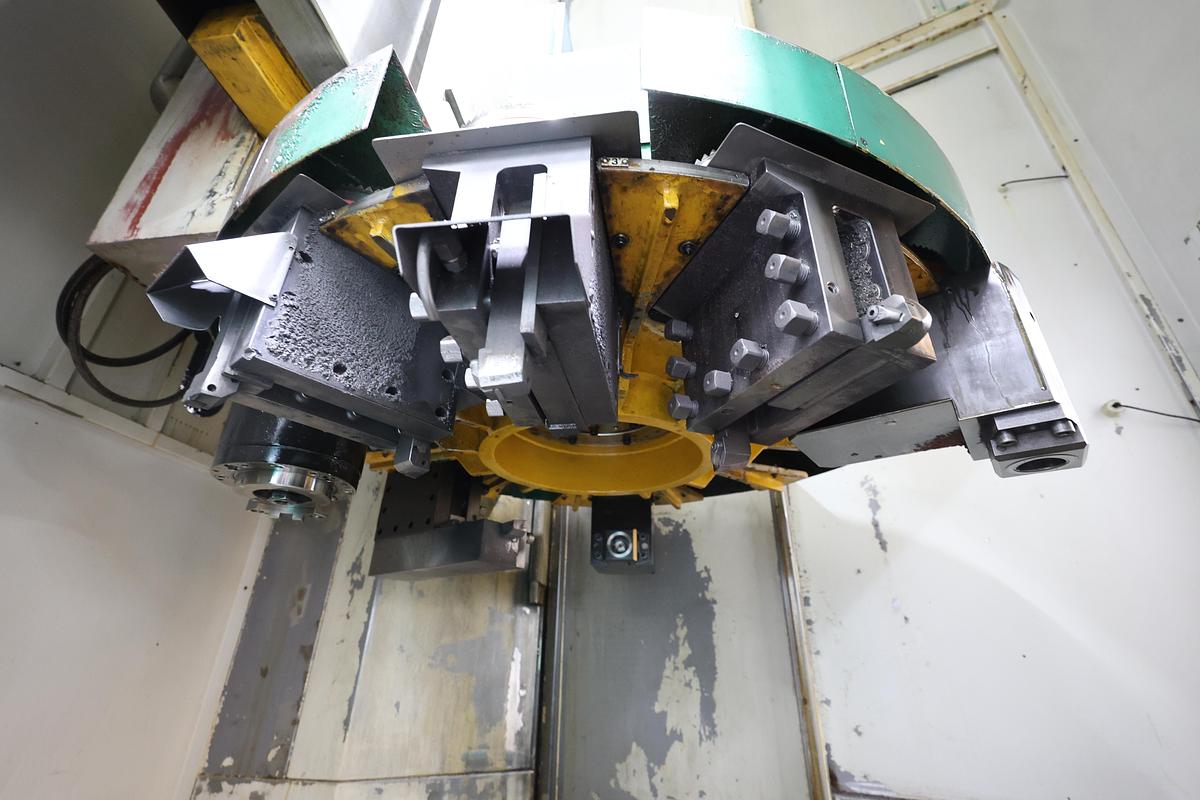

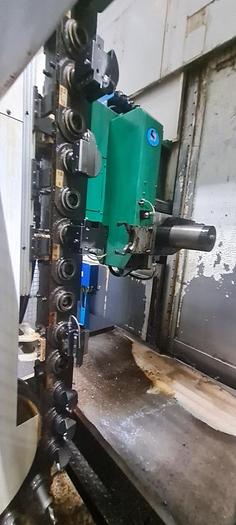

12 Position Disc Tool Magazine
Coolant System with Filter - 1,500 L

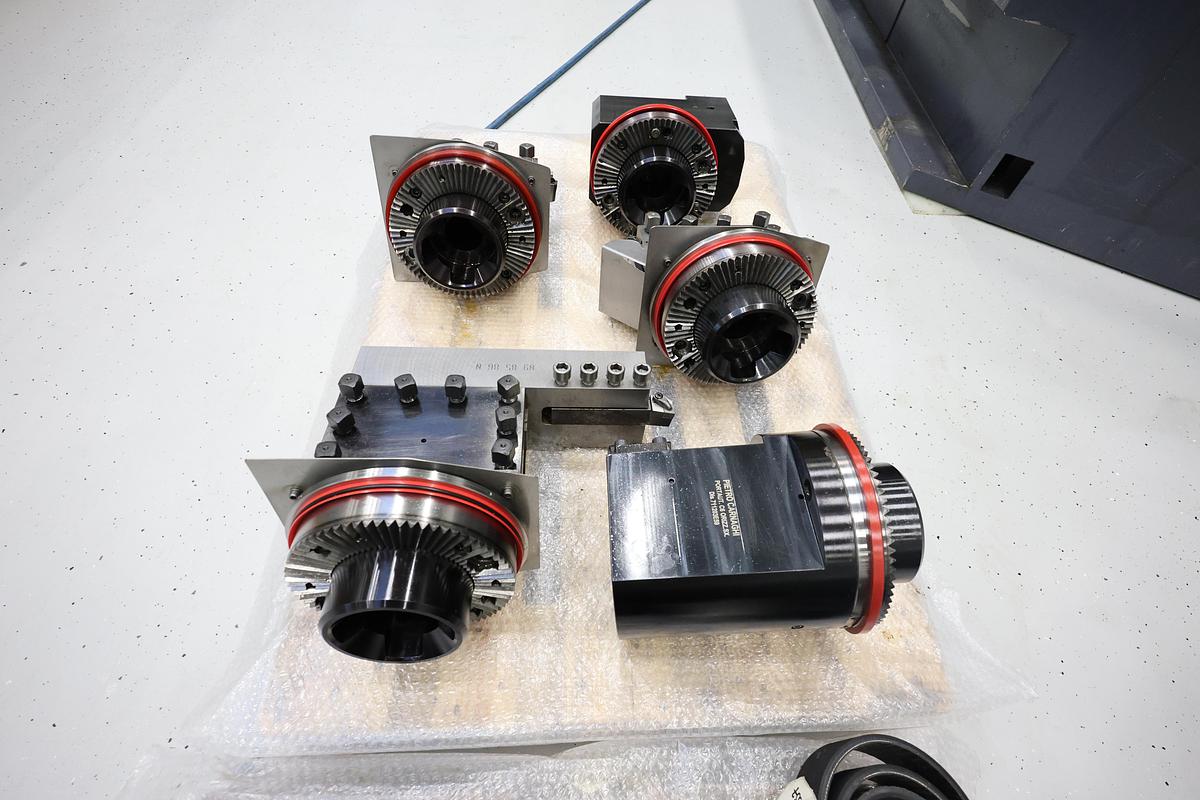

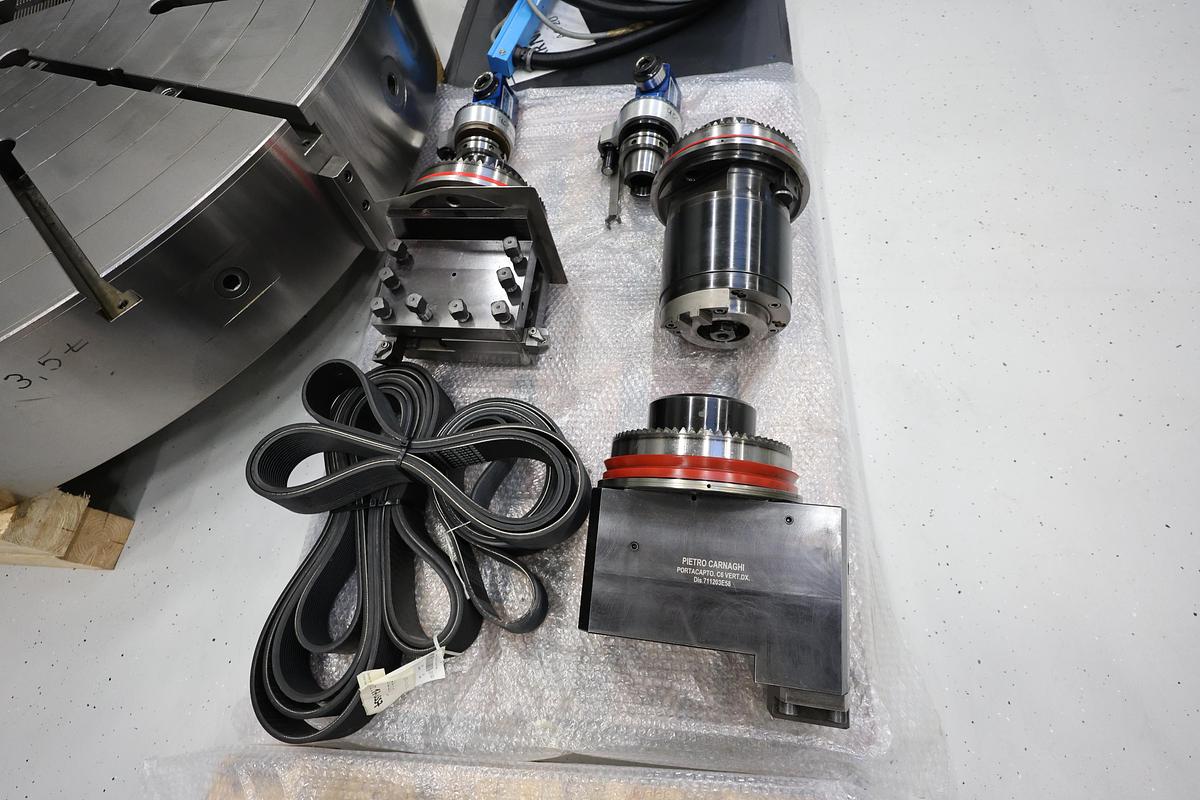

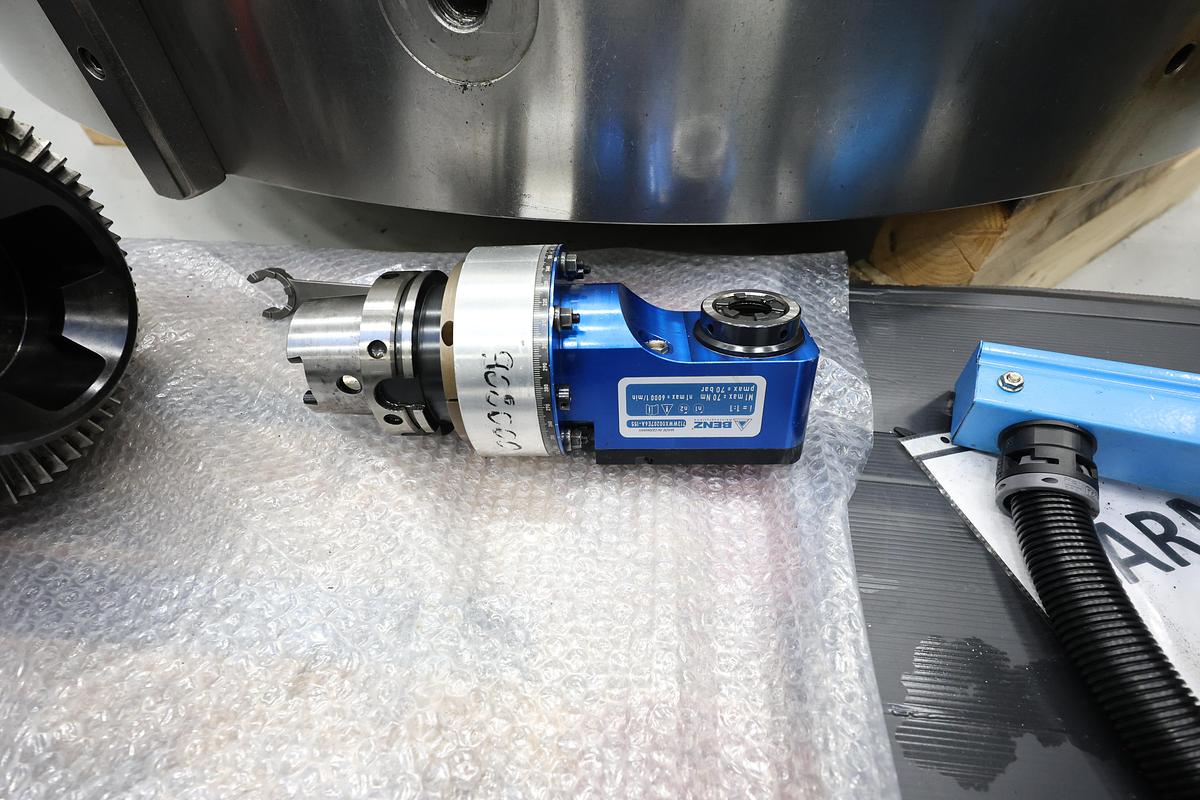

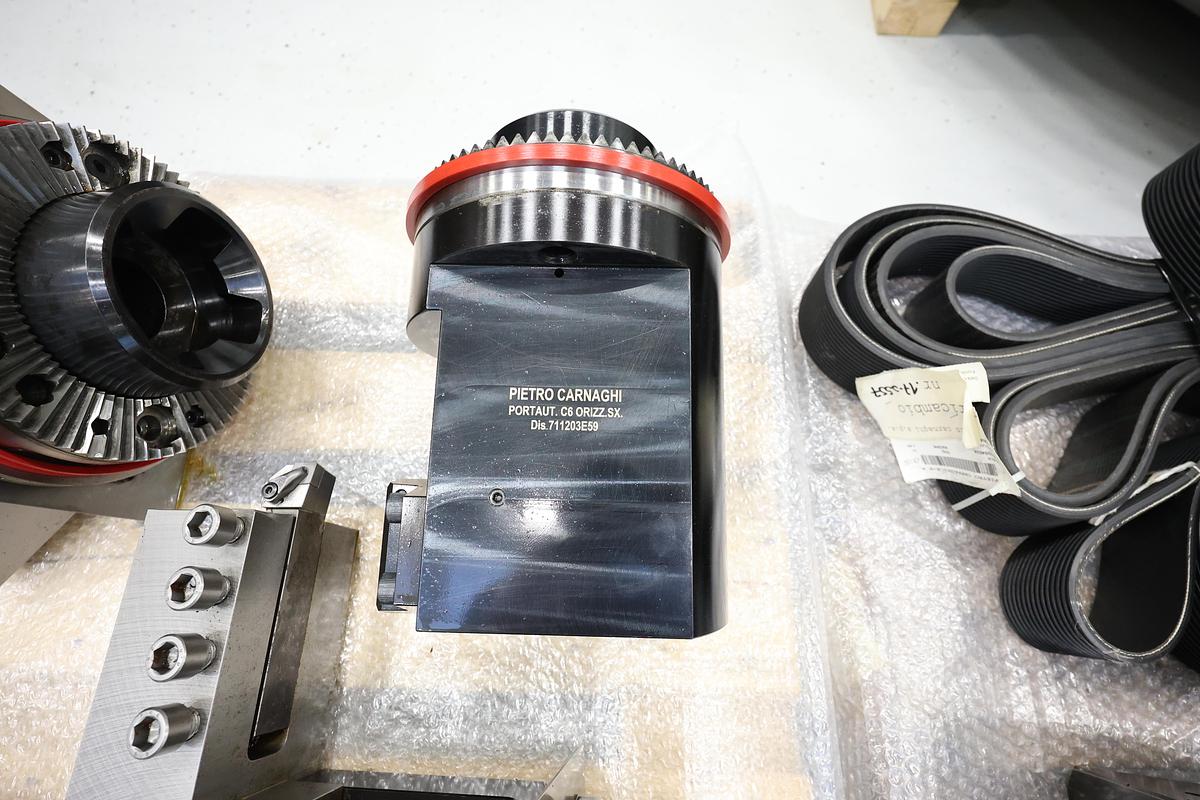

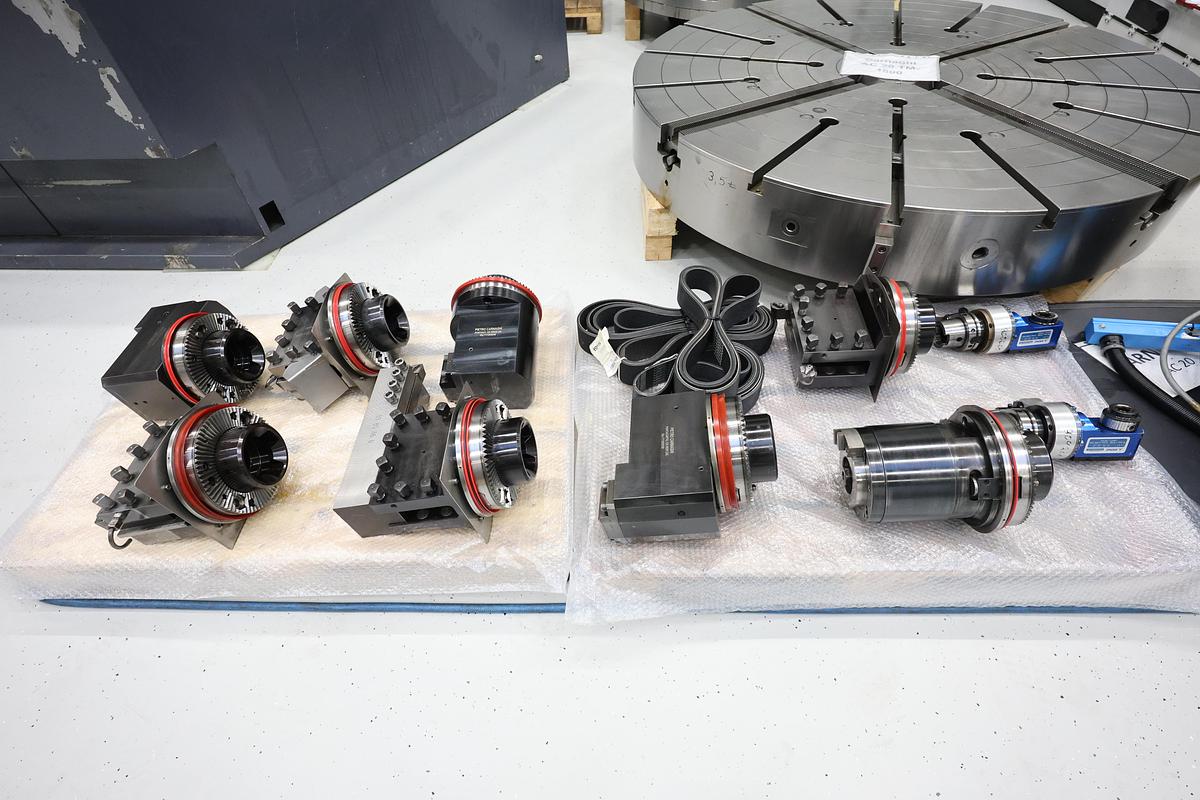

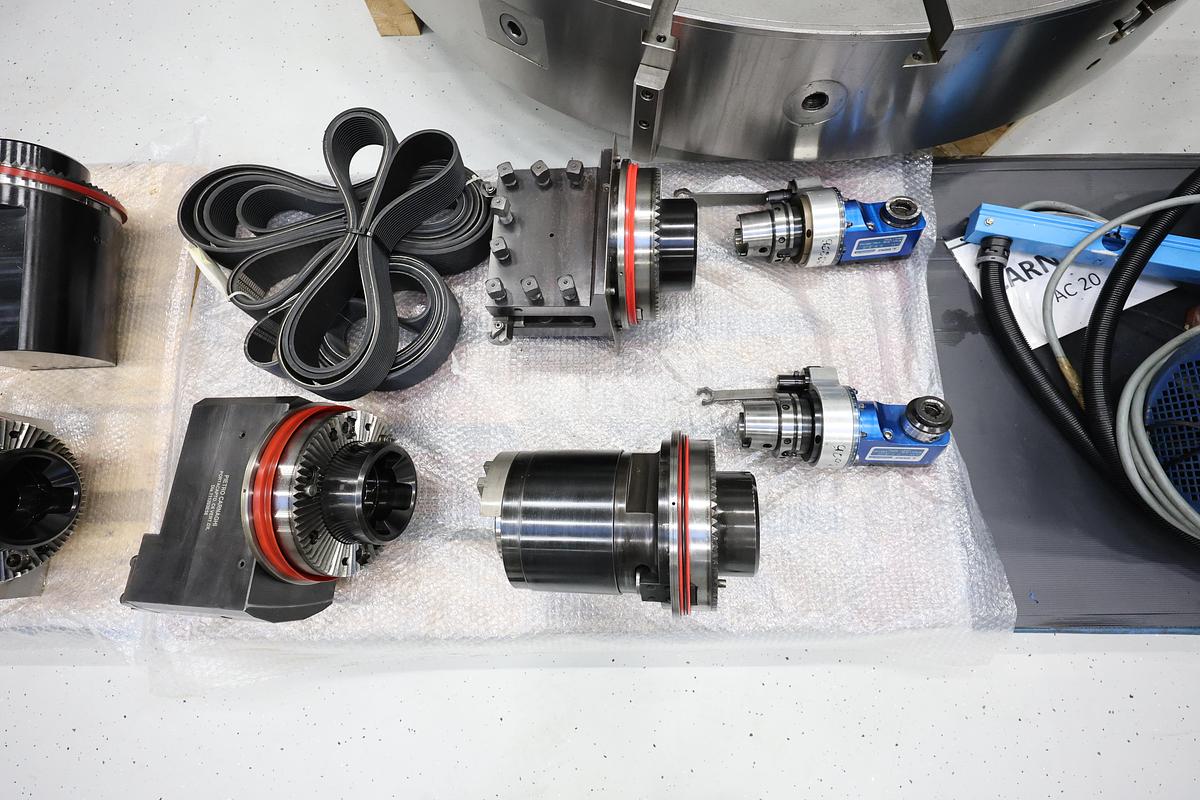

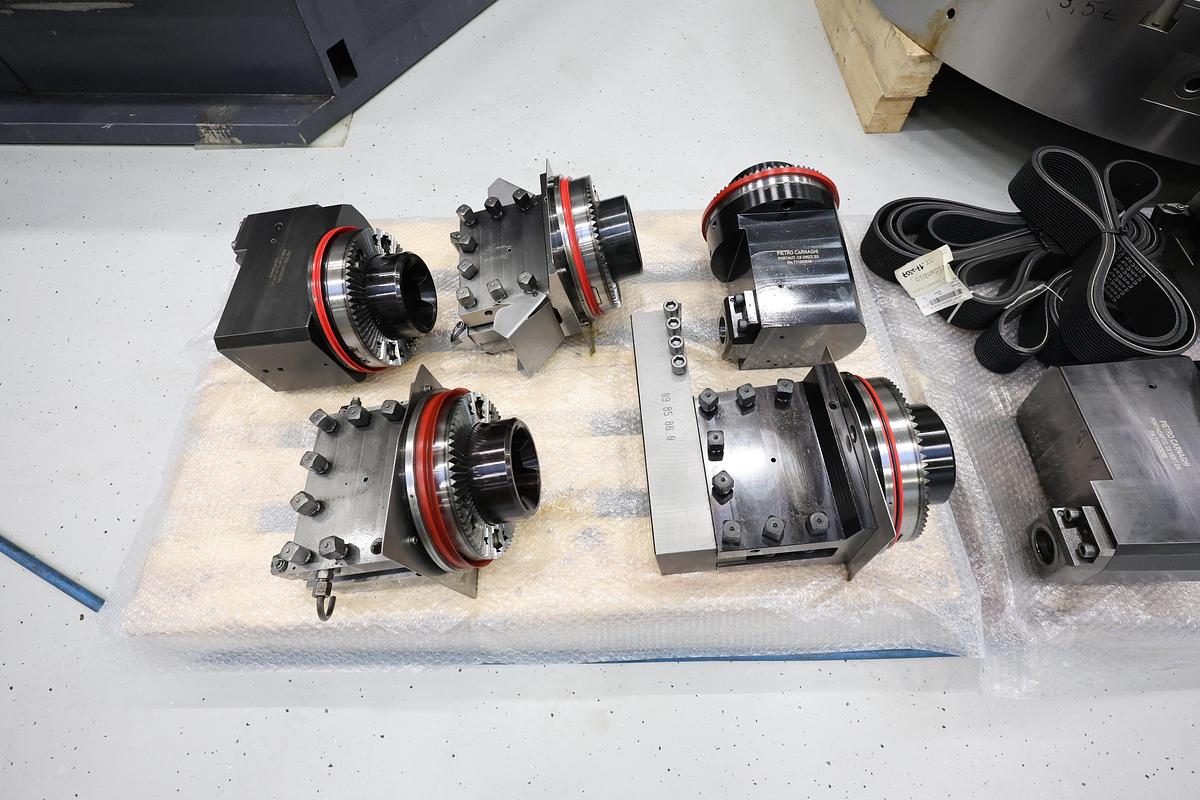

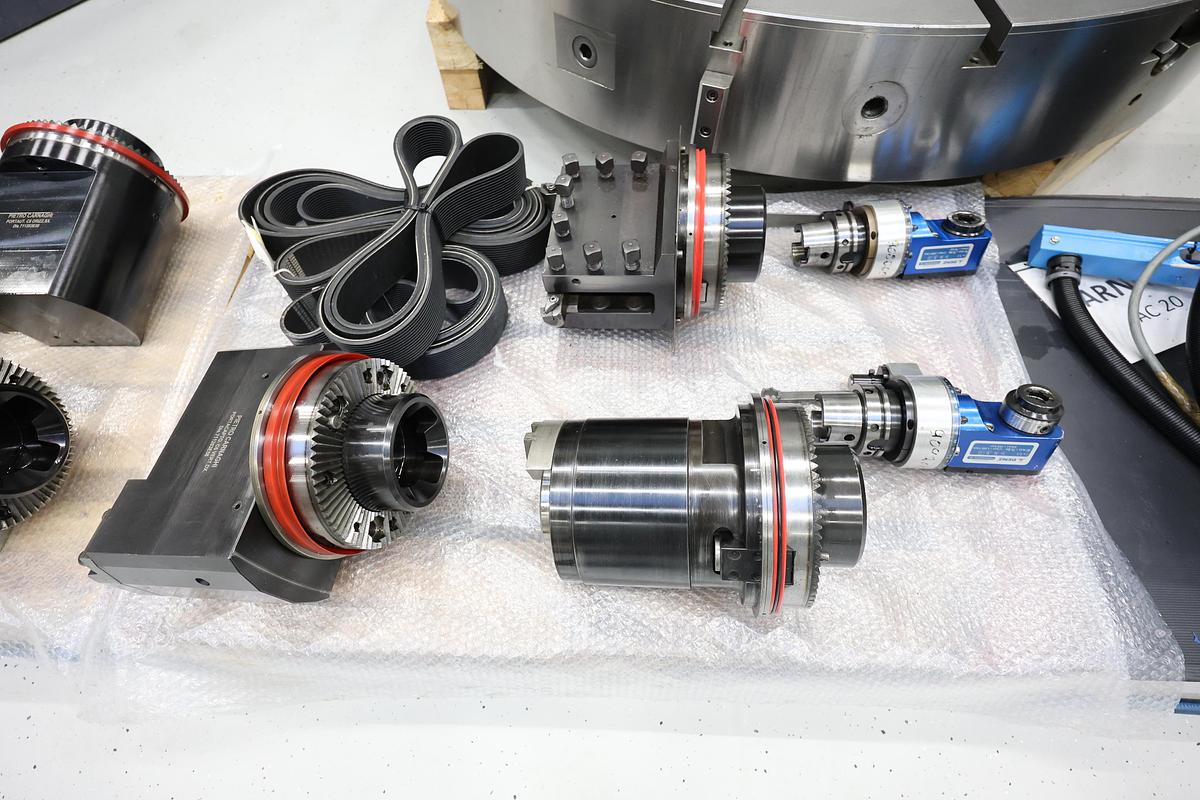

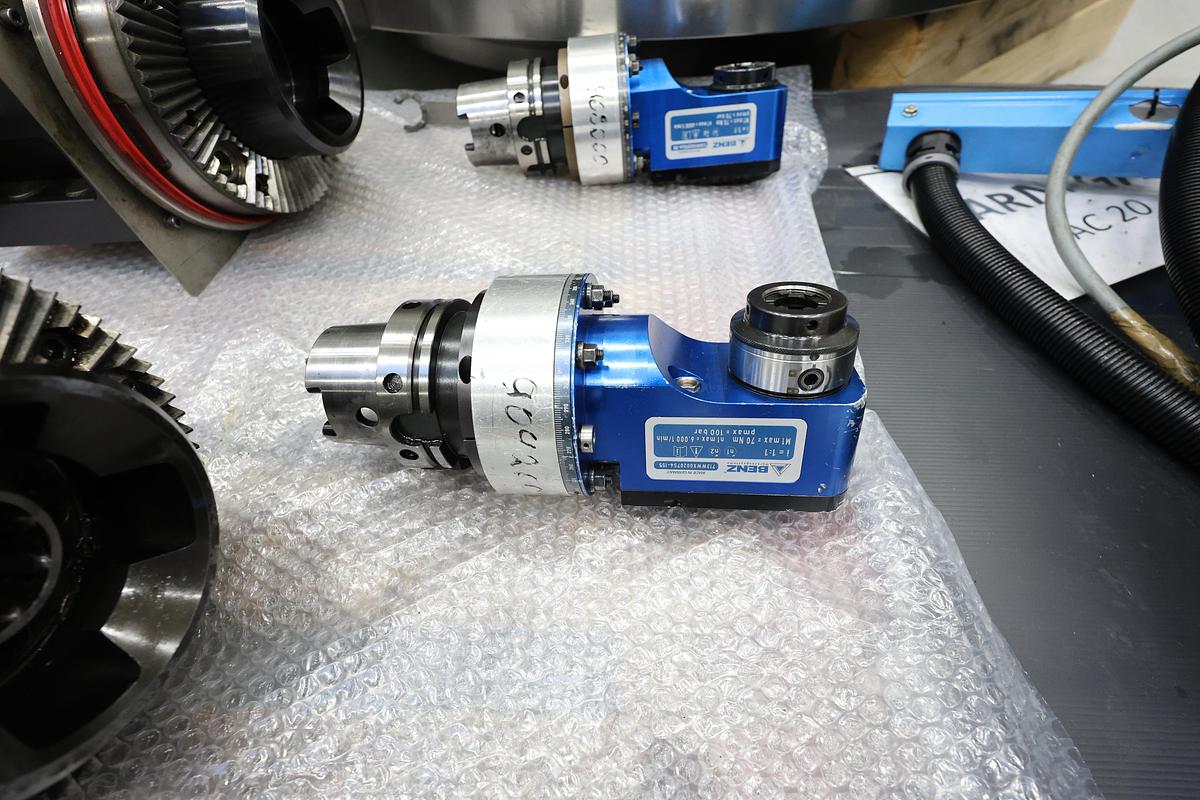

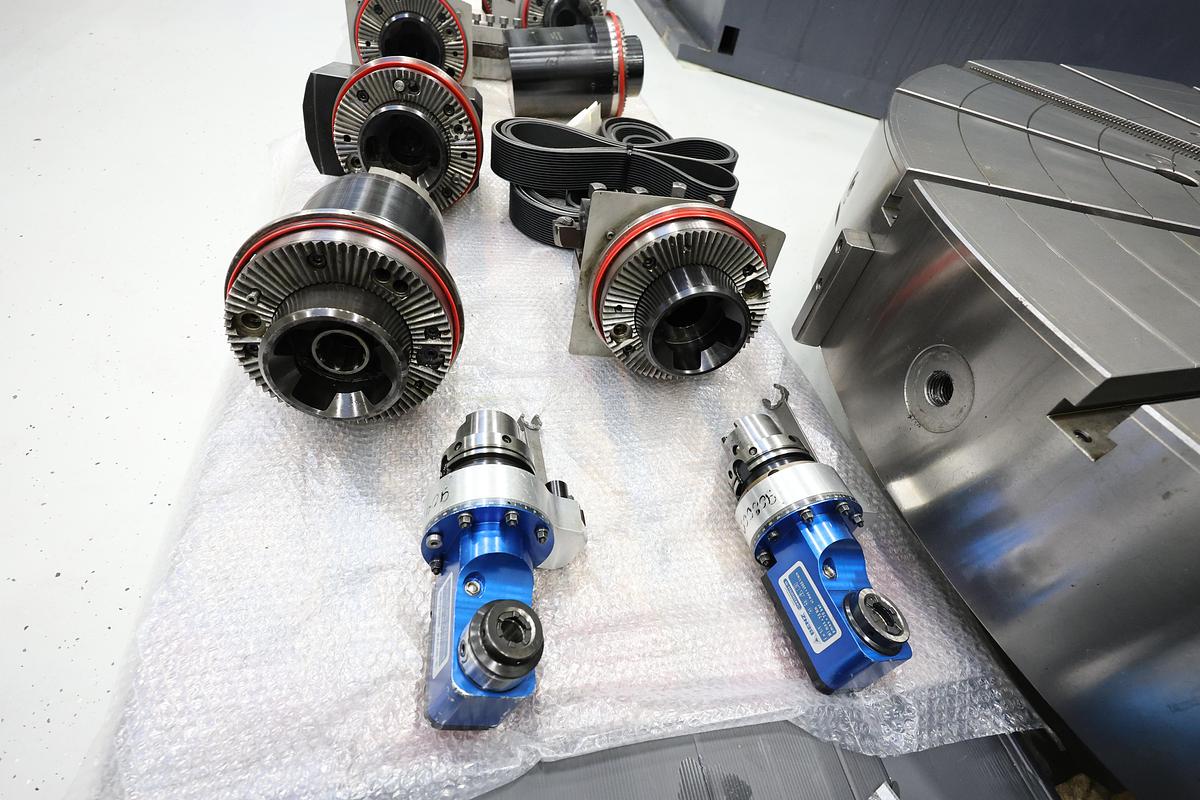

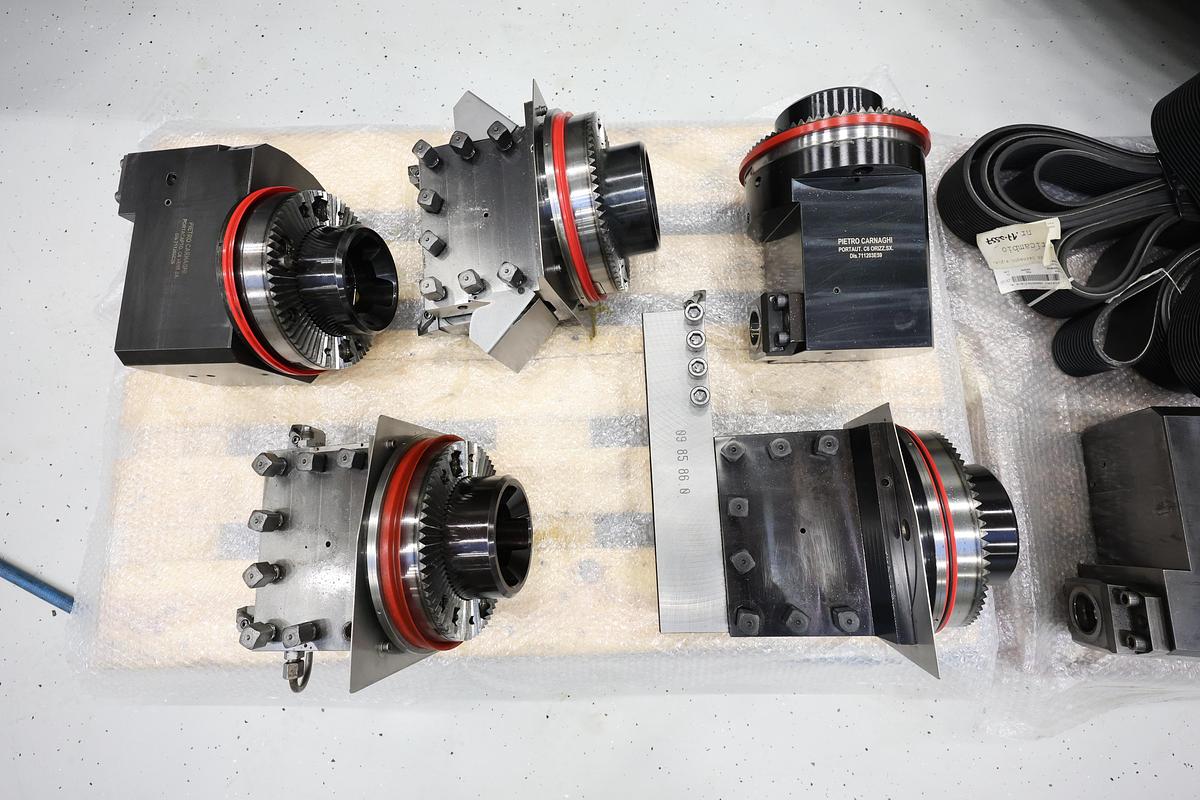

Various Drilling & Milling Head

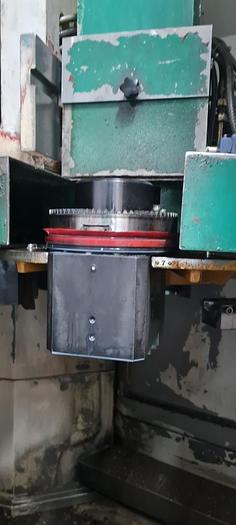

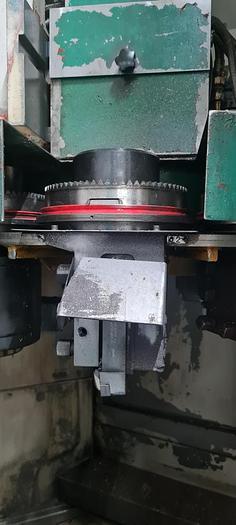

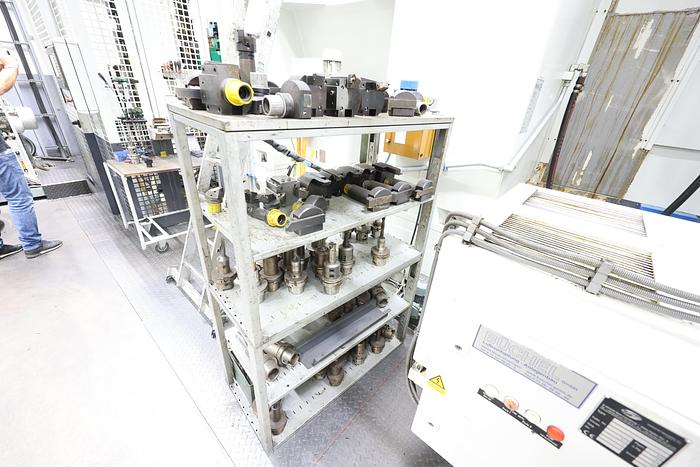

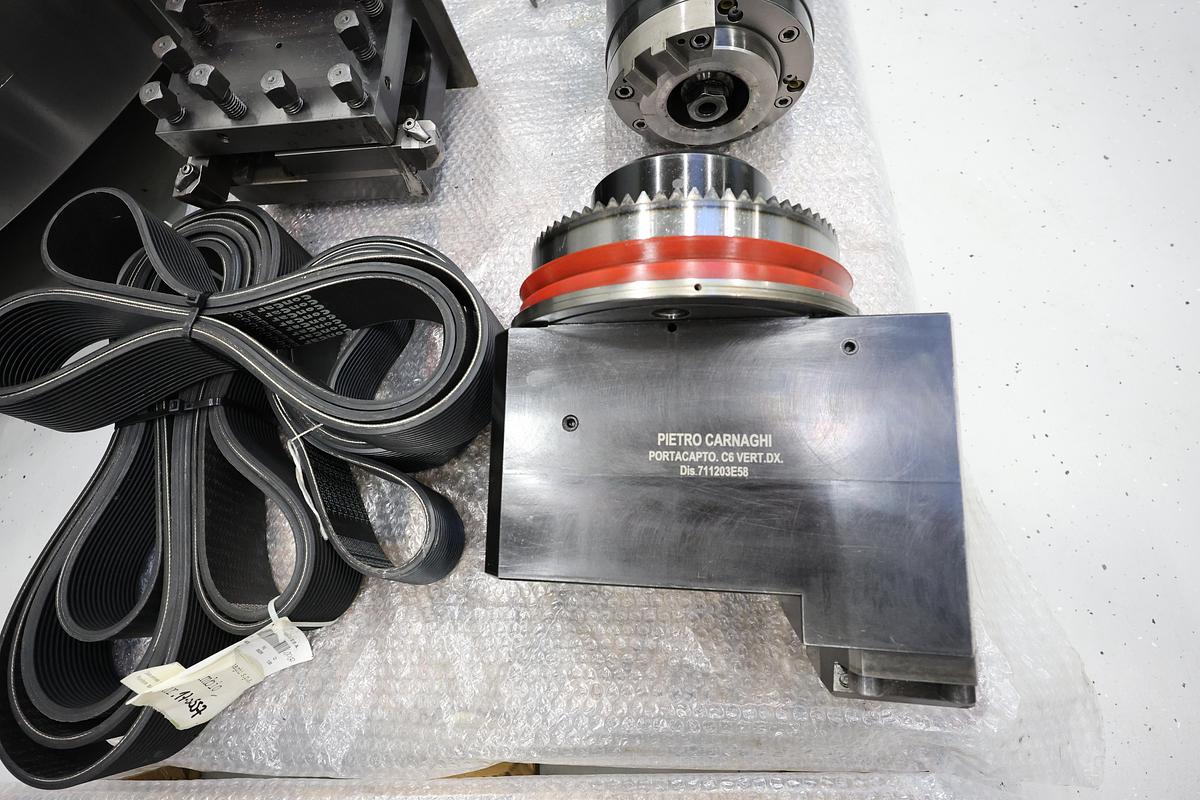

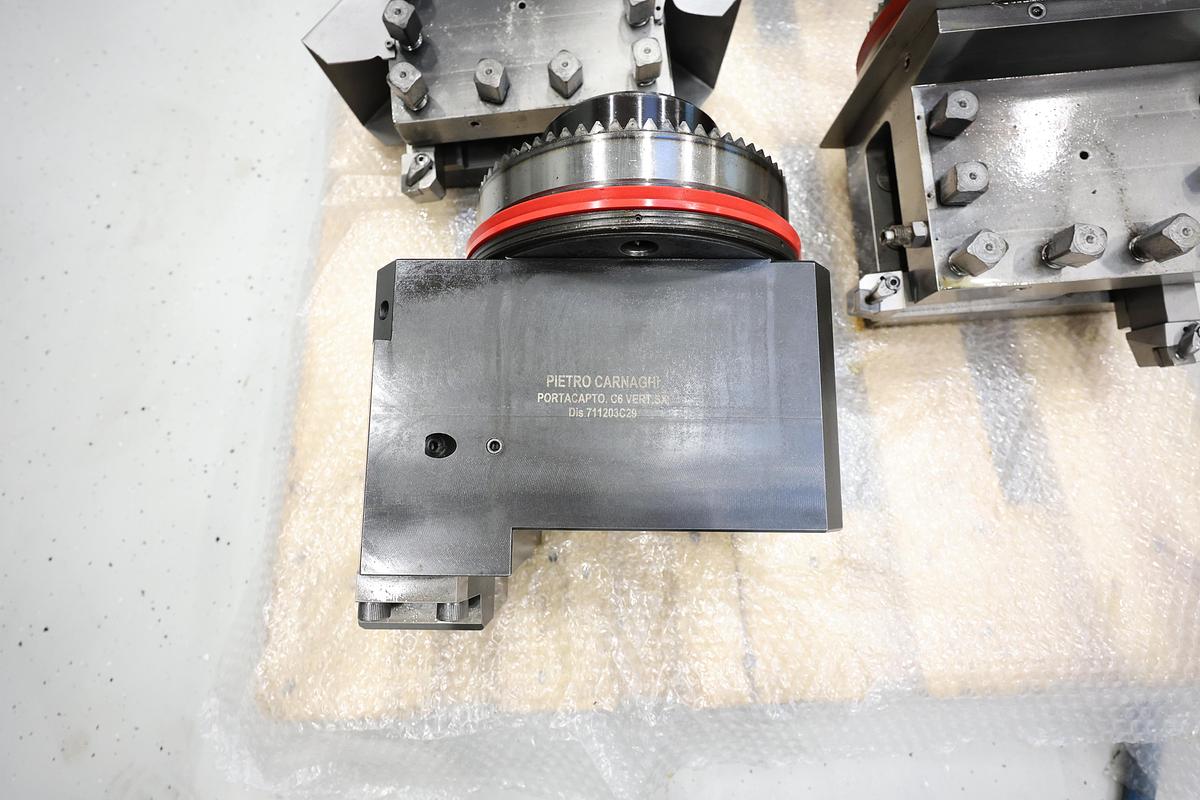

Various Turning Tool Holders
2x Measuring Probes
Turning height with turning head L100 - 1,500 mm
Specifications
| Manufacturer | Pietro Carnaghi |
| Model | AC 20 TM-1800 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 11083 |
| Table diameter | 1,800 mm |
| Swing | 2,000 mm |
| Turning height | 1,500 mm |
| Table capacity | 5 Ton |
| Table turn speed | 320 rpm |
| Live spindle speed | 3,000 rpm |
| Ram dimensions | 250 x 250 mm |
| Z axis travel | 1,250 mm |
| Power capacity - table | 100 kW |
| Torque | 31784 Nm |
| Live spindle motor | 37 kW |
| Feed speed X/Z axis | 15,000 mm/min |
| Main power | 218 kW |
| Machine weight | 55 Ton |
