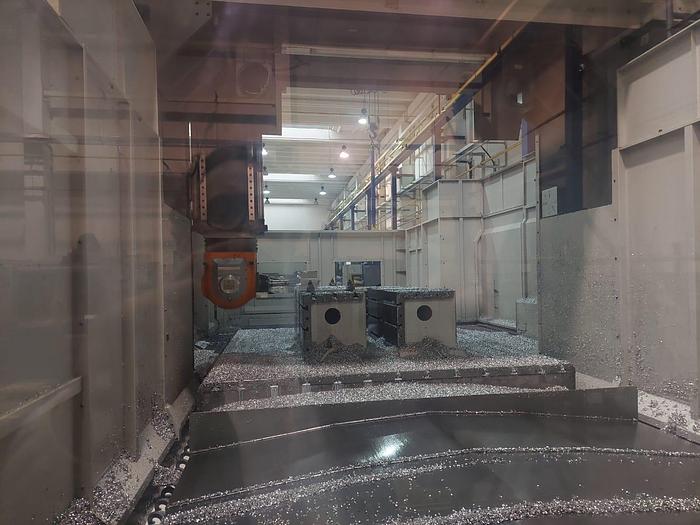

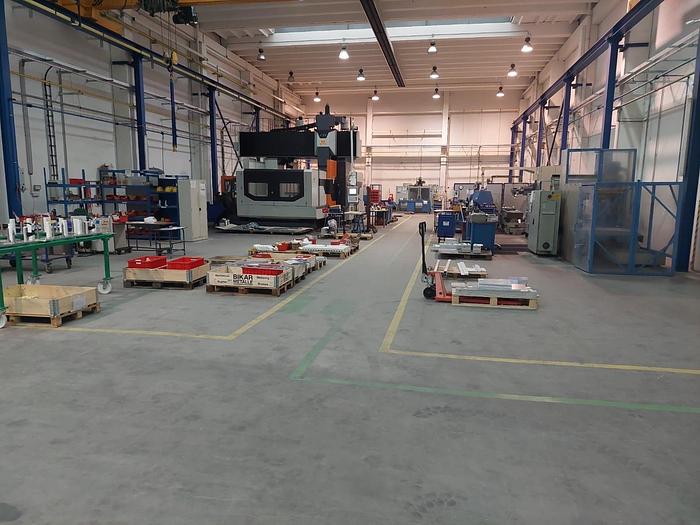

Vision Wide FA 3233 CNC 5-Axis Bridge Type Milling Machine
Vision Wide FA 3233 CNC 5-Axis Bridge Type Milling Machine
orCall 770-509-0744
Description
Heidenhain iTNC 530 CNC Control
5 Axis Continuous and Positioned Axis
Spindle 20,000 rpm (grease) HSK-A63 34/43 Kw - (overhauled at CYTEC in 2022)
Refrigeration and blowing
Table 3000 x 2450 mm with grooves 28 x 11x 200(150) mm – Maximum load 13,000 KgsColumn Distance: 2700 mmZ-Axis Hydraulic BalancingSystem Tool Magazine 24 StationsHelical Conveyors (2) Table Side + ChipConveyor Coolant Center Spindle 20 barAutomatic LubricationSystem Work Light and Lamp 3 ColorsOil Mist Vacuum Oil MistProbe Tool BLUM NT-A4Integral enclosure without roofPortable electronic crank washing gunHeidenhain linear rulers on XYZ axes
RS232 and RJ45 interface SuspendedPperator panel Air conditionerTransformerCE
Specifications
| Manufacturer | Vision Wide |
| Model | FA 3233 |
| Condition | Used |
| Stock Number | 11054 |
| Between columns | 2,700 mm |
| Spindle speeds | 20,000 rpm |
| X axis travel | 3,200 mm |
| Y axis travel | 3,300 mm |
| Z axis travel | 1,200 mm |
| Table size | 3,000 x 2,450 mm |
| Table capacity | 13 Ton |
| Spindle drive power | 34 kW |
| Spindle taper | HSK A63 |
