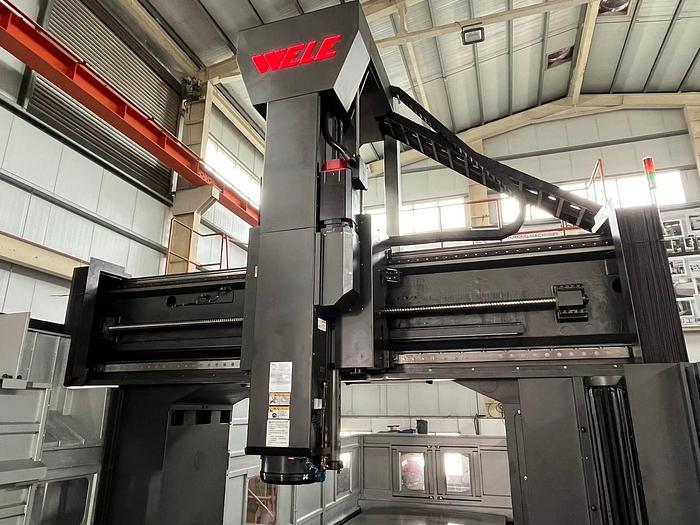

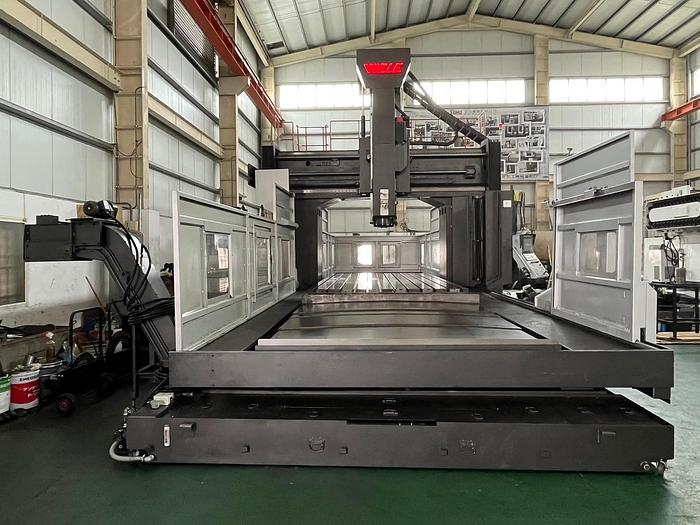

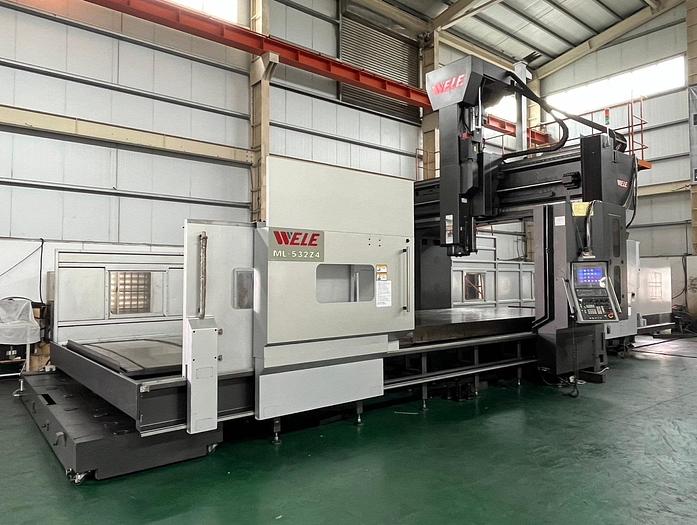

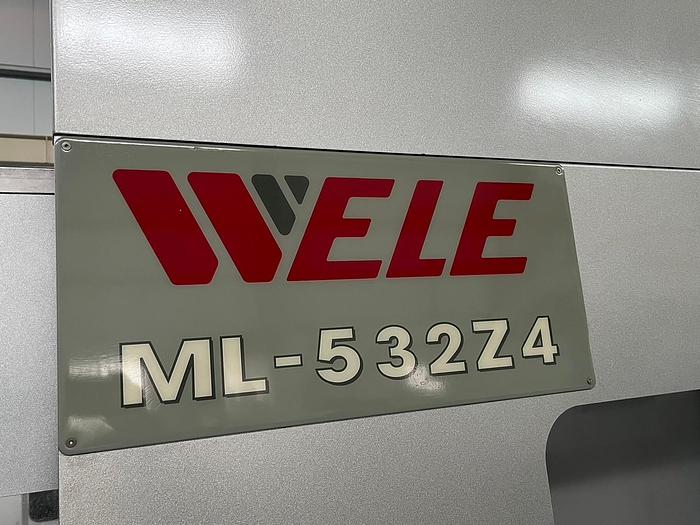

Wele ML-532Z4 CNC 5-Face Double Column Machining Center
Wele ML-532Z4 CNC 5-Face Double Column Machining Center
or
Call 770-509-0744
Description

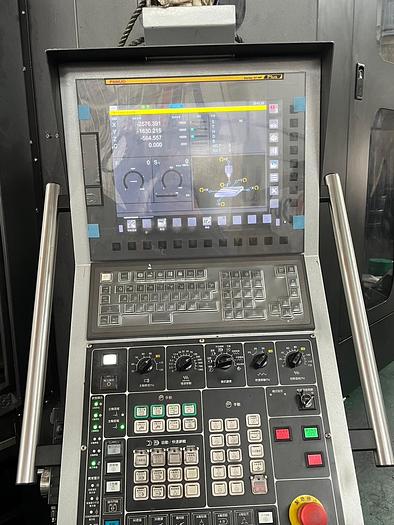

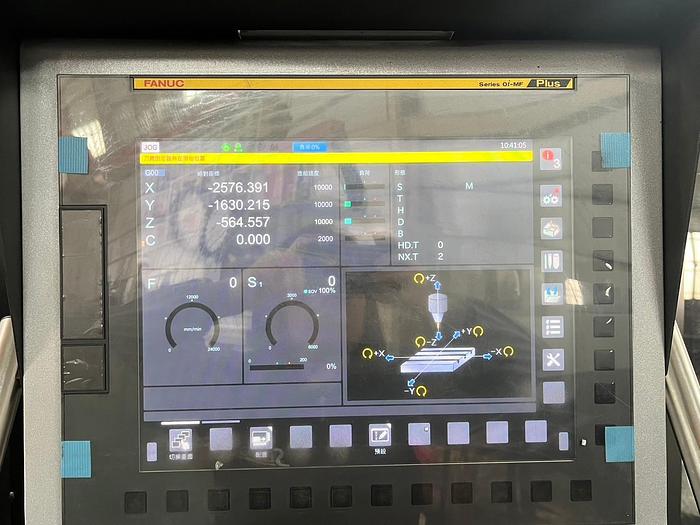

FANUC 0iMF Plus CNC Control (15" LCD)

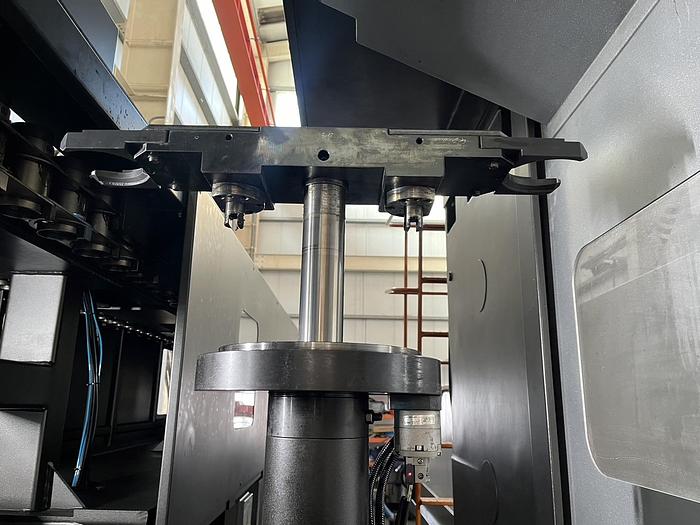

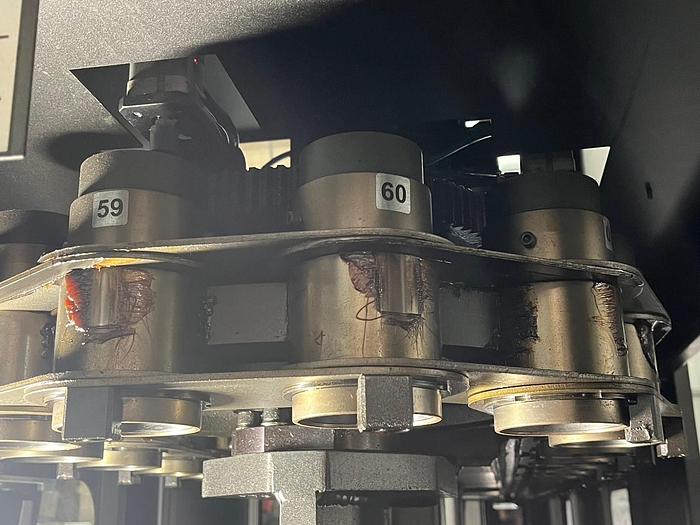

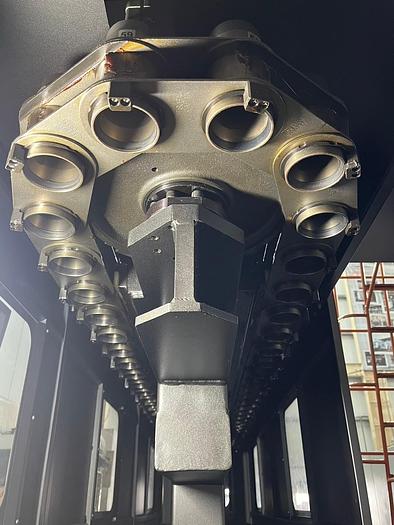

60 Position Automatic Tool Changer

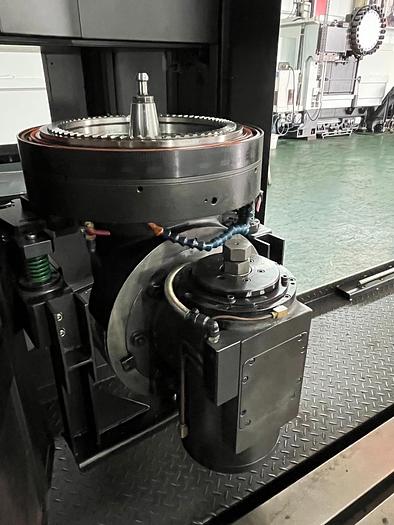

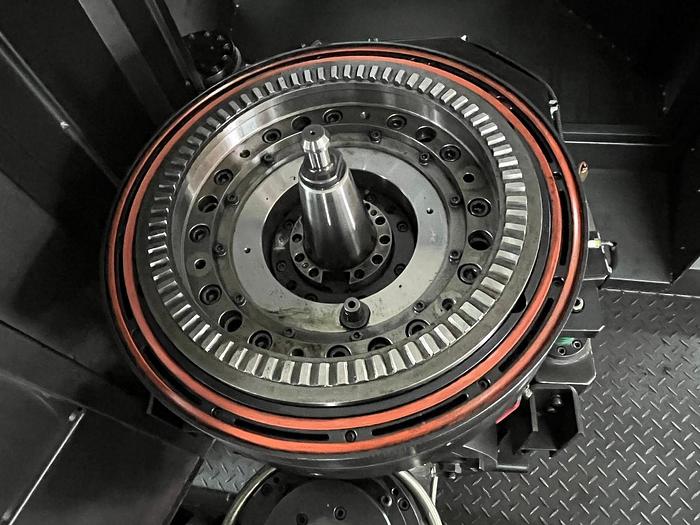

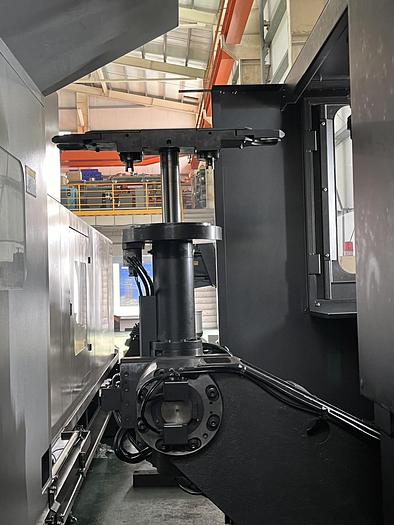

Auto head storage:

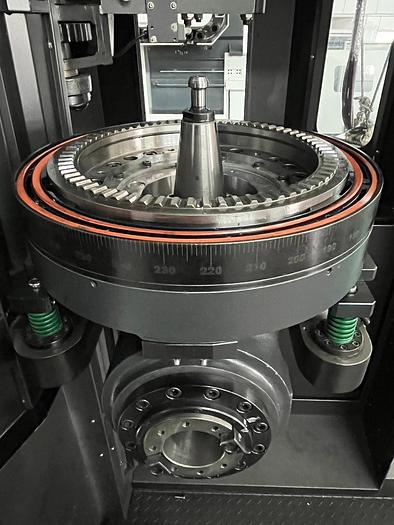

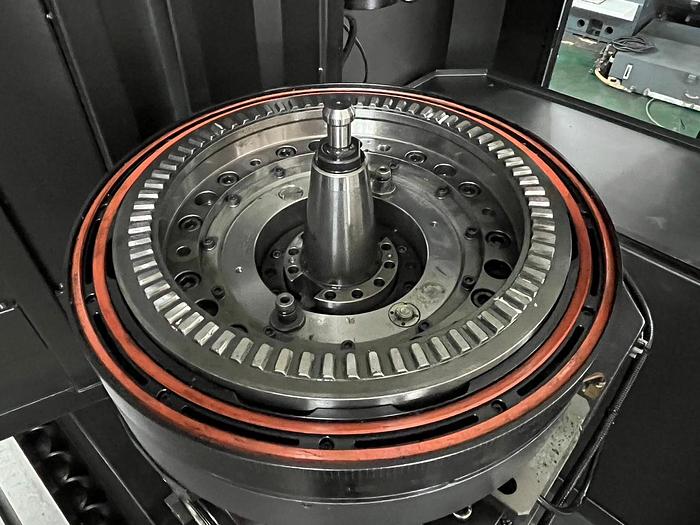

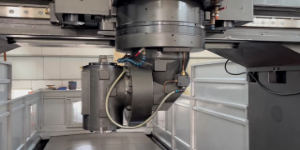

90 degree head (Auto head changing, auto tool changing, C axis auto 5ﾟindexing)
Universal head (Auto head changing, manual tool changing, C axis auto 5ﾟindexing, A axis manual 5ﾟindexing)
X/Y/Z axis linear scales

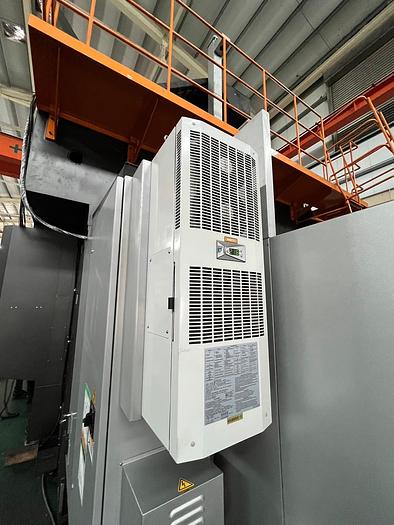

Air conditioner

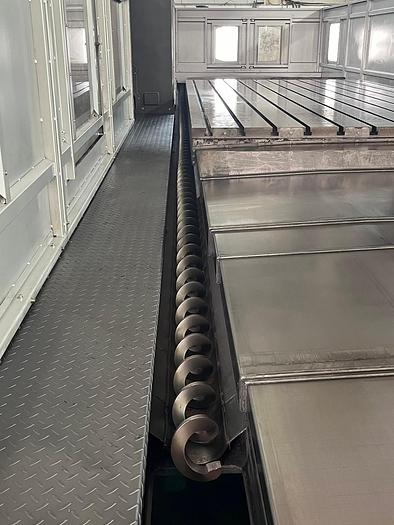

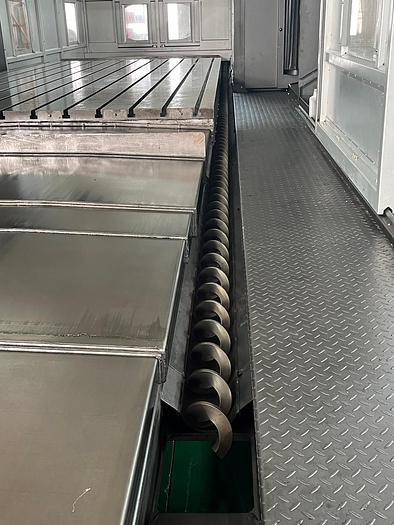

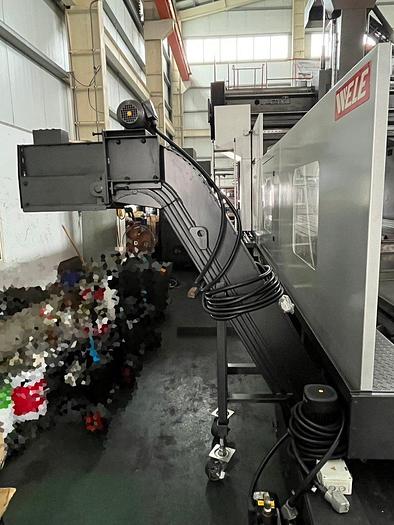

Chip conveyor

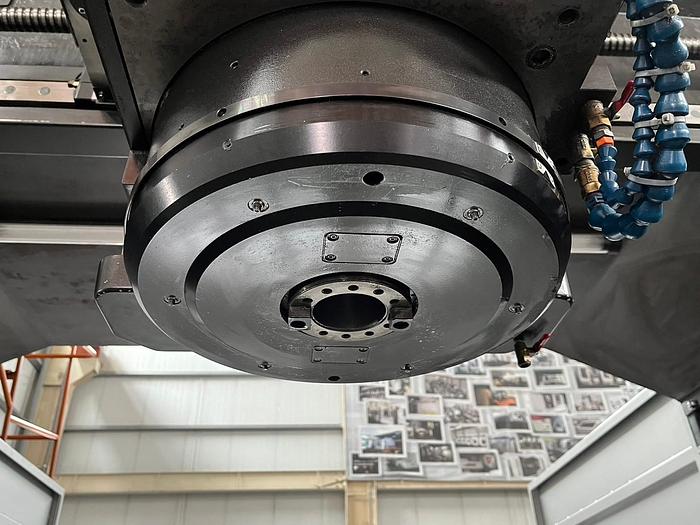

Spindle speed: 6,000rpm (Gear driven)
Spindle nose to table surface: 200-1,600mm
Specifications
| Manufacturer | Wele |
| Model | ML-532Z4 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 11040 |
| Between columns | 2,700 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 1,600 mm |
| X axis travel | 5,060 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 1,400 mm |

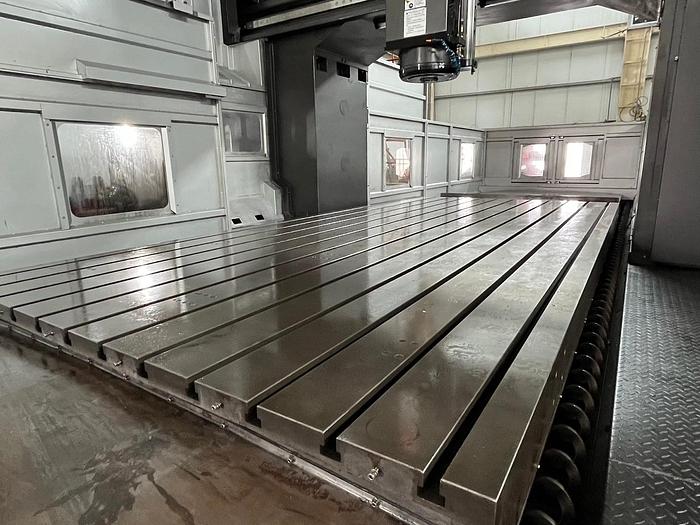

| Table size | 5,000 x 2,400 mm |
| Spindle taper | BBT50 |
