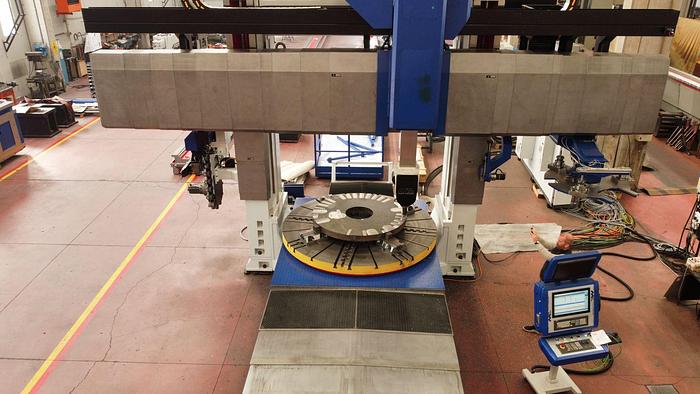

Mario Carnaghi TGP 25/3000 HDD CNC Vertical Boring & Milling Machine with Travelling Table

Mario Carnaghi TGP 25/3000 HDD CNC Vertical Boring & Milling Machine with Travelling Table

Description

NEW Machine Available Immediately

Siemens SINUMERIK 840D SL CNC Control

Live Spindle

41 kW

1,752 Nm

2 Ranges 0 - 4,000 rpm

40 Position Automatic Tool Changer - SK 50

6 Position Magazine Head Changer

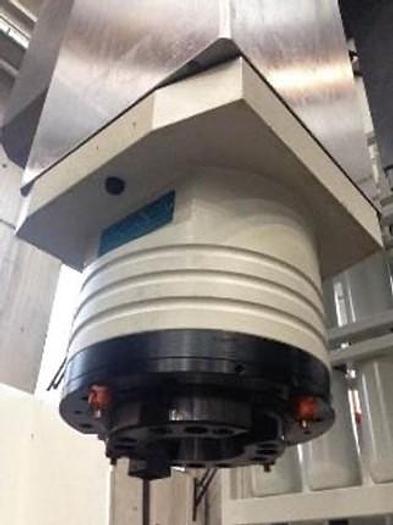

1 Vertical Milling & Drilling Attachment with SK50 Rotating Tools - 4,000 rpm (41 kW - 1,752 Nm)

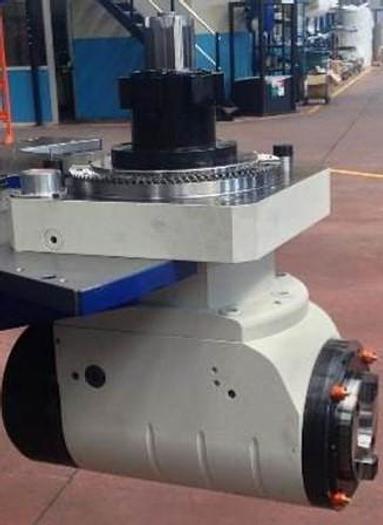

1 Horizontal Milling & Drilling Attachment with SK50 Rotating Tools - 2,500 rpm (41 kW - 1,752 Nm)

Chip Conveyor

The frame is composed by the following items:

the bed

the moving table

the columns

the movable cross-rail

the fix cross rail

nr.2 - 2-range gearbox

CNC-controlled vertical ram head for turning operations, with 1.500 mm ram head stroke

CNC-Numerical Control “SIEMENS SINUMERIK 840D SL” for the control of 4 axes (“X”, “Z”, “Y”, “C” - “A” axis indexed offered as optional)

Cross-rail accurate alignment and repeatability device

Steel telescopic covers on cross-rail, bed and columns

Hydraulic ram balancing

Lubrication and hydraulic systems

Tool cooling equipment

Protection guards

Specifications

ManufacturerMario Carnaghi
ModelTGP 25/3000 HDD
Year2023
ConditionUsed
Stock Number11038
Table diameter2,500 mm
Swing3,000 mm
Turning height2,000 mm
Table capacity35 Ton
Table turn speed180 rpm
Live spindle speed4,000 rpm
Z axis travel1,500 mm
W axis travel1,200 mm (Indexing every 200 mm)
X axis travel-1,500 / +2,000 mm
Live spindle motor41 kW
Spindle taperSK 50
Ram size250 x 250 mm
