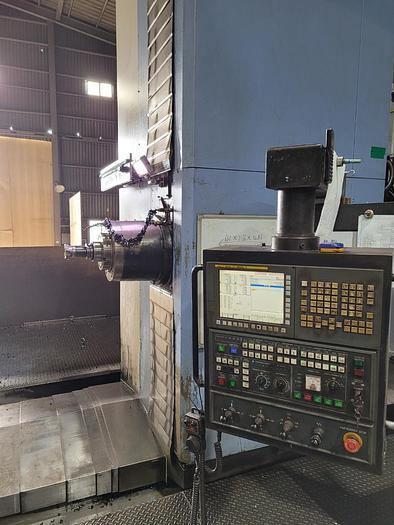

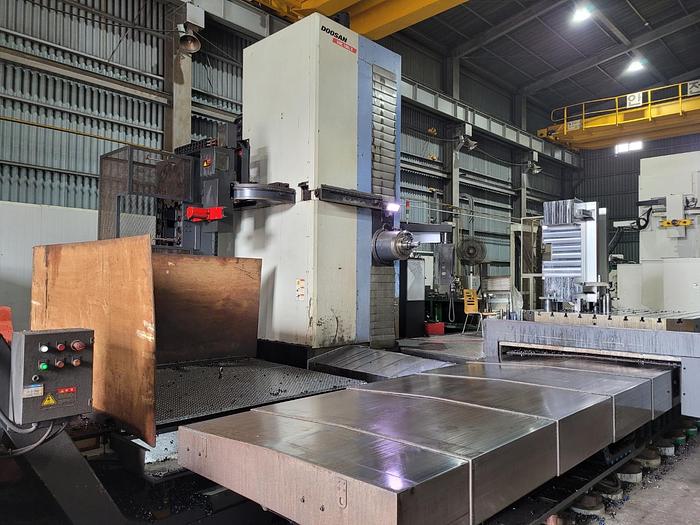

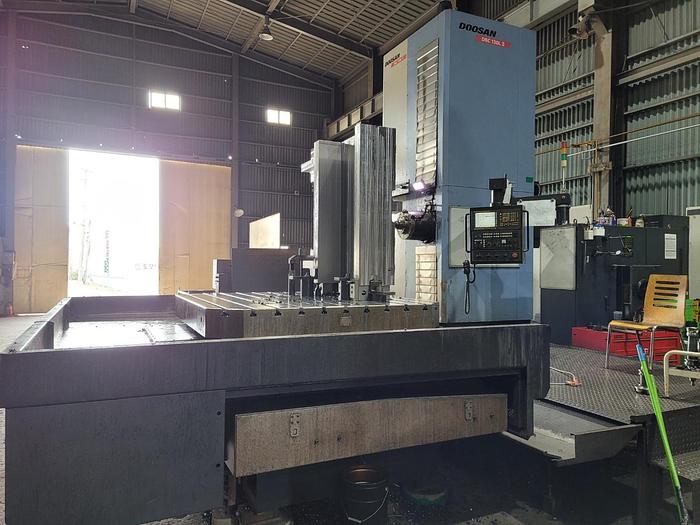

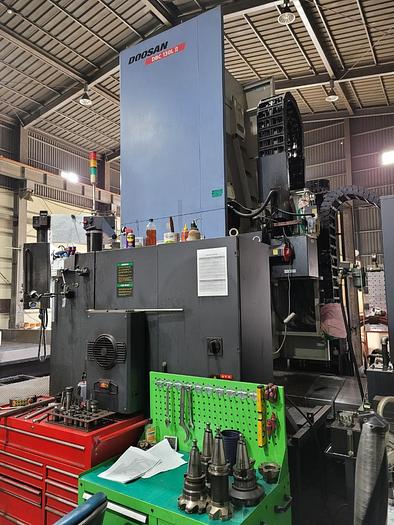

Doosan DBC 130 LII CNC Table Type Horizontal Boring Machine
No longer available
Doosan DBC 130 LII CNC Table Type Horizontal Boring Machine
Description

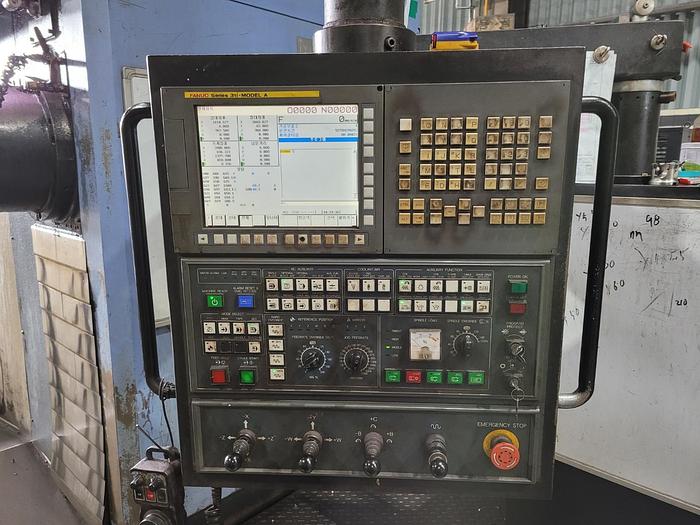

Fanuc 31iA CNC Control
40 Position Automatic Tool Changer
Linear scale X,Y & Z Axis
Chip Conveyor
Specifications
| Manufacturer | Doosan |
| Model | DBC 130 LII |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11033 |
| Spindle diameter | 130 mm |
| Spindle speeds | 2,500 rpm |
| X axis travel | 4,000 mm |
| Y axis travel | 2,500 mm |
| Z axis travel | 2,000 mm |
| Table dimensions | 1,800 x 2,000 mm |
| Table capacity | 19 Ton |
| Quill diameter | 240 mm |
| W axis travel | 700 mm |
| Spindle taper | ISO 50 |
| Table indexing | 0.001° |
| Rapid traverse X/Y/Z | 10 m/min |
| Rapid traverse W | 6 m/min |
| Feed speed | 1 - 4,000 mm/min |
| Motor power | 22 / 26 kW |
| Electrics | 220 V, 3P, 50/60 HZ |
| Machine weight | 48 Ton |
