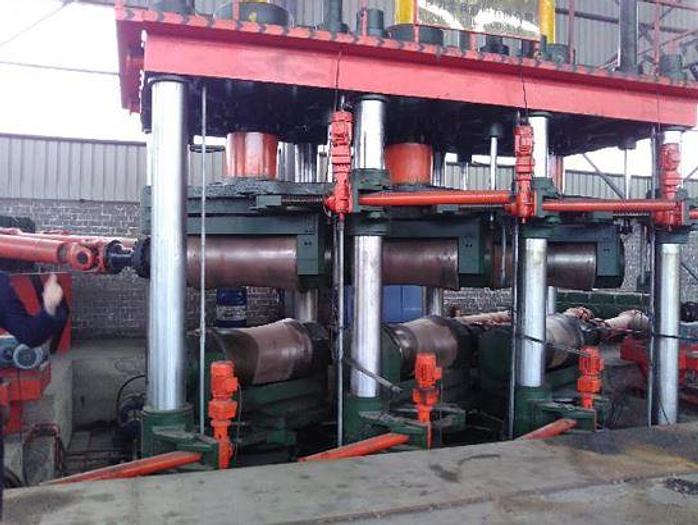

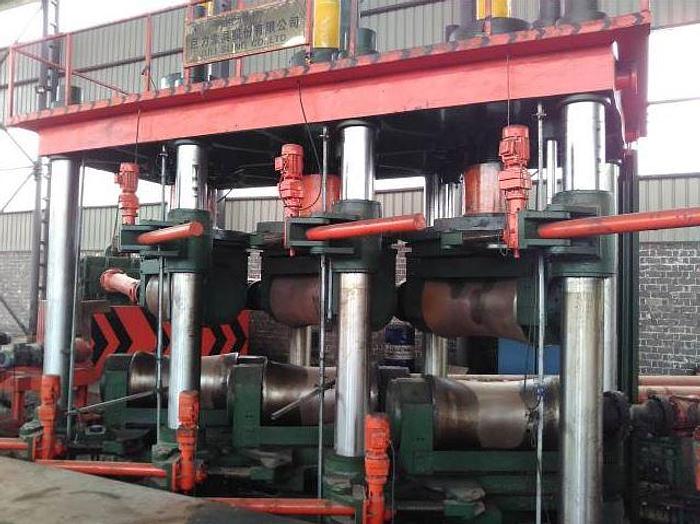

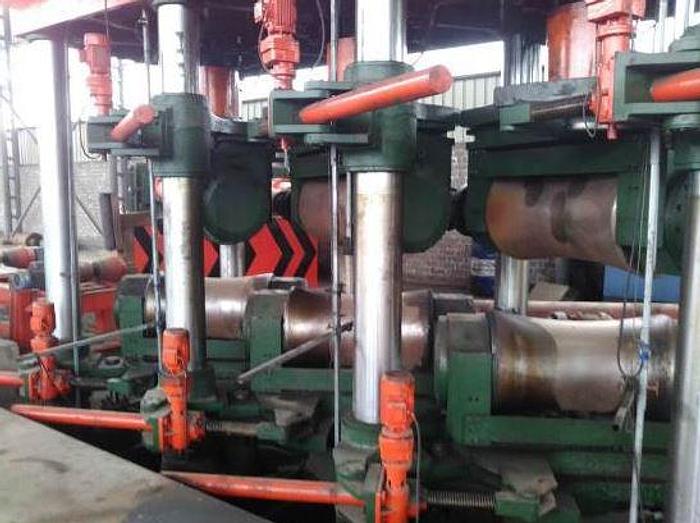

Pipe Straightening Machine 325 – 920 mm
Pipe Straightening Machine 325 – 920 mm
or
Call 770-509-0744
Specifications
| Condition | Used |
| Stock Number | 10310 |
| Steel grade | Q235B, Q345B |
| Pipe od | 325 - 920 mm |
| Pipe wall thickness | 8 - 25 mm |
| Pipe length | 6,000 - 12,000 m |
| Pipe straightness max | 30 mm / 12,000 mm |
| Pipe weight | 2,160 - 6,600 kg |
| Surface quality after straightening | Without Dent & Damage on the Surface |
| Straightening speed - max | 18 m/min |
| Straightness after straightening | ≤0.2% (2mm / 1,000 mm) |

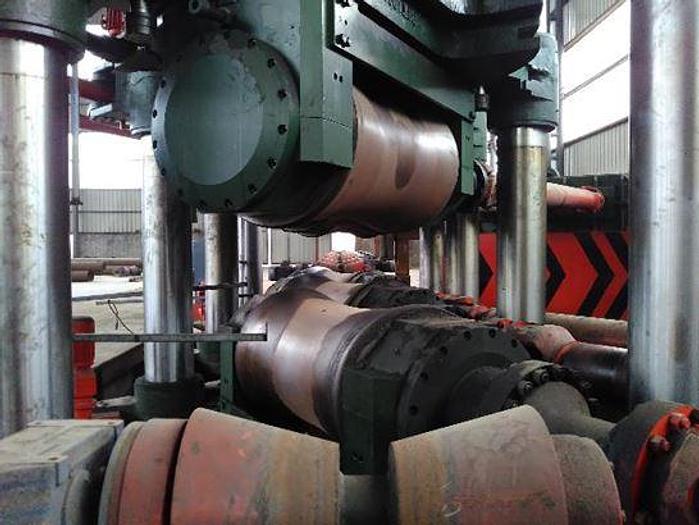

| Distance of working roller | 2 x 1,800 mm |
| Working roller number | 6 |
| Roller arrangement | 2-2-2, Top 3, Down 3, Full Transmission |
| Working roller - throat diameter | 600 mm |
| Working roller - roller length | 1,200 mm |
| Install angle | 31° |
| Angle adjusting range | 26° - 36° |
| Material of roller | High-Chromium Alloy |
| Top roller series electrical adjustment - stroke | 600 mm |
| Adjust motor x 3 - power / rotary speed | 7.5 kW / 1,440 r/min |
| Top roller locking cylinder x 7 - diameter of cylinder/rod | 160 mm / 80 mm |
| Top roller locking cylinder stroke | 600 mm |
| Bottom roller electrical adjustment stroke | ±20 mm |
| Adjutsment motor power / rotary speed | 5.5 kW / 1,500 r/min |
| Bottom roller locking cylinder x 6 diameter of cylinder / rod | 160 mm / 80 mm |
| Working angle adjusting motor x 6 power | 1.5 kW |
| Major transmission motor x 2 power | 220 kW |
