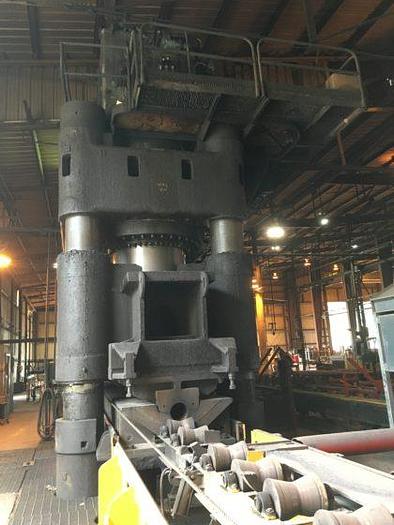

Bliss HS-5000 Ton Hydraulic Press
Bliss HS-5000 Ton Hydraulic Press
orCall 770-509-0744
Description
Size & Make of Pumps – Two Vickers PV-2125 & One Tuthill 6-0
Size & Make of Motor – Two West. 150 HP, One West. 5 HP 7 Four West 10/2.5 HP
Make & Type of Valves
Bliss – Air ControlHPV-13379
Bliss – Speed Change BA-04127
Bliss – Operating BA-03535
Bliss – Holding BA-03550
Bliss – 2” Check BA-00293
Bliss – Stop HPD-13834
Bliss – Prefill BA-04480
Bliss – Prefill BA-04480
Vickers – Relief CF-16-CV-10
Oil Filter – Cuno EGLF-1
Oil Cooler – Harrison HE-80
Amount & Grade of Oil – 2,000 gal 315 SSU @ 100 Degree F
Press Speeds – Inches Per Minute
Quick Advance – 200 ipm
Pressing – 12 ipm
Return – 200 ipm
Specifications
| Manufacturer | Bliss |
| Model | HS-5000 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 10393 |
| Capacity | 5,000 Ton |
| Distance floor to top of bed | 457 mm |
| Dimensions of bed f to b & r to l | 2,438 x 4,343 mm |
| Diameter of hole in bed | None |
| Thickness of bolster | 330 mm |
| Dimensions of bolster, f to b & r to l | 1,460 x 3,810 mm |
| Diameter of hole in bolster | None |
| Distance bed to slide - minimum | 457 mm |
| Distance bed to slide - maximum | 1,524 mm |
| Stroke - maximum | 1,067 mm |
| Dimensions of slide, f to b & l to r | 2,438 x 4,369 mm |
| Diameter of main ram | Two - 1,320 mm |
| Overall height of press | 8,382 mm |
| Projected floor space, f to b & l to r | 8,026 x 13,868 mm |
| Pad size | 305 x 1,220 x 2,740 mm |
| Approximate weight of press | 349,270 kg |
