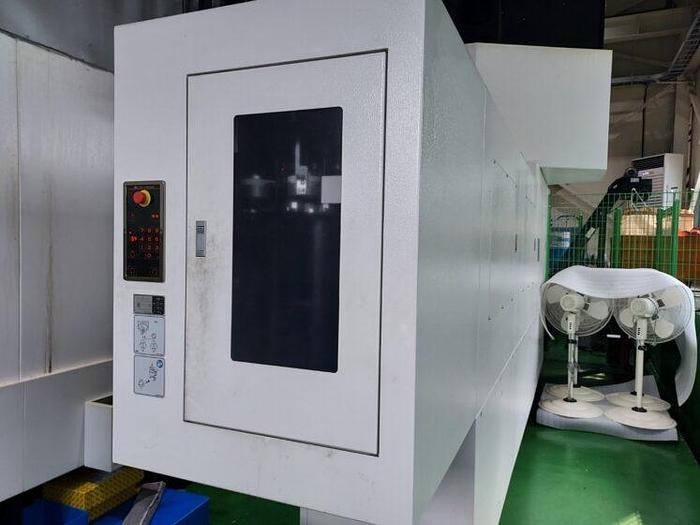

Mazak Versatech V-100N200 CNC Double Column 5-Axis Machining Center
![Used Mazak Versatech V-100N200 CNC Double Column 5-Axis Machining Center](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/2b249a7a30e17bde9149ca451ec5772b/large-Mazak-b-747x560.jpg)
Mazak Versatech V-100N200 CNC Double Column 5-Axis Machining Center
orCall 770-509-0744
Description

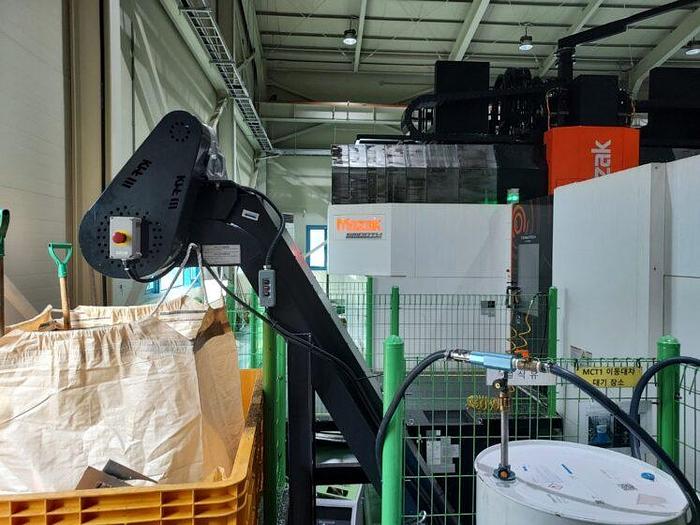

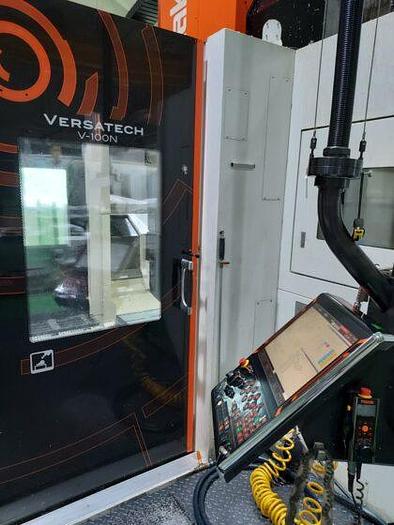

Mazatrol SmoothX Simultaneous 5-Axis CNC Control Automatic Tool Changer Chip Conveyor Relocation Detector Auto Tool Length Measurement & Break Detection Scale Feedback System for X,Y,Z, W Axes Coolant Temp. Control System High Pressure Coolant Through Spindle (1.5 MPA, 217.5 PSI) Maximum Program Size – 32 MB Work Setting Error Compensation Multi-face Vertical/Horizontal Machining C-Axis Rotation Continuous for Full 5-Axis Machining Expansive Tool-Storage Capacities High Speed, High Accuracy, High Rigidity Multiple Spindle Speed Options Available
Specifications
Manufacturer | Mazak |
Model | Versatech V-100N200 |
Year | 2017 |
Condition | Used |
Stock Number | 10740 |
Between columns | 2,750 mm |
Spindle speeds | 10,000 rpm |
Machining height | 1,880 mm |
X axis travel | 5,000 mm |
Y axis travel | 3,600 mm |
Z axis travel | 710 mm |
Table dimensions | 2,100 x 4,000 mm |
Table capacity | 43 Ton |
B axis contouring | -100 ~ +100 Degree |
C axis contouring | +/- 180 Degree |
T-slot | 9 x 24 mm, 250 mm Pitch |
Taper | 7/24 Taper No. 50 |
Ram size | 450 x 450 mm |
Ram guide surface | 4-Sided Restraint |
Indexing (b,c) | 0.0001 Degree |
Indexing time (b) | 2.3 sec (90 Degree) |
Indexing time (c) | 3.0 sec (180 Degree) |
Motor (25% ed / continuous) | 36/30 kW |
Rapid feed rate x,y,z | 30 m/min |
Rapid feed rate w | 3 m/min |
Cutting feed rate x,y,z | 8 m/min |
Machine dimensions | 7,550 x 12,525 x 6,650 mm |
Machine weight | 65,200 kg |
