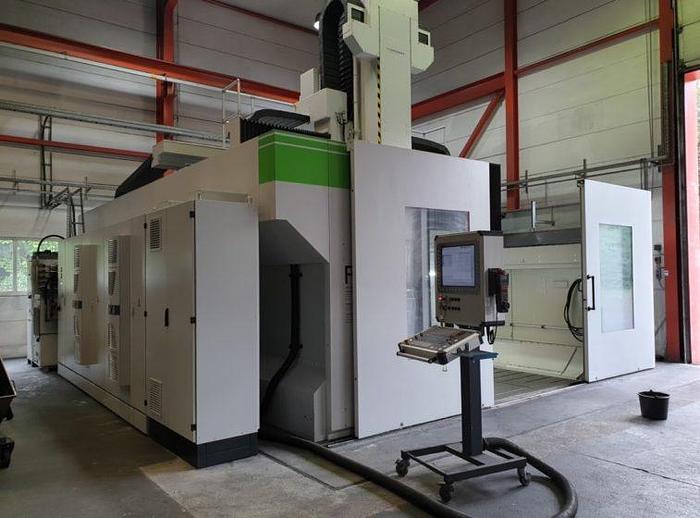

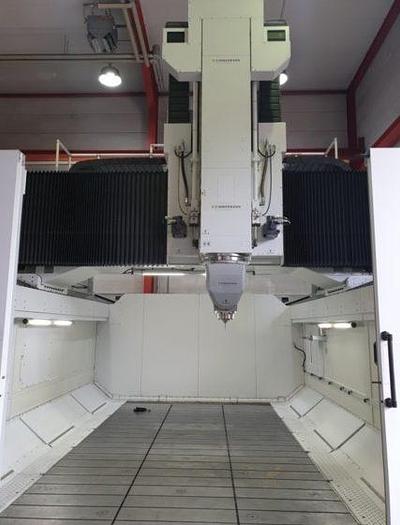

Zimmermann FZ 37 CNC Portal Type Machining Center
No longer available
Zimmermann FZ 37 CNC Portal Type Machining Center
Description

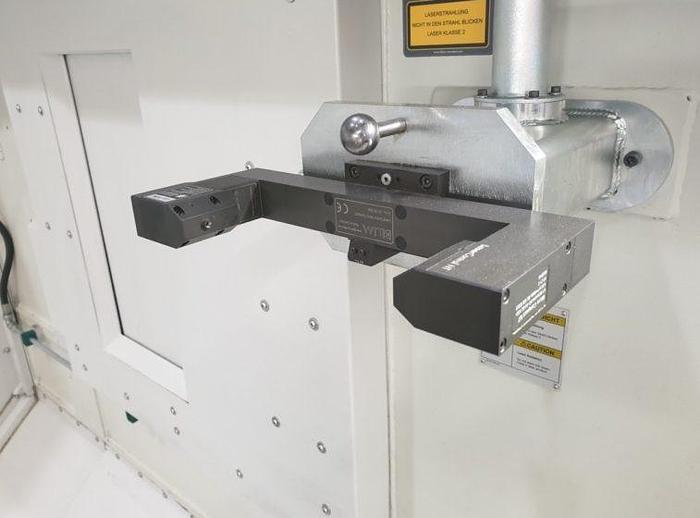

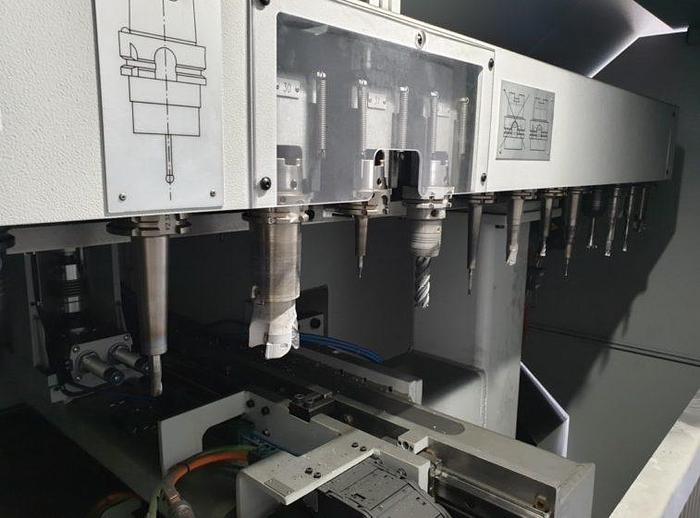

Heidenhain TNC CNC Control 50 Position Tool Change Unit FS Radio Heidenhain HR 550 Renishaw RMP 60Q Probe Tool Measurement: Blum Control NT-Micro Minimal Lubrication Blown Air IKZ 70 bar Maximum Table Load: 5 kg/m2
Specifications
| Manufacturer | Zimmermann |
| Model | FZ 37 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 10751 |
| Spindle speeds | 20,000 rpm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 5,700 x 3,000 mm |
| Table capacity | 5 kg/m2 |
| C axis | +/- 360 Degree |

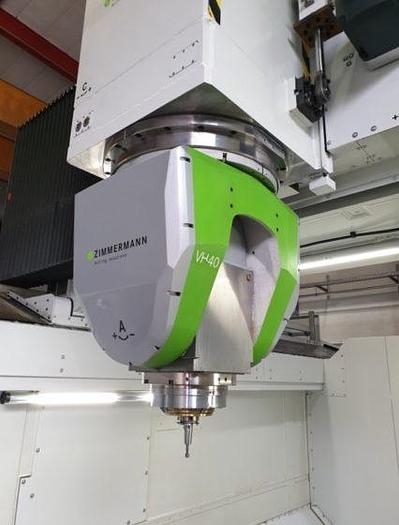

| Head swivability | +/- 110 Degree |
| Max torque on the spindle | 119 NM |
| Feed speed | 60 m/min |
| Machine weight | 74 Ton |
| Machine dimensions | 9.3 x 5.9 x 5.9 m |
