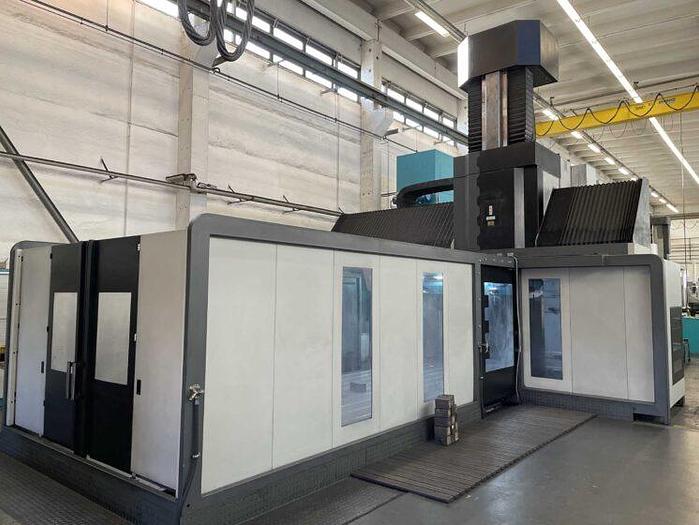

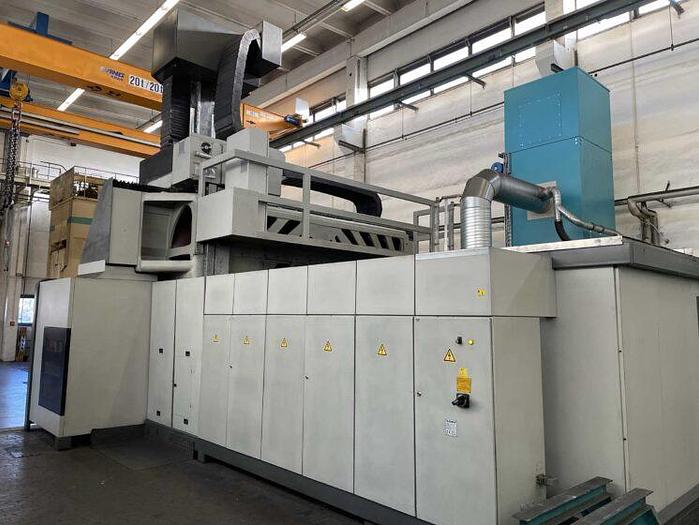

Zayer TEBAS 5000 CNC Bridge Type Milling Machine
Zayer TEBAS 5000 CNC Bridge Type Milling Machine
orCall 770-509-0744
Description
Heidenhain iTNC-530 HSCI CNC Control Heads with Automatic Head Changer: Universal Auto Indexing Head 45° – 0.001°/0.001° Taper DIN 69871 AD 50 Spud ISO 7388-2 B 50 Spindle Speed 6,000 rpm Speed Ranges 3 Main Spindle Power 43 kW Direct Output Head Reduction 1:2, 29 Taper DIN 69871 AD 50 Spud ISO 7388-2 B 50 Spindle Speed 2,000 rpm 20 Position Tool Changer Magazine Internal 20 Bar and External Coolant (2) Two Longitudinal Chip Conveyors (1) One Cross Chip Conveyor Knoll Coolant System Integral Protecting Guards without Ceiling ICAL System for Head Calibration Portable Handwheel Part Touch Probe – M&H PS 20.41 Water Gun to Clean Parts Lamp Under the Bridge
Specifications
| Manufacturer | Zayer |
| Model | Tebas 5000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 10944 |
| Between columns | 3,000 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 1,410 mm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,750 mm |
| Z axis travel | 1,250 mm |
| Table dimensions | 5,200 x 2,200 mm |
| Table capacity | 25 Ton |
| Machining height direct exit head nose to table in vertical position | 1,420 mm |
| Rapid traverse | 50,000 mm/min |
| Max working feeds | 30,000 mm/min |
| Machine power | 122.89 kVA |
| Machine weight | 33 Ton |
