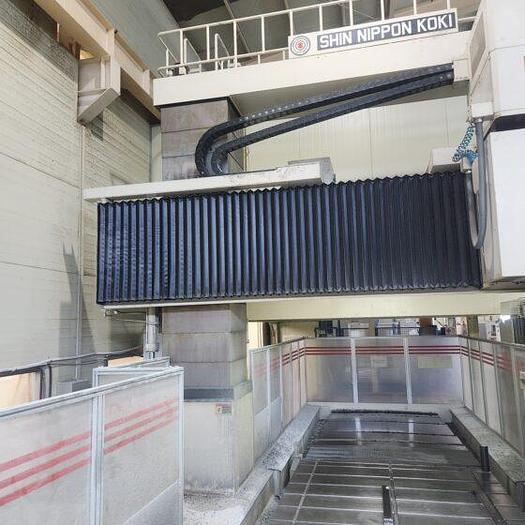

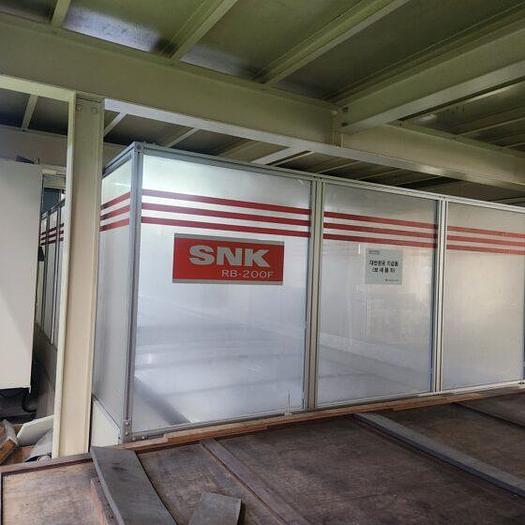

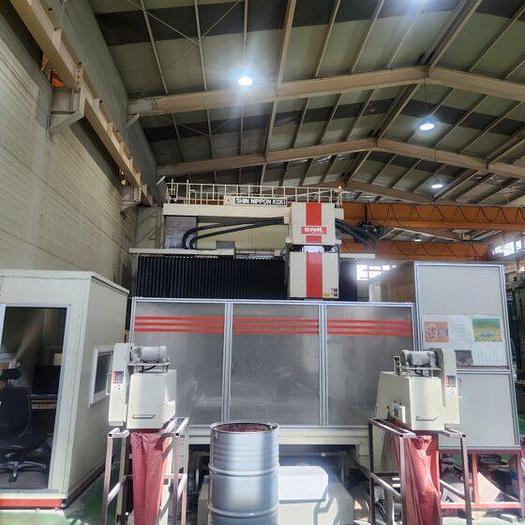

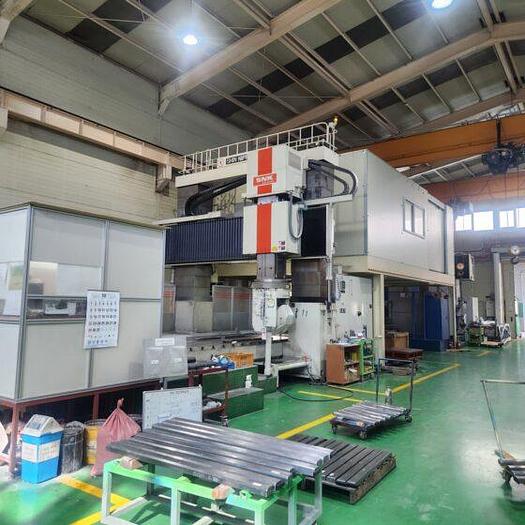

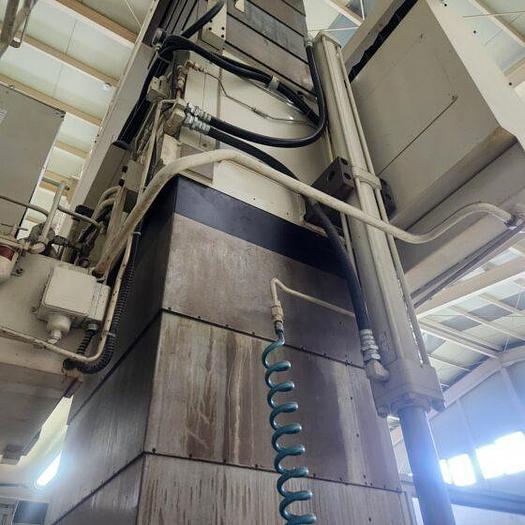

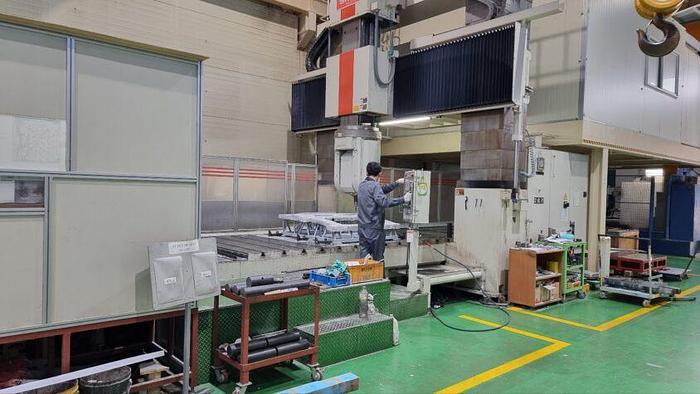

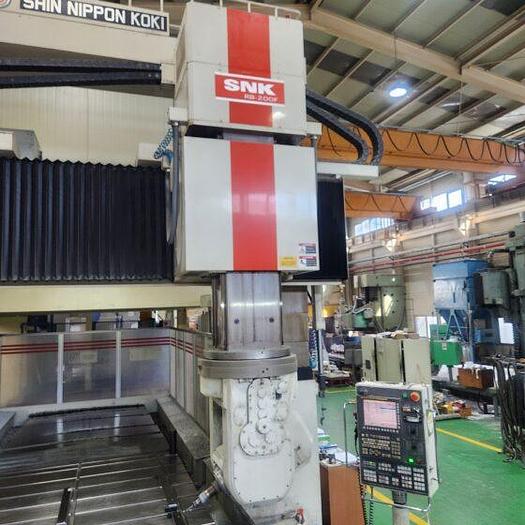

SNK RB200F CNC Double Column 5-Axis Multi Center Milling Machine

SNK RB200F CNC Double Column 5-Axis Multi Center Milling Machine

orCall 770-509-0744

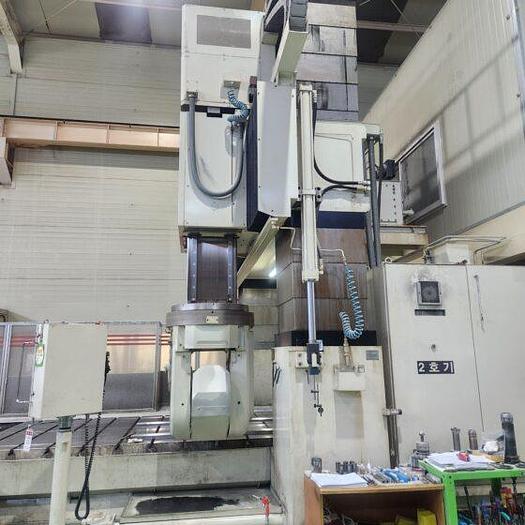

Fanuc 30iA CNC Control Continuous 5-Axis Machining & Index 5-Axis Machining 2 Axis Head C Axis Spindlehead Rotation ±360° Continuation B Axis Spindlehead Tilting ±110° Spindle Nose BIG PLUS Tool Holder Chip Conveyor (2 Conveyor Type) Mist Coolant Cutting Air Blow Device Three-Lamp Indication Light Scales Feedback for X,Y,Z,B & C Axes Automatic Tool Length Measuring Function (Touch Type) Broken Tool Detection (Touch Type) Portable Type Manual Handle Operation Panel with Coordinate Display Movable Operation Pendant Special Software for Index Head


Stock Number11001
Between columns2,850 mm
Spindle speeds8,000 rpm
Machining height 1,450 mm
X axis travel4,250 mm
Y axis travel2,900 mm
Z axis travel600 mm
Table dimensions4,000 x 2,000 mm
Table capacity15 Ton
W axis travel850 mm
B axis spindle head tilting±110°
C axis spindle head rotation (continuous)±360°
Ram size450 x 450 mm
Distance from b axis tilting center to spindle end300 mm
Spindle bearing bore diameter90 mm
Spindle nose taperISO 50
Spindle drive motor low speed area - vac18.5 / 22 kW
Spindle drive motor high speed - vac25 / 30 kW
X & y axis rapid traverse20 m/min
Z axis rapid traverse6 m/min
W axis rapid traverse3 m/min
B & c axis rapid traverse3,600 deg/min
Cutting feed z & w axis1 - 10,000 mm/min
