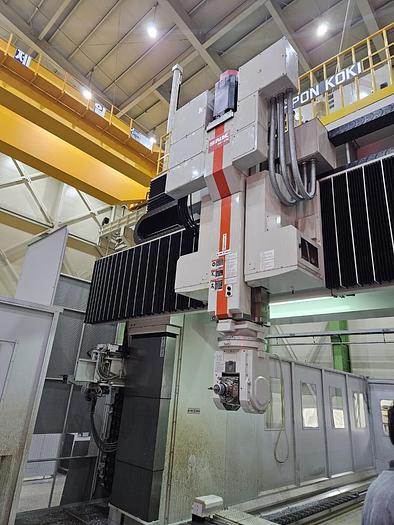

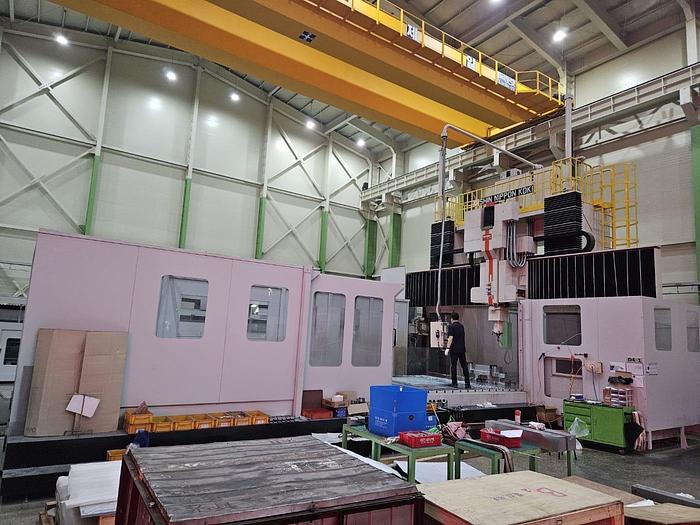

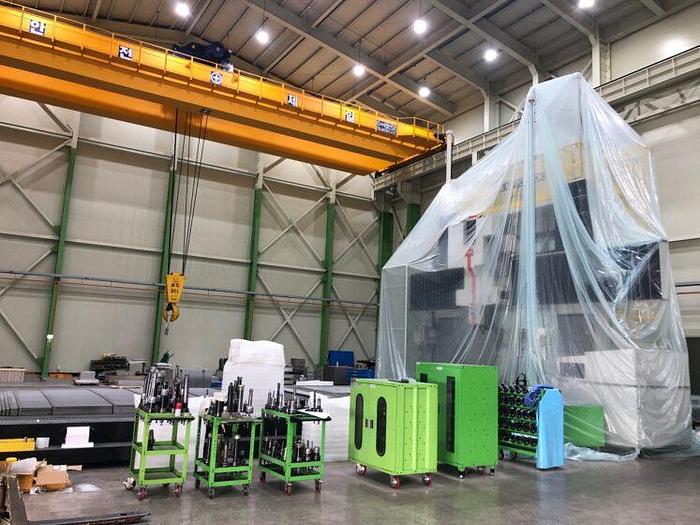

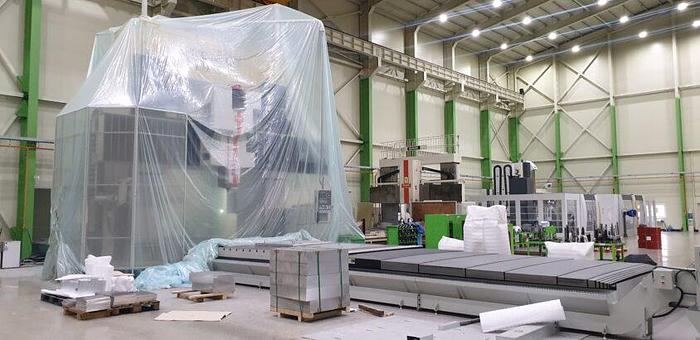

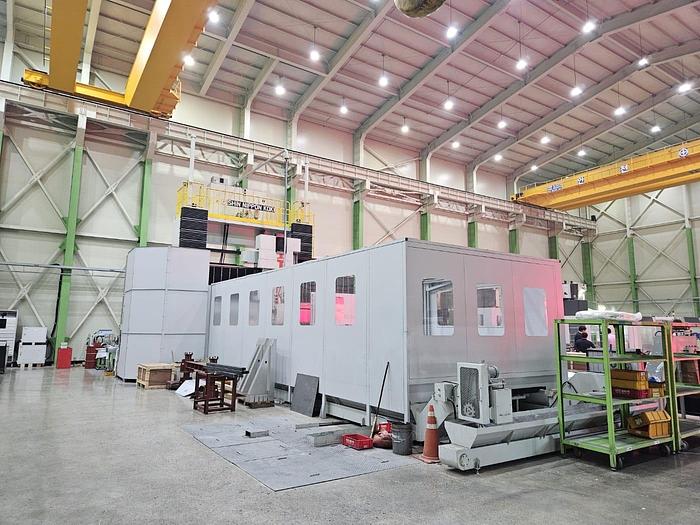

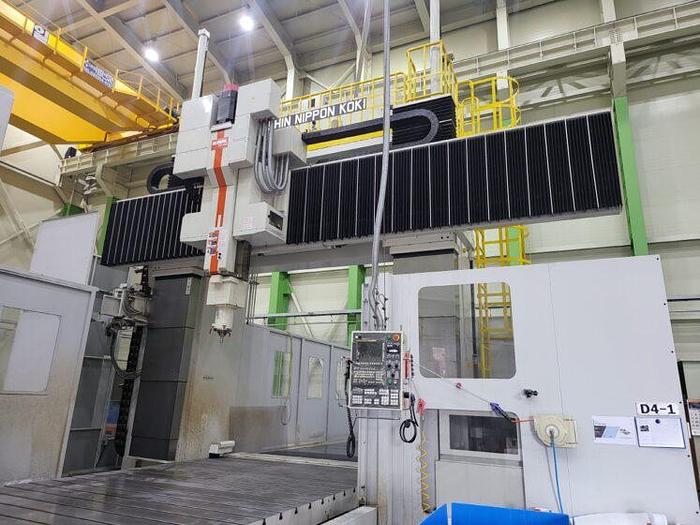

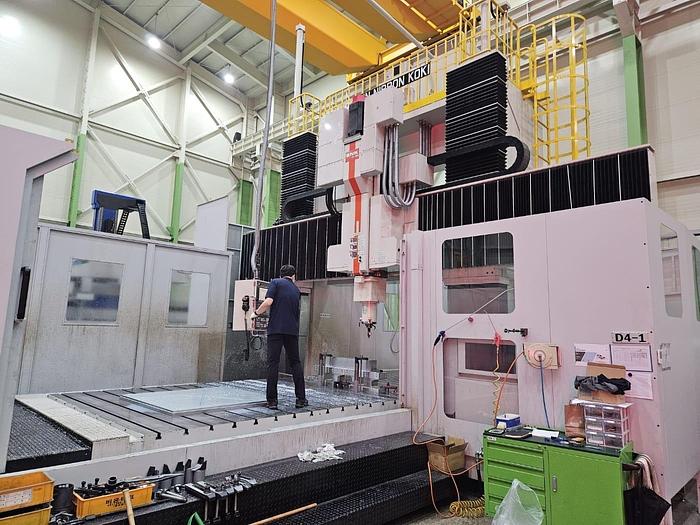

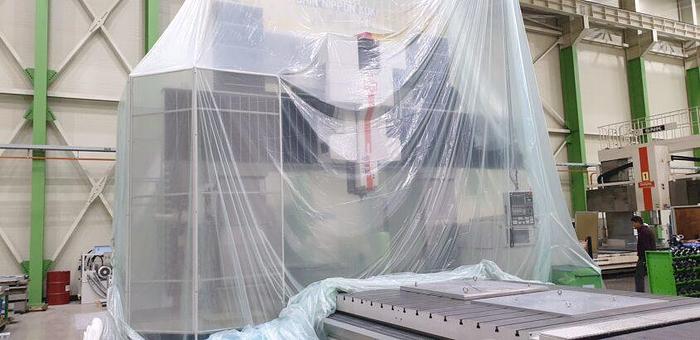

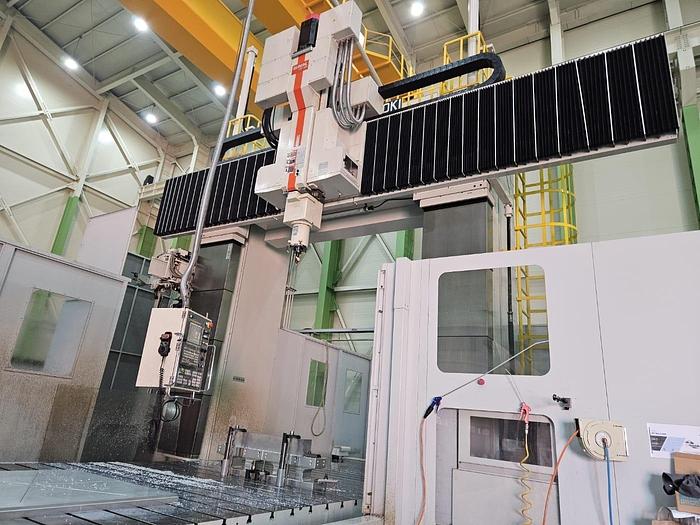

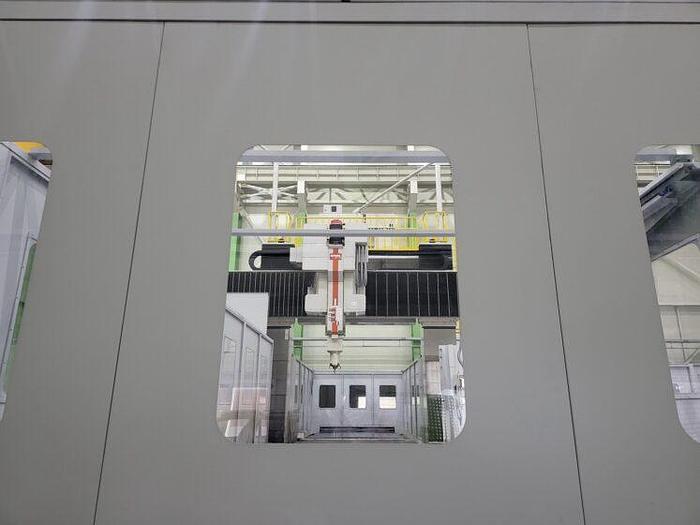

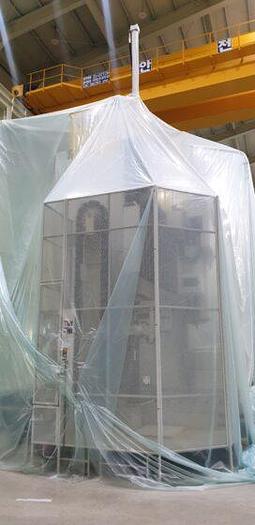

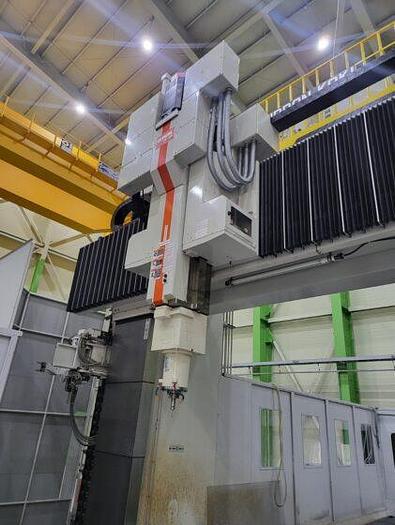

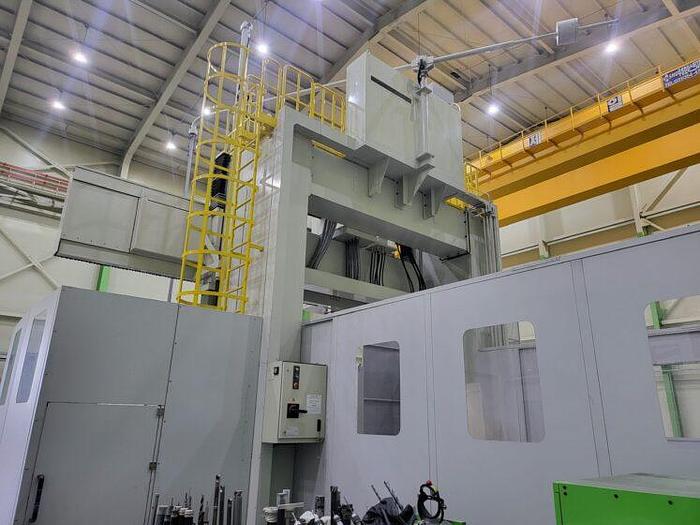

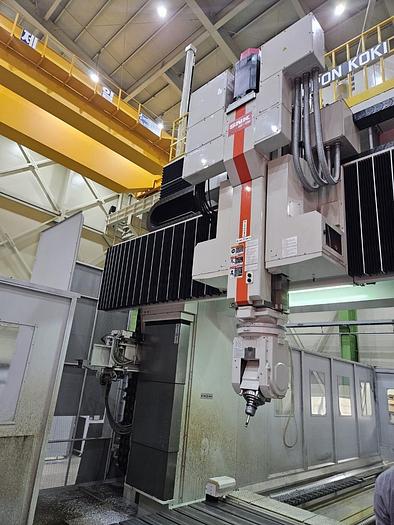

SNK HF-6M CNC Double Column Bridge Type Multi Center
SNK HF-6M CNC Double Column Bridge Type Multi Center
orCall 770-509-0744
Description

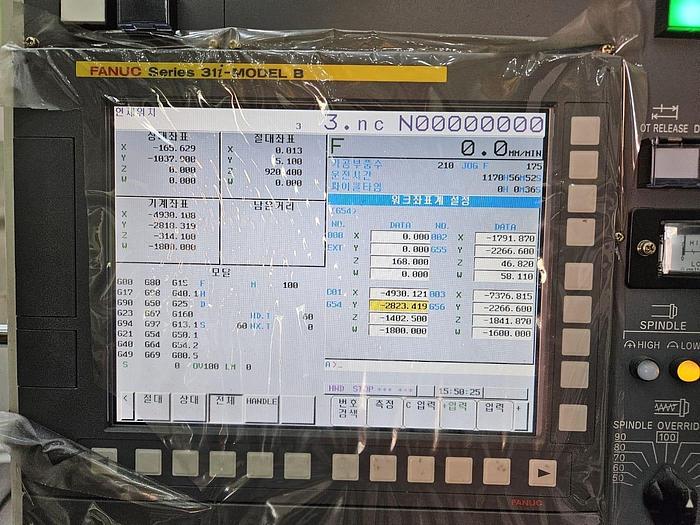

Fanuc 31i CNC Control 60 Position Automatic Tool Changer

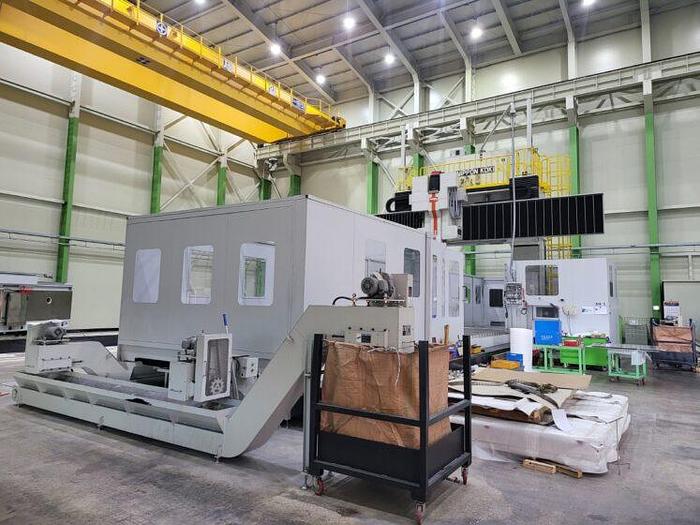

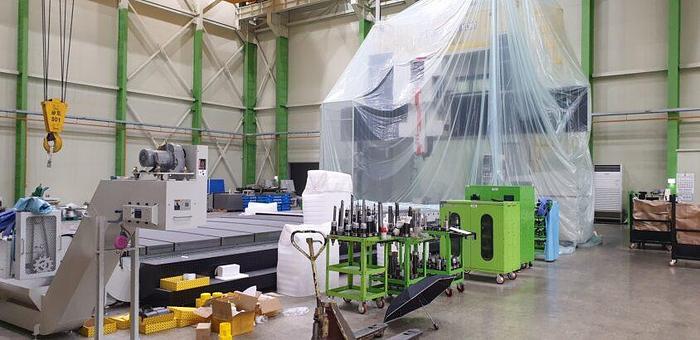

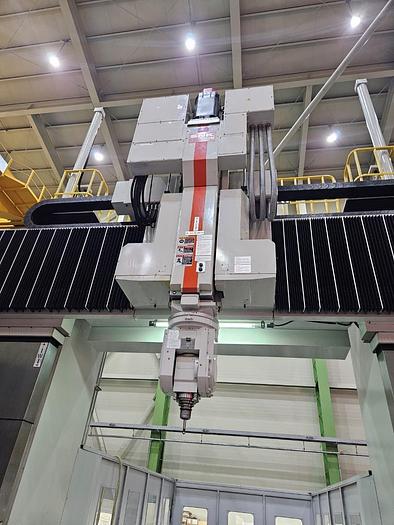

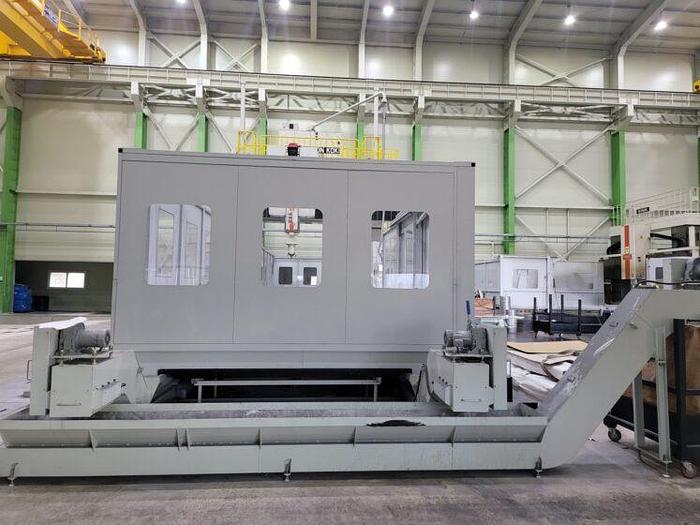

Spindle Speed 30 - 3,000 rpm AAC (Automatic Attachment Changer) 3 Attachments plus 1 Dust Cover 90 degrees Angular Attachment L = 300 – L = 500 mm Attachment Indexing Function at Every 5 deg. Extension Attachment (L = 700 mm) Center Swing Attachment 5-Face Cutting Software Spindle Through Coolant (For 90 Deg. Attachment) Manual Tool Axis Movement Function (Handle Free Type) Air Blow Devise Spindle Overload Preventing Function Cycle Completion Indication Light Run Hour Display Low Oil Level Alarm For High Pressure Hydraulic Unit Chip conveyor (Two Conveyor Type)
Specifications
| Manufacturer | SNK |
| Model | HF-6M |
| Year | 2017 |
| Condition | Used |
| Stock Number | 11025 |
| Between columns | 3,500 mm |
| Spindle speeds | 3,000 rpm |
| Machining height | 3,500 mm |
| X axis travel | 9,250 mm |
| Y axis travel | 4,200 mm |
| Z axis travel | 1,000 mm |
| Table size | 3,000 x 8,000 mm |
| Table capacity | 40 Ton |
| W axis travel | 2,200 mm |
| Z + w axis (ram + crossrail) | 3,200 mm |
| Spindle drive motor | VAC 37/30 kW |
| Spindle taper | ISO 50 |
