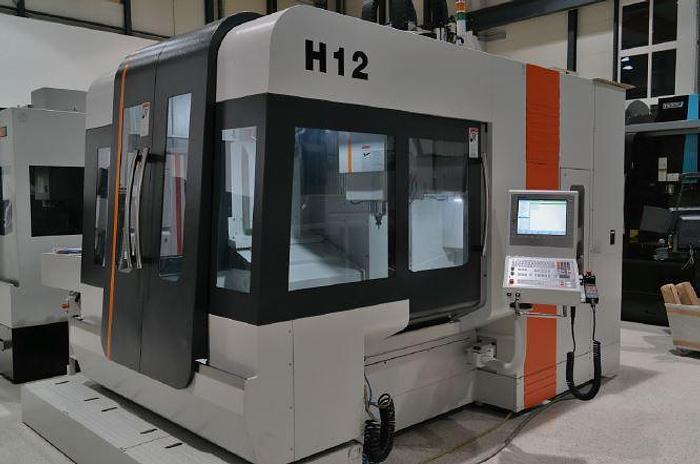

Takumi H12 3-Axis CNC Milling Machine
Takumi H12 3-Axis CNC Milling Machine
orCall 770-509-0744
Description

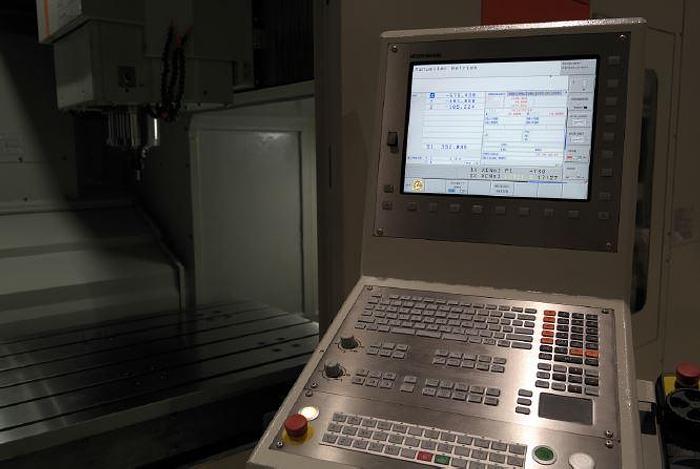

Heidenhain iTNC 530 CNC Control 30 Position Automatic Tool Magazine Chip Conveyor Coolant Through Spindle – 20 bar Direct Scales in X/Y/Z Active Spindle Chiller Cooling Water Airbrush Electronic Handwheel
Specifications
| Manufacturer | Takumi |
| Model | H12 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 10464 |

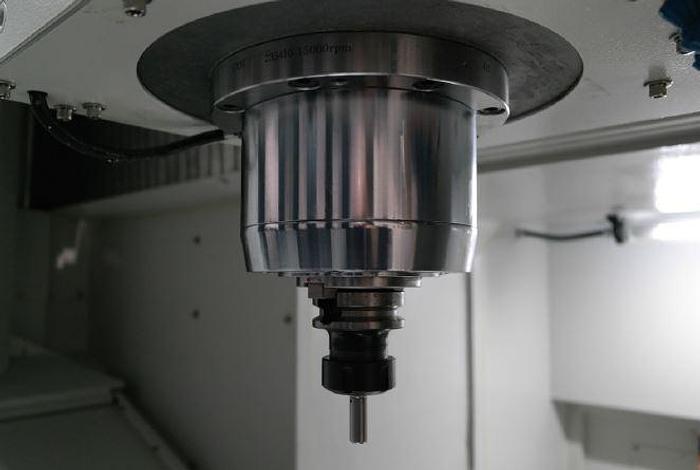

| Spindle speed | 15,000 rpm |
| X axis travel | 1,350 mm |
| Y axis travel | 950 mm |
| Z axis travel | 600 mm |

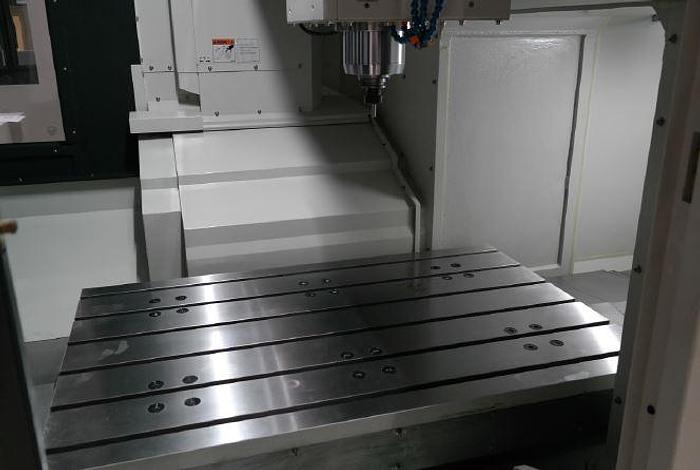

| Table dimensions | 1,500 x 960 mm |
| Table capacity | 1.8 Ton |
| Spindle power | 18.5 kW |
| Spindle taper | BT 40 BigPlus |
| Spindle torque | 140 Nm |
| Rapid traverse | 30 m/min |
| Machine weight | 13,000 kg |
