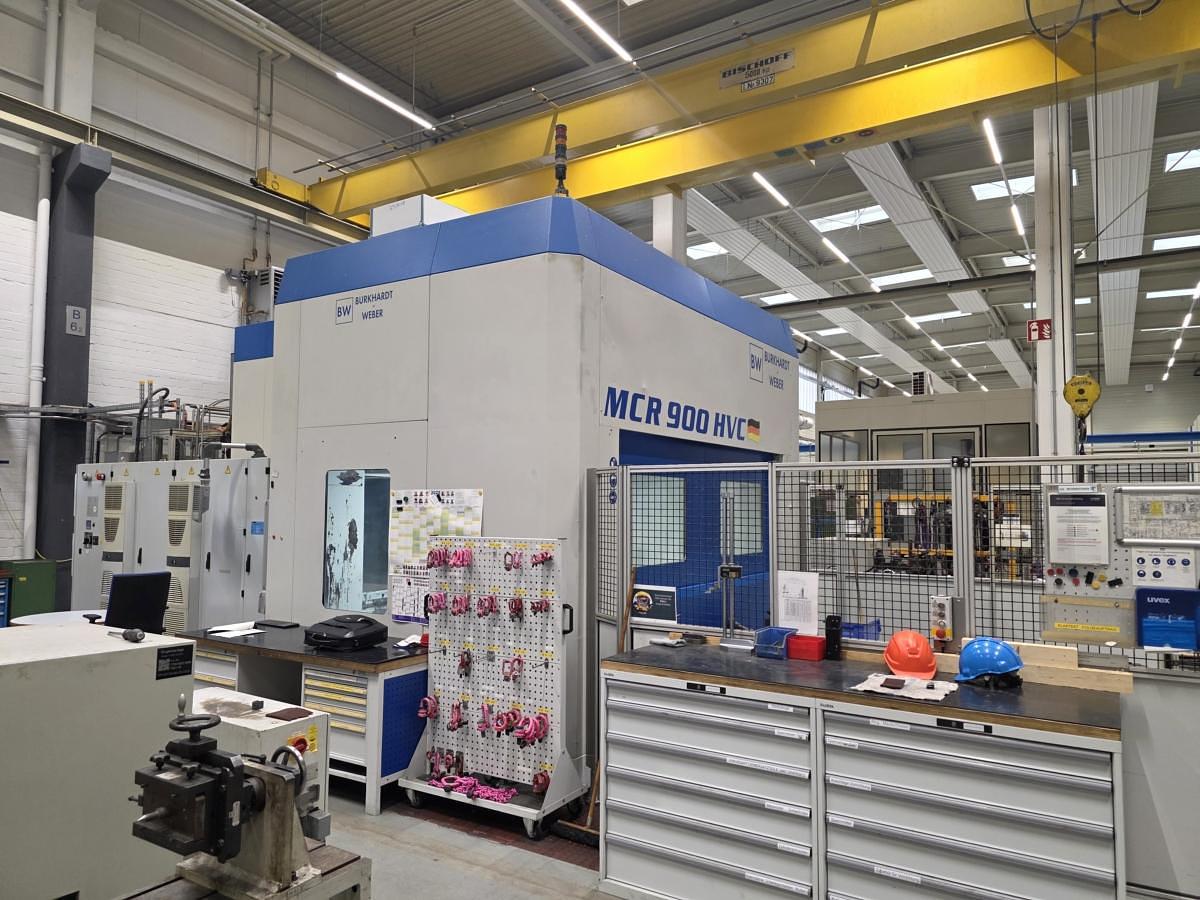

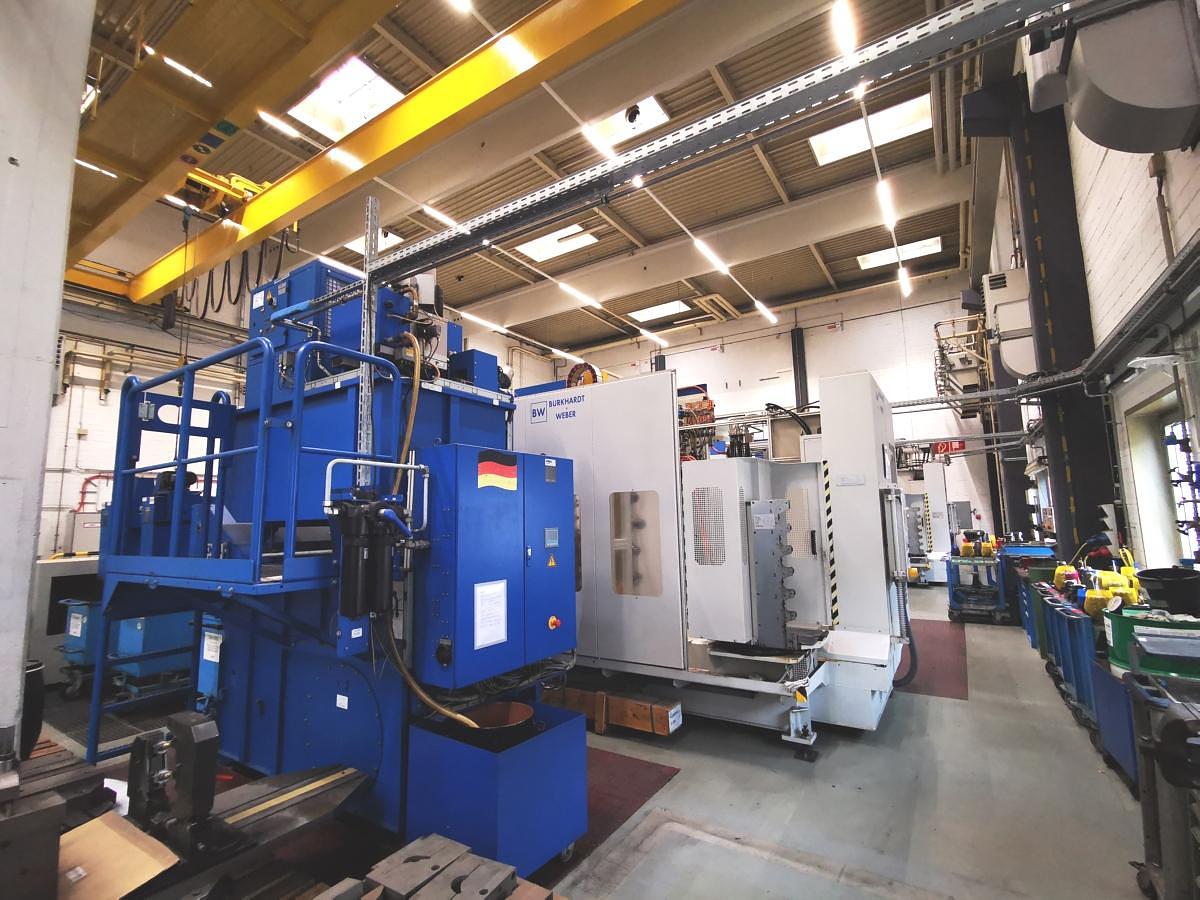

BURKHARDT + WEBER / MCR 900 HVC 2 Pallets Universal Machining Center - 5 Axes Simultaneously
BURKHARDT + WEBER / MCR 900 HVC 2 Pallets Universal Machining Center - 5 Axes Simultaneously
or
Call 770-509-0744
Description

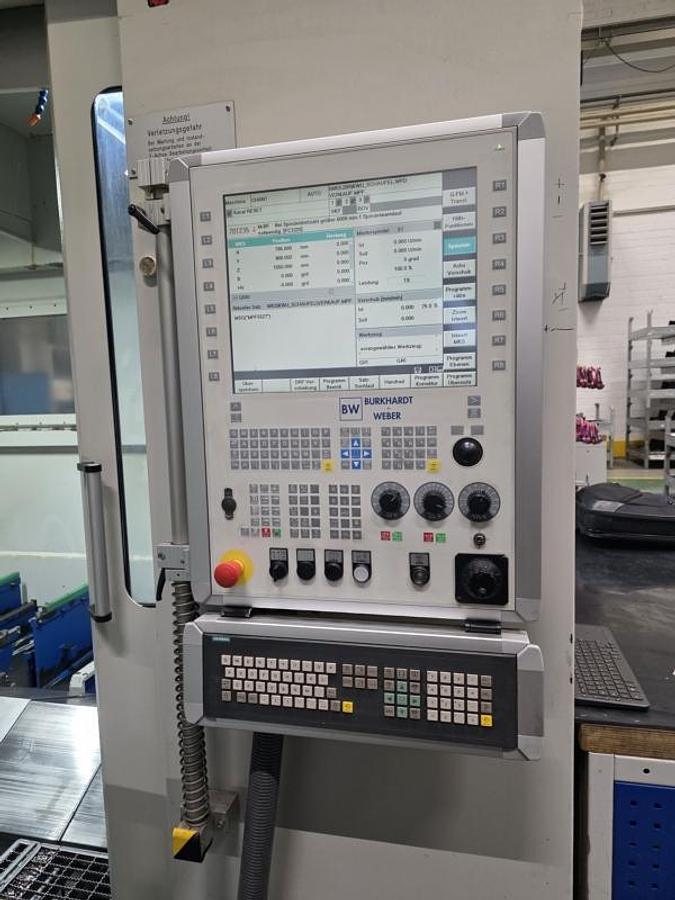

Siemens 840D Solution Line CNC Control System
Separate handheld control unit, wired, Siemens HT-2

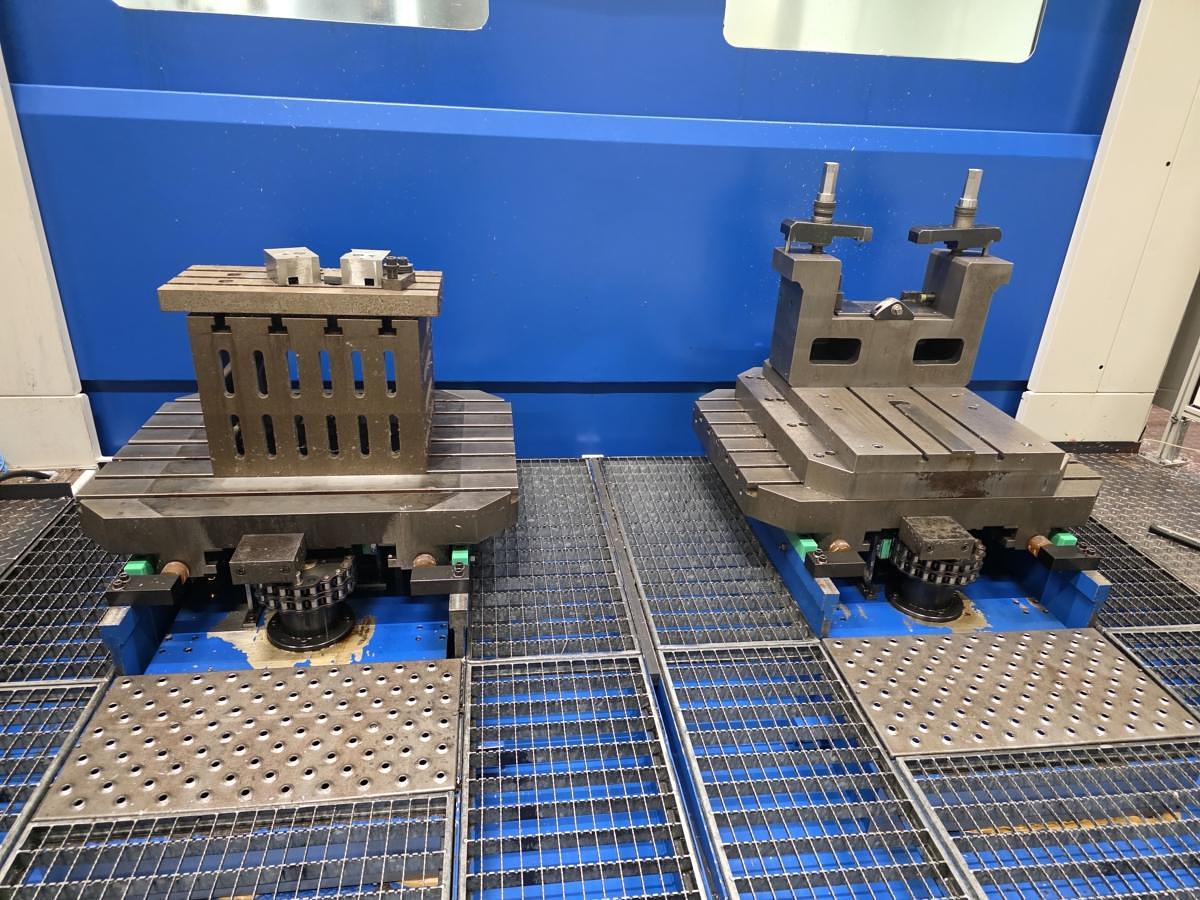

2-station pallet changer with safety light barrier

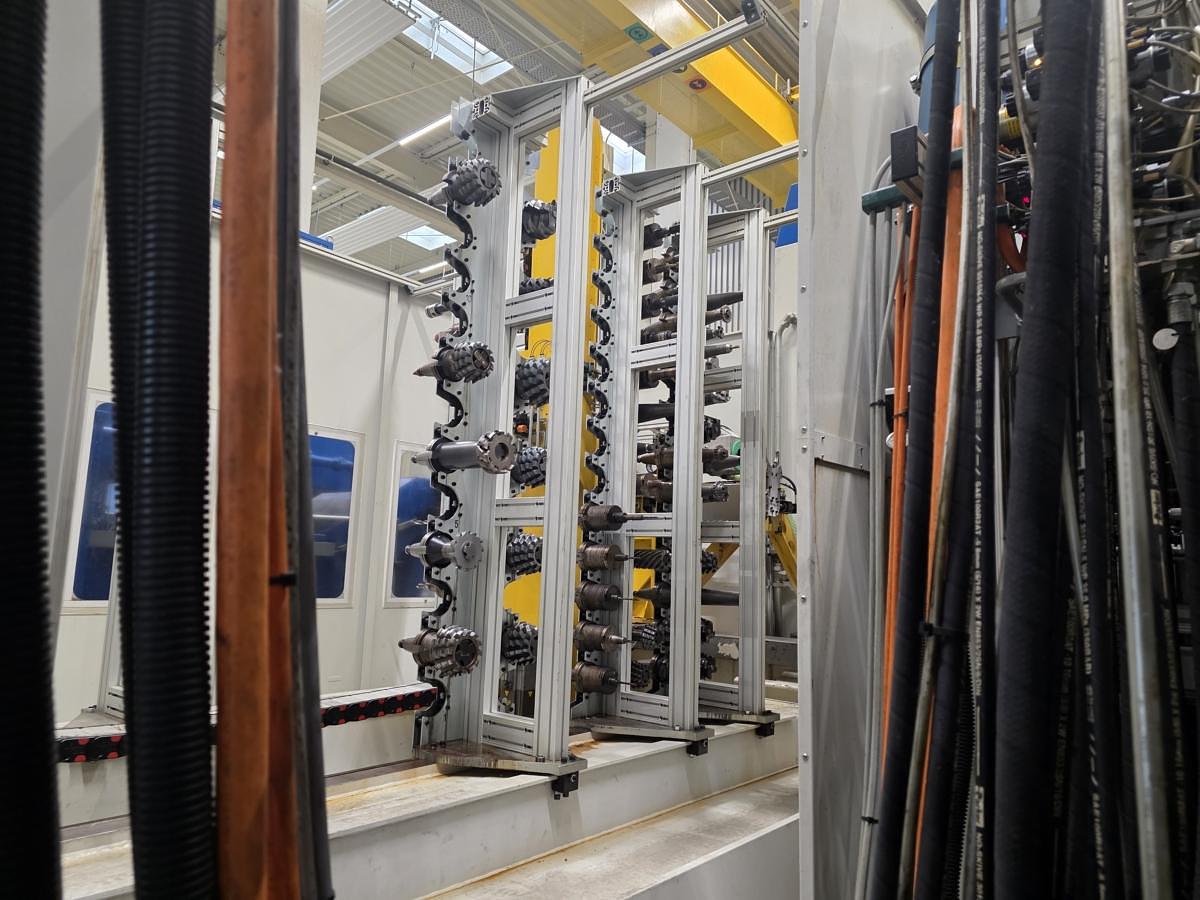

110-position tool changer (max. tool length 600 mm) with 2nd Siemens 840 D control panel
Tool taper cleaning system
Special cabin with oil mist extraction system
Coolant tank 3.300 liters, pump pressure 4 bar/50 bar (Q1/Q2)

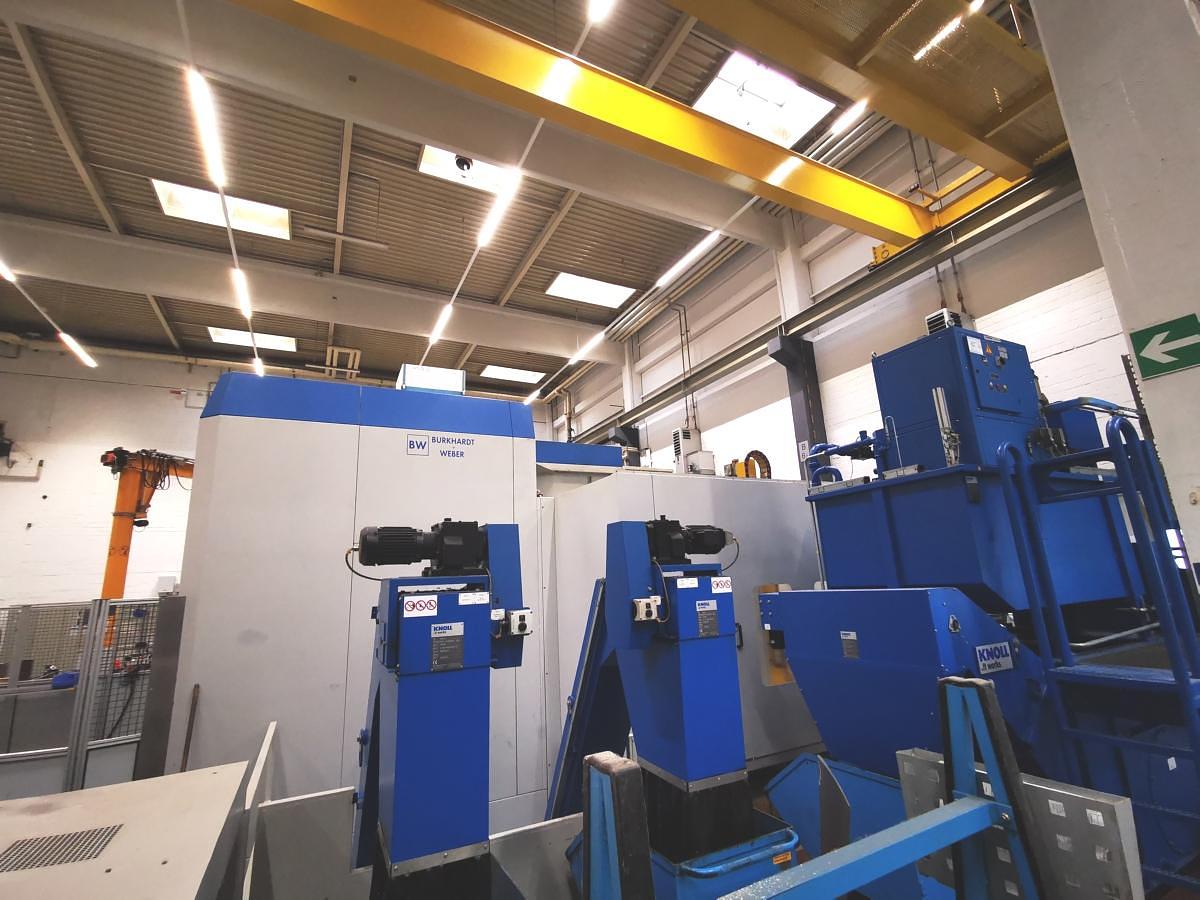

Chip conveyor
Workpiece measuring probe
Manual books
Spare part: New ball screw.
Specifications
| Manufacturer | BURKHARDT + WEBER |
| Model | MCR 900 HVC 2 Pallets Universal Machining Center |
| Year | 2011 |
| Condition | Used |
| Stock Number | 10466 |

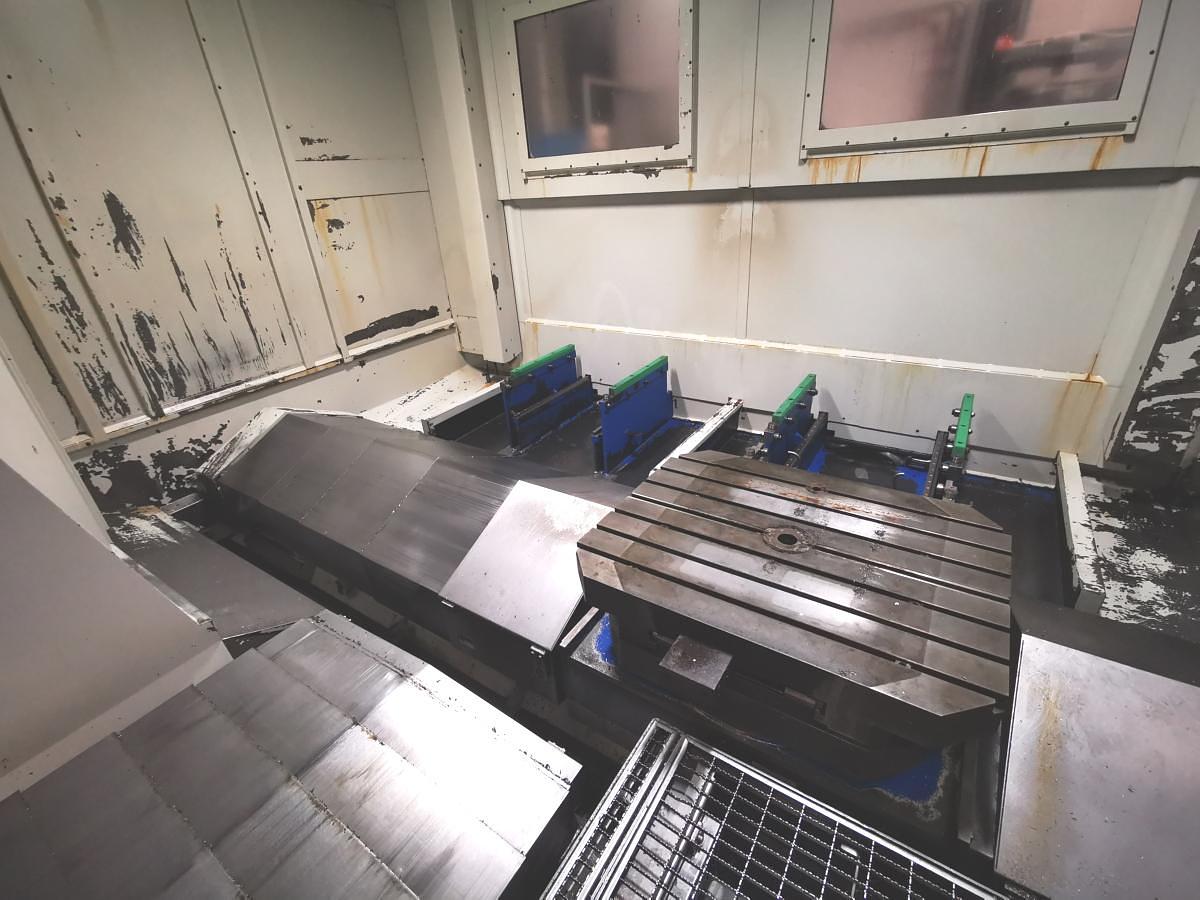

| Twin pallet size | 1,000 x 800 mm |
| Table indexing | 1 Degree 0.001 |
| Number of pallets | 2 |
| Table load capacity | 3,000 kg |
| X axis travel | 1,600 mm |
| Y axis travel | 1,250 mm |
| Z axis travel | 1,600 mm |
| Spindle speeds | 20 - 8,000 rpm |
| Spindle taper | SK 50 |
| Spindle power | 37/50 kW |
| Feed rate X,Y & Z stepless | 30000 mm/min |
| Max. Torque on spindle | 1410/2000 Nm |
| Total Power | 100 kVA |
| Machine dimensions | 1155 x 7998 x 5050 |
