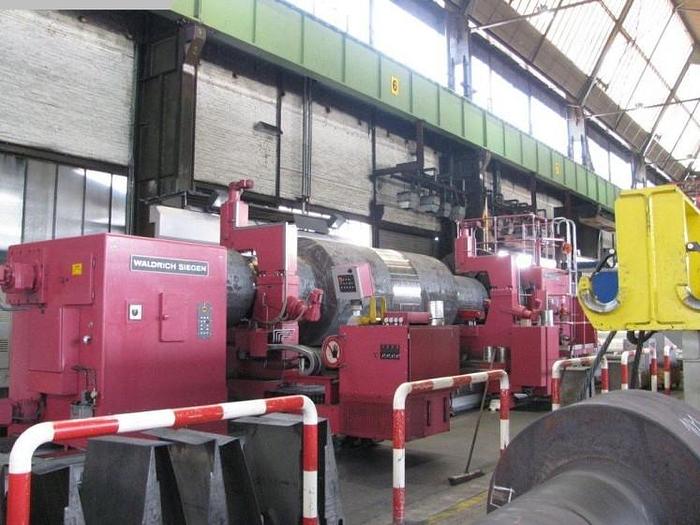

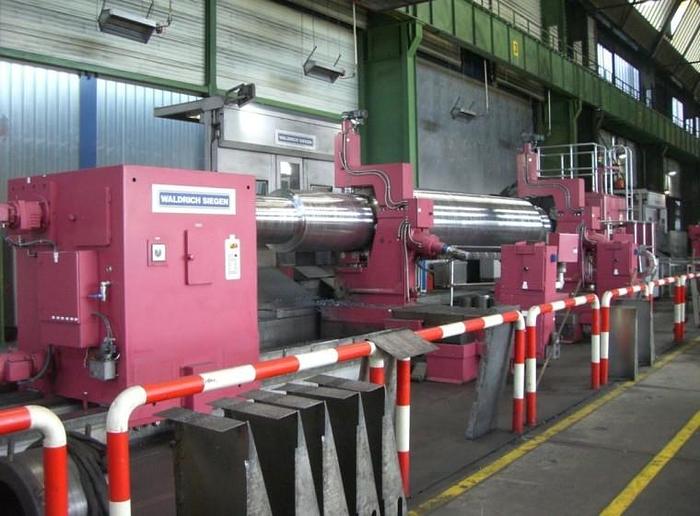

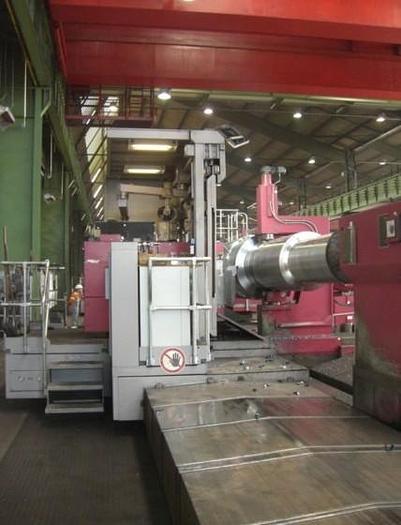

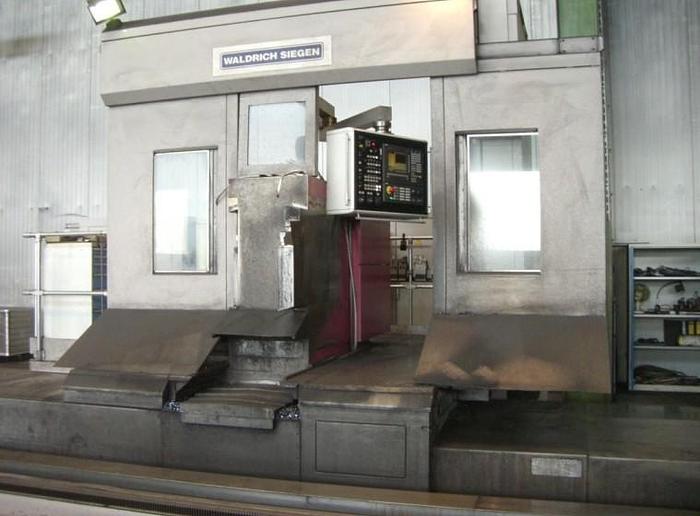

Waldrich Siegen DH2000 / 100-17, 5×15,000 CNC High Performance Heavy Duty Lathe
No longer available
Waldrich Siegen DH2000 / 100-17, 5×15,000 CNC High Performance Heavy Duty Lathe
Description

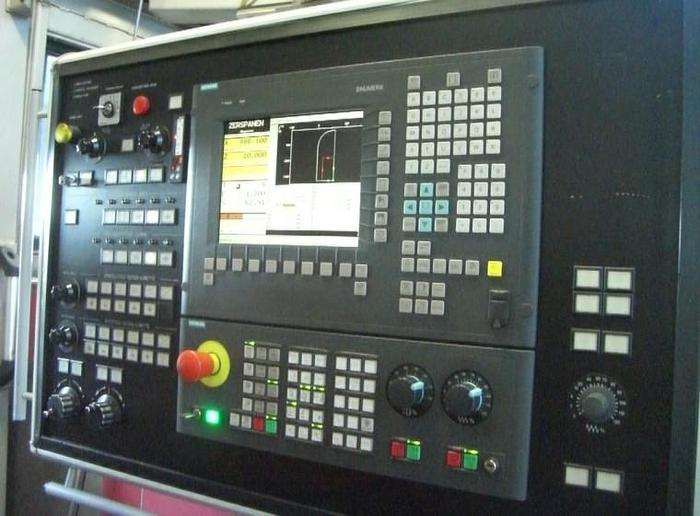

Siemens 840 D CNC Manual Turn for 3 Axis (Possible to Upgrade to 5 Axis) with Electric Handwheel for X & Z Axis
4-Way Bed Design.

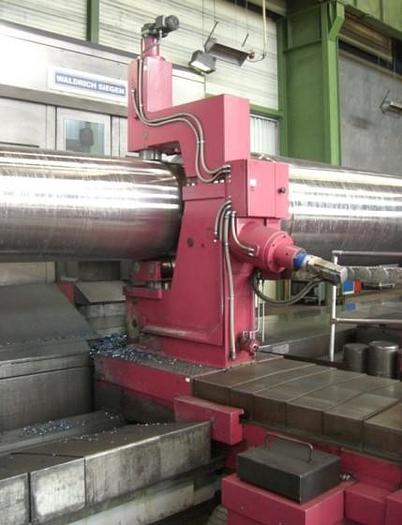

2 Steady-Rests 300-950 – 900-1800 mm 50 Ton Capacity
Electric Driven Tailstock

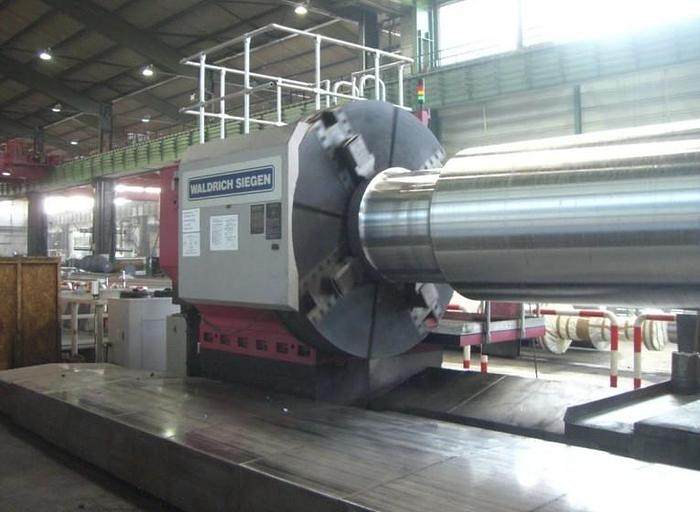

Face Plate with 4-Jaws-Diameter 2300 mm (90”)
Hydrostatic Guideways for Lathe Slide & Saddle Rest

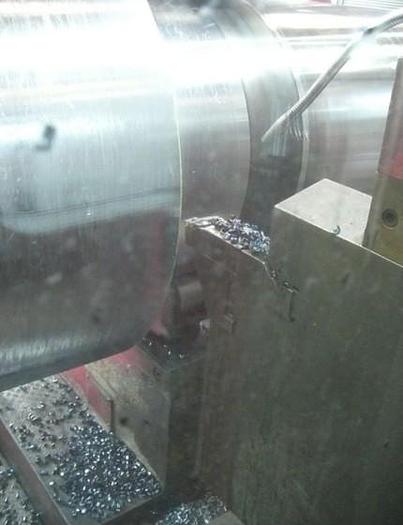

2 Work Tool Holders
Heidenhain Scales/Measuring System
Chip Conveyor

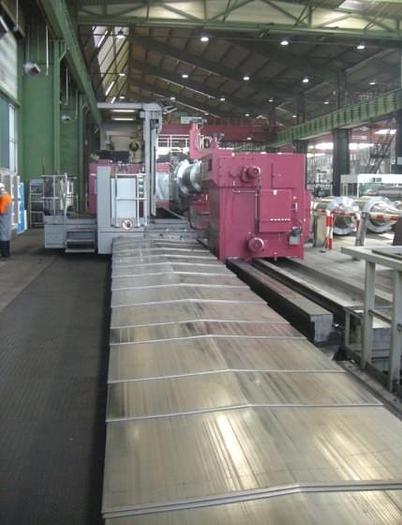

Way Guards

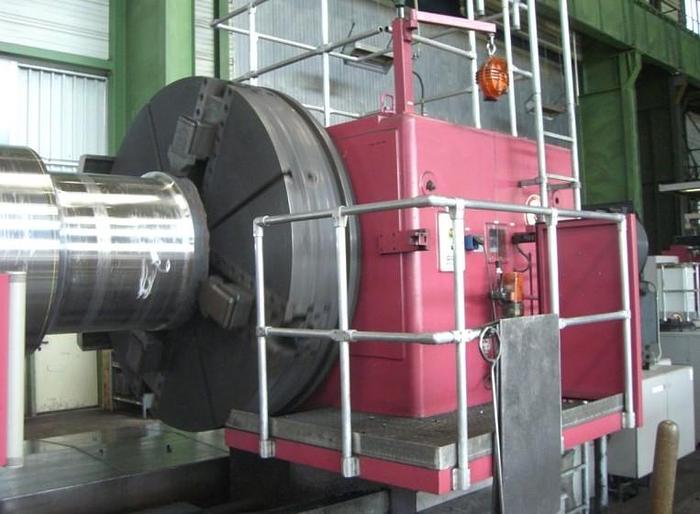

Service Platform
Specifications
| Manufacturer | Waldrich Siegen |
| Model | DH2000 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 10273 |
| Turning diameter over bed | 2,500 mm |
| Turning diameter over slide rest | 2,000 mm |
| Distance between centers | 15,200 mm |
| Working length | 15,120 mm |
| Max workpiece weight between centers | 100 Ton |
| Bed width | 3,150 mm |
| Center height over bed | 1,650 mm |
| Faceplate turning speed range | 200 rpm |
| Transmission ratio | 2 |
| Max torque on the faceplate | 17,5000 Nm |
| Faceplate diameter | 2,300 mm |

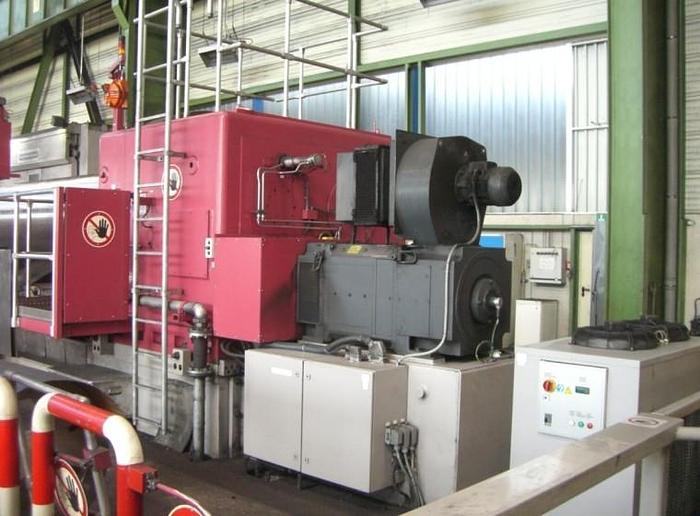

| Main drive | 236 kW |
| Z axis travel | 17,000 mm |
| Feed | 0 - 4,000 mm/min |
| X axis travel | 800 mm |
| Approximate weight of machine | 180 Ton |
