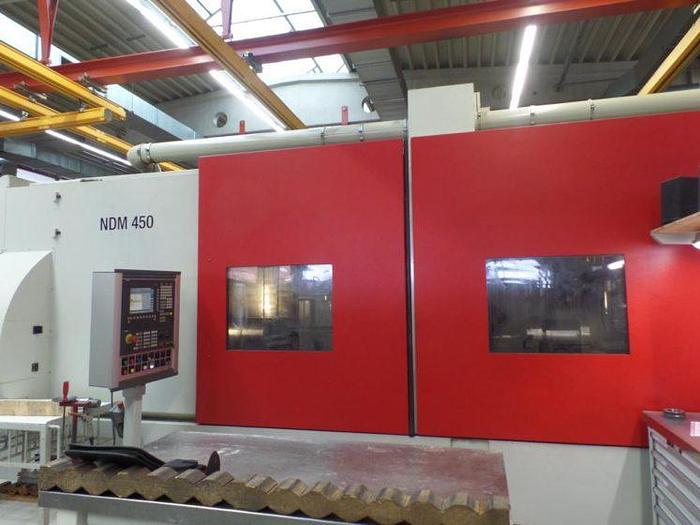

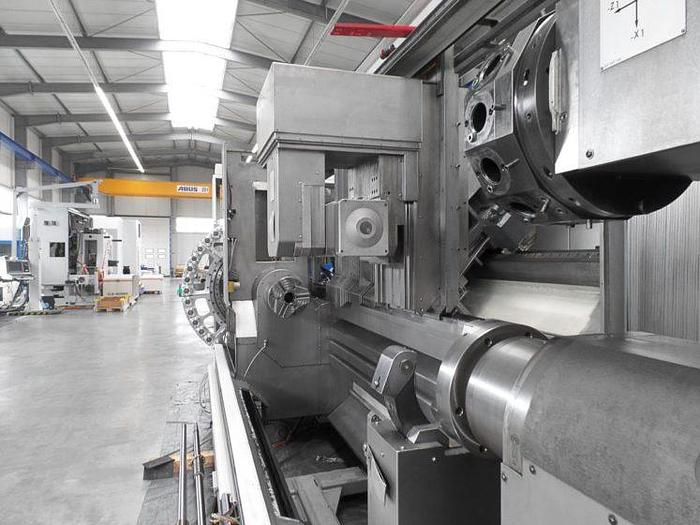

MAG FMS NDM 450-4-300 CNC Turning Milling Machine
No longer available
MAG FMS NDM 450-4-300 CNC Turning Milling Machine

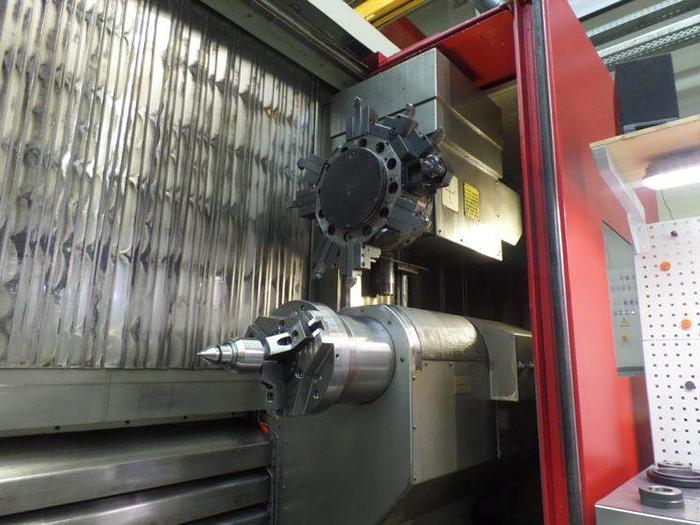

Description
Siemens 840D Power Line CNC Control Integrated Spindle Motor with C Axis – Positioning Accuracy 0.01 Degree Clamping Chuck – FORKARDT 3 QLC/K315 All Drives in Digital Aero-Technology Coolant System with Coolant Tank 450 Liter – Feed Pump 5 bar/50l/min – High Pressure Pump 50 bar – Band Filter 2 x Chip Conveyor Dust Exhaustion Unit Automatic Doors Self Centering Steady with NC Carriage (Lower Left) 40 Tool Position Tool Magazine
Specifications
| Manufacturer | MAG |
| Model | FMS NDM 450-4-300 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 10731 |
| Between centers | 3,000 mm |
| Swing over bed | 700 mm |
| Swing over slide | 600 mm |
| Turning diameter | 450 mm |
| Longitudinal travel | 3,100 mm |
| Clamping range | 50 - 310 mm |
| Positioning accuracy of c axis | 0.01 Degree |
| Spindle diameter in front bearing | 150 mm |
| Spindle bore | 100 mm |
| Spindle nose din 55026 type a | Size 8 |
| Clamping chuck | FORKARDT 3 QLC/K315 |
| Drive power (40% ed) | 95 kW |
| Torque max (40% ed) | 128 Nm |
| Live spindle speed | 3,200 rpm |
| Spindle speed, max | 7,000 rpm |
| Feed max | 30 m/min |
| Cross travel (x1) | 455 mm |
| Vertical travel (y1) | +/- 75 mm |
| Longitudinal travel (z1) | 2,600 mm |
| Rapid feed x-y-z | 30 m/min |
| Working feed x-y-z | 15,000 mm/min |
| Tool taper | VDI 50 |
| Drive power max (40% ed) | 48 kW |
| Swivel range | +/- 105 Degree |
| Number of tools | 40 |
| Tool length, max | 350 mm |
| Tool weight | 8 kg |
| Tool diameter, max | 100 mm |
| Cross travel (x2) | 265 mm |
| Longitudinal travel (z2) | 3,050 mm |
| Rapid feed z axis | 30 m/min |
| Rapid feed x axis | 15 m/min |
| Max feed power 100 / 25% | 10 / 18 kN |
| Max power of driven tools 25% | 100 Nm |
| Equipped with self centering steady | SMW SLU5 |
| Rapid feed | 15 m/min |
