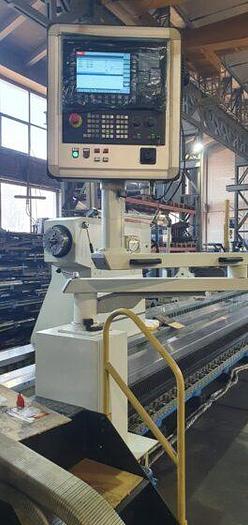

Poreba TCF 224-3/2 x 12 M CNC Heavy Duty Lathe
Poreba TCF 224-3/2 x 12 M CNC Heavy Duty Lathe
orCall 770-509-0744
Description

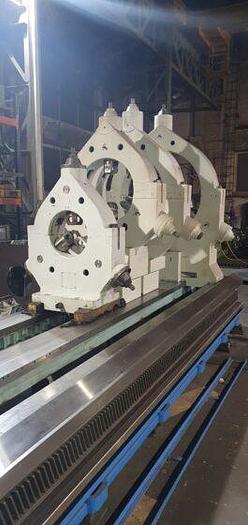

1 Pc. Steady Rest – Diameter 700 – 1100 mm 1 Pc. Steady Rest – Diameter 250 – 600 mm 1 Pc. Steady Rest – 400 – 800 mm
Specifications
| Manufacturer | Poreba |
| Model | TCF 224-3/2 x 12 M |
| Condition | Used |
| Stock Number | 10902 |
| Retrofit | 2021-22 |
| Between centers | 12,000 mm |
| Capacity between centers | 30 Ton |
| Swing over bed | 2,240 mm |
| Swing over slide | 1,800 mm |

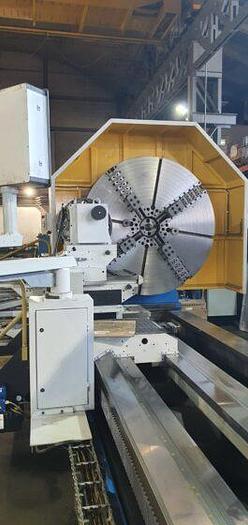

| Chuck diameter | 1,800 mm |

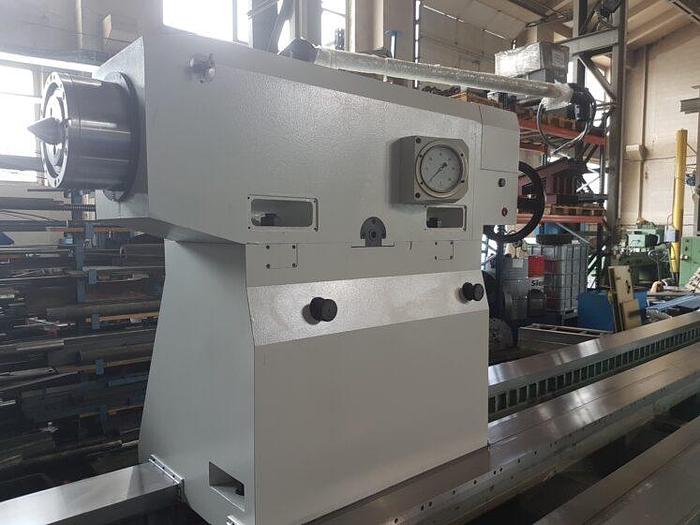

| Tailstock diameter | 280 mm |
| Spindle speed range | 0.8 - 400 rpm |
| Number of spindle speeds | 3 |
| Weight capacity between centers with 2 steadies | 40 Ton |
| Diameter spindle front journal mounted in roller bearings | 320 mm |
| Spindle bore | 105 mm |
| Jaw clamped diameter | 230 mm |
| Bed ways | 3-Bedway |
| Bed way width | 1,600 mm |
| Bed height | 600 mm |
| Longitudinal feeds | 0.1 - 3,000 mm/min |
| Cross feeds | 0.1 - 2,000 mm/rev |
| Cross slide travel | 600 mm + 250 mm |
| Carriage x axis | Ballscrew |
| Carriage z axis | Double Pinion & Rack (Poreba System) |
| Tailstock spindle nose | 70H6 |
| Barrel advance distance | 200 mm |
| Rapid barrel advance speed | 300 mm/min |
| Main motor power - siemens | 100 kW |
| Rapid feed motor power | 3 kW |
| Tailstock motor power | 1.1 kW |
| Machine length | 17,900 mm |
| Machine weight | 52 Ton |
