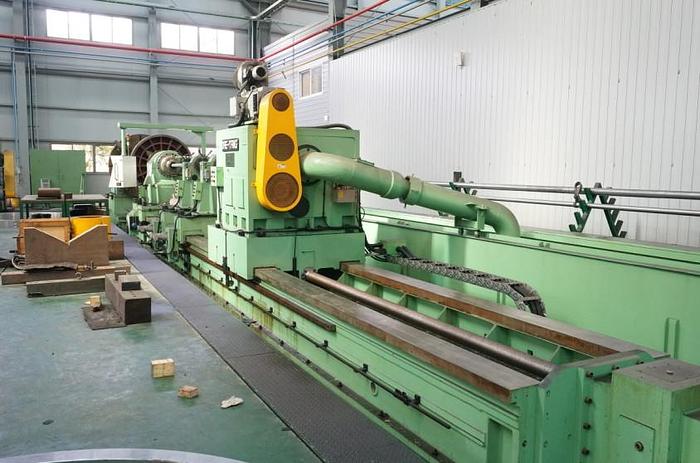

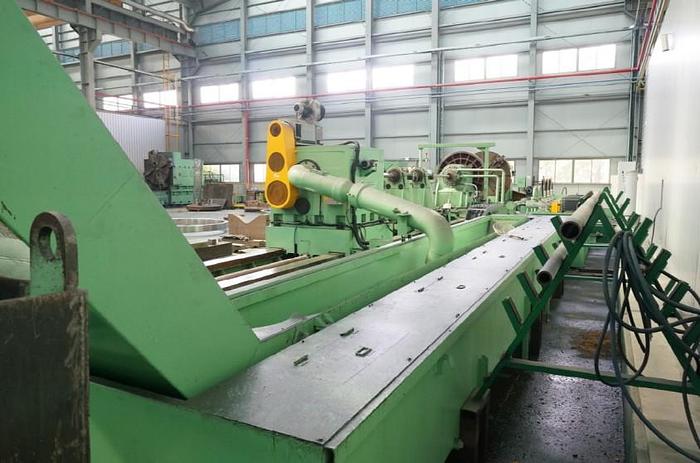

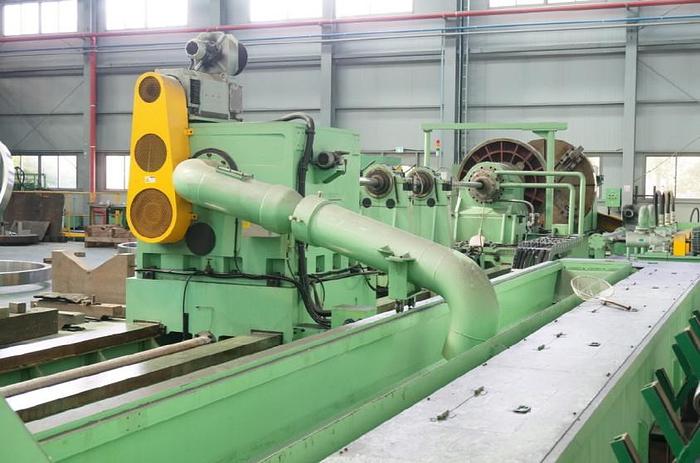

Dae-Yang DMBL 300-6000 CNC Deep Hole Boring Lathe
Dae-Yang DMBL 300-6000 CNC Deep Hole Boring Lathe
orCall 770-509-0744
Description

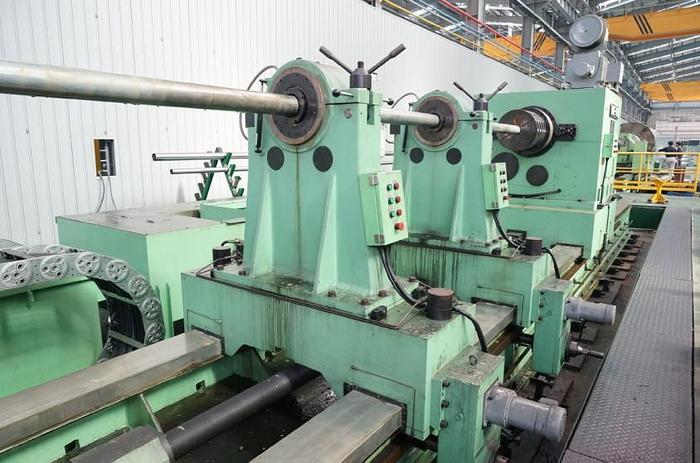

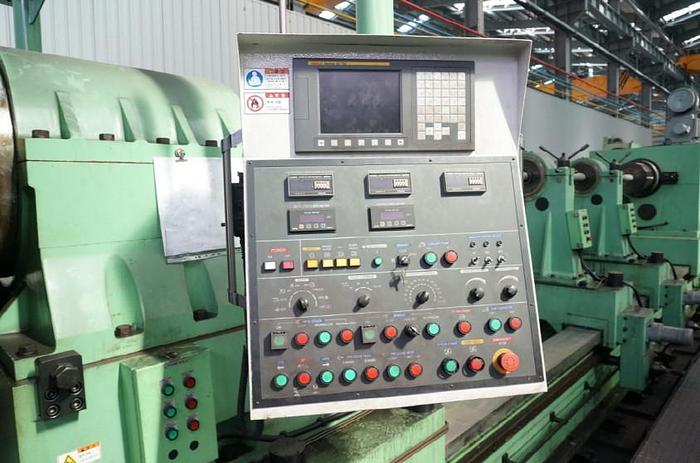

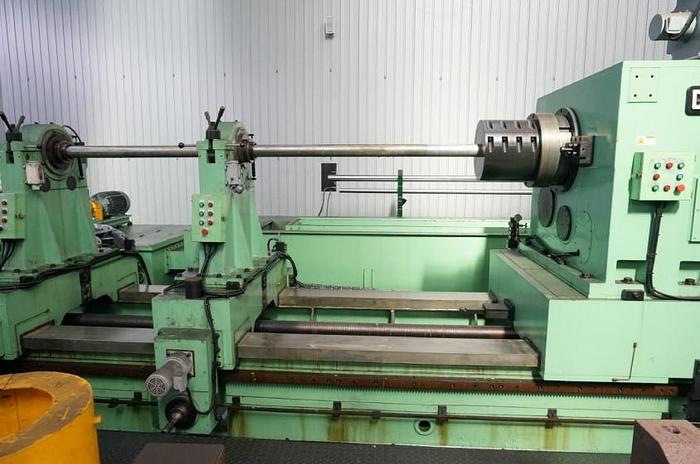

Fanuc O-iTC CNC Control Chip Conveyor Coolant Tank & Coolant Sub Tank Tube Rest x 2 Work Rest
Specifications
| Manufacturer | Dae-Yang |
| Model | DMBL 300-6000 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 10033 |
| Drilling depth | 6,000 mm |
| Chuck diameter | 2,032 mm |
| Capacity between centers | 30 Ton |
| Trepanning diameter | 300 mm |
| Counter boring diameter | 300 mm |
| Workpiece diameter | 2,500 mm |
| Solid drilling diameter | 60 - 190 mm |
| Spindle speed | 390 rpm |
| Z-axis stroke | 6,000 mm |
| Workpiece length | 1,500 - 6,000 mm |
| Chuck speed | 40 - 120 rpm |
| Number of spindle | 1 |
| Z-axis rapid | 3,000 mm/min |
| Feeding speed | 0 - 1,000 mm/min |
| Chuck size - pressure head | 1,651 mm |
| Coolant pump pressure for bta | 250 Liters |
| Coolant pump capacity for bta | 50 L/min x 3 |
| Dc motor headstock | 110 kW |
| Dc motor spindle | 110 kW |
| Z-axis servo motor | 100/2500i (100Nm) |
| High coolant motor | 37 kW, 4P x 3 Sets |
| Hydraulic pump motor | 5.5 kW x 4P |
| Power source | 380 V |
| Control power | 220 V |
| Approximate machine weight | 65,000 kg |
