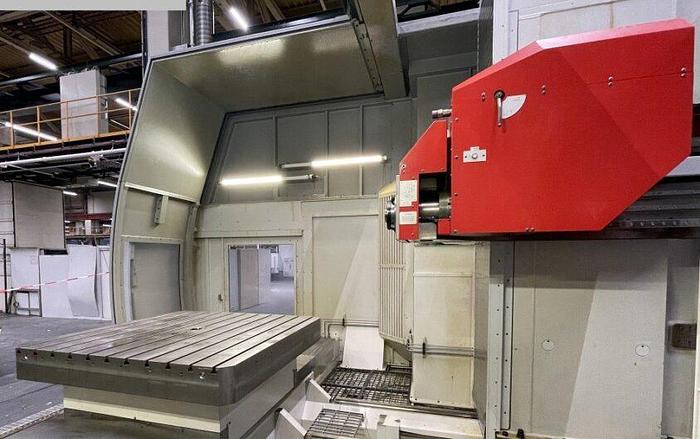

SAMAG TFZ 3L-1,500 CNC Deephole Boring Machine
SAMAG TFZ 3L-1,500 CNC Deephole Boring Machine
orCall 770-509-0744
Description

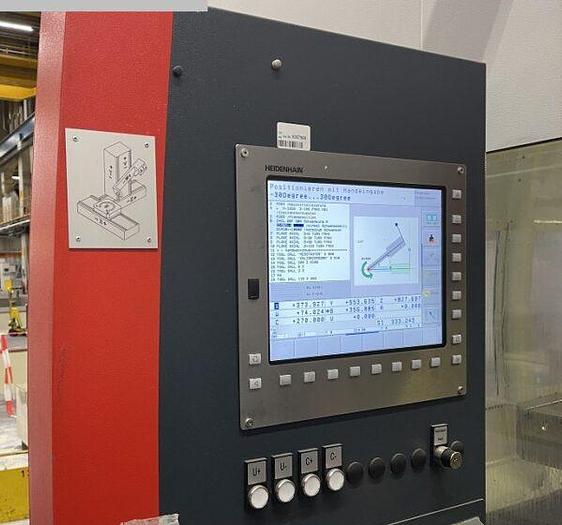

Heidenhain iTNC 530 CNC Control Coolant System – 30 bar with 115 L/minute to 90 bar with 30 L/minute Tool Changer – 32 Position x (4×8) Max Tool Diameter (all spaces occupied) 148 mm Max Tool Length 400 mm Max Tool Weight 15 kg 3 Pieces Stead Rests Coolant – 585 Liter High Pressure Pump – 30 – 90 bar Chip Conveyor Tool Monitoring of the Main Spindle by Torque Digital Drive Control Drill Milling Cycles and Thread Cutting without Balancing Chuck 700 Pieces of Single-Lip Drills can be Purchased Separately – Almost All Unused Manufacturer: Botec und Iscar Diameter of Bores: 5/8/10/12/13/13.1/14/15/16.2/16.5/17/18/18.1/16/22/24/27/30/33 Length of Bores: 600/1000/1,500/1,900
Specifications
| Manufacturer | SAMAG |
| Model | TFZ 3L-1500 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 11028 |
| Drilling depth | 1,500 / 1,800 mm |
| Drilling diameter | 4 - 40 mm |
| X axis travel | 2,500 mm |
| Y axis travel | 1,650 mm |
| Z axis travel | 1,550 mm |
| W axis travel | 2,250 mm |
| A axis | -30/+30 Grad |
| B axis | 360° |
| Live spindle speed | 6,000 rpm |

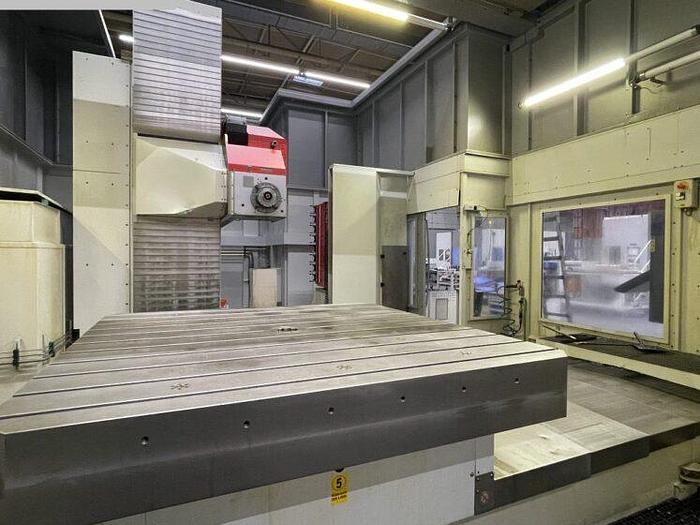

| Table surface area | 1,800 x 1,800 mm |
| Table load | 26 Ton |
| Tool taper | HSK 100 |
| Rapid traverse | 20 m/min |
| Max torque on the working spindle | 952/648 Nm |
| Threading | M30 |
| Drive power - drilling & milling device | 17 / 25 kW |
| Power connection | 102 kVA |
| Weight of the machine, approximate | 55 Ton |
| Machine dimensions, approximate | 9.85 x 9 x 5 m |
