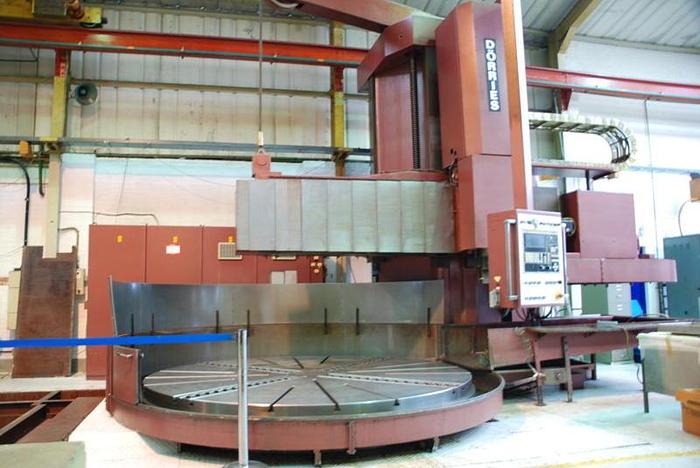

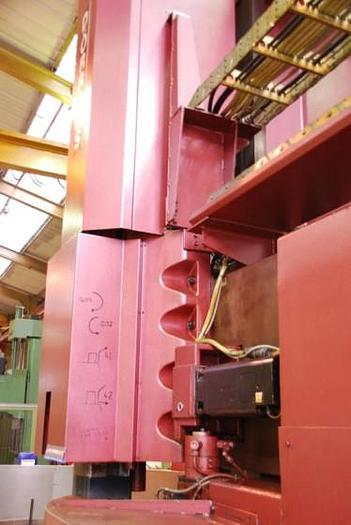

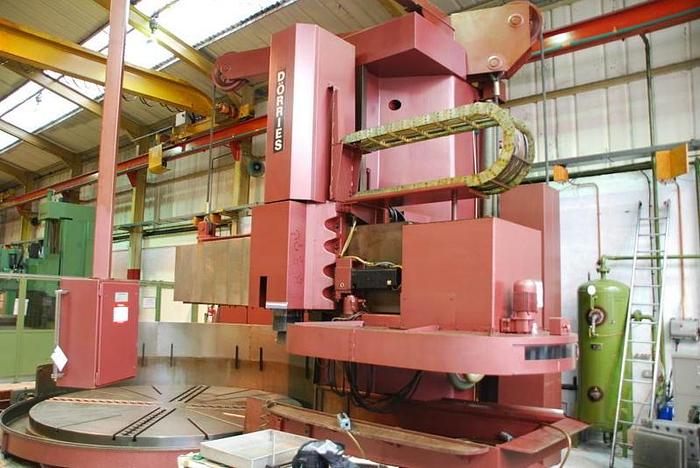

Dorries CTE 320/3400 CNC Single Column Vertical Boring Machine
No longer available
Dorries CTE 320/3400 CNC Single Column Vertical Boring Machine
Description

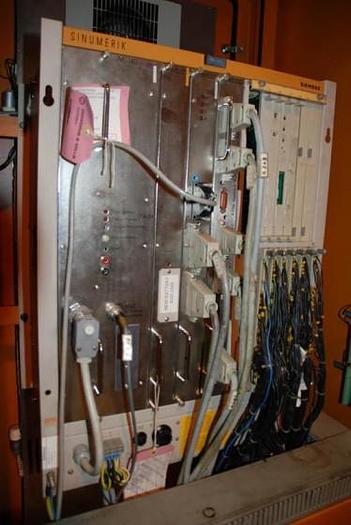

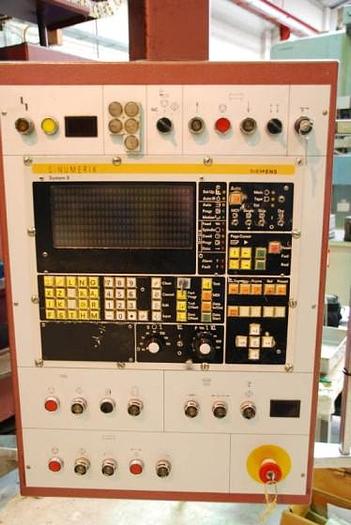

Siemens Sinumerik 8T CNC Control

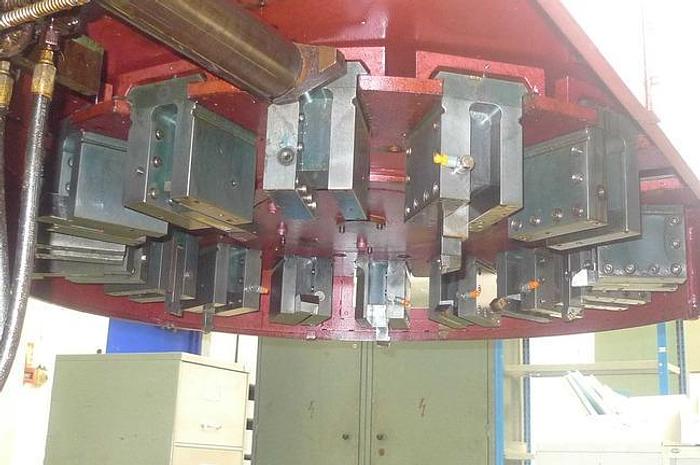

Table speed range - stepless 3 ranges 0.8 - 100 rpm Tool Changer – 16 Position Displace-able Table – Hydraulic Manual SCR Feed Drives – Each Axis Has Its Own Drive Ball Screws & Slide Roller Guides Circular Interpolation
Specifications
| Manufacturer | Dorries |
| Model | CTE 320/3400 |
| Year | 1981 |
| Condition | Used |
| Stock Number | 10073 |

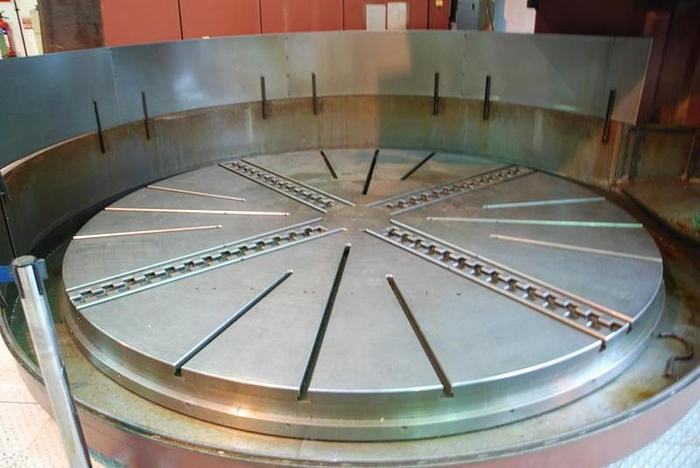

| Table diameter | 3,200 mm |
| Swing | 5,100 mm |
| Turning height | 2,650 mm |
| Table capacity | 60 Ton |
| Table turn speed | 100 rpm |
| Z axis travel | 1,250 mm |
| W axis travel | 1,500 mm |
| Side adjustment | 2,000 mm |
| Main motor power | 75 kW |
| Main table torque | 60000 KVA |
| Feeds | 0.01 - 1,000 mm/min |
| Rapid traverse | 6,000 mm/min |
| Tool shank size | 40 x 40 mm |
| Machine weight | 70 Ton |
| Machine dimensions | 9.3 x 6.1 x 6 m |
