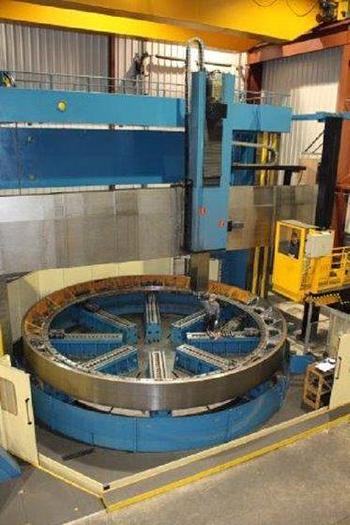

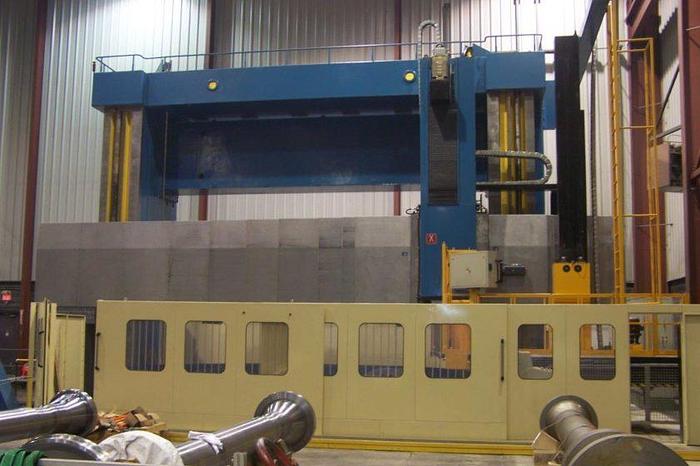

Wuhan 65/80 CNC Double Column Heavy Duty Vertical Turning & Milling Machine
Wuhan 65/80 CNC Double Column Heavy Duty Vertical Turning & Milling Machine
orCall 770-509-0744
Description

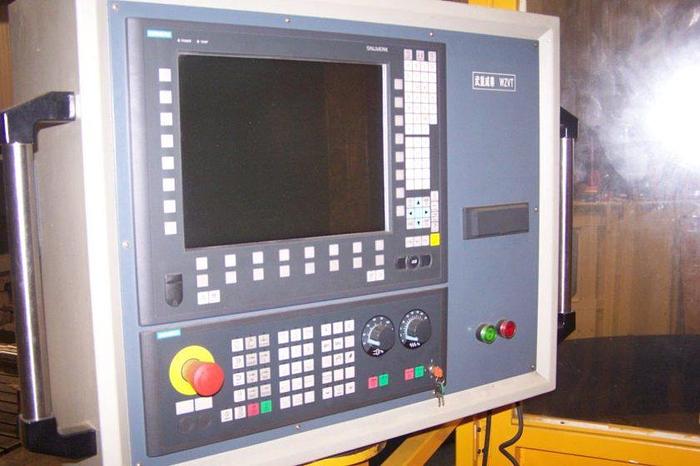

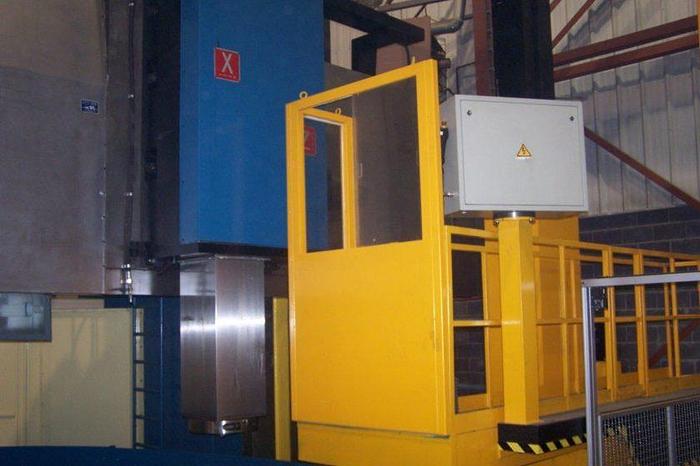

Siemens 840 DE CNC System. Live Spindle Table C Axis. Heidenheim ROD 800 Encoder 360.000 deg. Separate C-Axis Siemens AC Motor Right Angle Milling Head Operator Stations. Hydrostatic Guideways for Cross Rail and Ram X-Axis & Z Axis are equipped with Balls Screws and Heidenhain Scales. Table has 8 Clamping Jaws. 8 pieces of Outriggers to support 8 meter Swing Chip Conveyor and Coolant
Specifications
| Manufacturer | Wuhan |
| Model | 65/80 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 10218 |
| Table diameter | 6,300 mm |
| Swing | 8,000 mm |
| Turning height | 4,000 mm |
| Table capacity | 160 Ton |
| Table turn speed | 31.5 rpm |
| Live spindle speed | 800 rpm |
| Z axis travel | 2,500 mm |
| X axis travel | -700 - +4,300 mm |
| W axis travel | 3,500 mm |
| 8 pieces of extended arm for max diamater | 8,000 mm |
| Table turn speed milling | 0.0002 - 0.2 rpm |
| Table indexing - c axis | 360 Degree |
| Ram section | 400 x 400 mm |
| Maximum torque of table turning | 400 KN/m |
| Ac servo motor torque for indexing | 58 Nm |
| Main motor power for turning | 125 kW |
| Speed of cross rail travel | 310 mm/min |
| Maximum travel of rail head center over table center | 700 mm |
| Maximum turning force (when ram extended 1,000 mm) | 100 kN |
| Max cross section of tool bar | 70 x 70 mm |
| Feed range of rail head and ram | 0.1 - 500 mm/min |
| Rail head and ram rapid speed | 4,000 mm/min |
| Max torque milling spindle | 1000 Nm |
| Taper of milling spindle | ISO 50 |
| Maximum diameter of milling tool | 250 mm |
| Total power of machine | 250 kW |
| Total weight of the machine | 350 Ton |
