HNK VTC 50/70 CNC Heavy Duty Double Column Vertical Boring & Turning Machine with Live Spindle
HNK VTC 50/70 CNC Heavy Duty Double Column Vertical Boring & Turning Machine with Live Spindle
orCall 770-509-0744
Description

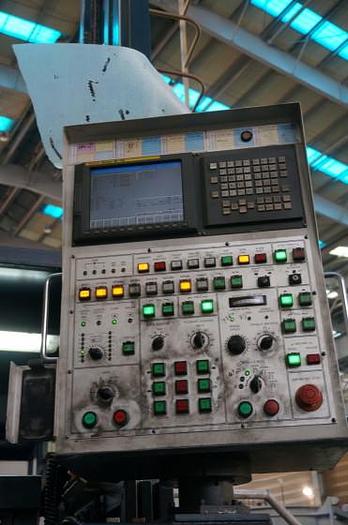

Fanuc 18i TB CNC Control System with 104” TFL LCD-Memory 2,560M, M.P.G. Handle Live Spindle C Axis Machining – Table Indexing 0.001 deg.
Table Turn Speed (2 step) 50 rpm 24 Position Automatic Tool Changer Grinding Attachment 4-Jaw Independent Manual Chuck Jaws Turning Tool Holders Linear Scales For X & Z Axis Cross Rail Steel Covers Column Steel Way Covers External Coolant Table Lubrication Cooling System Hydraulic Power Unit Operator Platform Hinge Type Chip Conveyor Chip Bucket Automatic Power Off Table Extension Beams Rigid Tapping Dynamic Graphic Display
Specifications
| Manufacturer | HNK |
| Model | VTC 50/70 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 10342 |

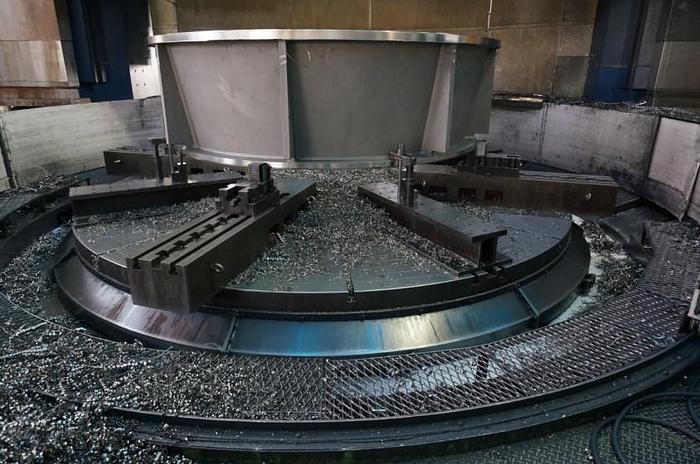

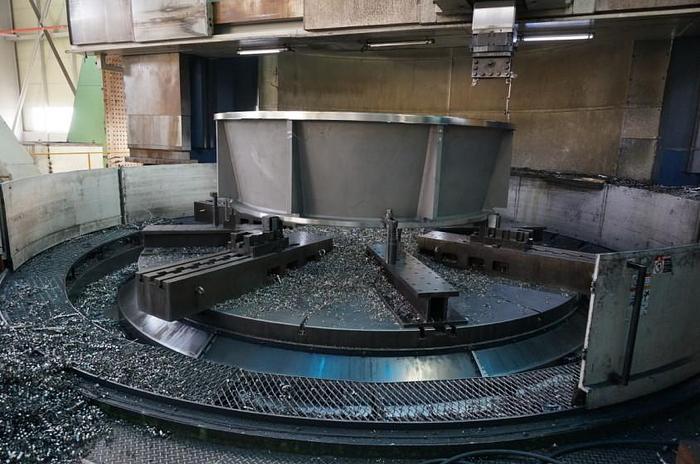

| Table diameter | 5,000 mm |
| Swing | 7,000 mm |
| Turning height | 5,000 mm |
| Table capacity | 60 Ton |
| Table turn speed | 50 rpm |
| Live spindle speed | 1,000 rpm |
| Z axis travel | 2,500 mm |
| X axis travel | 4,000 mm (-200 mm +3,800 mm) |
| W axis travel | 3,250 mm (250 mm x 13 Steps) |
| Distance from table top to spindle end | 5,200 mm |
| Ram size | 400 x 400 mm |
| Tool shank size | 60 x 60 mm |
| Table speed for indexing (c axis) | 0 - 0.3 rpm |
| Table indexing control (c axis) | 0.001 Deg |
| Rapid feed of ram head, x,z axis | 6,000 mm/min |
| Feed rate of ram head, x,z axis | 1 - 3,000 mm/min |
| Milling spindle taper | ISO 50 |
| Main motor for table drive - dc | 121 kW |
| Live milling spindle motor - ac | 22/26 kW |
